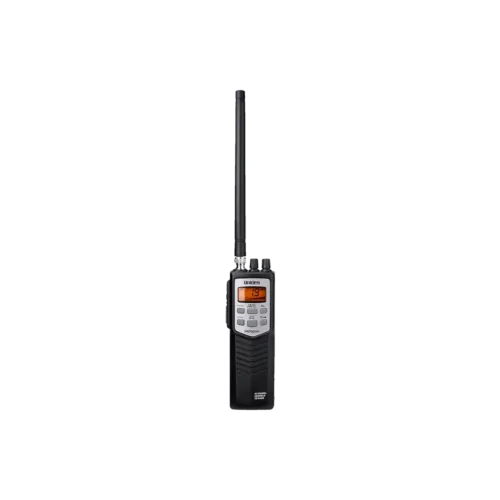

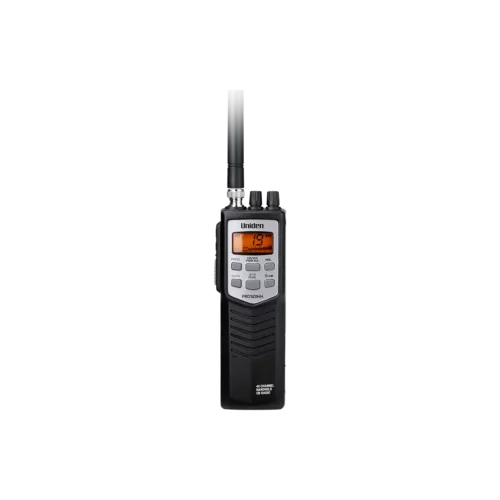

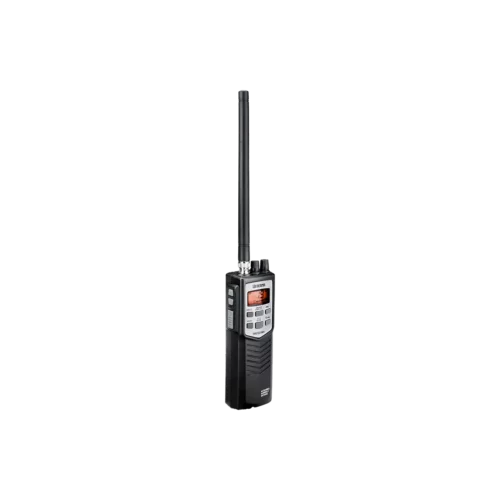

Uniden PRO501HH CB Radio
$152.95
The PRO501HH radio is a mobile radio designed for use in the Citizens Band (CB) Radio Service. It will operate on any of the 40 AM frequencies authorized by the Federal Communications Commission (FCC).
The Uniden PRO501HH has all the features you need. 40 CB channels let you tune in to the action channels. NOAA weather alerts keep you informed of severe weather conditions and the Dual Watch feature lets you talk on one channel, while listening in on another.
Use the high-power setting to send out the strongest signal; or switch to low-power to preserve batteries. There is also a backlight on/off switch and a key lock feature. Add to that squelch control, and automatic noise limiter and you have a reliable handheld CB radio that provides crisp, clear communication.
40 CHANNEL OPERATION
Enjoy the complete range of 40 CB radio channels to communicate with those around you. The backlit display is easy to read, even in low light conditions.
NOAA WEATHER ALERTS
Alerts you of severe conditions in your immediate area in the event of a NOAA Weather or Emergency Alert.
AUTOMATIC NOISE LIMITER
For reduced external noise.
INSTANT CHANNEL 9/19
Quickly set the radio to emergency channel 9 and 19.
AUTOMATIC GAIN CONTROL
For constant sound level.
| Weight | 1.03 lbs |
|---|---|
| Dimensions | 4.5 × 2 × 9 in |
| Brand | Uniden |
Specifications
Uniden PRO501HH Specs
GENERAL
- Channels: 40 AM
- Frequency Range: 26.965 to 27.405 MHz
- Frequency Control: Phase Locked Loop (PLL) synthesizer
- Frequency Tolerance: ±0.005%
- Operating Temperature: 14ÂşF to 131ÂşF (-10ÂşC to +55ÂşC)
- Microphone: Electret Type
- Input Voltage: 13.8 V DC nom, 10.9VDC – 15.6VDC
- Current Drain: TX full mod., 1.7A
- RX: @RX max. audio 0.4A
- Size: 2.3 x 7.04 x 1.67 in (58.5 x 179 x 42.5mm)
- Weight: 0.56 lbs (255 g)
TRANSMITTER
- Power Output: 4 Watts @13.8 VDC
- Modulation: 85% – 95%
- Freq. Response: 400 Hz – 2.5 KHz
- Output Impedance: 50 ohms, unbalanced
RECEIVER
- Sensitivity: <1 ÎĽV for 10 dB; (S + N) /N typical
- Selectivity: 6 dB @ 7kHz, 70 dB @ 10kHz typical
- I.F. Frequency :
Double Conversion Superheterodyne
1st – 10.695 MHz
2nd – 455 kHz - Automatic Gain Control (AGC):Â less than 10dB change in audio output for inputs from 10 to 50,000 microvolts
- Squelch: Adjustable; threshold less than 1ÎĽV
- Audio Output Power: 0.5 watts max. @ 8 ohms
- Freq. Response: 300 to 2000 Hz
- Distortion: less than 8% at 1KHz
- Internal Speaker: 8 ohms, 1 watts

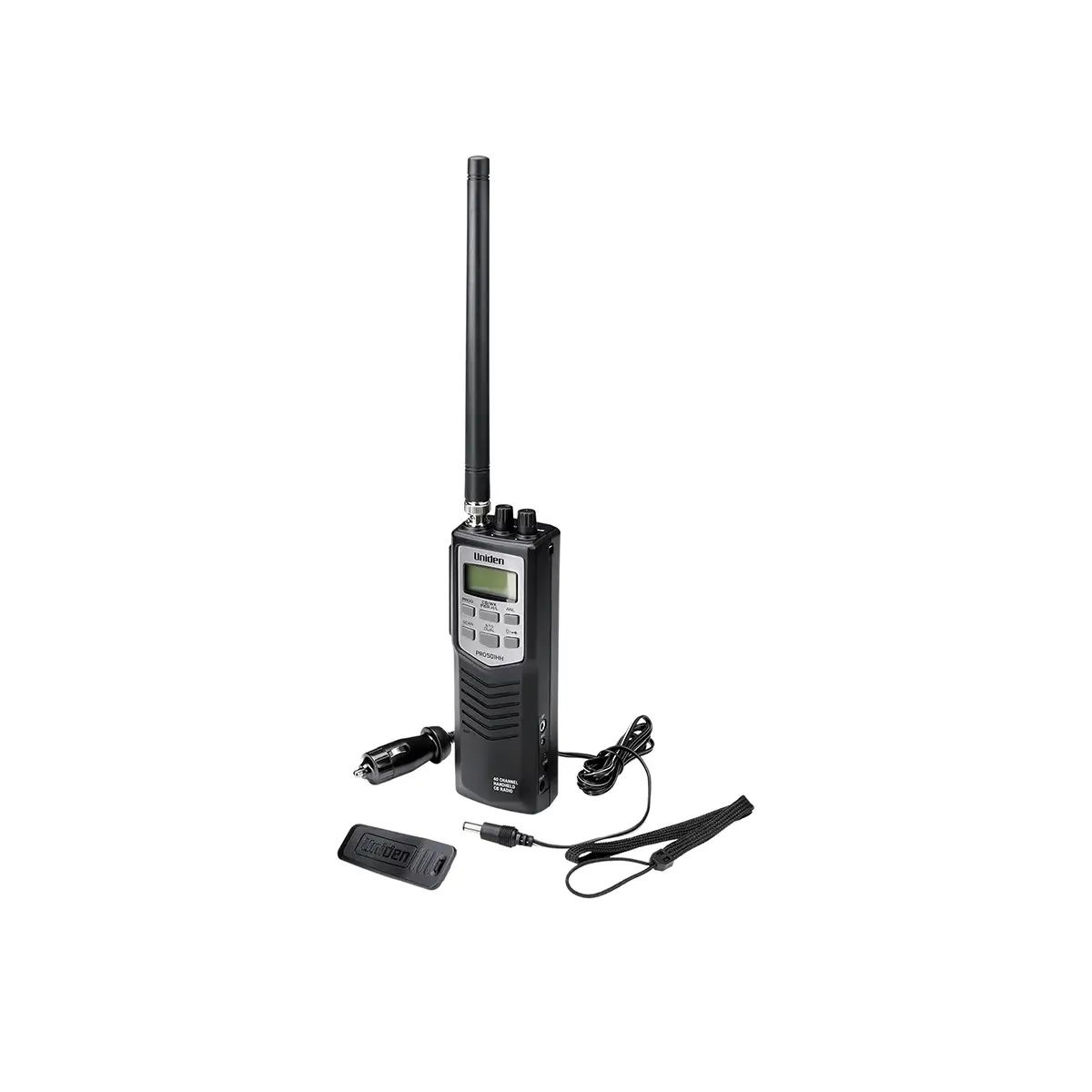

Package Includes
In the Box:
- PRO501HH Radio
- Antenna
- Belt Clip
- DC Power Cable
- Wrist Strap
