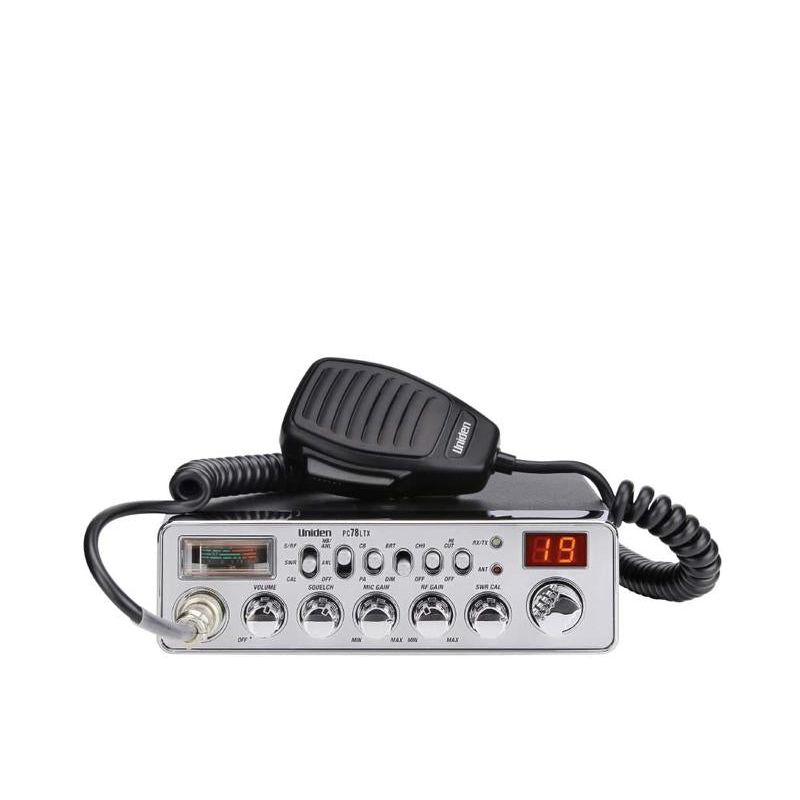

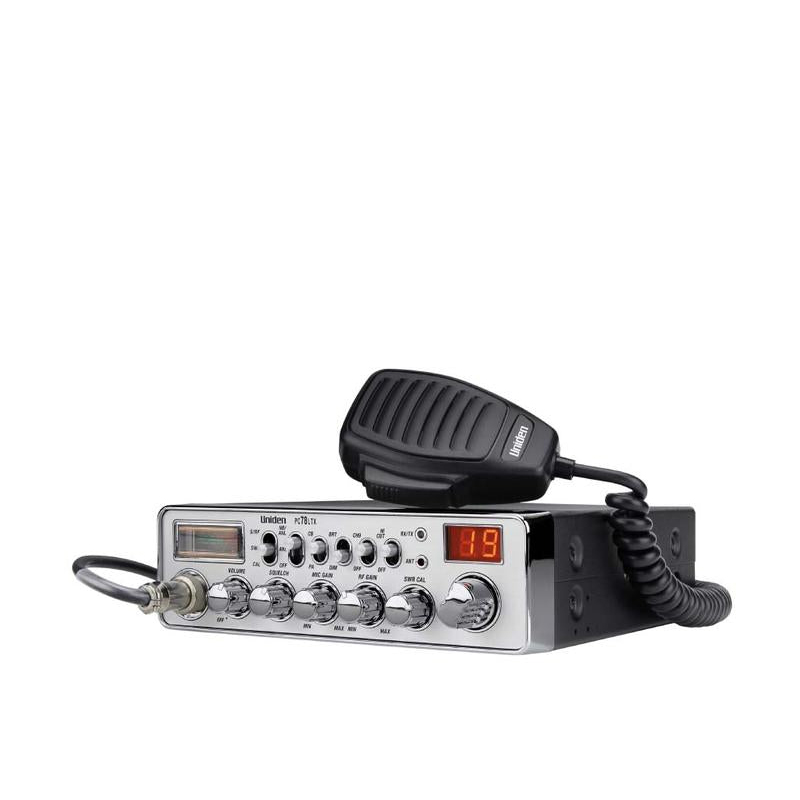

Uniden PC78LTX CB Radio
$205.00
40-Channel Trucker’s CB with SWR
In stock
- Description
- Additional information
- Specifications
- Package Includes
- Product Guides & Documentation
- Accessories
40-Channel Trucker’s CB with SWR
Hit the road in trucker’s style with the Uniden PC78LTX CB Radio. Powerful and sturdy, this radio offers advanced features and customizable settings for excellent sound. With this radio, you never have to miss another transmission, even when you are driving.

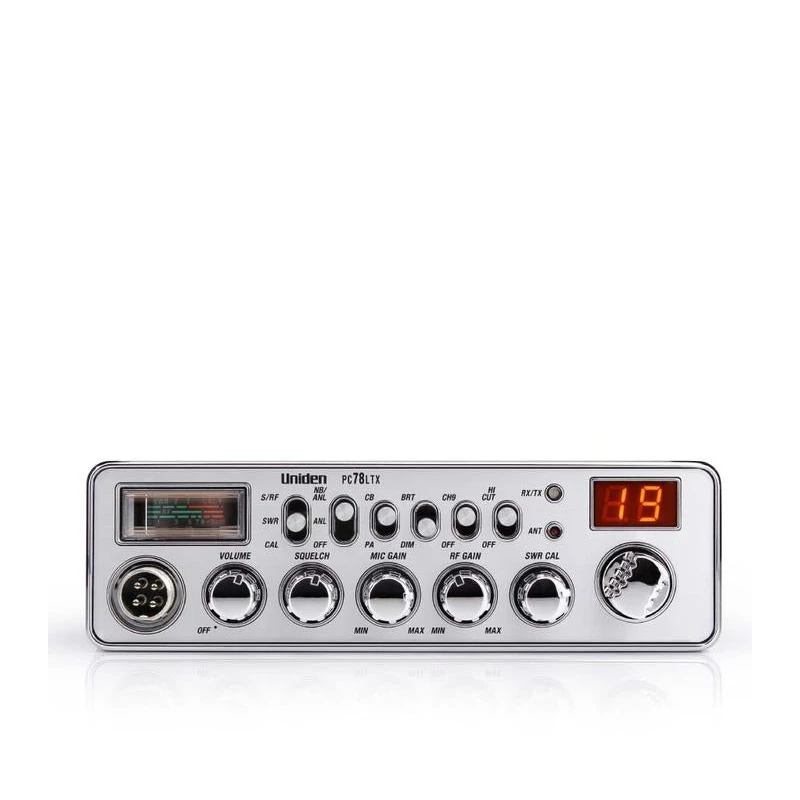

Chrome Front Panel
Classic looks with easy to use controls.
Integrated SWR Meter
Keep your CB station performing at its best using the CB’s built-in SWR meter to precisely tune your antenna for best signal.
Microphone Settings for Best Sound
This radio’s multiple adjustments allow you to fine tune the signal and sound, for excellent clarity. Change the squelch control settings and the ANL/Noise Blanker option to reduce static and enjoy clear sound. Adjust the microphone gain to control the mic sensitivity.
| Weight | 4.1 lbs |
|---|---|
| Dimensions | 11.25 × 10 × 2.5 in |
Specifications
Uniden PC78XLT Specifications |
|
|
Channels
|
40
|
|
Frequency Range
|
26.965 to 27.405 MHz
|
|
Frequency Control
|
Phase Locked Loop (PLL) synthesizer
|
|
Frequency Tolerance
|
±0.002%
|
|
Antenna Impedance
|
50 ohms
|
|
Operating Temperature
|
-30ºC to +50ºC
|
|
Microphone
|
Plug in type, 600 ohms dynamic
|
|
Input Voltage
|
13.8 V DC nom. (+ or – ground)
|
|
Current Drain
|
TX: AM Full Modulation: 2.2A (max)
RX: Squelched, 0.4 A; with maximum audio output, 1.2A (nominal) |
|
Size
|
7-9/32 in. x 7-51/64 in. x 2-13/64 in. (without knobs and jacks)
|
|
Weight
|
3 lb with microphone
|
|
Antenna Connector
|
UHF, SO-239
|
Package Includes
Package includes:
- PC78LTX CB 2-way Mobile Radio
- Microphone
- Mounting bracket kit
- DC power cord
- Owner’s Manual
- Part 95 Subpart D (FCC Rules)
Product Guides & Documentation
Accessories
Optional Accessories …
Optional Accessories …
