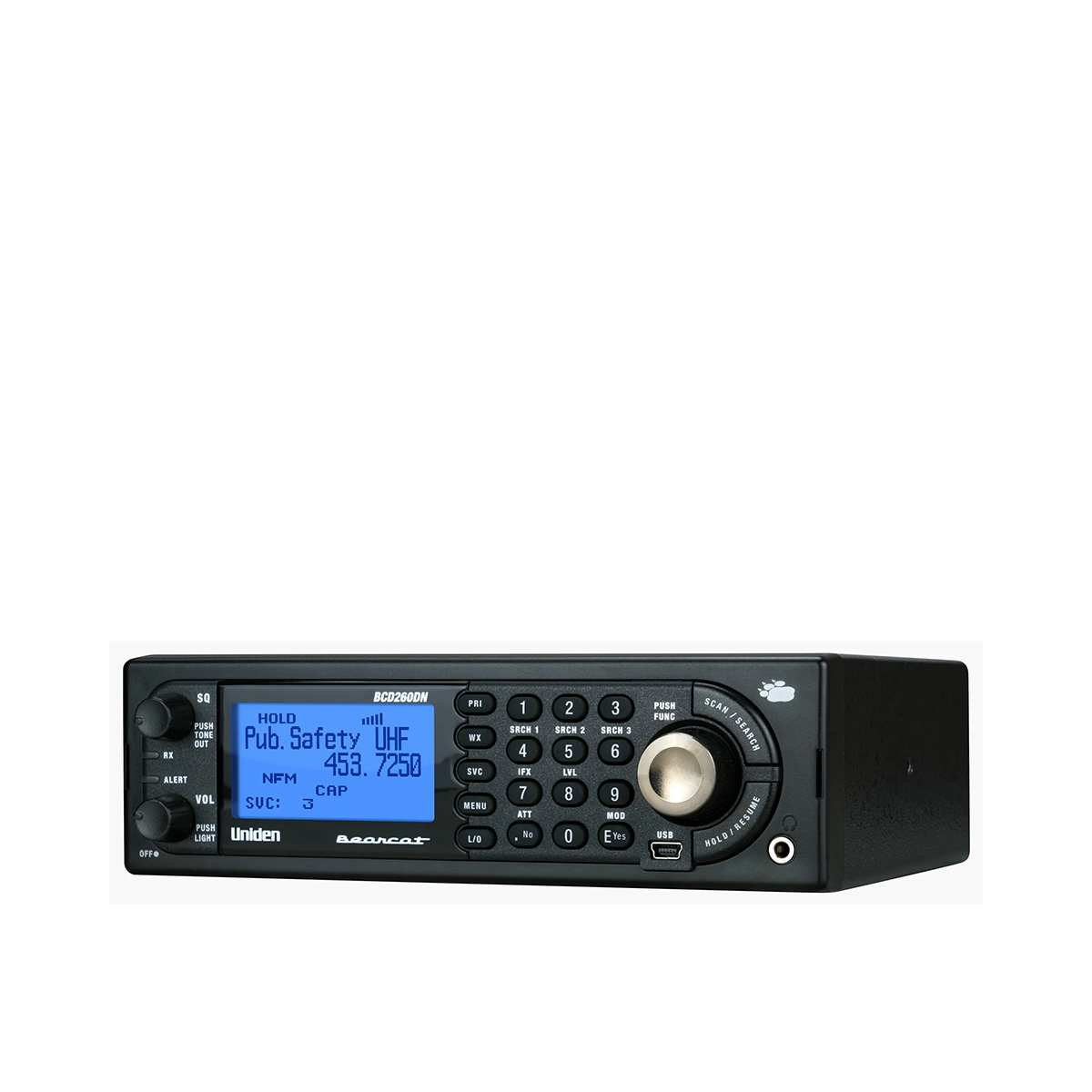

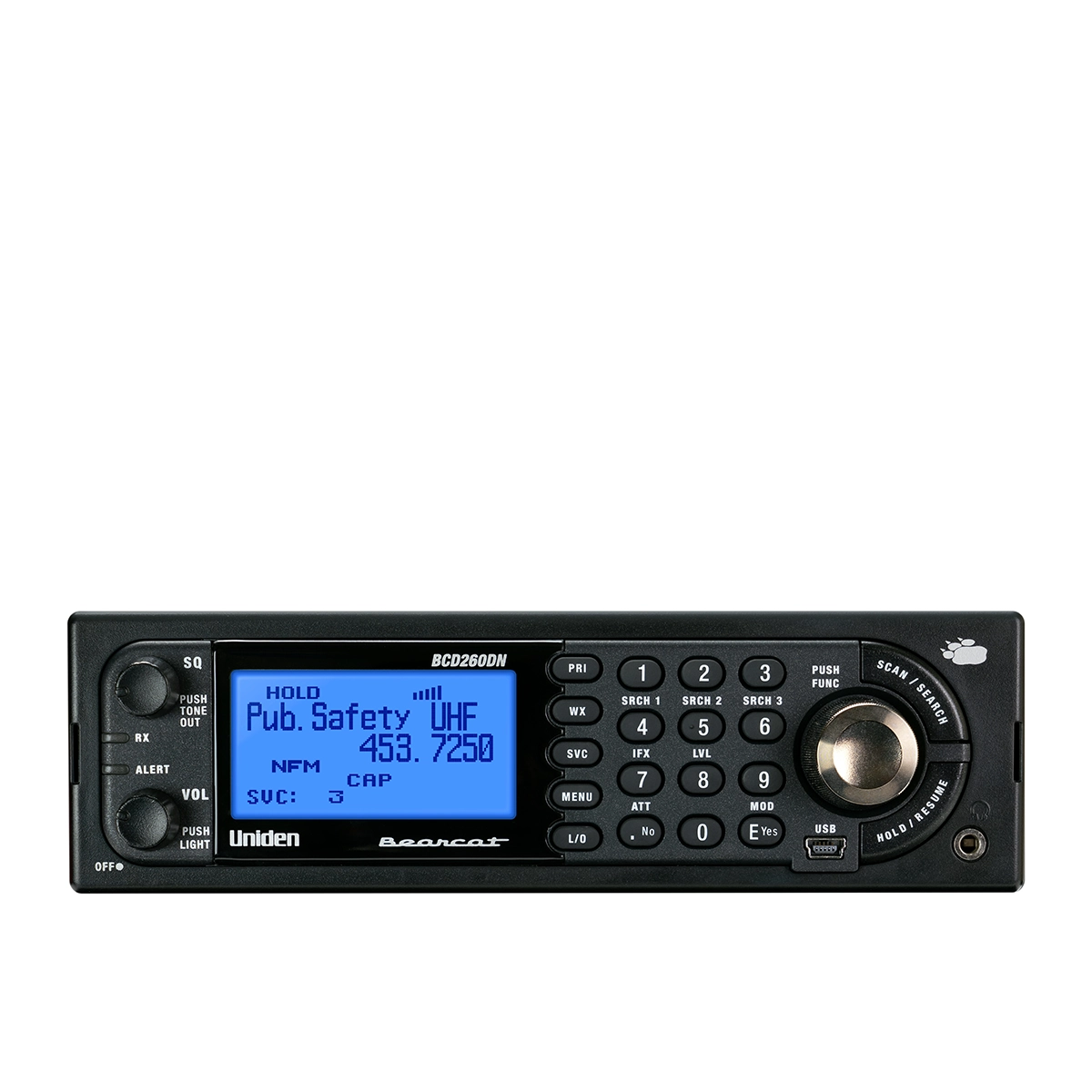

The BCD260DN Uniden Scanner sets the standard for performance, features, and innovation. Exclusive features like Band Scope Rapid System/ Channel Number Tagging, Narrowband Reception, and a complete suite of search features help you detect those elusive signals faster than ever. Uniden Digital Scanners offer you more than ever before.
This scanner is pre-programmed with service bands for your convenience. It covers the bands used for emergency reporting including S.A.M.E weather alerts, Aviation, Marine, Railroad, and non-digital ambulance, police, and fire emergencies.
PRELOADED DMR/NXDN*
The BCD260DN scanner comes preloaded with DMR and NXDN so you can start receiving these digital codes as soon as you take it out of the box.
DCS/CTCSS DIGITAL CODE RAPID DECODE
Instantly detects and displays the sub audible tone or digital code so you can quickly determine the system settings.
1000 ALPHA-TAGGED CHANNELS
Alpha tagging lets you assign names to your channels so you can keep track of who you are listening to. Organize your channels by department location, area of interest, or any other way you prefer.
QUICK SEARCH
Allows you to start searching at the displayed frequency or enter a frequency and start searching.
PC PROGRAMMING
Use the free Uniden software BCDX60DN SS and BC VUP to manage your scanner’s Profiles, Favorites Lists, Databases, and firmware updates.
COVERAGE FREQUENCIES
25-512MHz, 758-824MHz, 849-869MHz, 894-960MHz and 1240-1300MHz.
*Trunking and other digital modes, including APCO P25 are not supported. For these digital radio systems monitoring, please check out Uniden models SDS100, SDS200, BCD436HP, BCD536HP, BCD996P2, BCD325P2, or the HomePatrol-2.
| Weight | 5.72 lbs |
|---|---|
| Dimensions | 10.25 × 8.5 × 3.75 in |
| Brand | Uniden |
| Manufacturer Part Number | BCD260DN |
Specifications
Uniden BCD160DN Specs
- Band Coverage: 31 Bands
- Certified in accordance with FCC Rules and Regulations Part 15 Sub-part C as of date of manufacture
- Antenna Impedence: 50 Ω
- Power Requirements: DC 11.0V ~ 16.6V (Ext. DC Power Jack or DC Power Jack)
- Size (without antenna, knob, brackets, and other projections):
- 7.24 in (W) x 5.94 in (D) x 2.2 in (H) (without antenna, knob, brackets, and other projections)
- 184 mm (W) x 151 mm (D) x 56 mm (H) (without antenna, knob, brackets, and other projections)
- Weight: 3.2 lbs. (1.5 kg.) (Without antenna and brackets)
- Operating Temperature: Nominal: – 4º F (– 20º C) to + 140º F (+ 60º C)
- Storage Temperature: – 22º F (– 30º C) to + 158º F (+ 70º C )
- LCD Display: 64 x 128 Full Dot Matrix LCD
- LED Indications: RX LED: Blue
- Alert LED: Red
- Internal Speaker: 8 Ω, 5 W Max. 77mm Ø
- Weather Channels: 7 Channels

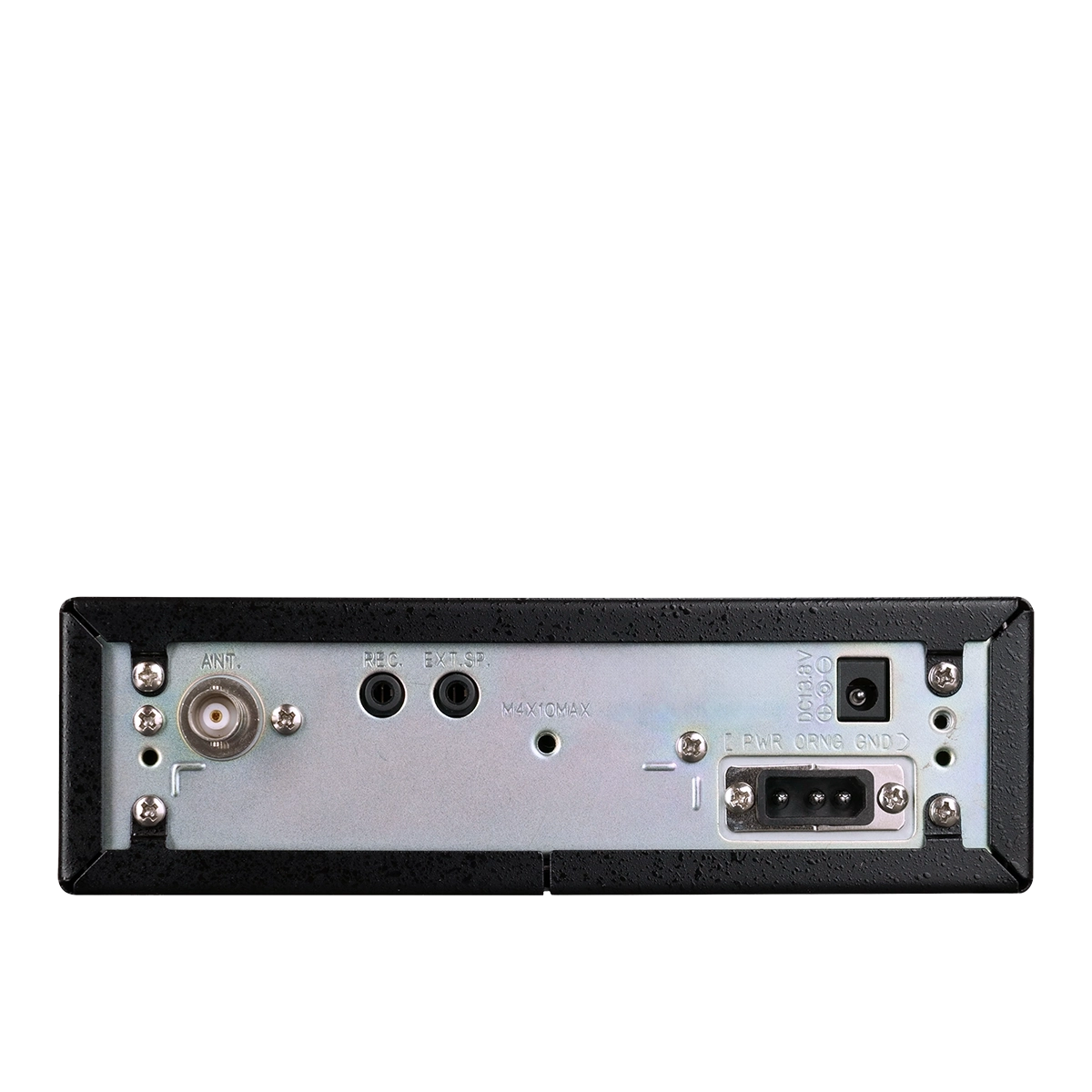

- External Jacks:
- Antenna Jack: BNC Type
- Headphone Jack: 3.5mm Ø (Stereo Type*)
- Ext. SP Jack: 3.5mm Ø (Monaural Type)
- REC Out Jack: 3.5mm Ø (Stereo Type*)
- DC Power Jack: 5.5mm Ø (Center Positive)
*NOTE: Audio does not play in stereo. - USB Jack: 5-pin mini Type B
- External DC Power/ORG Wire Jack: 3-Pin (Center Orange Wire)
- Power Consumption @ 13.8VDC:
- SQ Closed / Backlight White / High: 230mA
- Full Audio Output / Backlight Off: 410mA
- Ful Audio Output / Backlight White: 540mA
- REC output voltage @ 600Ω Load (FM): 230mV
- Orange Wire Operation: DC 3V ~ 16.6V (Less than 10mA)
- Band Scope Function:
- Frequency Span: 0.2 ~ 500MHz
- Frequency Step: 5 ~ 100kH

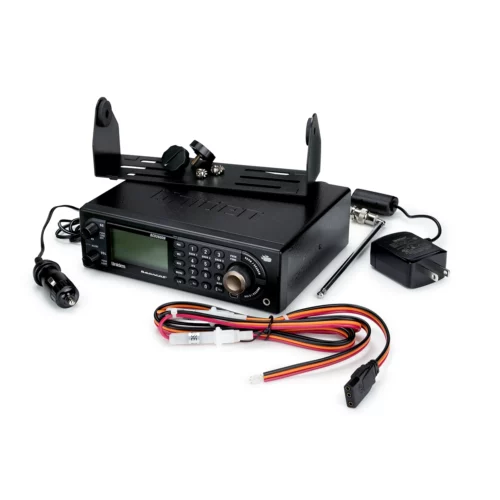

Package Includes

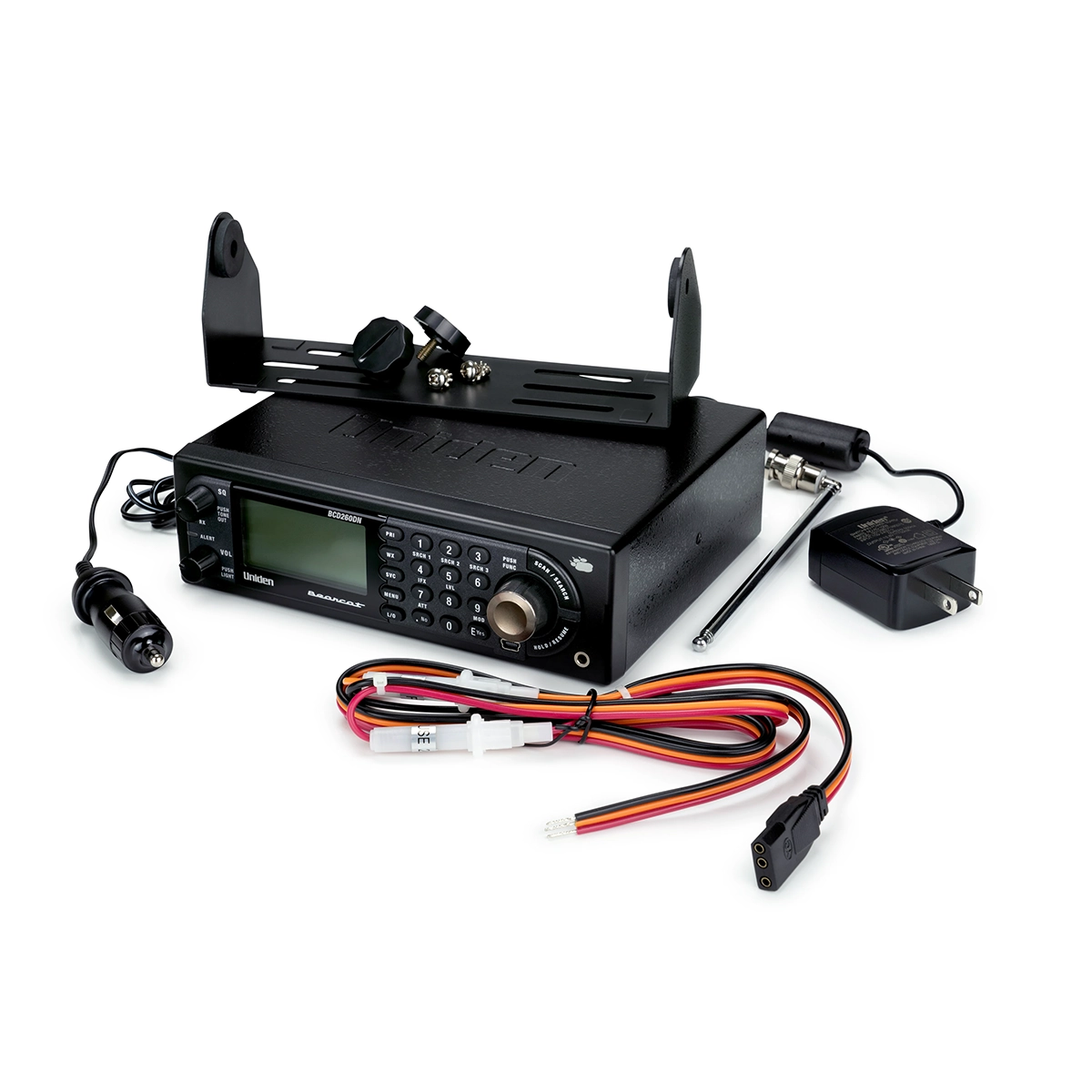

In the Box:
- BCD260DN Scanner
- Telescoping Antenna
- AC Adapter
- Three-wire Harness
- Vehicle Power Cord
- Mounting Bracket and Hardware
- USB Cable
- Owner’s Manual
- FREQ form
- APP form
