Uniden Atlantis 155 Handheld Two-Way VHF Floating Marine Radio
MPN: ATLANTIS155
MPN:
$110.00
The Atlantis 155 is a floating, waterproof, portable 3 Watt two-way VHF marine transceiver. It is compact, lightweight, rugged, and fits easily in your hand. This handheld VHF marine radio will give you consistent, outstanding performance in virtually all conditions and situations.
SKU: UNI-ATLANTIS155
Categories: Handhelds, Radios, Marine Radios
- Description
- Additional information
- Frequency Range
- Specifications
- Package Includes
- Product Guides & Documentation
he Uniden Atlantis 155 continues Uniden’s tradition of providing tough and reliable handheld radios. It features all NOAA weather channels, as well as all USA, International and Canadian marine channels. It also meets JIS8 Submersible waterproof standards. The Atlantis’ brilliant backlit LCD display makes it easy to use, day or night for the power to go anywhere.
Uniden Atlantis 155 Features:
- US, Canadian, and International Marine Channels
- Built-in Precision Matched Antenna
- JIS8 Submersible Waterproof level + Designed to Float – So you can use it just about anywhere in any weather condition.
- 1/2.5W (VHF) + Power Boost PTT Key
- NOAA Weather Channels – Sounds a warning tone when a hazard alert is issued.
- Triple Watch mode – Monitors Channels 16 and 9 simultaneously for a signal while at the same time allowing you to the selected channel.
- Weather Alert Watch mode – Mutes the radio while it monitors a preset Weather channel. It sounds an alarm if there are broadcasts on that channel. Put the radio in the charger to keep power on.
- Emergency 16/9 Channel Monitoring – It can scan one or both of these emergency channels regularly within normal scanning cycles.
- 10HR Battery Life and Battery Save mode – Battery level indicator on screen and Automatically conserves power when not in use.

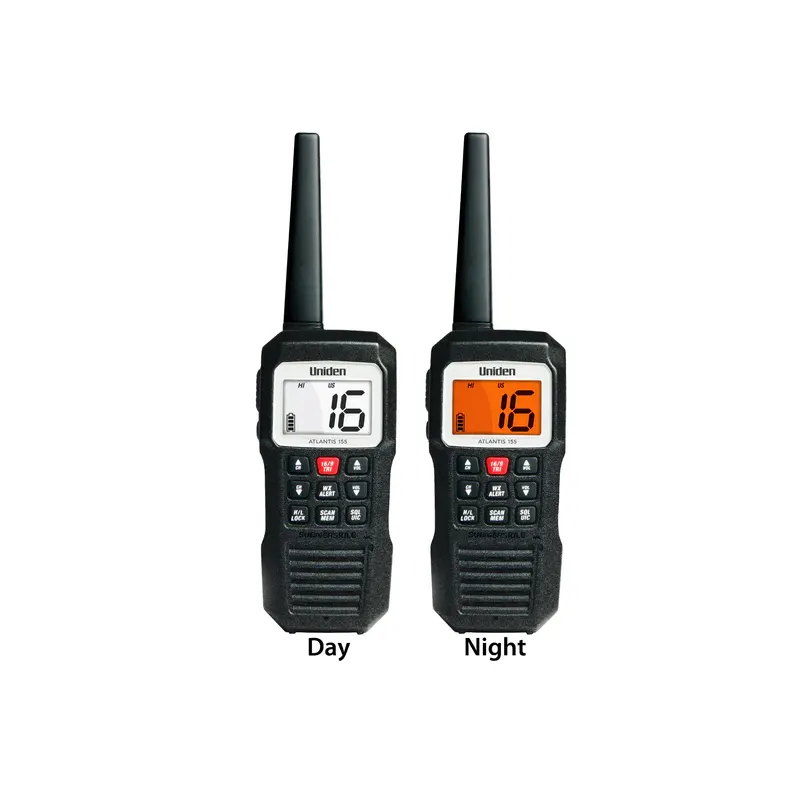

- Large, bright backlit channel display, headset jack, DC adapter, belt clip and 4 AAA rechargeable Ni-MH batteries are included.
| Weight | 1.1 lbs |
|---|---|
| Dimensions | 11 × 5 × 2 in |
| Brand | Uniden |
Frequency Range
WEATHER CHANNELS AND FREQUENCIES (US AND CAN)
| CH NO. | RX FREQ (MHz) | NAME ON DISPLAY |
|---|---|---|
| WX01 | 162.5500 | 162.550 MHz |
| WX02 | 162.4000 | 162.400 MHz |
| WX03 | 162.4750 | 162.475 MHz |
| WX04 | 162.4250 | 162.425 MHz |
| WX05 | 162.4500 | 162.450 MHz |
| WX06 | 162.5000 | 162.500 MHz |
| WX07 | 162.5250 | 162.525 MHz |
| WX08 | 161.6500 | 161.650 MHz |
| WX09 | 161.7750 | 161.775 MHz |
| WX10 | 163.2750 | 163.275 MHz |
Specifications
Uniden Atlantis 155 Specs
General
- Channels: All US, International, and Canada marine channels; 10 Weather Channels
- Frequency Control: PLL
- Frequency Tolerance Transmit: 0.5 PPM (at 25°C)
- Operating Temperature: -4°F (-20°C) to +122°F (+50°C)
- Antenna: Flexible Whip
- Microphone: Built-in Electret type
- Display: Liquid Crystal Display
- Speaker: 8 Ω 1W
- Power Source: 4 Rechargeable NiMH Batteries, 950 mAh AAA x 4
- Size (without antenna): 8.98 (H) x 2.52 (W) x 1.54 (D) inch; 228 (H) x 64 (W) x 39 (D) mm
- Weight: 8.53 oz (242g) (w/batteries)
Transmitter
- Frequency Range: 156.050 ~ 161.6 MHz
- Frequency Stability: ± 5 PPM
- Power Output: 1W and 3W
- Spurious Emissions: -34 dBm on Hi; -40 dBm on Lo
- Current Drain: 1000 mA (3W)
Receiver
- Type: Direct Conversion Super Heterodyne, Phase Locked Loop system for Local Oscillator
- Frequency Range: 156.05 – 162.55 MHz
- Sensitivity: 0.28 ÎĽV for 12 dB SINAD
- Squelch Sensitivity: Threshold 0.22 ÎĽV
- Audio Frequency Response: +5.5 dB @ 500 Hz; -6.5 dB @ 2000 Hz
- Adjacent Channel Selectivity: 60 dB @ ±25 kHz
- Audio Output Power: 0.5W @10% THD
- Current Drain Squelched: 60 mA; Max. Audio: 150 mA
Package Includes
In the Box:
- Atlantis 155 Radio
- DC Adapter
- Belt Clip
- 4 AAA Rechargeable NiMH Batteries
- Wrist Strap
- Owner’s Manual
