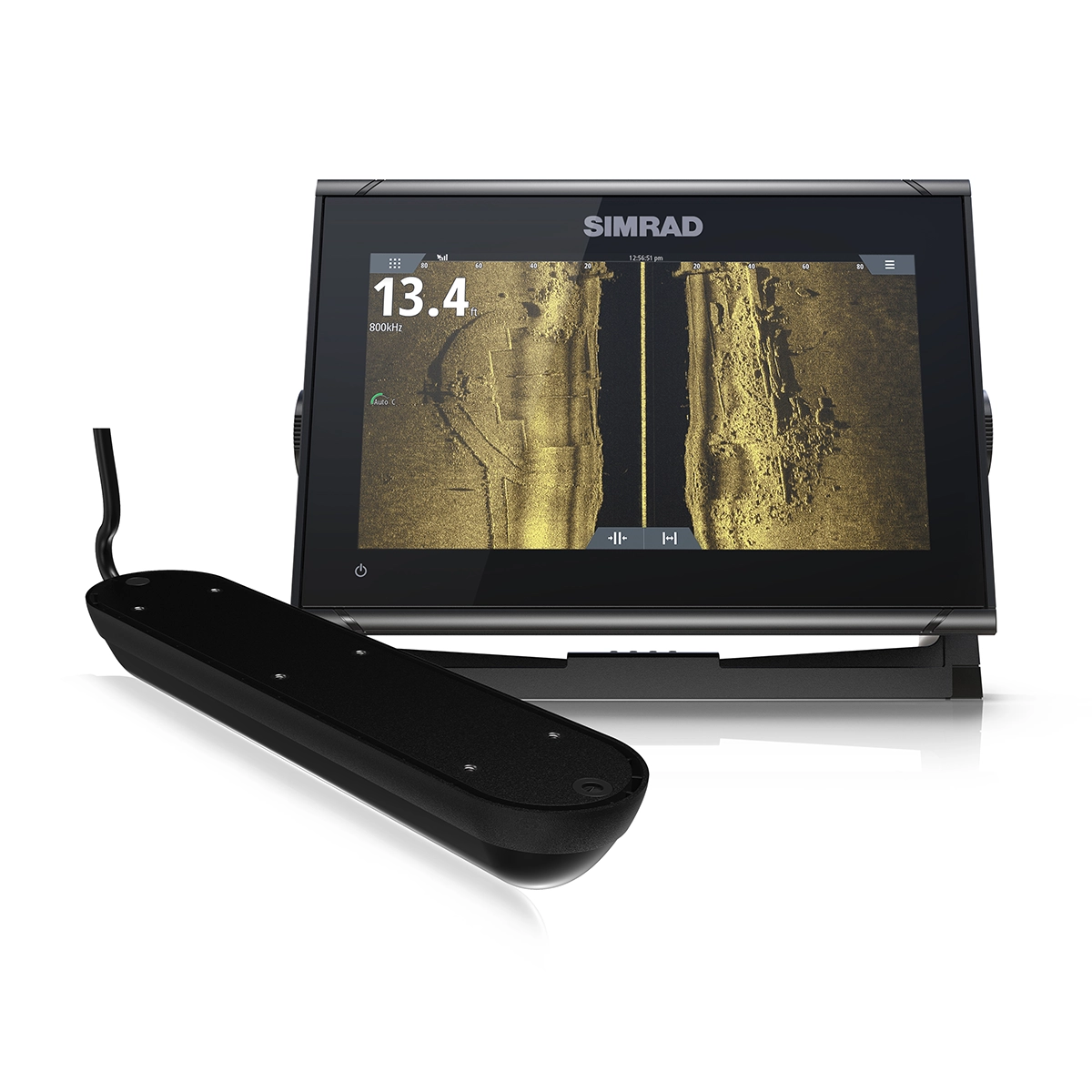

Simrad GO9 XSE with Active Imaging 3-in-1 and C-MAP Discover Chart
$1,639.00
On sale until February 28, 2025
The GO9 XSE is a perfect way to add GPS navigation, sonar, radar and more to your sportboat, cruiser, or center console. Navigate confidently with C-MAP DISCOVER charts and find fish with the Active Imaging™ 3-in-1 transducer. Enjoy touchscreen control over a multitude of optional accessories, from autopilot to entertainment.
- Description
- Additional information
- Specifications
- Package Includes
- Product Guides & Documentation
- Accessories
Get more from every day on the water

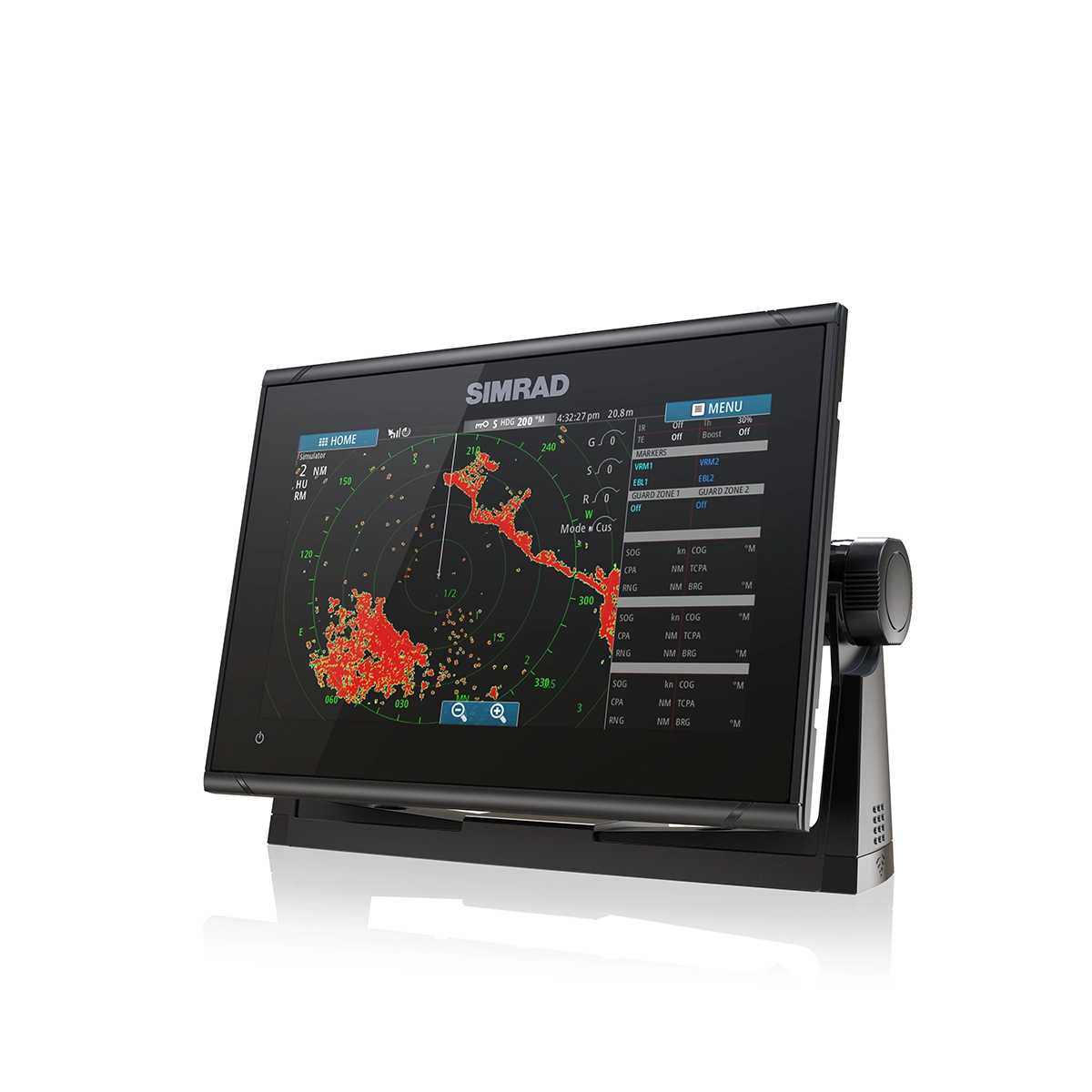

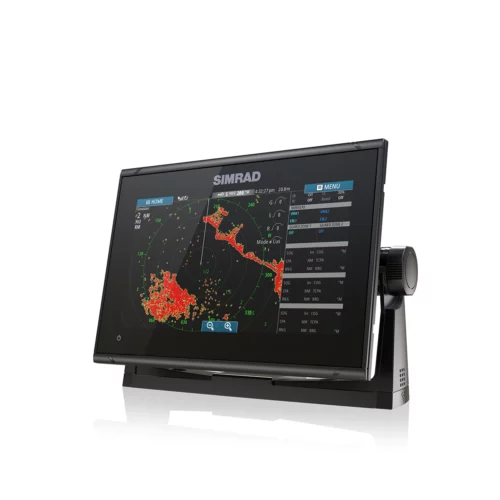

Simrad GO series displays are designed to help you make the most of your time on the water and are a perfect addition to sportboats, dayboats, and center-consoles. Behind every sunlight-viewable GO series touchscreen lies a built-in GPS receiver, echosounder, wireless connectivity, and industry standard NMEA 2000® networking. Navigate, connect with mobile devices, control accessories like your on-board sound system, and choose from an array of built-in sonar features. Radar capability—available on the GO7 and above—offers added safety and fishfinding functionality.
Experience enhanced autopilot functionality with SteadySteer™ (compatible with RPU drive pumps) and integrate with an expanded range of 3rd party technologies – CZone® digital switching, Mercury® Smart Tow® for surf and wakeboarding, control lighting effects with an ITC Lighting control bar, and Honda ECO mode engine information.

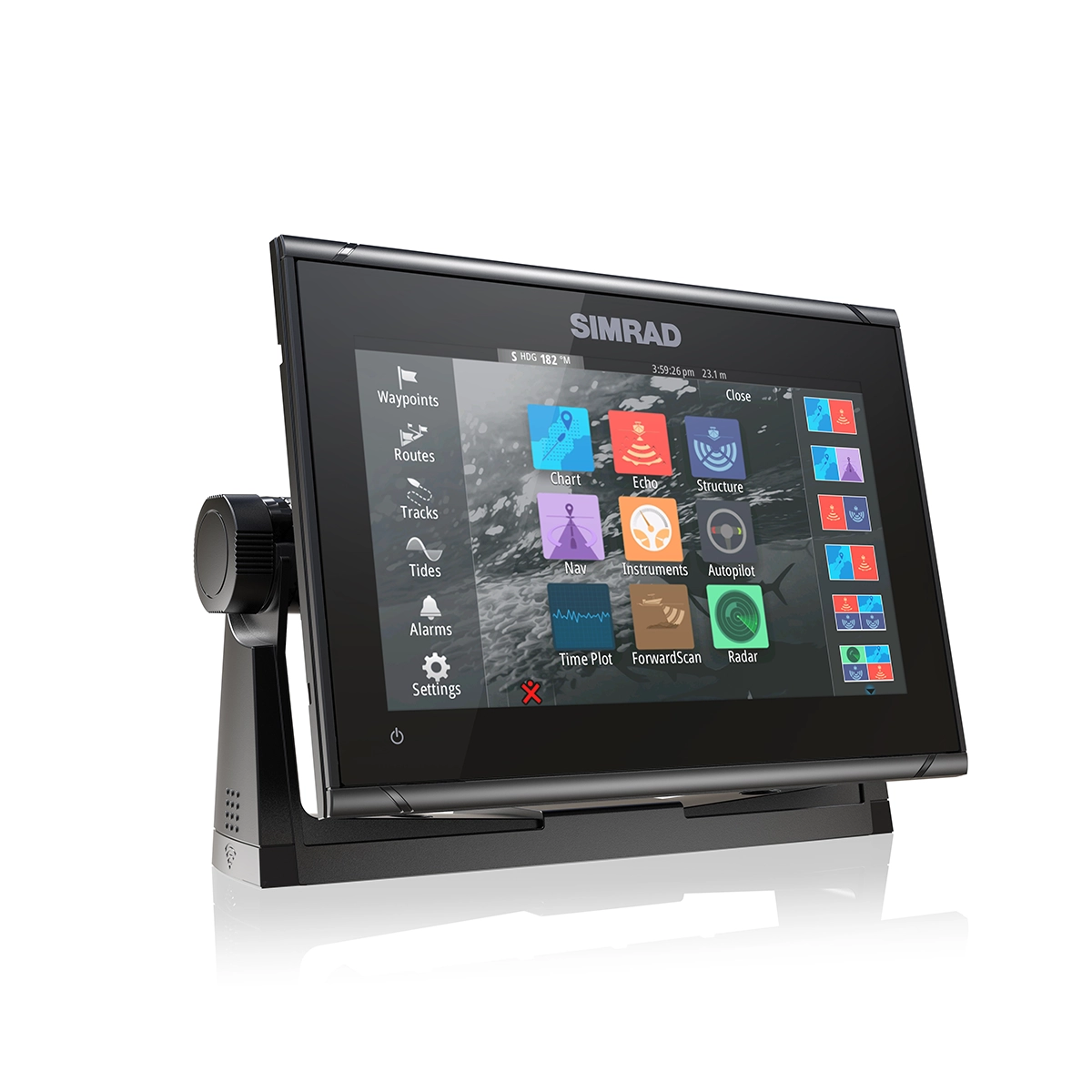

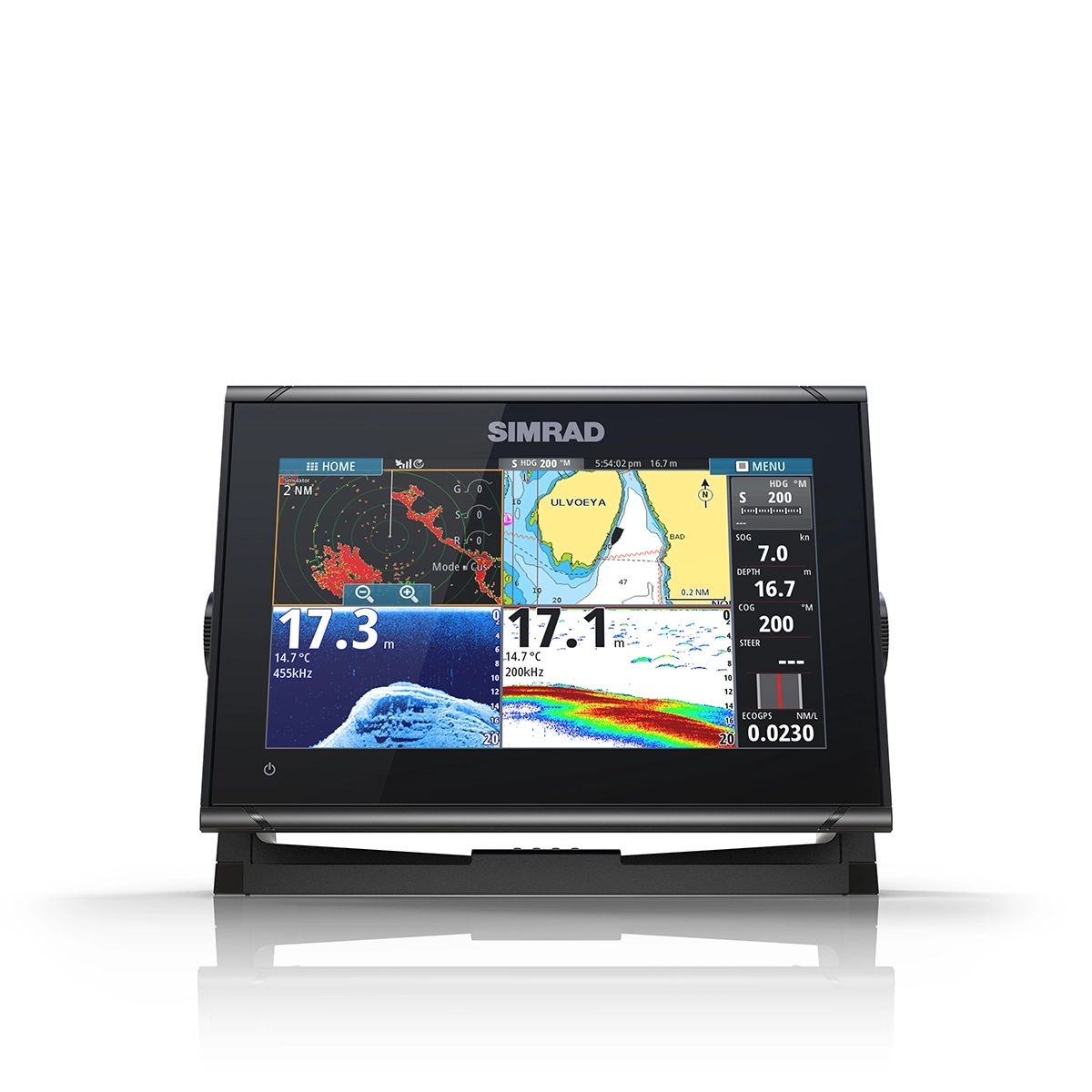

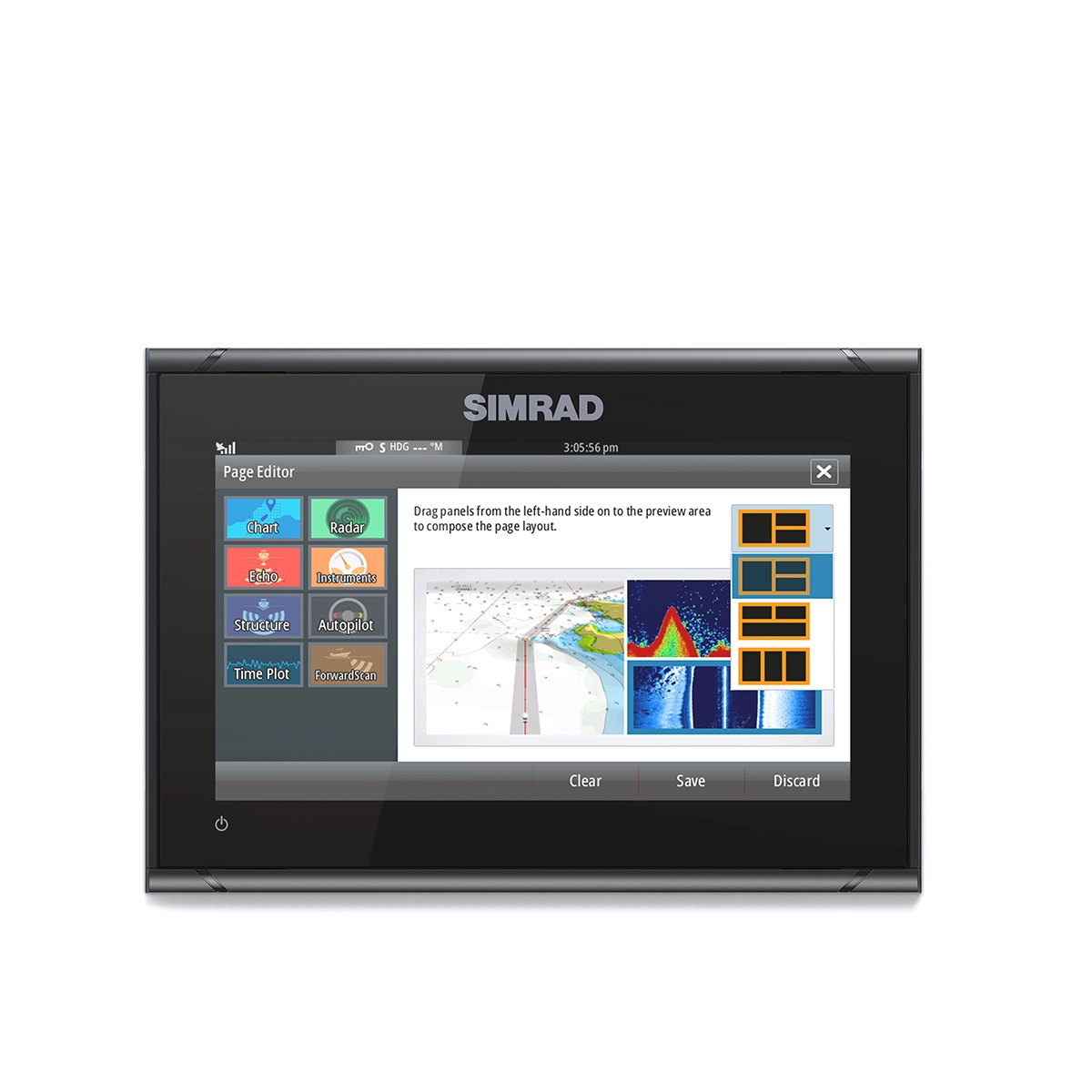

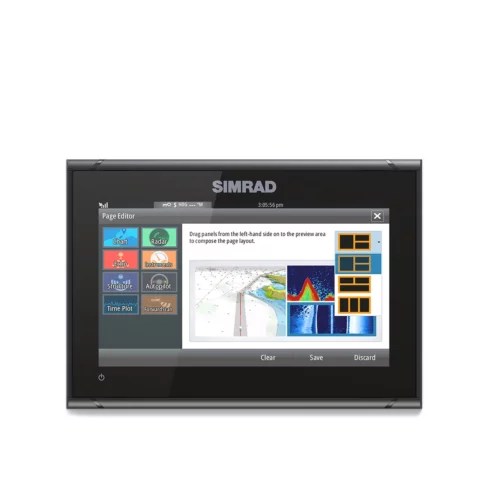

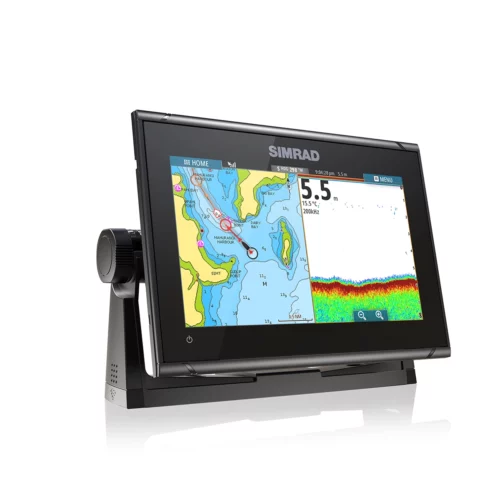

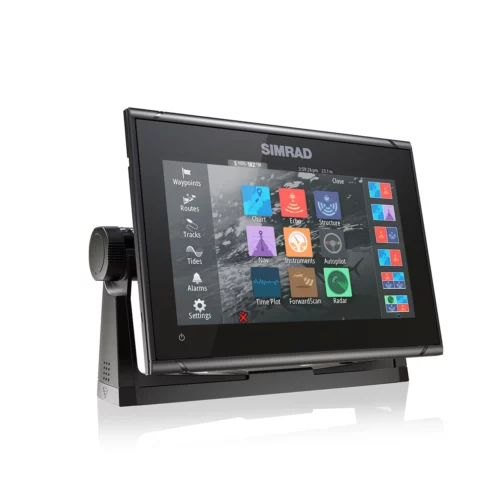

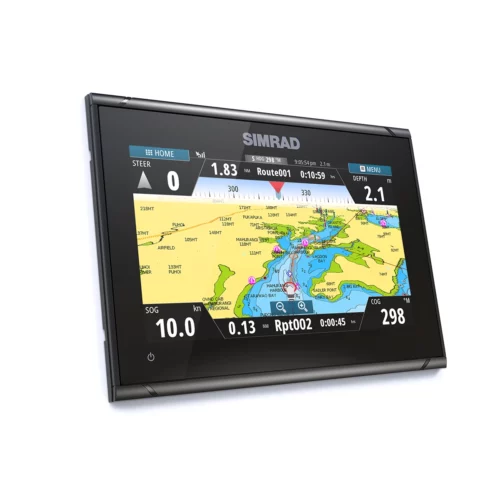

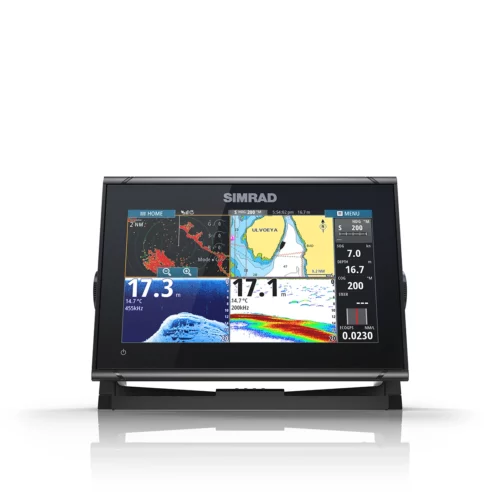

The GO series offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Customize your home screen with the features you use most, and see everything you need on screen at once with adjustable split-screen views. Mark waypoints on charts with a touch, and easily assign meaningful names and symbols that make them quick to find when you are planning your next trip.

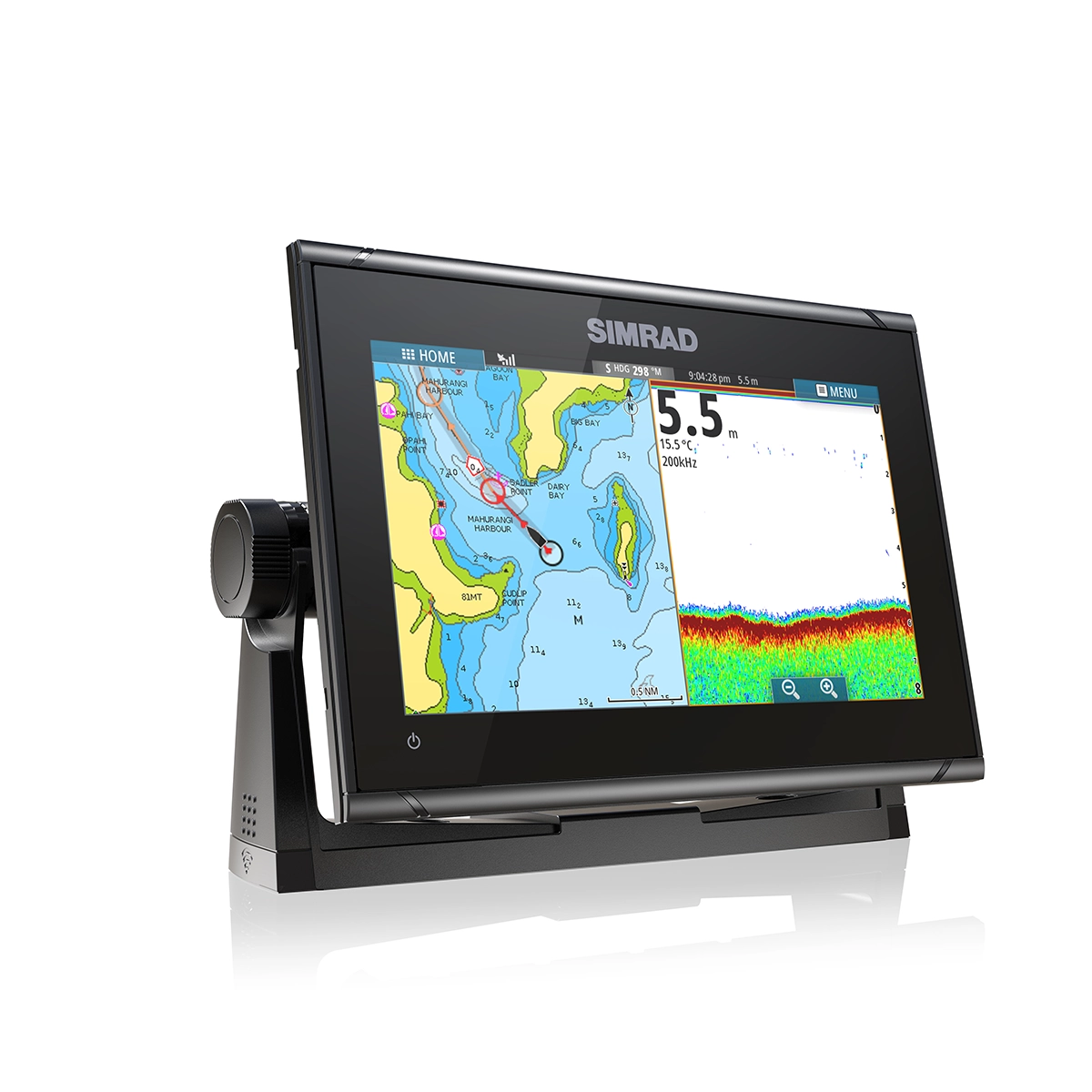

Stay on course with C-MAP DISCOVER charts

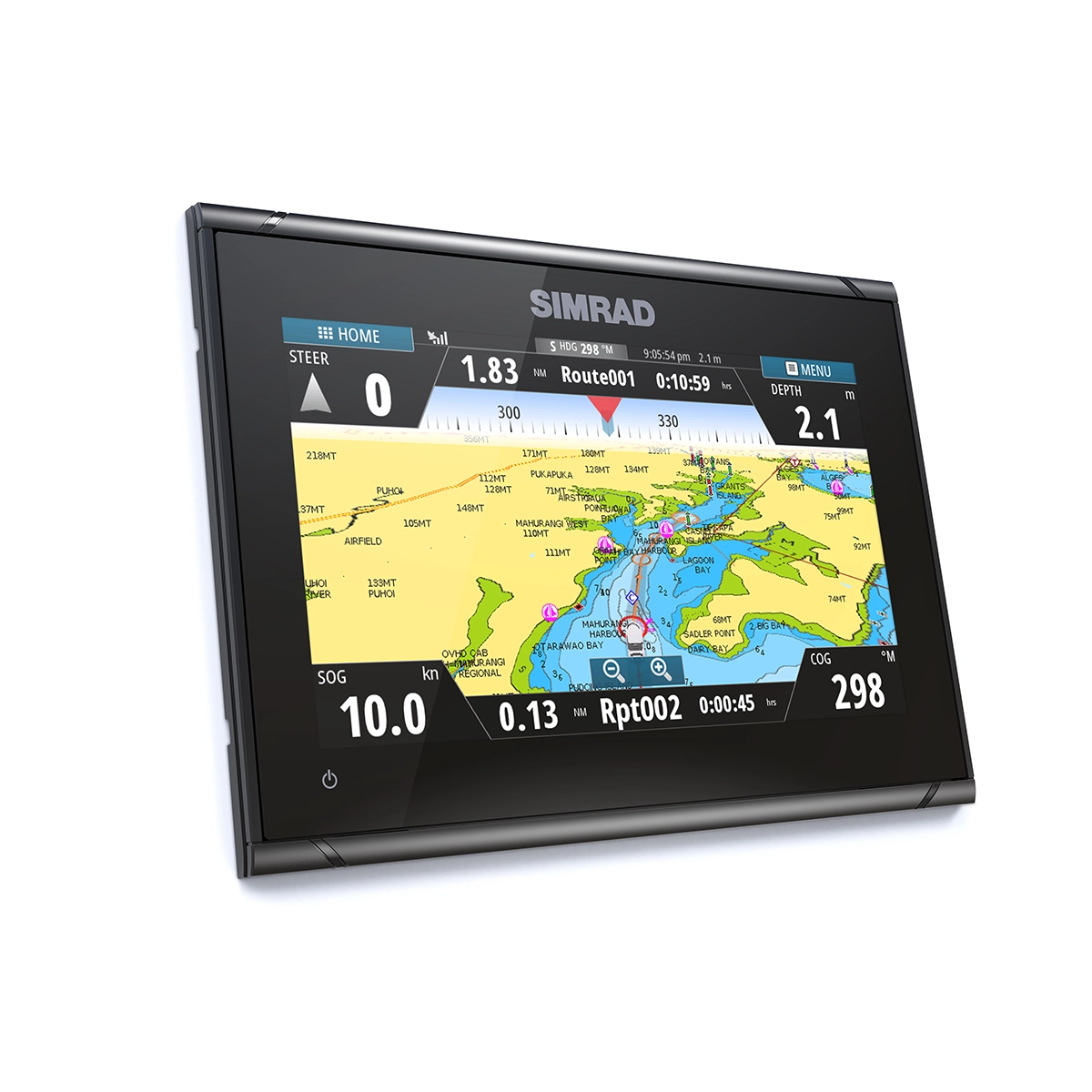

GO series displays are available with C-MAP DISCOVER charts, featuring ultra-wide coverage in the US and Canada. DISCOVER charts include full-featured Vector Charts, Custom Depth Shading, Tides & Currents and the very best of C-MAP high-resolution Bathymetric contours, including integrated Genesis® data. Use C-MAP Easy Routing™ to make planning your next trip on the water as easy as planning a trip in the car, and always have the latest DISCOVER chart data with 12 months of free online updates. GO displays are compatible with a wide range of optional charts, including C-MAP, Navionics®, Florida Marine Tracks, CMOR Mapping, StrikeLines and more.
Wireless and wired connectivity take your display beyond the bridge
Built-in wireless connectivity mirrors your display to a compatible smartphone or tablet, giving you instant access to charts, radar and other functionality from anywhere on board. Wireless also enables easy online software updates via an internet hotspot. Industry-standard NMEA 2000® connectivity offers a wide range of expansion and integration options: monitor your boat’s engine performance and fuel efficiency, steer your boat with a Simrad autopilot, or control your on-board entertainment system from your GO series display.

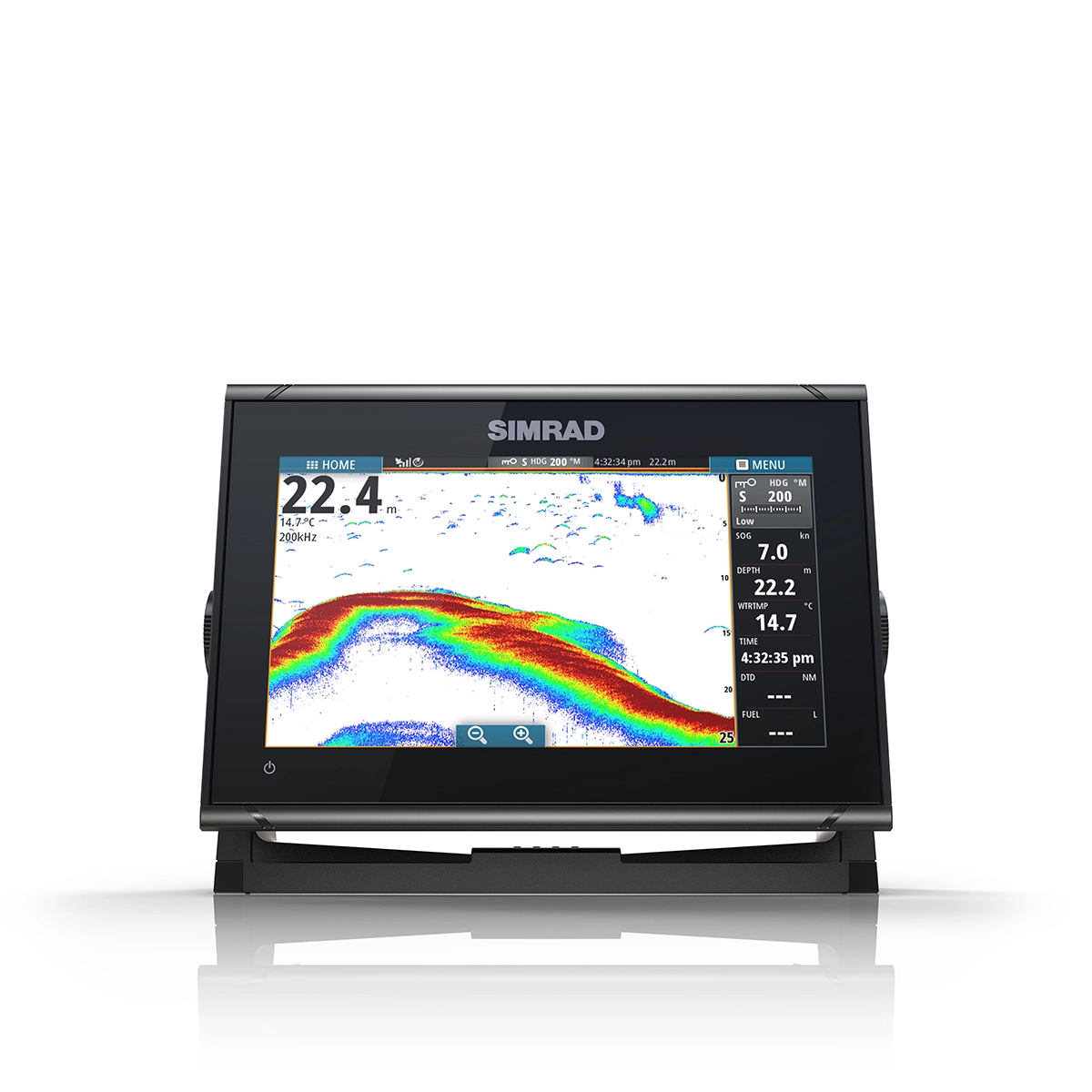

Turn your display into a fishfinder
Choose from a wide range of fish-finding sonar options to suit your vessel, from CHIRP or traditional sonar transducers for a classic fish-finder view, or get all your fish-finding sonar in one transducer with Active Imaging Imaging™ 3-in-1. Active Imaging brings the world-class clarity and target separation of CHIRP Sonar, plus incredible detail of reefs, drop-offs and wrecks from SideScan and DownScan Imaging™.
Find fish and track depth
A transom-mounted HDI Skimmer® transducer delivers fish-finding sonar for amateur anglers, and offers a simple way for powerboating enthusiasts to keep an eye on depth. CHIRP technology enables clear detection of fish throughout the water column, while DownScan Imaging™ sonar creates a picture-like view of fish-holding structure beneath your boat. FishReveal™ technology combines these two specialized views into a single, crystal-clear picture of fish and structure.

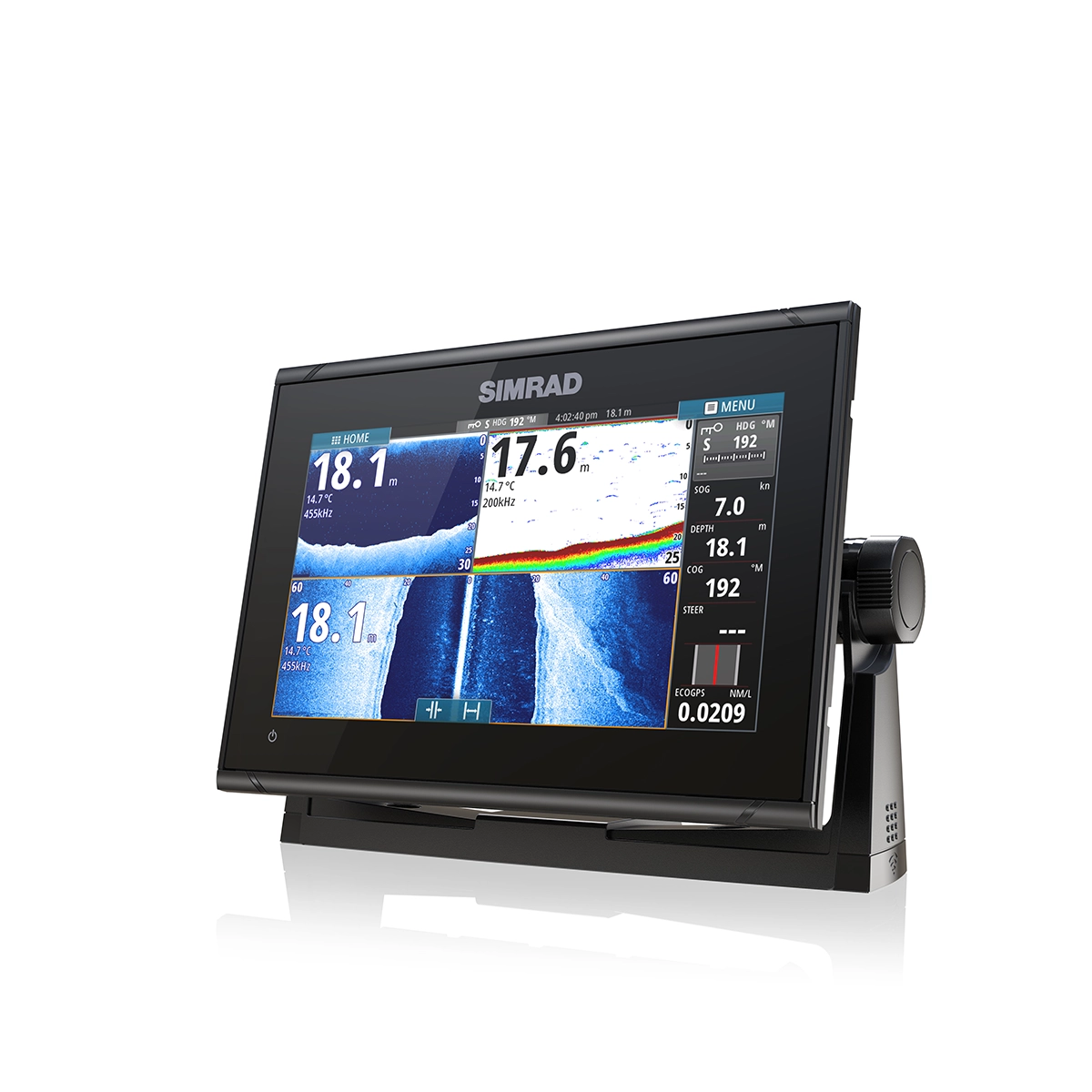

Active Imaging™ transducer pinpoints fish and structure
Your GO series display works as a powerful fishfinder when combined with the easy-to-install, transom-mounted Active Imaging™ transducer. Enjoy all the advantages of CHIRP Sonar, SideScan and DownScan Imaging, which deliver a wide-angle view of fish-holding structure beneath and to the sides of your boat. Find structure faster, and have an easier time identifying fish on DownScan Imaging with FishReveal™.
| Weight | 10 lbs |
|---|---|
| Dimensions | 16 × 12.5 × 5.75 in |
| Brand | Simrad |
Specifications
Simrad GO9 XSE Specs
- Operating Temperature Range: -15°C to +55°C (5° F to 131° F)
- Storage Temperature Range: -20°C to +60°C (4°F to 140°F)
- Ethernet Ports: 1 x 5 pin yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only (unless unlocked)
- NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
- Supply Voltage: 10 – 17 V DC
- Update rate: 10 Hz
- Display Size: 9 inches
- Screen Brightness: 1200 nits
- Display Resolution: 800×480
- SD Card Storage: 2 MicroSD slots, max. 32GB each. >32 GB format to NTFS
- Weight: 1.315 kg (2.9 lbs)
- Power Consumption typical: 12 W
- Power Consumption max: 20 W
- Dimensions H x W x D: 243 mm x 171 mm x 83 mm (9.56″ x 6.71″ x 3.26″) (no bracket)
- GPS Receiver Channels: 32 Channels
- Recommended Fuse Rating: 3A
- Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points
- Viewing Angles: 80° top/bottom, 80° left/right
- Internal Storage: 90MB
- Steering Modes: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
- Autopilot: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
- Digital Switching: BEP C-Zone
- Mounting Type: Bracket or Panel
- Approvals Compliance: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
- Shock Vibration: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
- Time to First Fix: Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec
- NMEA0183 Sentences supported: Exports NMEA0183 over WiFi
- Radar compatibility: Halo, Broadband, HD Radars
- Position Accuracy: Horizontal Accuracy 3 m (9.8′)
- Charts supported: Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
- Sonar Compatibility: Integrated CHIRP / DownScan / ForwardScan. Sinle 9 Pin Xsonic Connector
- Connectivity WiFi: Internal
- Bluetooth: Internal
- GPS: Internal, 10Hz, WASS, MSAS, EGNOS
- Waterproof rating: IPX 6 and 7
- PC Connectivity: None
- Video: None
- AIS: Receive AIS data over NMEA 2000 only

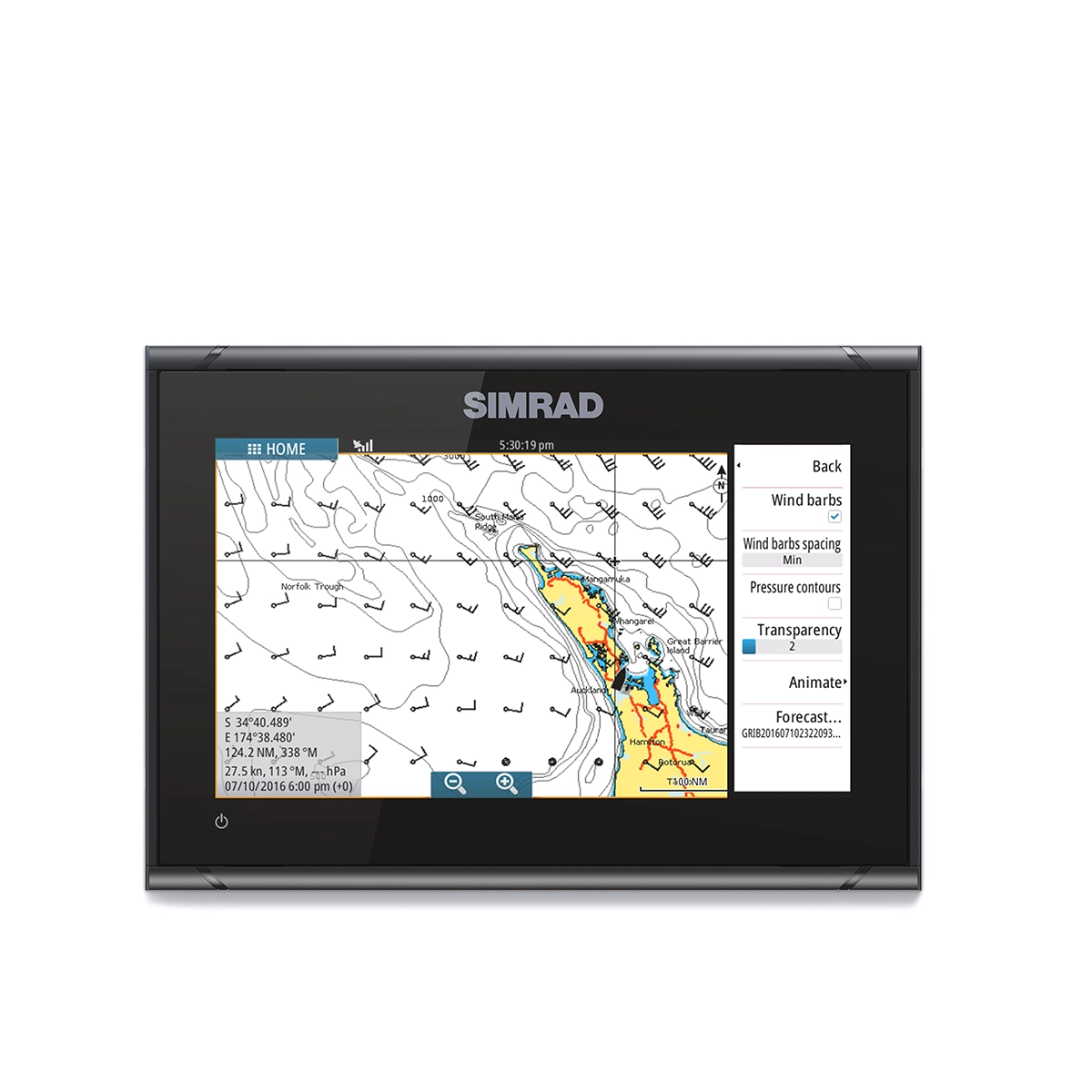

- Weather: SiriusXM via WM-3 (USA only), GRIB
- Interface: Touch screen, OP40 or OP50 controller via NEA 2000
- Manoeuvres Turn Patterns: U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
- Multimedia: via SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
- Correction: WASS, MSAS, EGNOS, GLONASS, *Galileo ,*BeiDou. *Limited by network
- Backlight Color: White
Package Includes
In the Box:
- GO 9 XSE Chartplotter
- Power Cable, 4-Pin
- Suncover
- Replacement Bezel
- Dash Mount Kit
- Gimbal Bracket
- Active Imaging 3-in-1 Transducer
