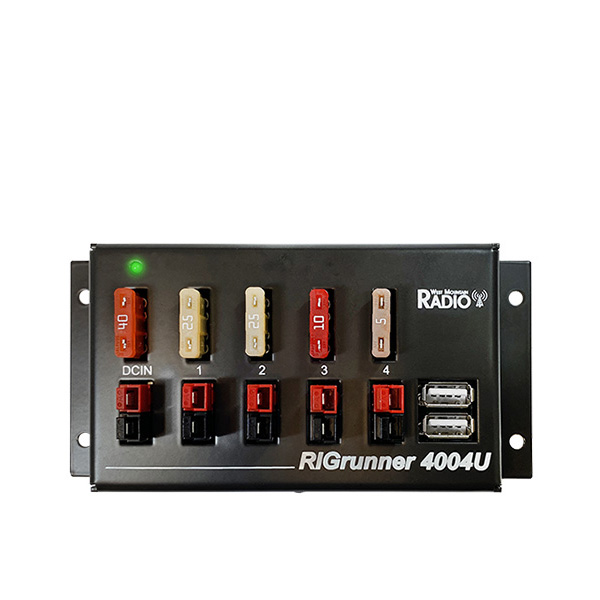

RIGrunner 4004 USB
MPN: 58315-1042
$155.00
Due to production issues, expected availability is unknown.
Out of Stock (On Order)
Get notified when this product is back in stock
RIGrunner 4004 USB Features
The RIGrunner 4004U can deliver up to 40 amps total through 4 outlets and includes a dual USB socket for charging all your portable devices that need a USB socket for charging.
- Each port has an RFI protection capacitor
- Each fuse has a blown LED
- Each port uses high current Anderson Powerpole® connectors with 0.001 ohm contact resistance
Construction
- Built in USA to IPC-610 commercial manufacturing standards by an ISO9002 facility.
- Printed circuit board .062 FR4 material, extra heavy 3oz. copper, with greater than 1″ wide high current traces.
- Double sided, plated through holes, solder mask over bare copper, silk screened commercial grade printed circuit board.
- Enclosure: .062 aluminum, with attractive and extremely durable powder coat painting and clear silk screen labels.
- Power connectors: exclusively Anderson Power Products® Powerpole®.
- Connectors are arranged according to the ARES/RACES standard (see our links).
- Fuses installed are standard ATC/ATO automotive fuses available in 10 values from 1 to 40 Amps.
- Stainless steel hardware with PEM™ threaded mounting standoffs.
| Weight | 1.42 lbs |
|---|---|
| Dimensions | 12.5 × 4.25 × 4.25 in |
Specifications
RUGrunner 4004 USB Specifications |
|
|
Overall Dimensions (maximum, w/o cables)
|
1.4″ H x 9″ W x 3.0″ D
|
|
Weight
|
6 3/4 oz
|
|
Maximum total current
|
40 amps
|
|
Maximum single individual outlet current
|
40 amps (fuse protected)
|
|
ICAS current rating (fuse limited)
|
37 amps
|
|
USB charge current
|
4A max for both ports
|
Package Includes
Package includes:
- RIGrunner 4004 USB
- (4) Rubber Feet
- (4) 3M Adhesive Pads
- Owner’s Manual
