RIGrunner 4008 Horizontal
MPN: 58307-1036
$192.00
Due to production issues, expected availability is unknown.
Out of Stock (On Order)
Get notified when this product is back in stock
- Description
- Additional information
- Specifications
- Product Guides & Documentation
- Package Includes
- Accessories
RIGrunner 4008 Horizontal Features

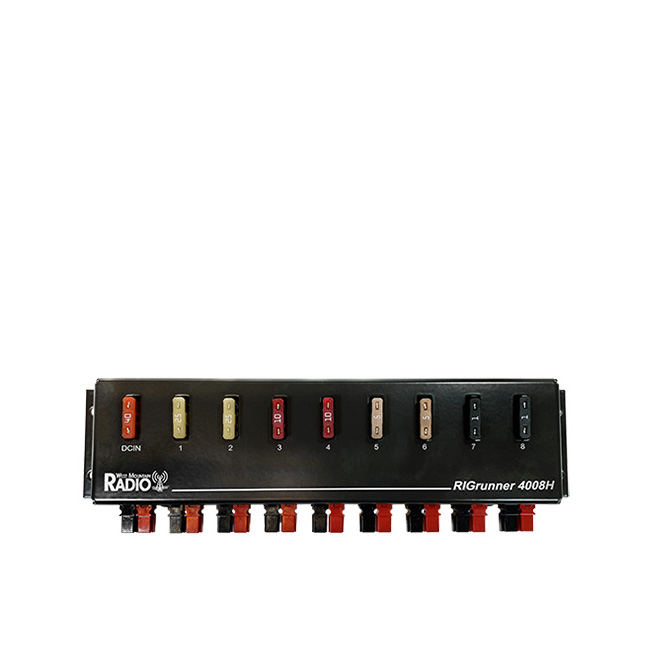

RIGrunner is the most convenient and safest way to connect all of your DC equipment to a power source. It uses the excellent Anderson Powerpole connectors, standardizing all of your DC connections. This RIGrunner is available with side mounted Powerpole® connectors. Side mounted connectors enable horizontal mounting.
- 40 amp continuous duty with 8 outlets
Construction
- Built in USA to IPC-610 commercial manufacturing standards by an ISO9002 facility.
- Printed circuit board .062 FR4 material, extra heavy 3oz. copper, with greater than 1″ wide high current traces.
- Double sided, plated through holes, solder mask over bare copper, silk screened commercial grade printed circuit board.
- Enclosure: .062 aluminum, with attractive and extremely durable powder coat painting and clear silk screen labels.
- Power connectors: exclusively Anderson Power Products® Powerpole®.
- Connectors are arranged according to the ARES/RACES standard (see our links).
- Fuses installed are standard ATC/ATO automotive fuses available in 10 values from 1 to 40 Amps.
- Stainless steel hardware with PEM™ threaded mounting standoffs.
| Weight | 1.74 lbs |
|---|---|
| Dimensions | 12.5 × 4.25 × 4.25 in |
Specifications
|
Specifications
|
|
|
Overall Dimensions (maximum, w/o cables)
|
1.4″ H x 9.75″ W x 3.0″ D
|
|
Weight
|
11 1/4 oz.
|
|
Maximum total current
|
40 amps
|
|
Maximum single individual outlet current
|
40 amps (fuse protected)
|
|
ICAS current rating (fuse limited)
|
37 amps
|
Product Guides & Documentation
Package Includes
Package includes:
- RIGrunner 4008H
- (9) Retention Clips
- Owner’s Manual
