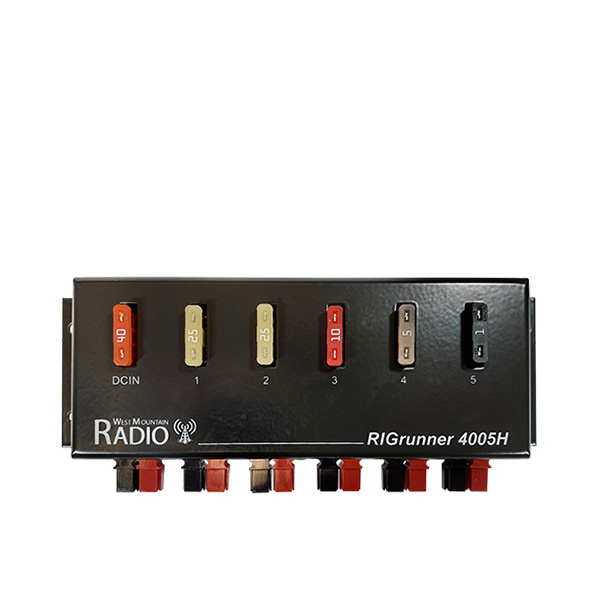

RIGrunner 4005 Horizontal
MPN: 58312-1040
$142.00
Due to production issues, expected availability is unknown.
Out of Stock (On Order)
Get notified when this product is back in stock
RIGrunner 4005H Features
RIGrunner is the most convenient and safest way to connect all of your DC equipment to a power source. It uses the excellent Anderson Powerpole connectors, standardizing all of your DC connections. This RIGrunner can deliver up to 40 amps total through 5 outlets and is available with side mounted Powerpole® connectors. Side mounted connectors enable horizontal mounting.
- 40 amp continuous duty with 5 outlets
Construction
- Built in USA to IPC-610 commercial manufacturing standards by an ISO9002 facility.
- Printed circuit board .062 FR4 material, extra heavy 3oz. copper, with greater than 1″ wide high current traces.
- Double sided, plated through holes, solder mask over bare copper, silk screened commercial grade printed circuit board.
- Enclosure: .062 aluminum, with attractive and extremely durable powder coat painting and clear silk screen labels.
- Power connectors: exclusively Anderson Power Products® Powerpole®.
- Connectors are arranged according to the ARES/RACES standard (see our links).
- Fuses installed are standard ATC/ATO automotive fuses available in 10 values from 1 to 40 Amps.
- Stainless steel hardware with PEM™ threaded mounting standoffs.
| Weight | 1.51 lbs |
|---|---|
| Dimensions | 12.5 × 4.25 × 4.25 in |
Specifications
|
Specifications
|
|
|
Overall Dimensions (maximum, w/o cables)
|
1.4″ H x 7 ” W x 3.0″ D
|
|
Weight
|
6 3/4 oz
|
|
Maximum total current
|
40 amps
|
|
Maximum single individual outlet current
|
40 amps (fuse protected)
|
|
ICAS current rating (fuse limited)
|
37 amps
|
Package Includes
Package includes:
- RIGrunner 4005H
- (6) Retention clips
- Owner’s Manual
