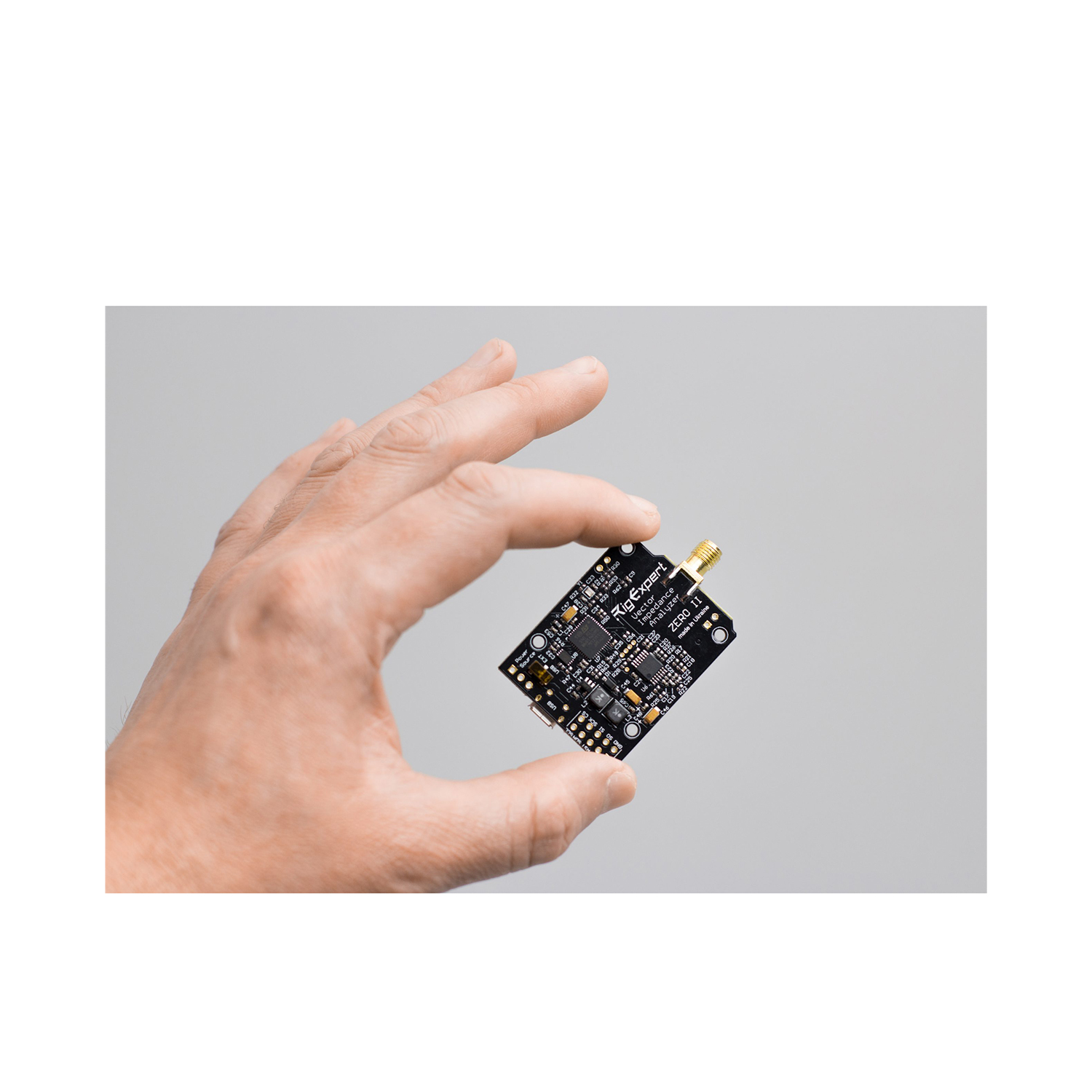

RigExpert ZERO II 1 GHz VNA

MPN: ZERO II

$140.00

Powerful 1 GHz Vector Network Analyzer for embedded applications

In stock

SKU: RIGEX-ZEROII Categories: ,

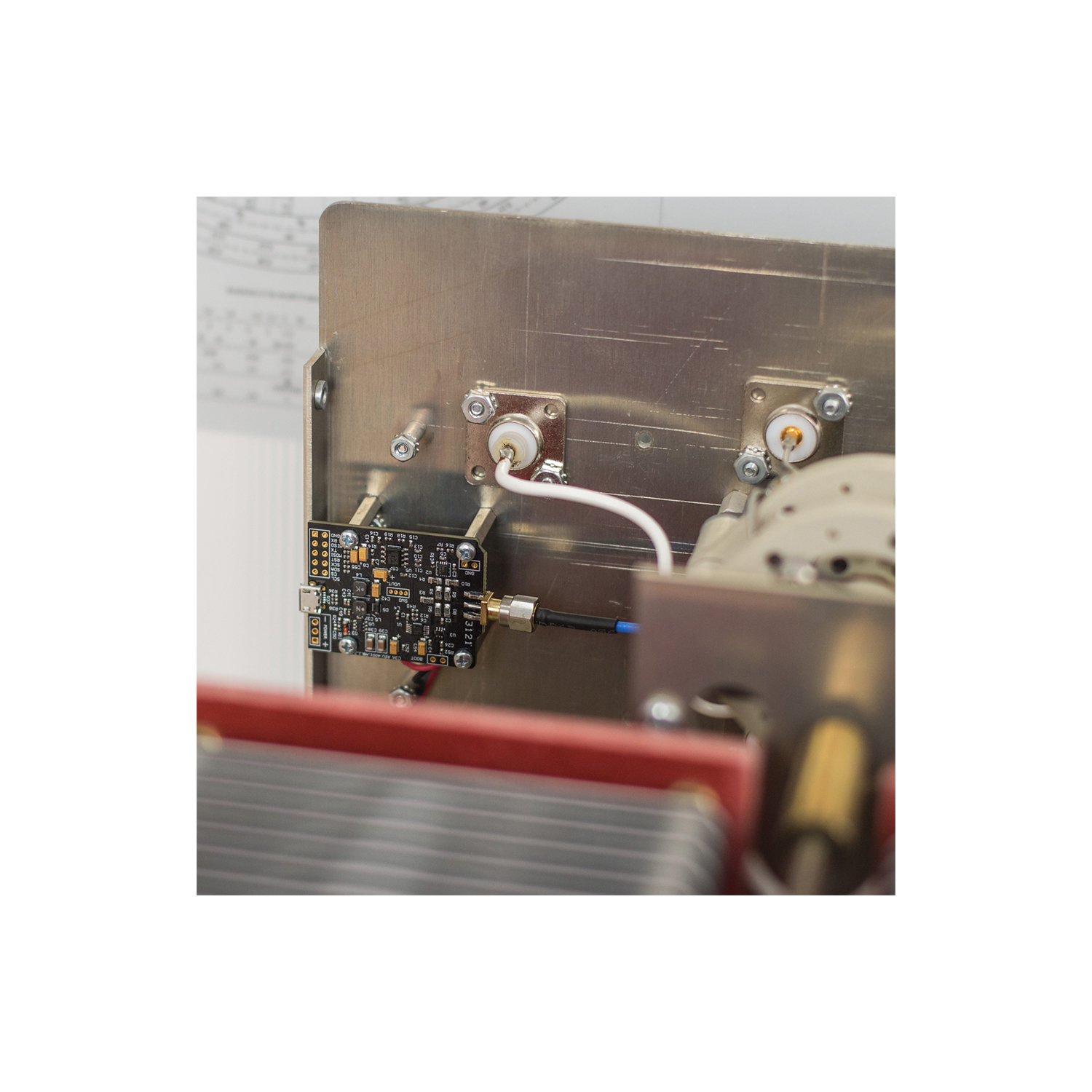

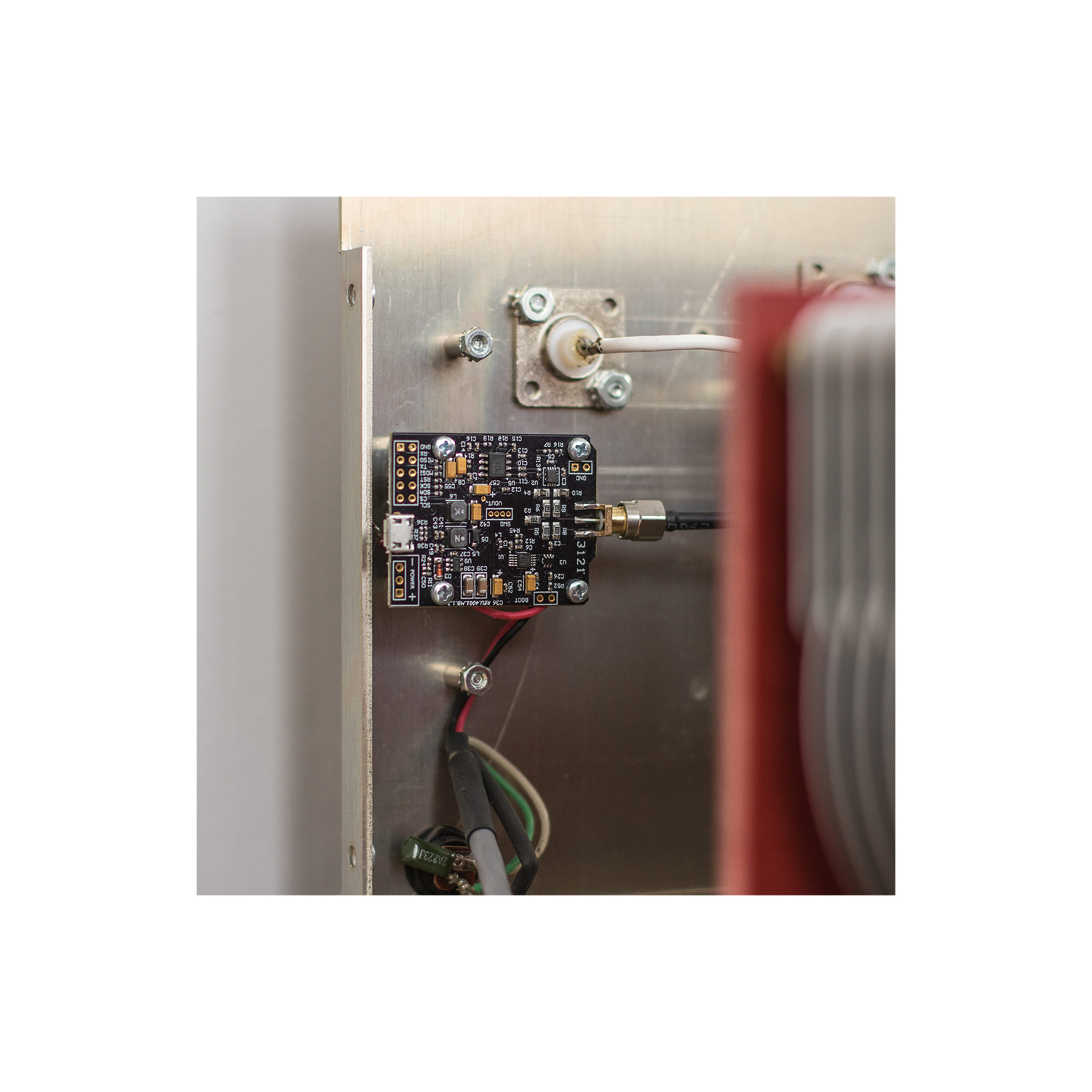

It is a powerful 1 GHz VNA for embedded applications & perfect device for embedded installation and using for example in the antenna tuners, transceivers or power amplifiers as the core of the load matching circuit.

ZERO II is also useful for those who:

  • Manufacturers of power equipment HAM radio direction;
  • Developers and manufacturers of devices requiring long-distance packet data transmission using different protocols.

It is capable on:

  • Measures up to 1 GHz
  • Instantly returns R, X, SWR & Return Loss values
  • Comes factory calibrated

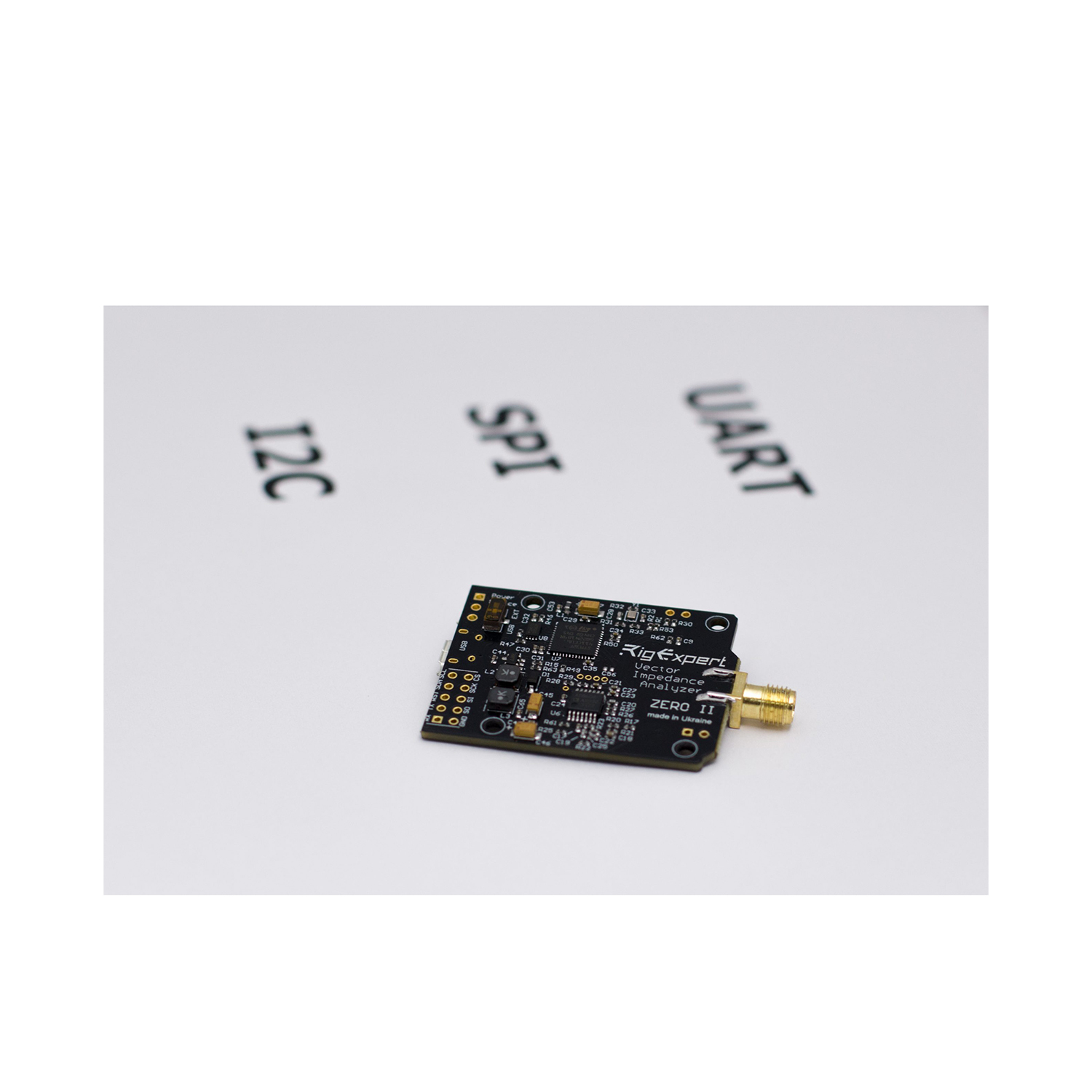

  • Has USB, UART, I2C, SPI interfaces

The ZERO II analyzer has the following characteristics:

  • Operating frequency range: from 100 kHz to 1 GHz
  • Size: 55*35 mm.
  • User interfaces: HID, UART, I2C, SPI
  • USB connector (for firmware updates, power supply, connection to gadgets via OTG)
  • Current consumption: about 120mA in measurement mode
  • Antenna connector: SMA
  • Weight: 10 grams

The ZERO II has a unique ability to connect to Android-based gadgets and the AntScope application via OTG connection. With this feature, you can use just a smartphone and an analyzer, and no development of any software for Arduino, Raspberry Pi, or any other microcomputers is required.

Weight 0.2 lbs
Dimensions 1.2 × 2.2 × 0.4 in
Brand

RigExpert
Manufacturer Part Number ZERO II

Specifications

RigExpert ZERO II Specifications

Frequency range from 100 kHz to 1000 MHz
Frequency setting time 20 ms
Return values Resistance, Reactance (signed), SWR, Return Loss
Output connector SMA
Output power -10 dBm
Power USB or from 3V to 48V through Power port
Operating temperature 0-40 °C (32-104 °F)
Interfaces USB, I2C, SPI, UART
Dimensions 30 x 40 x 4 mm (1 x 2 x 0.2 inches)
Weight (with battery installed) 30 grams (3 Oz)
Warranty 1-year RigExpertCare™
