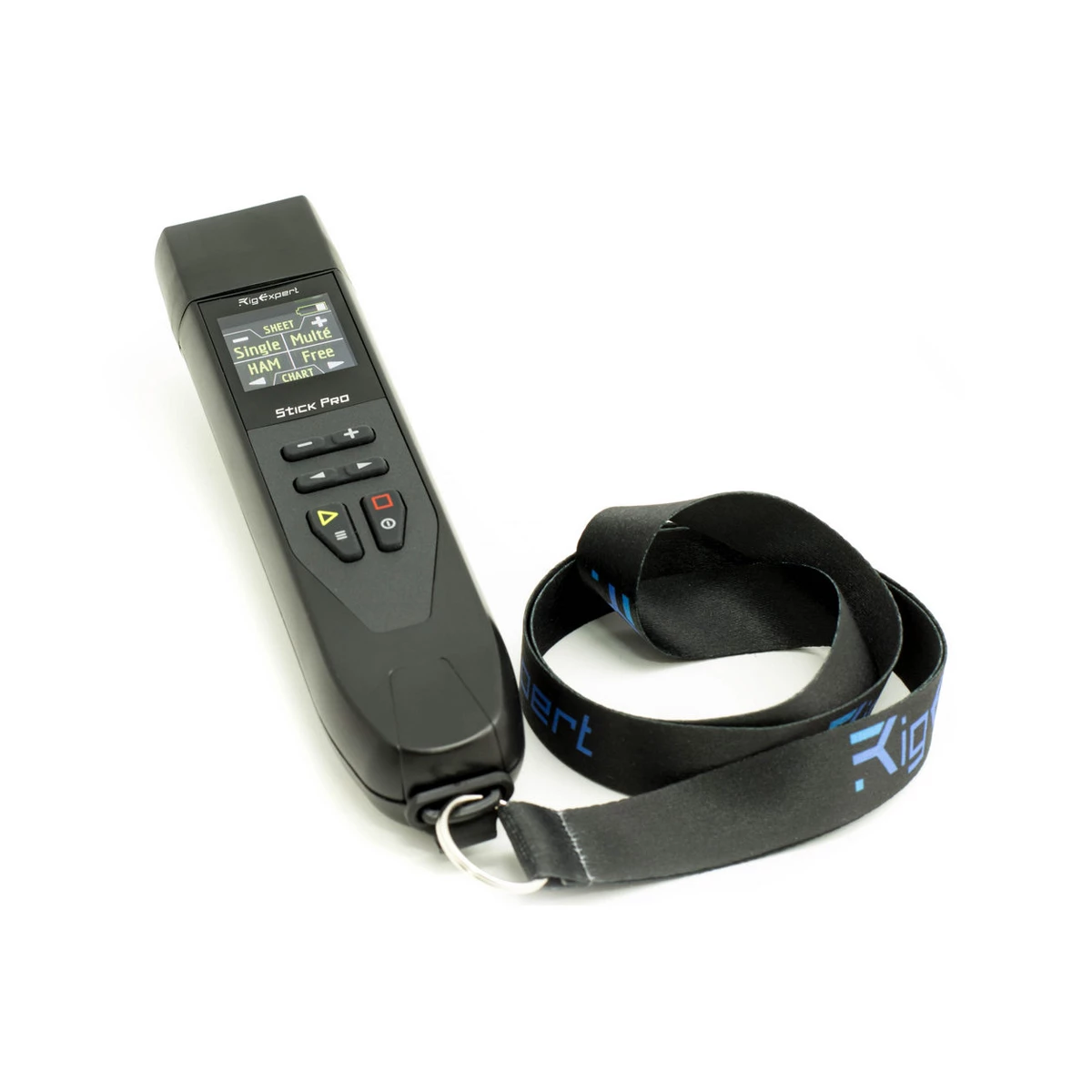

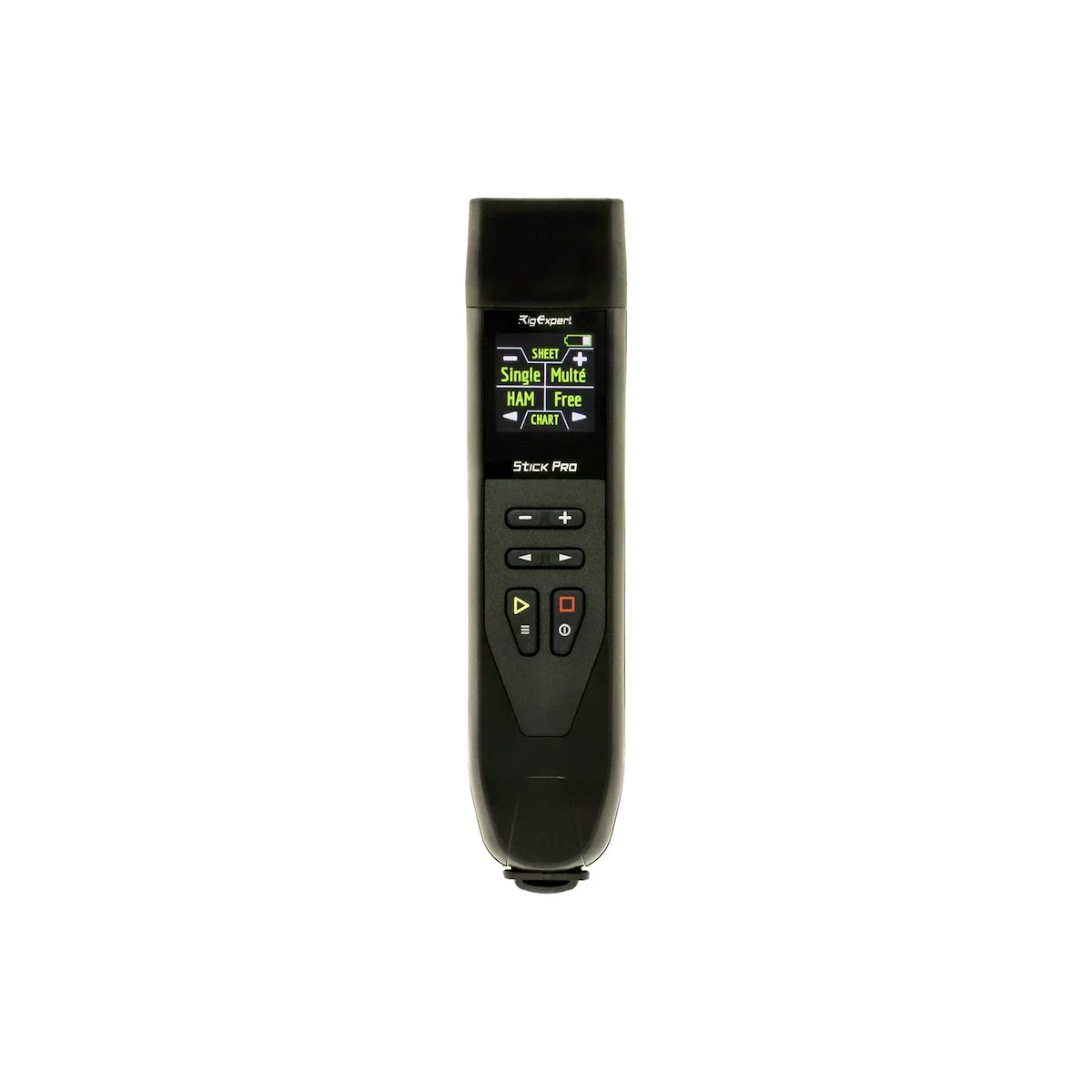

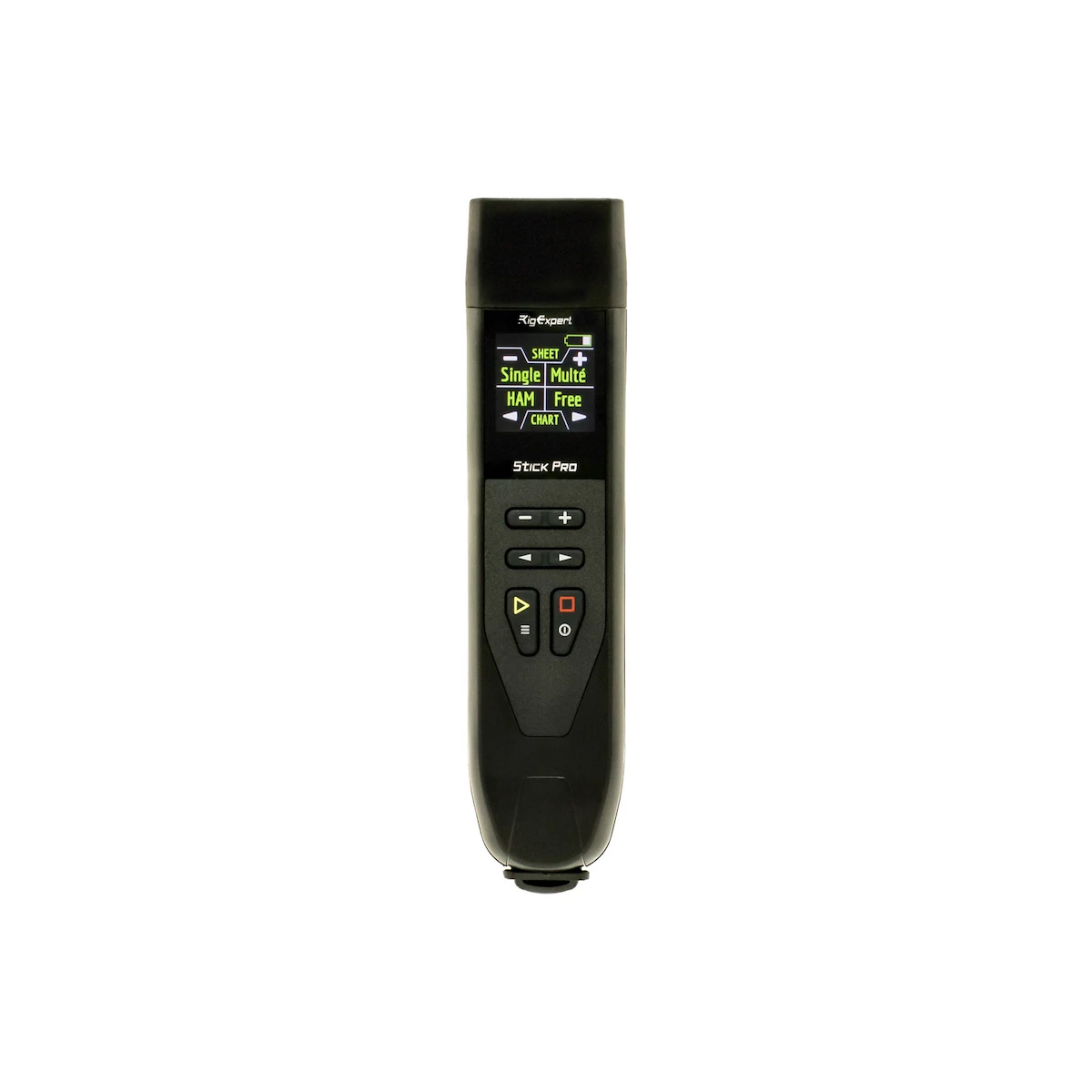

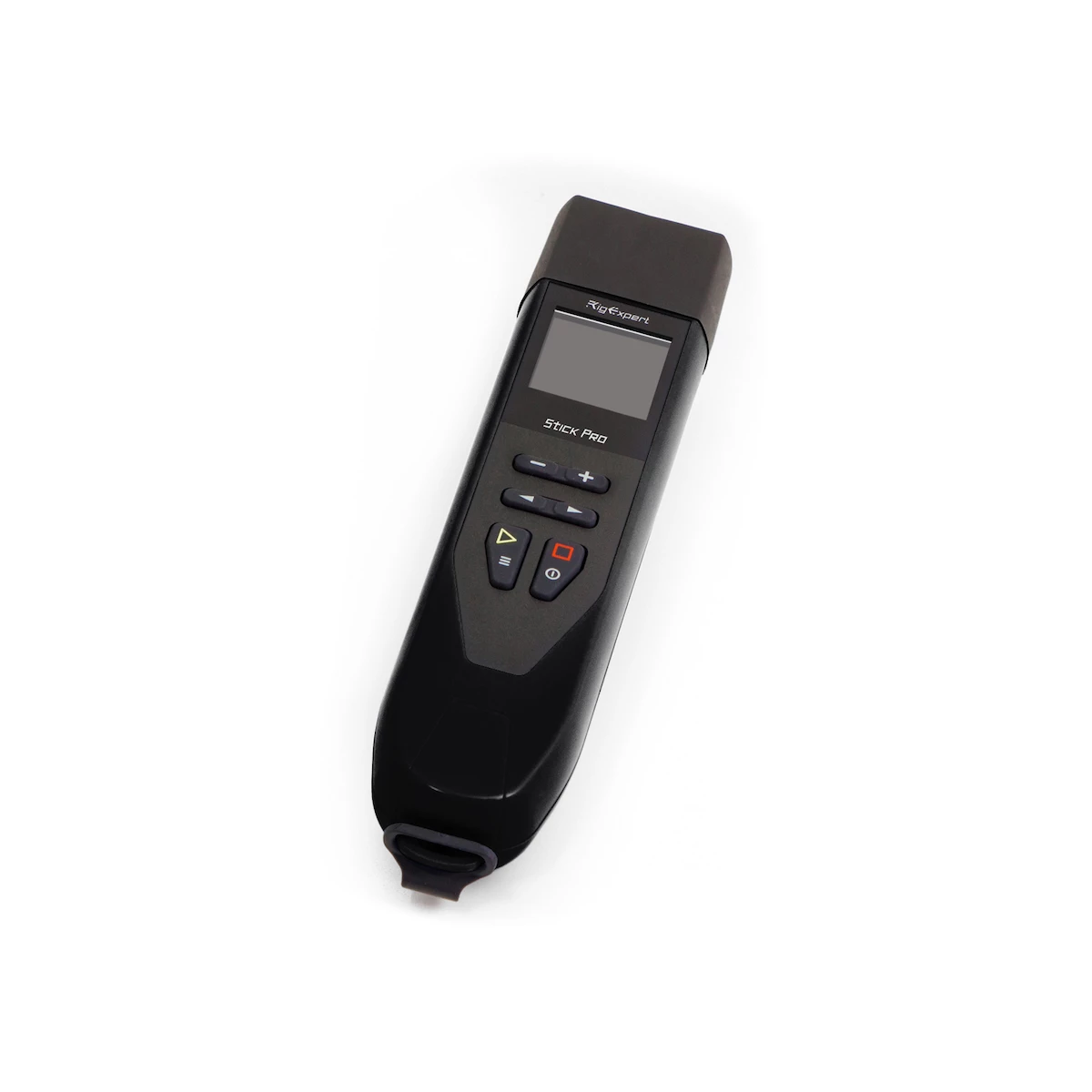

RigExpert Stick Pro Antenna & Cable Analyzer

Stick Pro is an antenna and cable vector analyzer for your amateur radio. The analyzer allows you to measure various parameters of antennas, cables, lines, filters and many others in the frequency range from 100 kHz to 600 MHz.

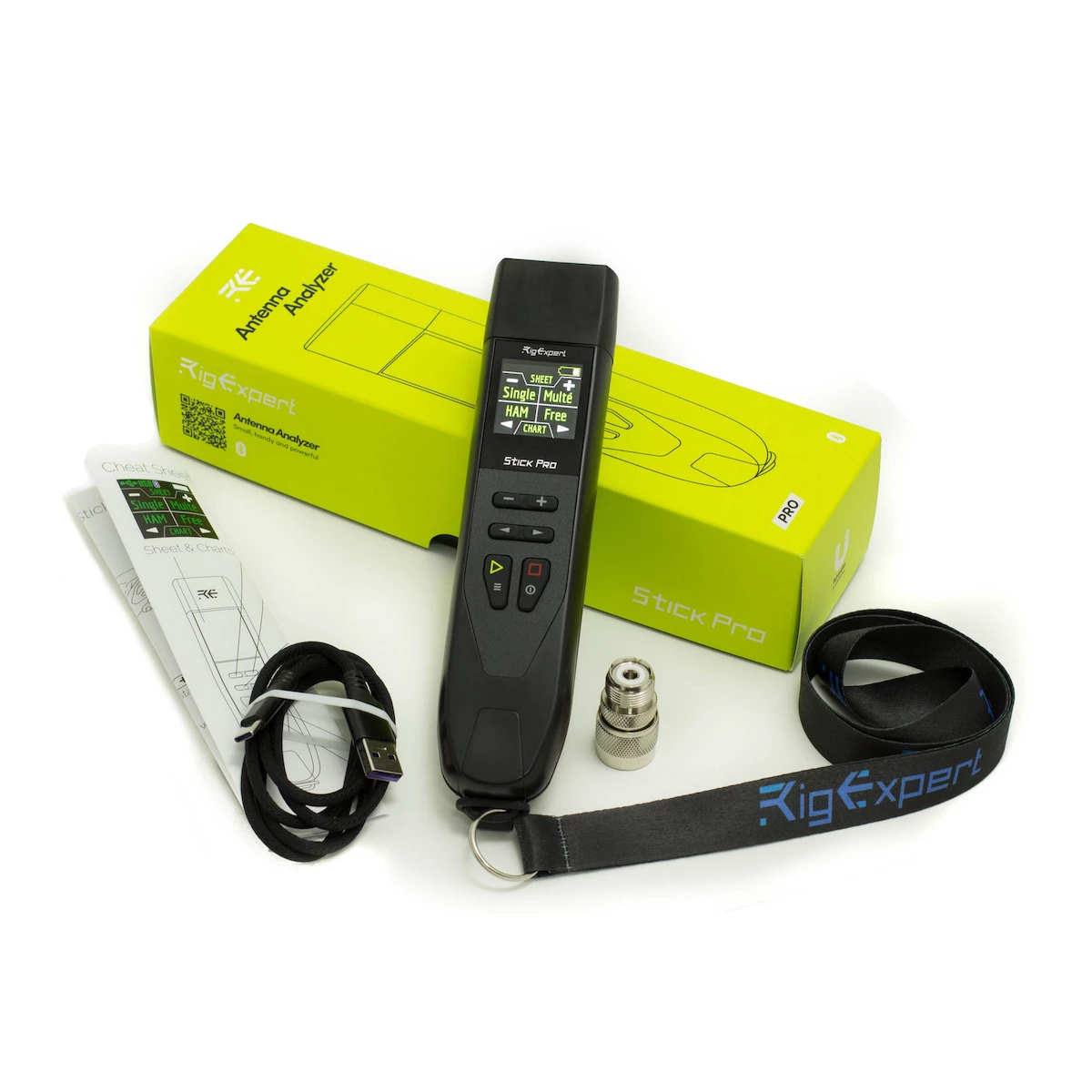

The Stick Pro analyzer has a compact size and lightweight, which is great for using the analyzer both in the home and in the field. This antenna analyzer has an N-type connector and includes an N to UHF adapter for UHF antennas and radios.

Main parameters of the Stick Pro analyzer:

• Operating frequency: 100 kHz – 600 MHz
• Size: 185 x 40 x 33 mm (7.3 in x 1.6 in x 1.3 in)
• Weight: 185 grams (6.5 Oz) (unpacked, with battery installed)
• Type of antenna connector: N-type
• Number of Enter Keys: 6
• Display: color TFT, 220 x 220 pixels.
• Type of battery used: Li-ion 18650 (included)
• PC Connector Type: USB 2.0 Type-C
• Charging Port Type: USB Type-C
• Bluetooth Availability: Yes, Bluetooth ver. 4.2 BLE Single-mode, Class B
• Battery Charge Time: 3 hours.
• RF Power: -10 dBm (at 50 Ohm load)
• Minimum frequency step: 1 kHz
• Operating temperature: 0…40 °C (32…104 °F)

Stick Pro Specifications:

• Frequency range: 0.1 ~ 600 MHz
• Frequency input step: 1 kHz
• Measurements for 25, 50, 75, 100, 150, 200, 300, 450 and 600Ω systems
• SWR measurement range: from 1 to 100 in digital mode, from 1 to 10 in graph modes
• Range R and X: 0… 2000, -2000… 2000
• Operating modes: SWR, loss recovery, R, X, Z, L, C, magnitude and phase angle at one frequency. SWR chart, 100 points. Multé mode – for quick testing of a multi-band antenna.
• HF output: Connector type: N-type. Output signal shape: pies, from 0.1 to 600 MHz. Output power: -10 dBm (at a load of 50 Ohms).
• Power: One lithium-ion battery 3.7 V type 18650. When the analyzer is connected to a PC or DC adapter with a USB connector, it receives power from these sources
• Interface: 200 × 200 TFT LCD. 2 × 3 keys on the waterproof keyboard. English menu and help screens. USB connection to a personal computer
• Bluetooth: v.4.2 BLE Single Mode, Class B
• Dimensions: 185 mm x 40 mm x 33 mm (7.3 inches x 1.6 inches x 1.3 inches)
• Operating temperature: 0 … 40 ° C (32 … 104 ° F)
• Weight: 185 g (6.5 ounces) with battery
• Warranty: 2 years
• GTIN-13: 4820185420280

RigExpert Stick Pro is made in Ukraine.

* All specifications are subject to change without notice or obligation.
