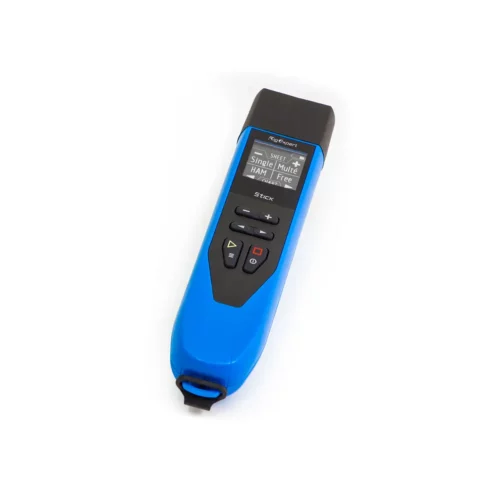

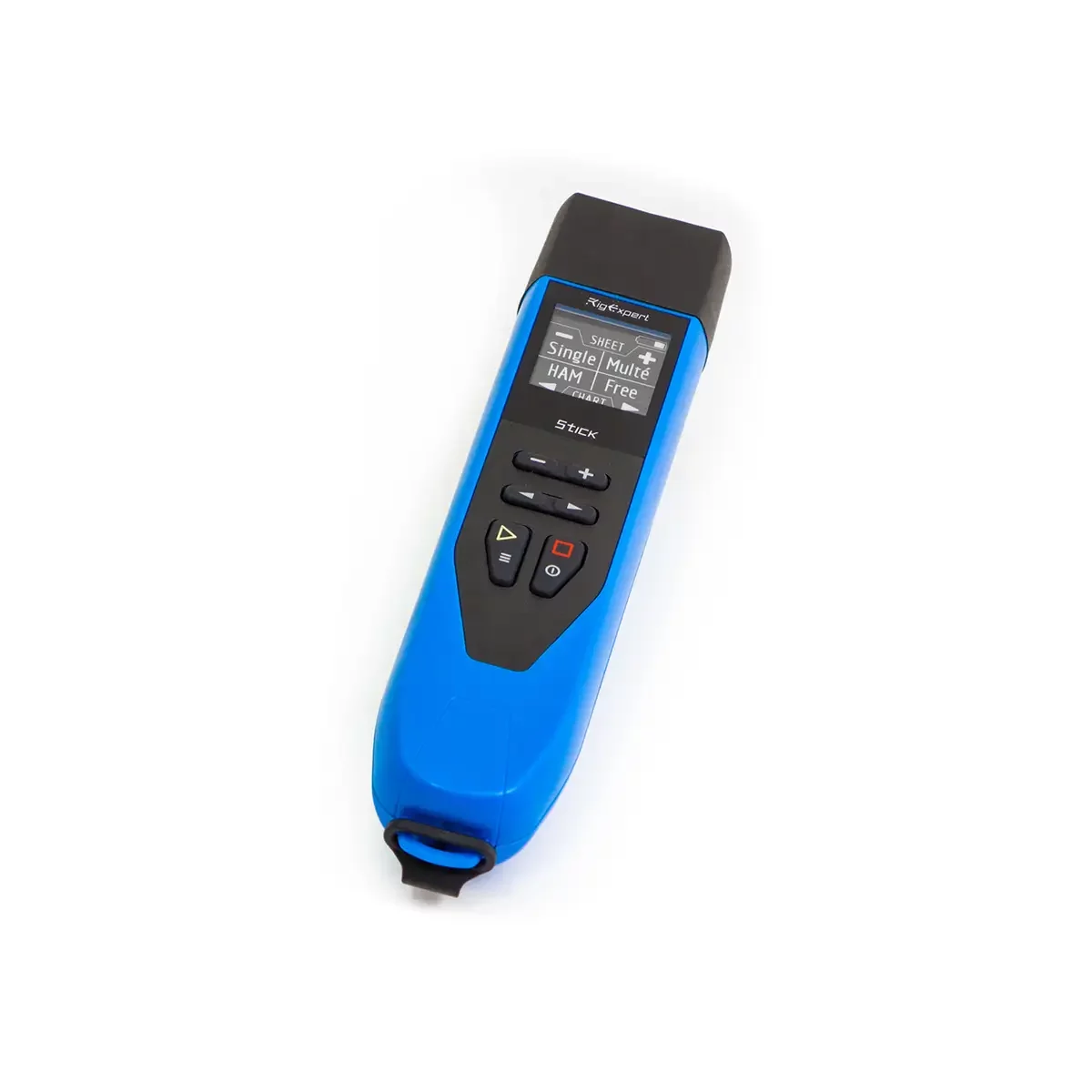

RigExpert STICK 230 Antenna and Cable Analyzer
$475.00
The Stick 230 analyzer is compact size and lightweight, which is great for using the analyzer both in the home and in the field.
In stock
The analyzer is designed for measuring SWR (standing wave ratio), return loss, as well as other parameters of cable and antenna systems in the range of 100 kHz to 230 MHz.
It is the world’s first antenna analyzer capable of 16 hours of continuous measurements without battery recharging.
Small, handy and powerful vector network analyzer is designed for measuring most useful parameters of cable and antenna systems in the range of 100 kHz to 230 MHz. Compared with the other devices the Stick is the State-of-the-Art Antenna & Cable Analyzer. Because it has Key benefits: less size you obtain, less weight you carry, less time you measure.
The device is ideal for field use.
The main parameters of the Stick 230 analyzer:
- Operating frequency: 100 kHz – 230 MHz
- Size: 185 * 40 * 33 mm (7,3 in x 1,6 in x 1,3 in)
- Weight: 185 grams (6.5 Oz) (unpacked, with battery installed)
- Type of antenna connector: SO-239
- Number of Enter Keys: 6
- Display: monochrome e-paper, 200 * 200 pixels.
- Type of battery used: Li-ion 18650 (included)
- PC Connector Type: USB 2.0 Type-C
- Charging Port Type: USB Type-C
- Bluetooth Availability: Yes, Bluetooth ver. 4.2 BLE Single-mode, Class B
- Battery Charge Time: 3 hours.
- RF Power: -10 dBm (at 50 Ohm load)
- Minimum frequency step: 1 kHz
- Operating temperature: 0…40 °C (32…104 °F)
| Weight | 0.62 lbs |
|---|---|
| Dimensions | 8.5 × 2.5 × 2 in |
| Brand | RigExpert |
Specifications
RigExpert STICK 230 Specs
- Frequency range: from 0.1 to 230 MHz
- Frequency input step: 1 kHz
- Measurements for 25, 50, 75, 100, 150, 200, 300, 450, and 600 Ohm systems
- SWR measurement range: from 1 to 100 in digital mode, from 1 to 10 in graph modes
- Range R and X: 0… 10000, -10000… 10000
- Operating modes:
- SWR, Return loss, R, X, Z, L, C, magnitude, and phase angle at one frequency.

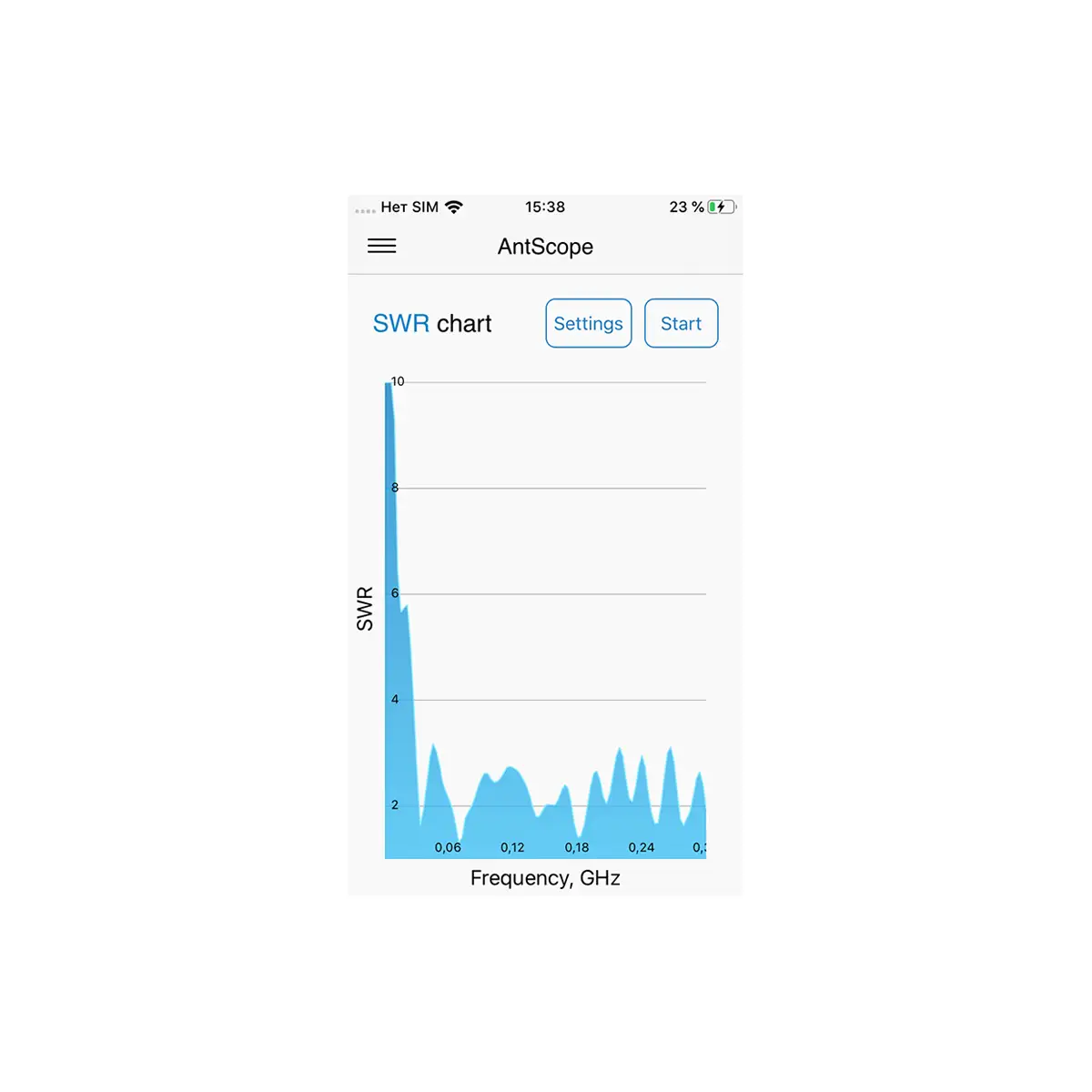

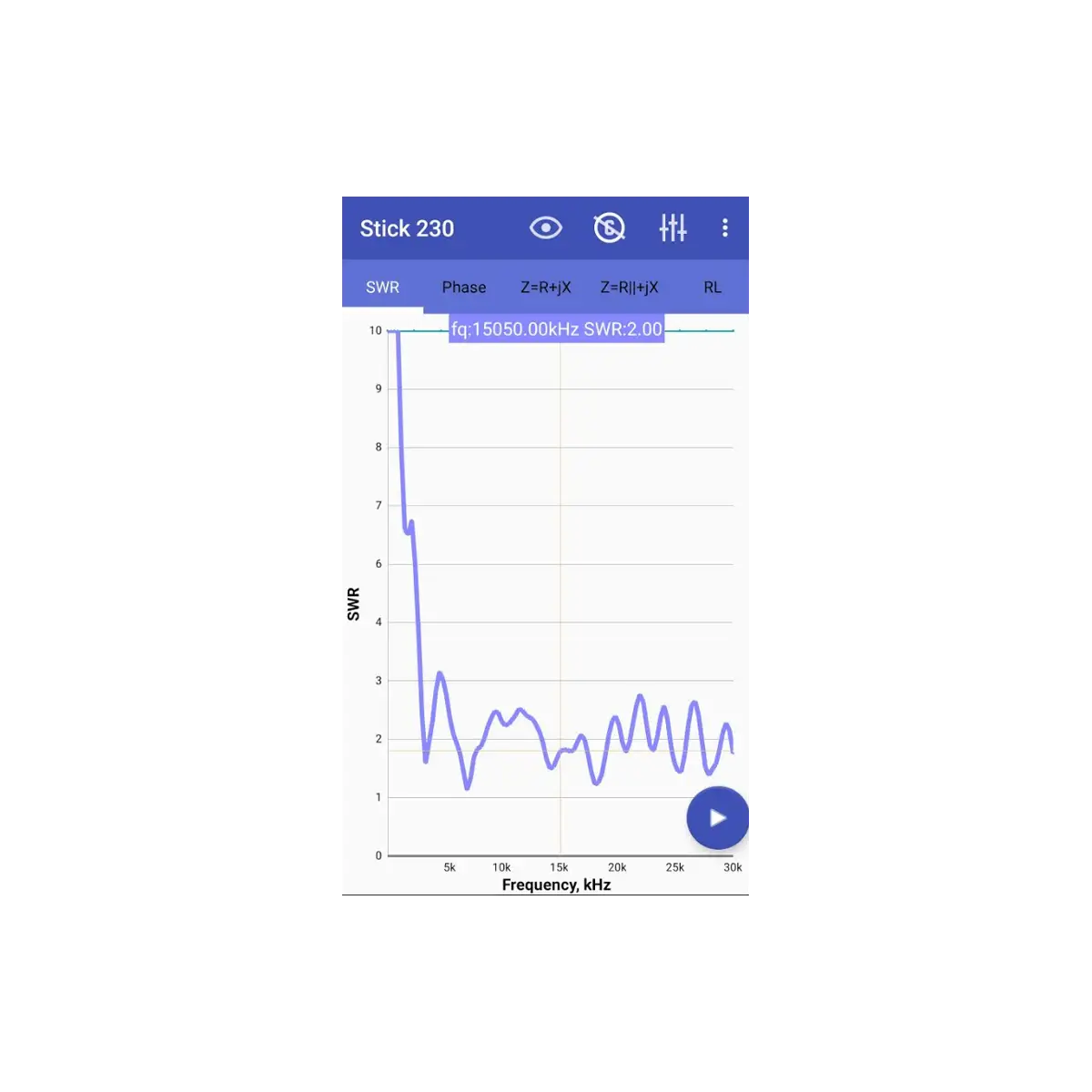

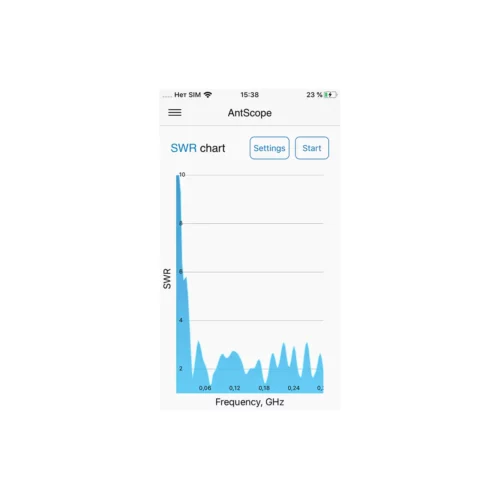

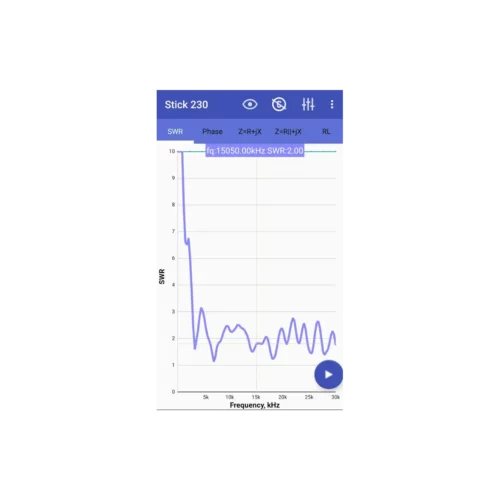

- SWR chart, 100 points.

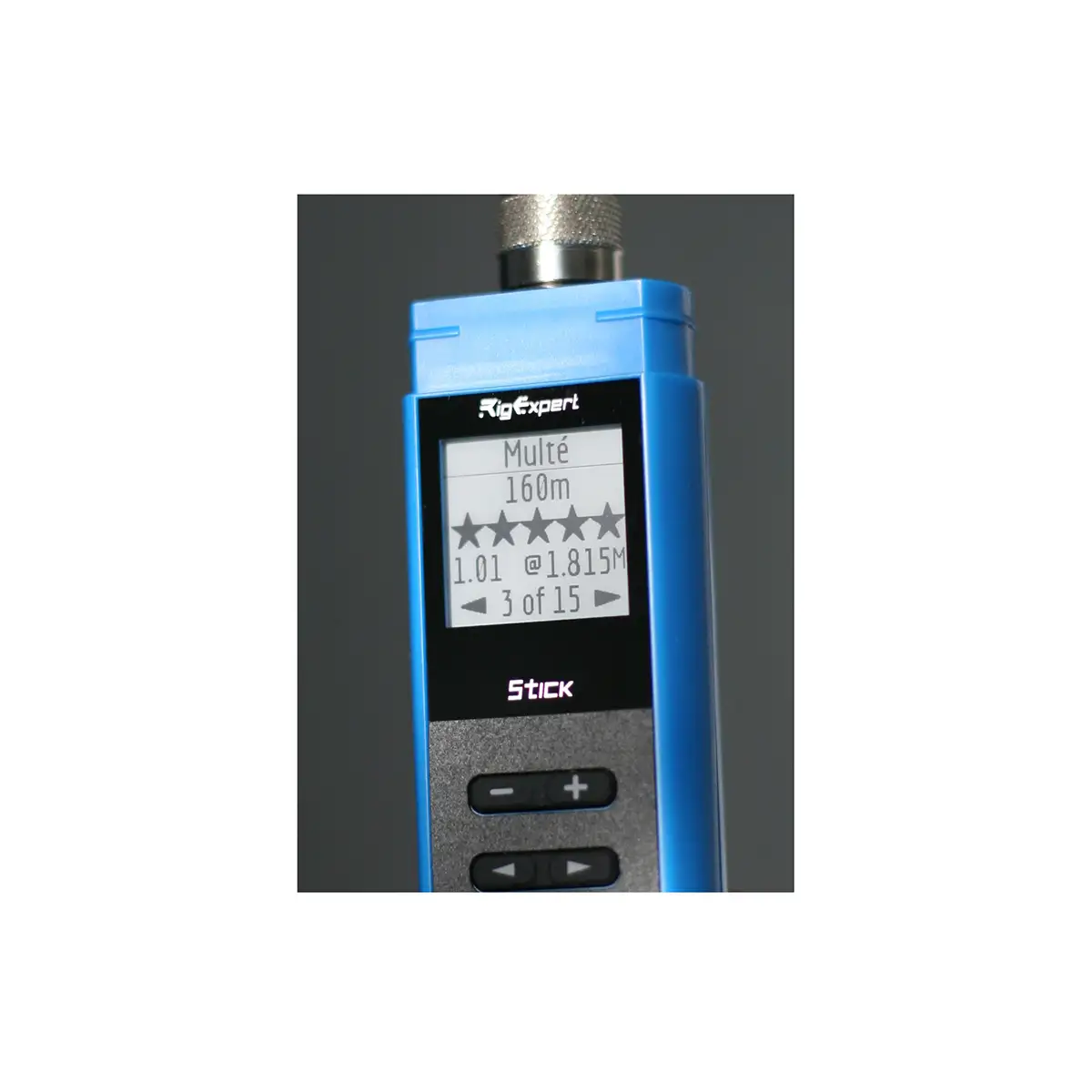

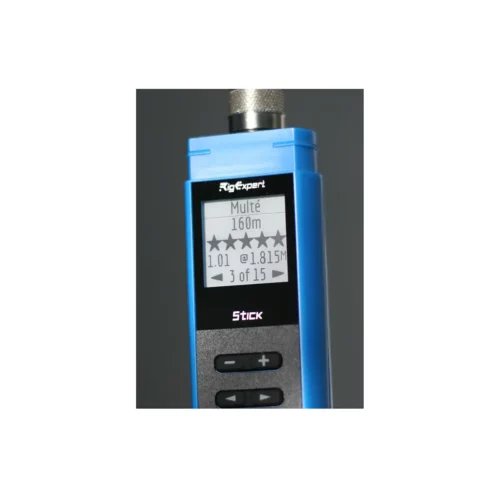

- Multé mode – for quick testing of a multi-band antenna.
- HF output:
- Connector type: UHF (SO-239).
- Output signal shape: square, from 0.1 to 230 MHz.
- Output power: -10 dBm (at a load of 50 Ohms).
- Power:
- One lithium-ion battery 3.7 V type 18650
- When the analyzer is connected to a PC or DC adapter with a USB connector, it receives power from these sources
- Interface:

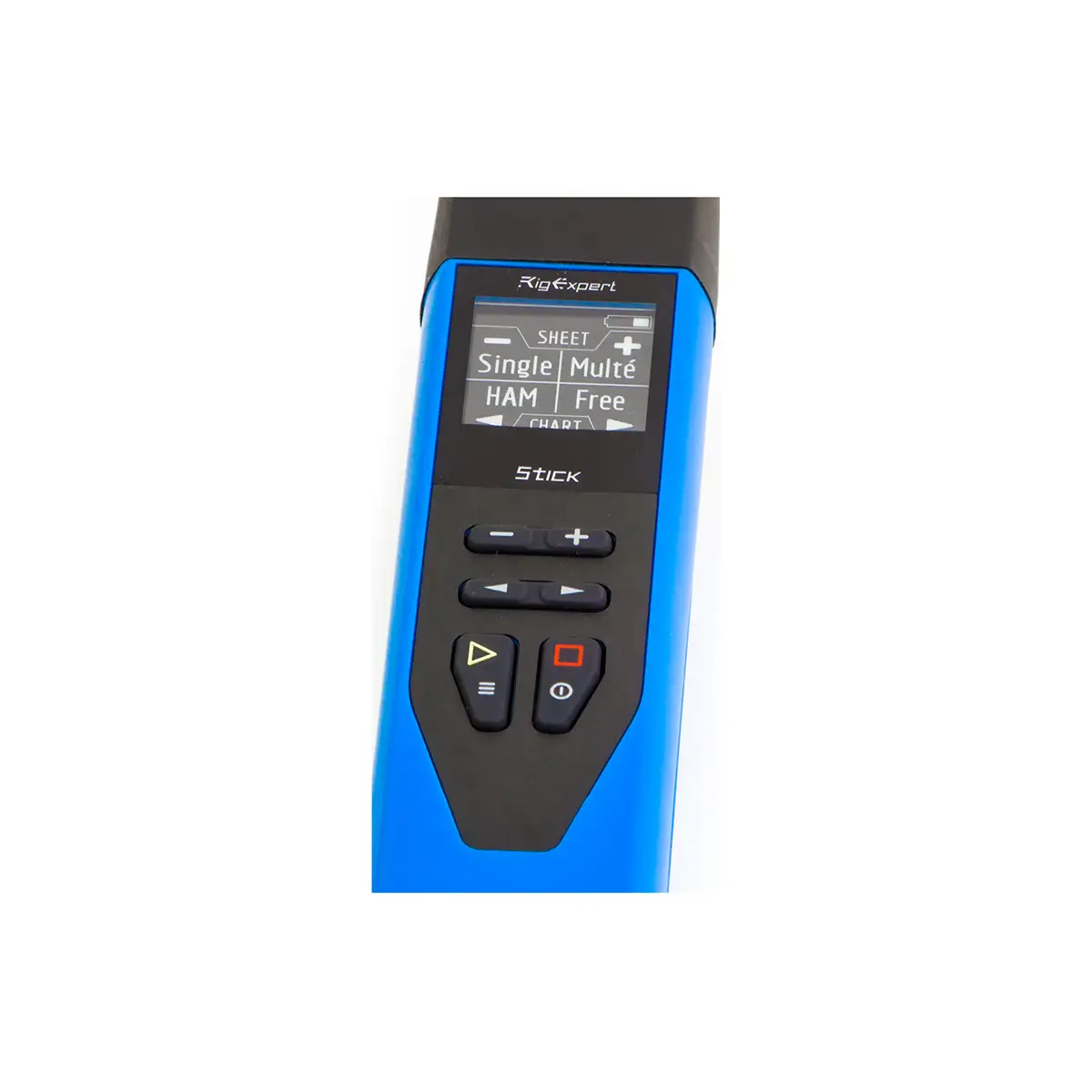

- Monochrome electronic paper display with a size of 200 × 20

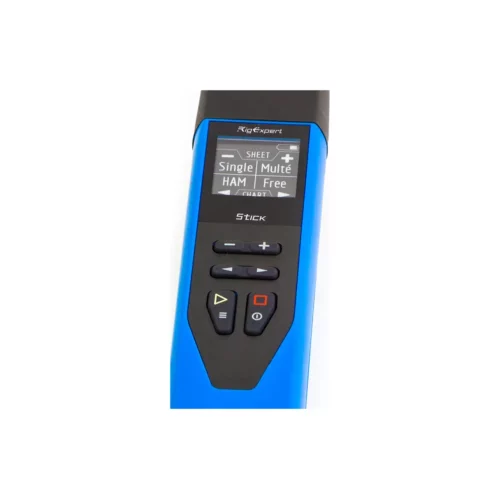

- 2 × 3 keys on the waterproof keyboard
- English menu and help screens

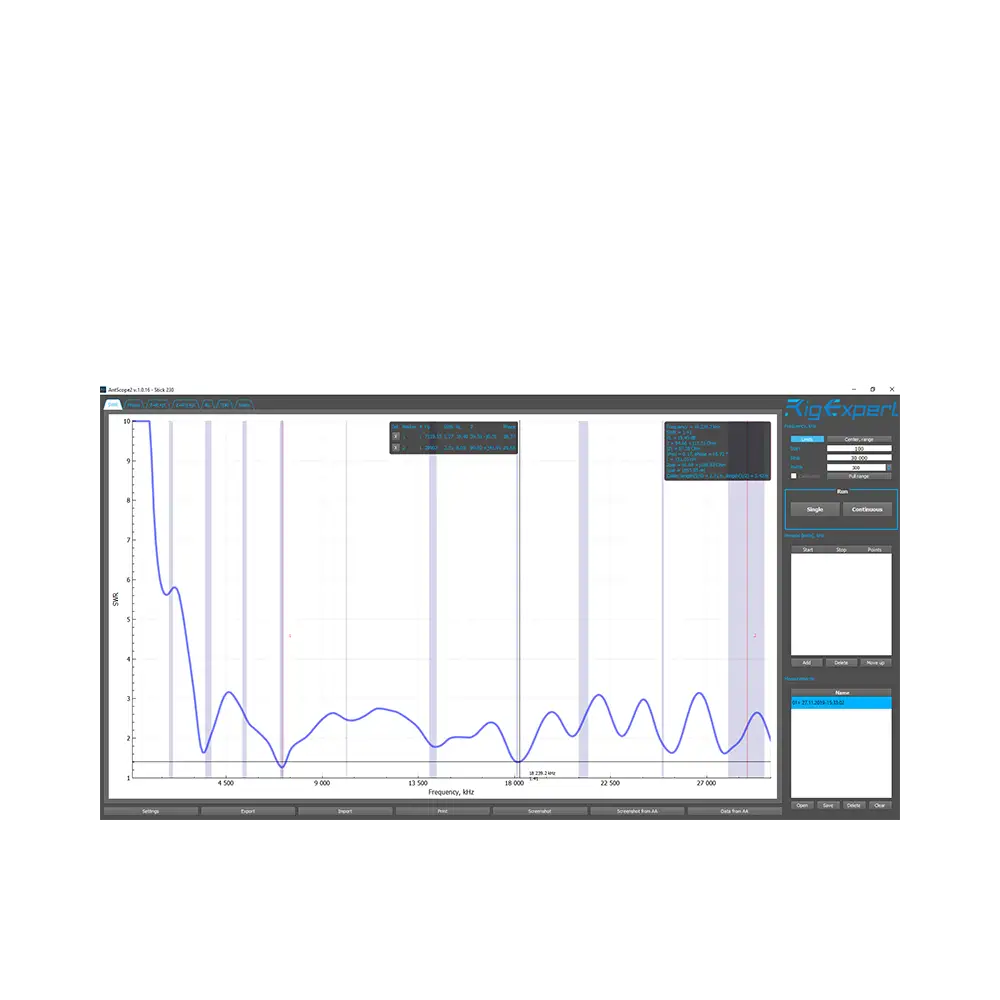

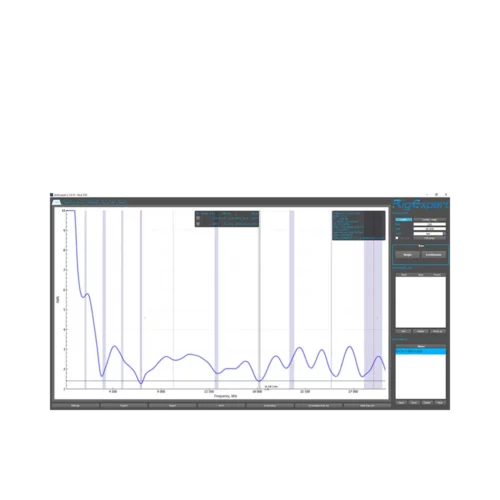

- USB connection to a personal computer
- Bluetooth: v.4.2 BLE Single Mode, Class B
- Dimensions: 185 mm x 40 mm x 33 mm (7.3 inches x 1.6 inches x 1.3 inches)
- Operating temperature: -15° … 40 ° C (32 … 104 ° F)
- Weight: 185 g (6.5 ounces) with battery
- Warranty: 2 years
- GTIN-13: 4820185420259
RigExpert Stick is made in Ukraine.
* All specifications are subject to change without notice or obligation.
Package Includes
In the Box:

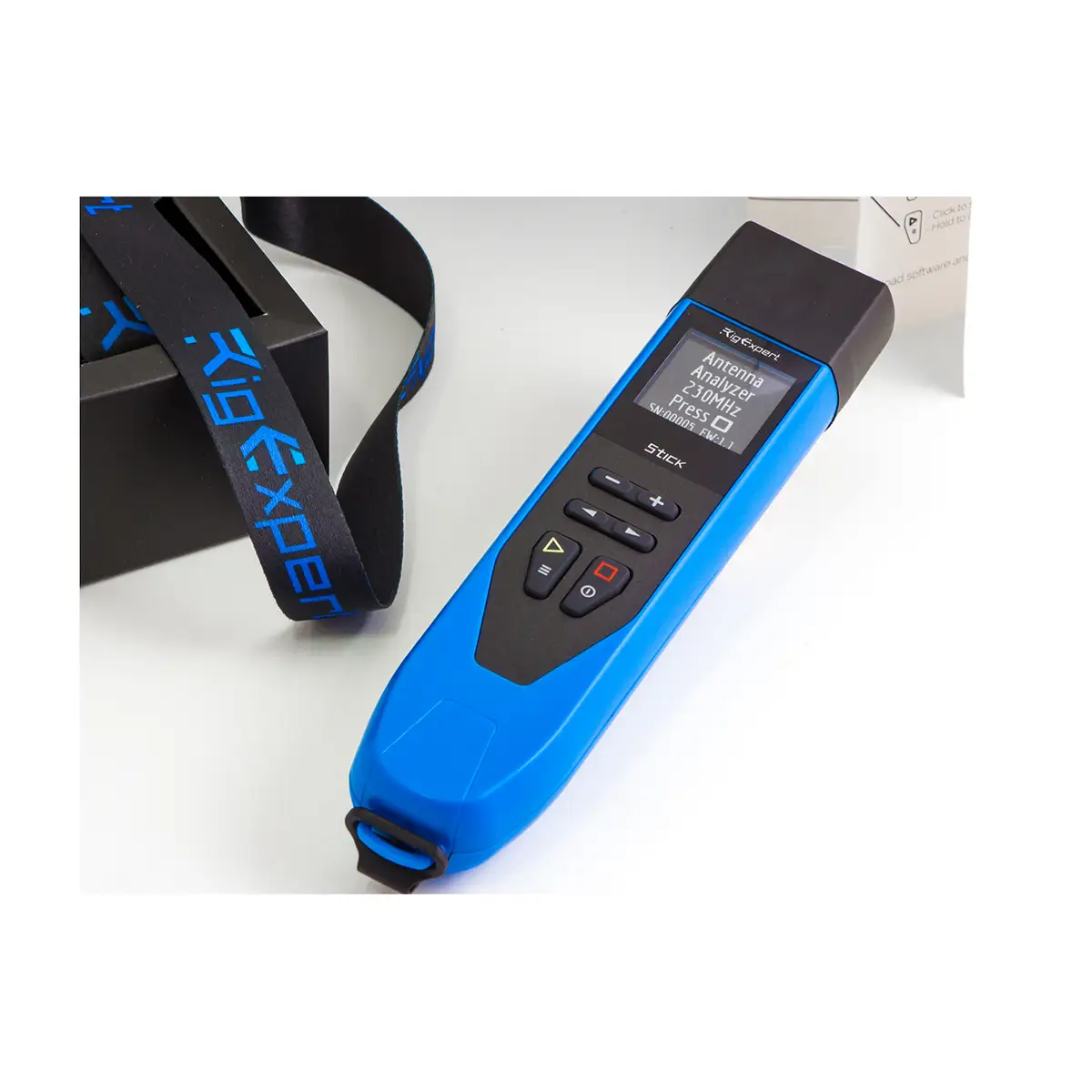

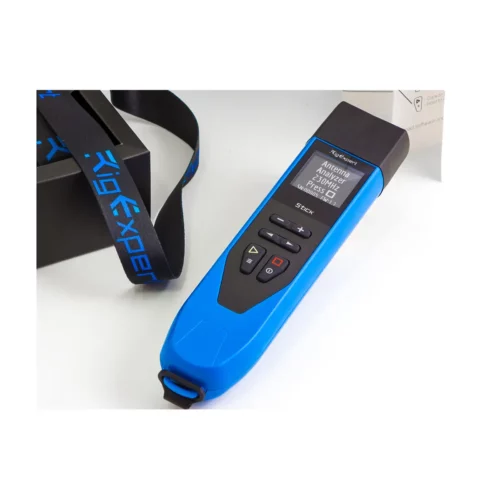

- RigExpert Stick 230 antenna analyzer (with a Li-ion battery type 18650)
- quick start guide

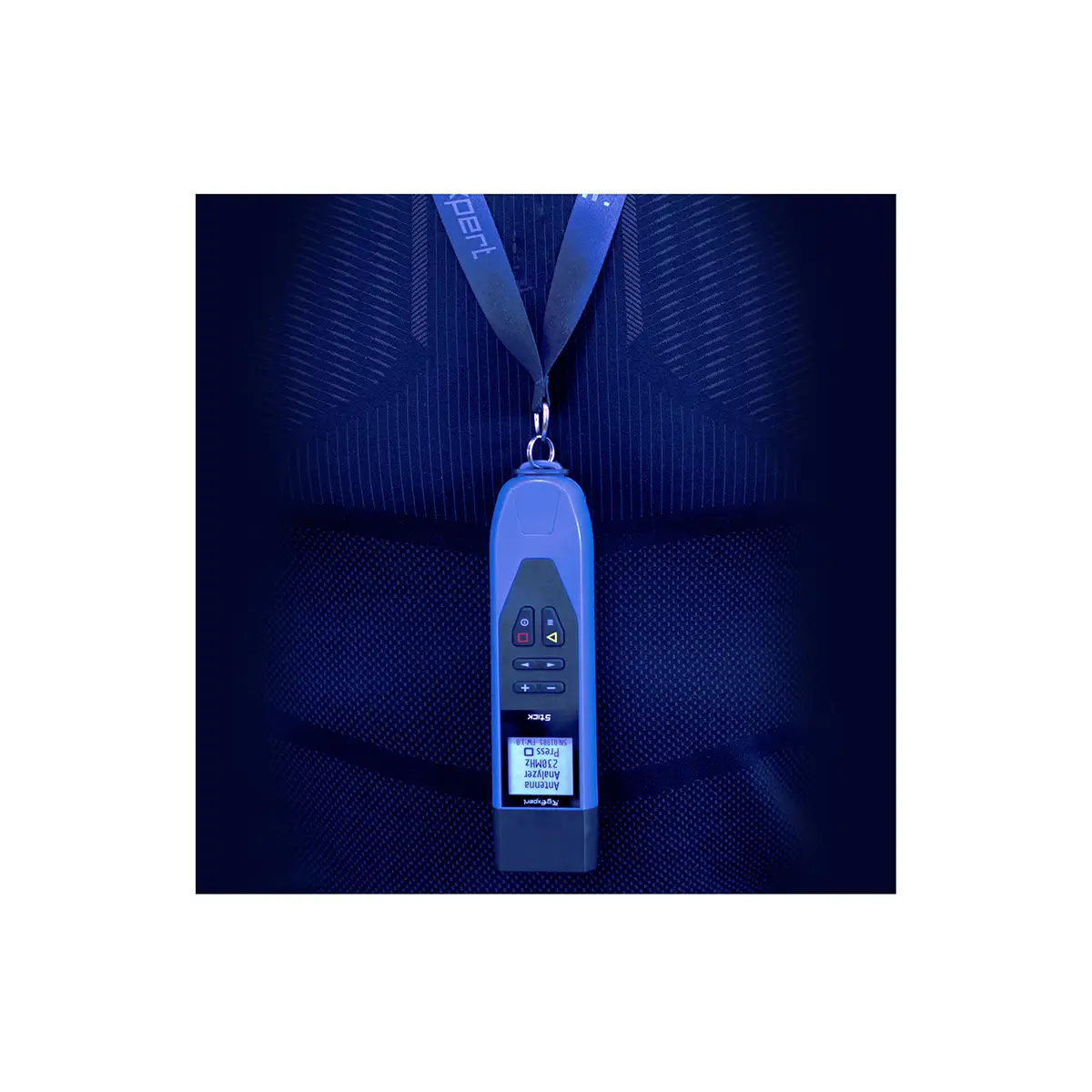

- neck strap
- USB cable
