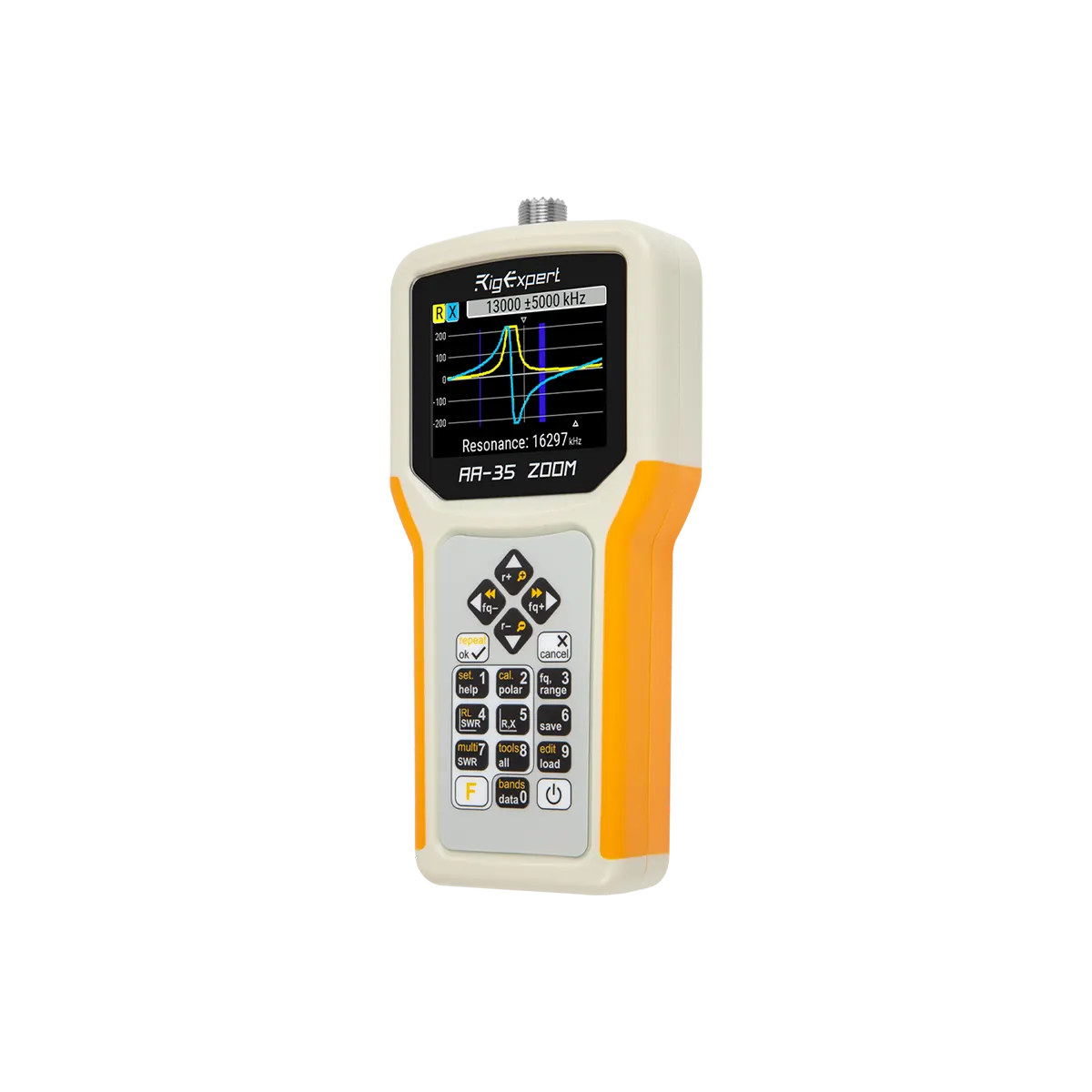

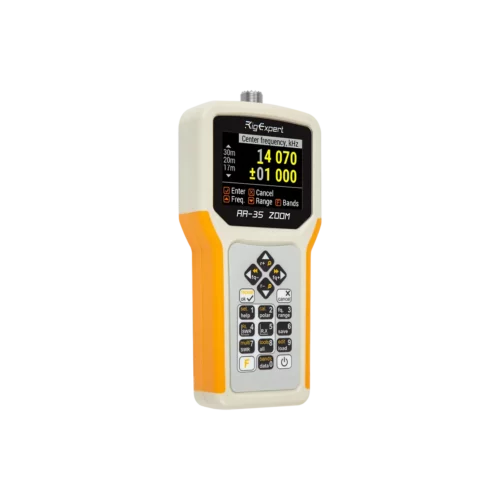

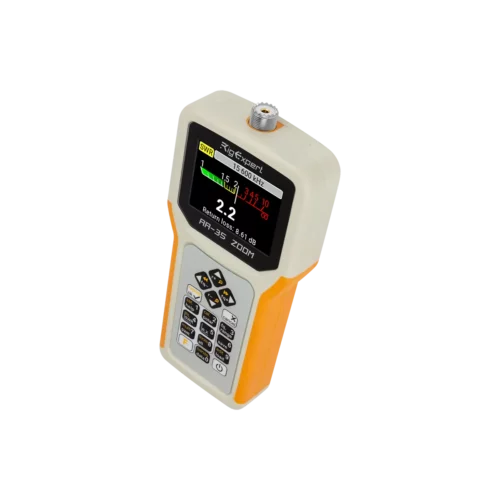

RigExpert AA-35 ZOOM HF SWR Analyzer
MPN: AA-35ZOOM
MPN:
$385.00
In stock
SKU: RIGEX-AA35ZOOM
Categories: Amateur Antennas, Radio Accessories, Analyzers

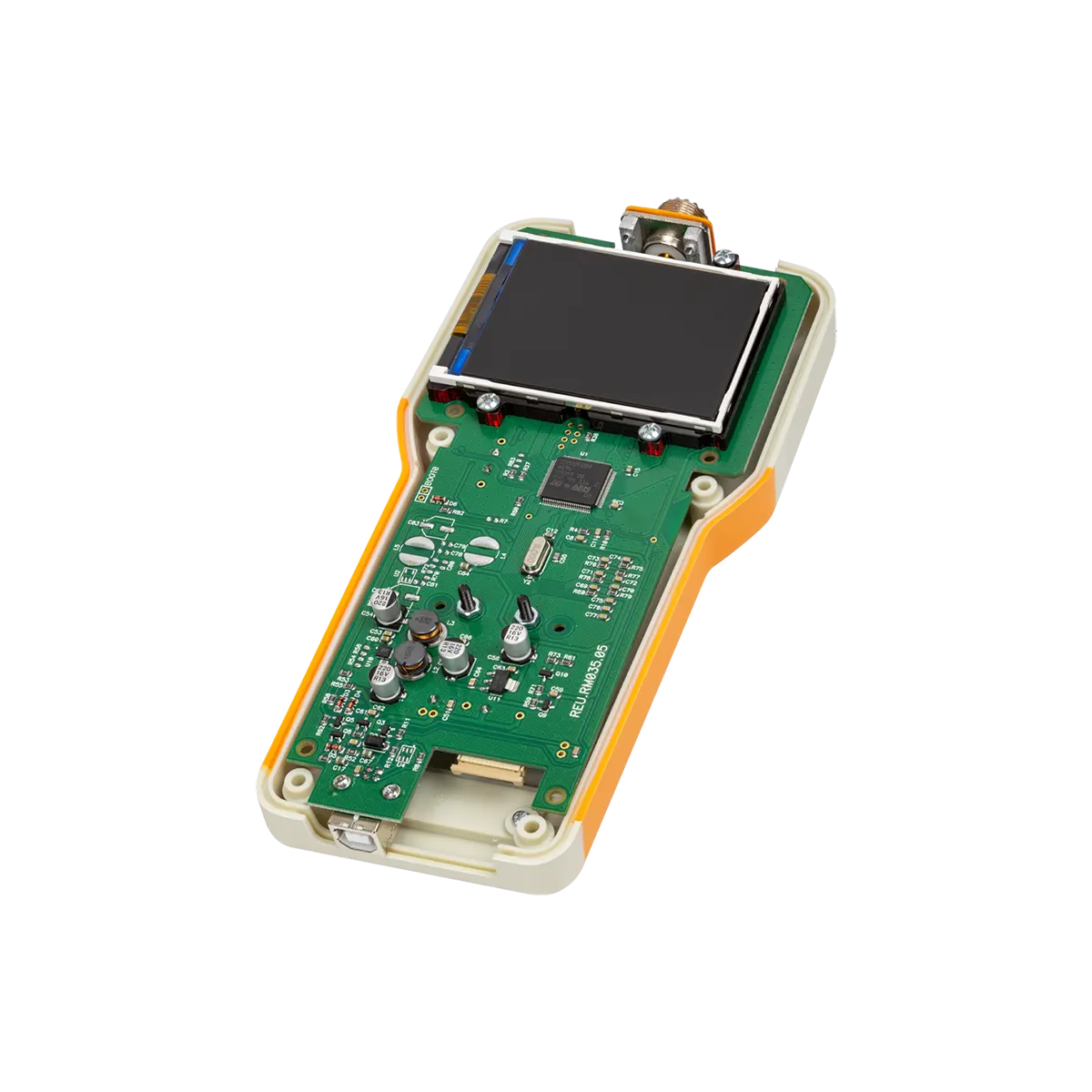

The AA-35 ZOOM is a portable, self-calibrating analyzer, designed for measuring SWR (standing wave ratio), return loss, cable loss, as well as other parameters of cable and antenna systems in the range of 60 kHz to 35 MHz.
RigExpert AA-35 ZOOM Features & Benefits:
- Rapid check-out of an antenna
- Tuning an antenna to resonance
- Comparing characteristics of an antenna before and after specific event (rain, hurricane, etc.)
- Making coaxial stubs or measuring their parameters

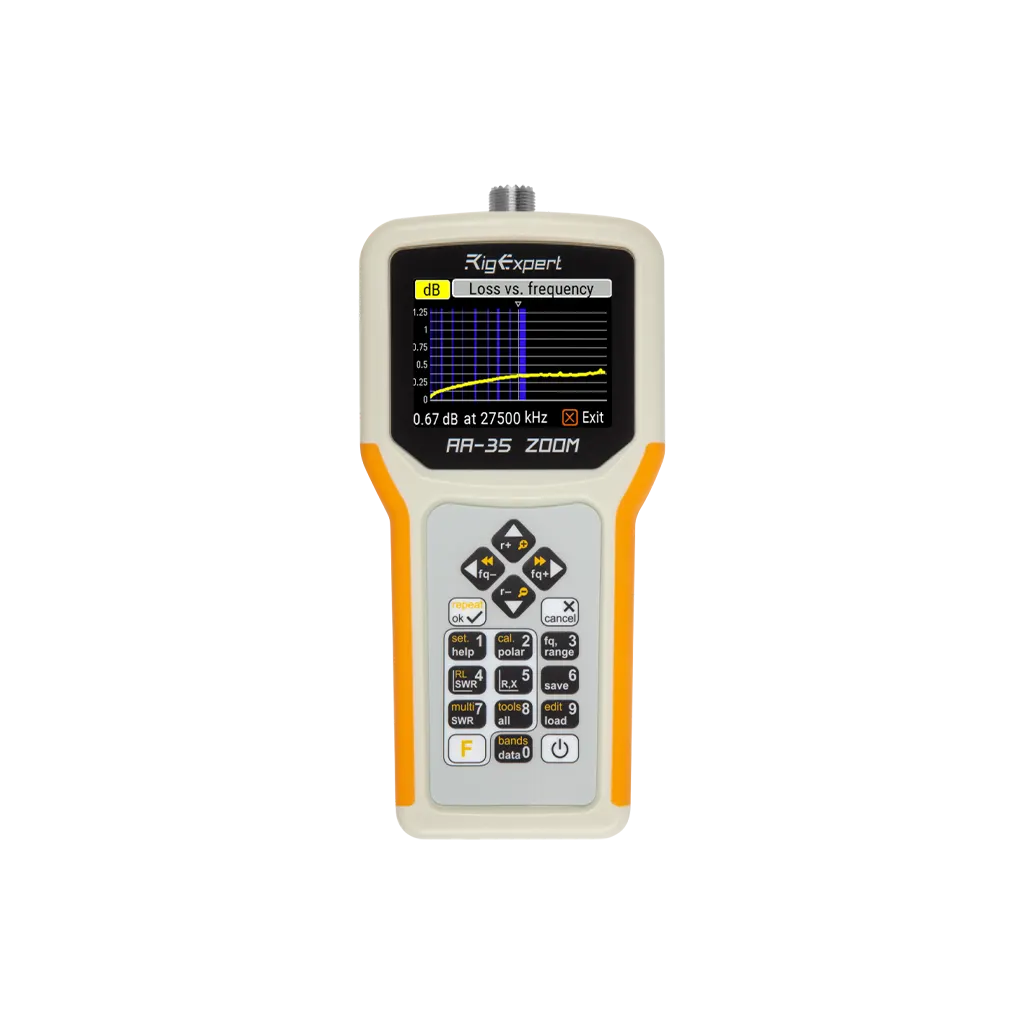

- Cable testing and fault location, measuring cable loss and characteristic impedance
- Measuring capacitance or inductance of reactive loads
| Weight | 1.6 lbs |
|---|---|
| Dimensions | 9.5 × 6.25 × 3.25 in |
| Brand | RigExpert |
| Manufacturer Part Number | AA-35ZOOM |

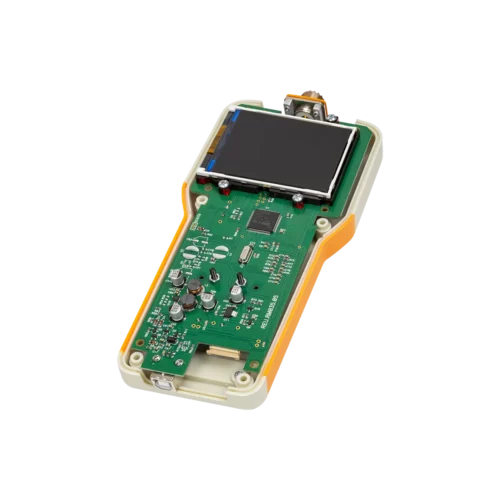

Specifications
RigExpert AA-35 ZOOM Specs
Frequency range
- 0.06 to 35 MHz

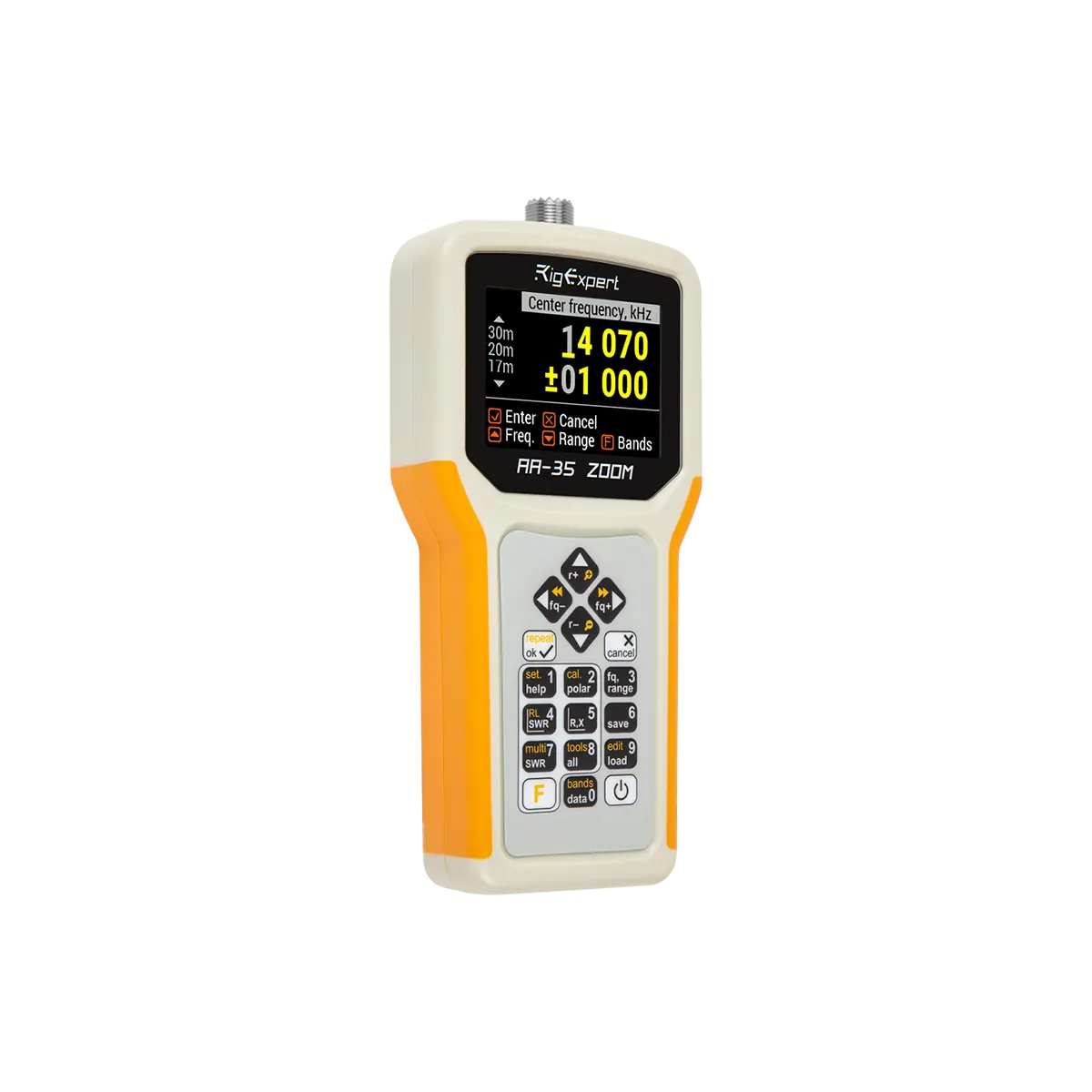

Frequency entry
- 1 kHz
Measurement for systems
- 25, 50, 75, 100 Ohm

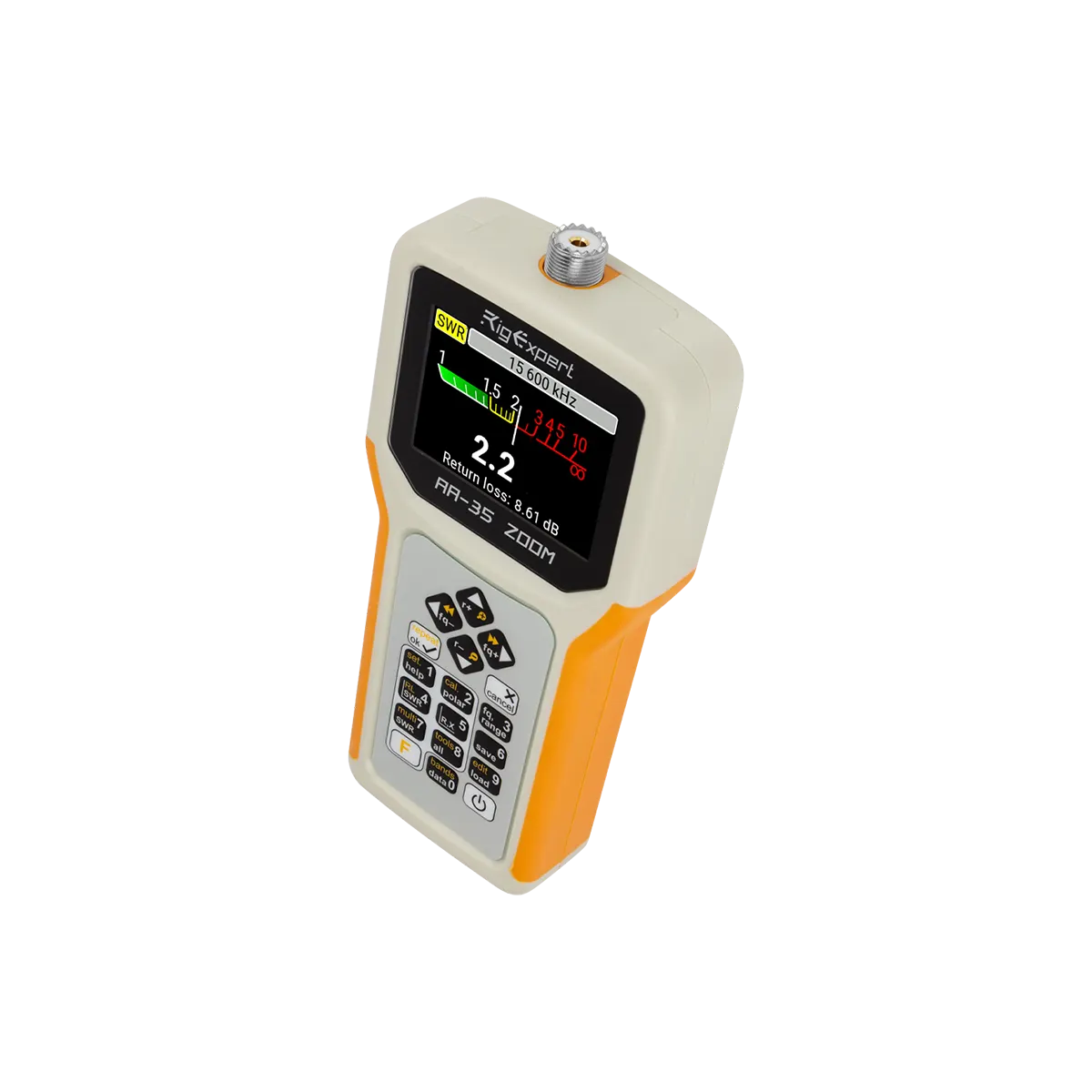

SWR measurement range
- 1 to 10 in chart modes
- 1 to 100 in numerical modes
R and X range
- 0…1000, -1000…1000 in chart modes
- 0…10000, -10000…10000 in numerical modes

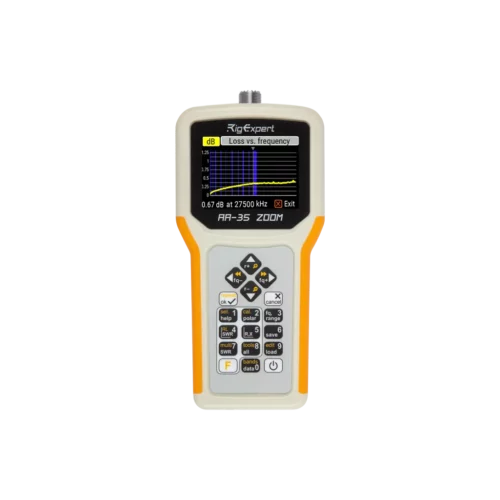

Display modes

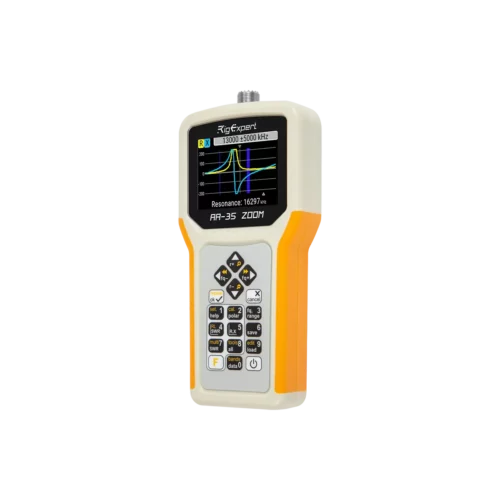

- R, X chart, 100 points

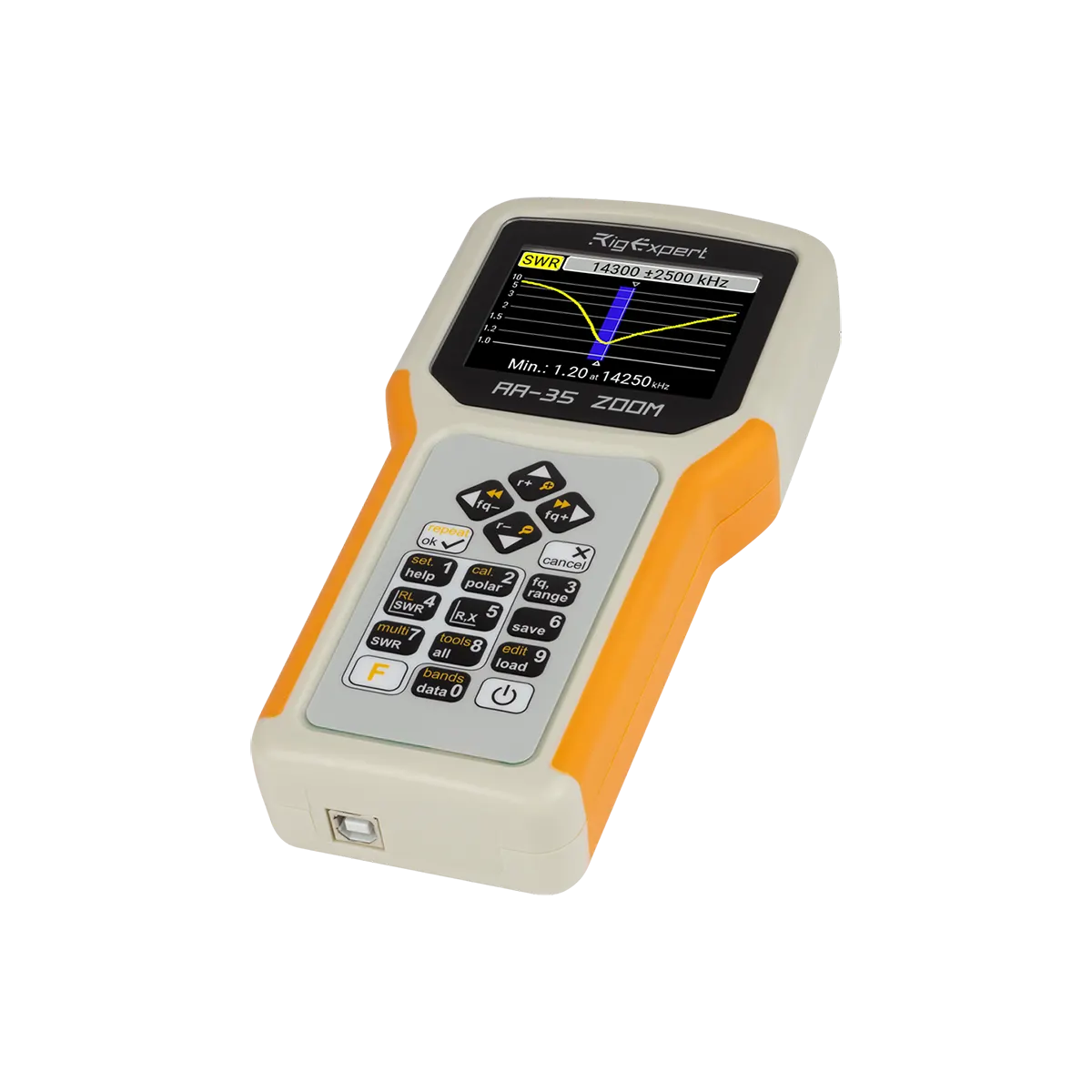

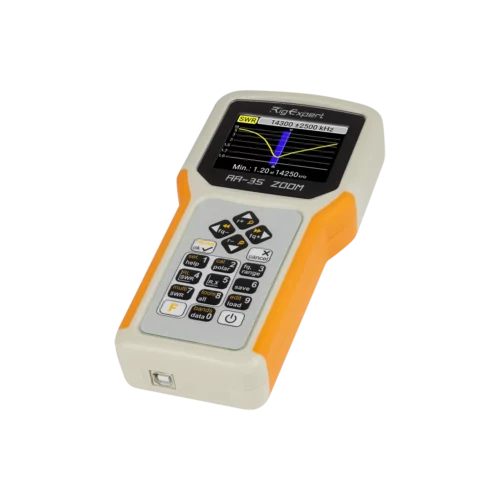

- SWR chart, 100 points
- SWR, return loss, R, X, Z, L, C at single frequency
RF output
- Connector type: UHF (SO-239)
- Output power: +13 dBm (at 50 Ohm load)
- Output signal shape: square

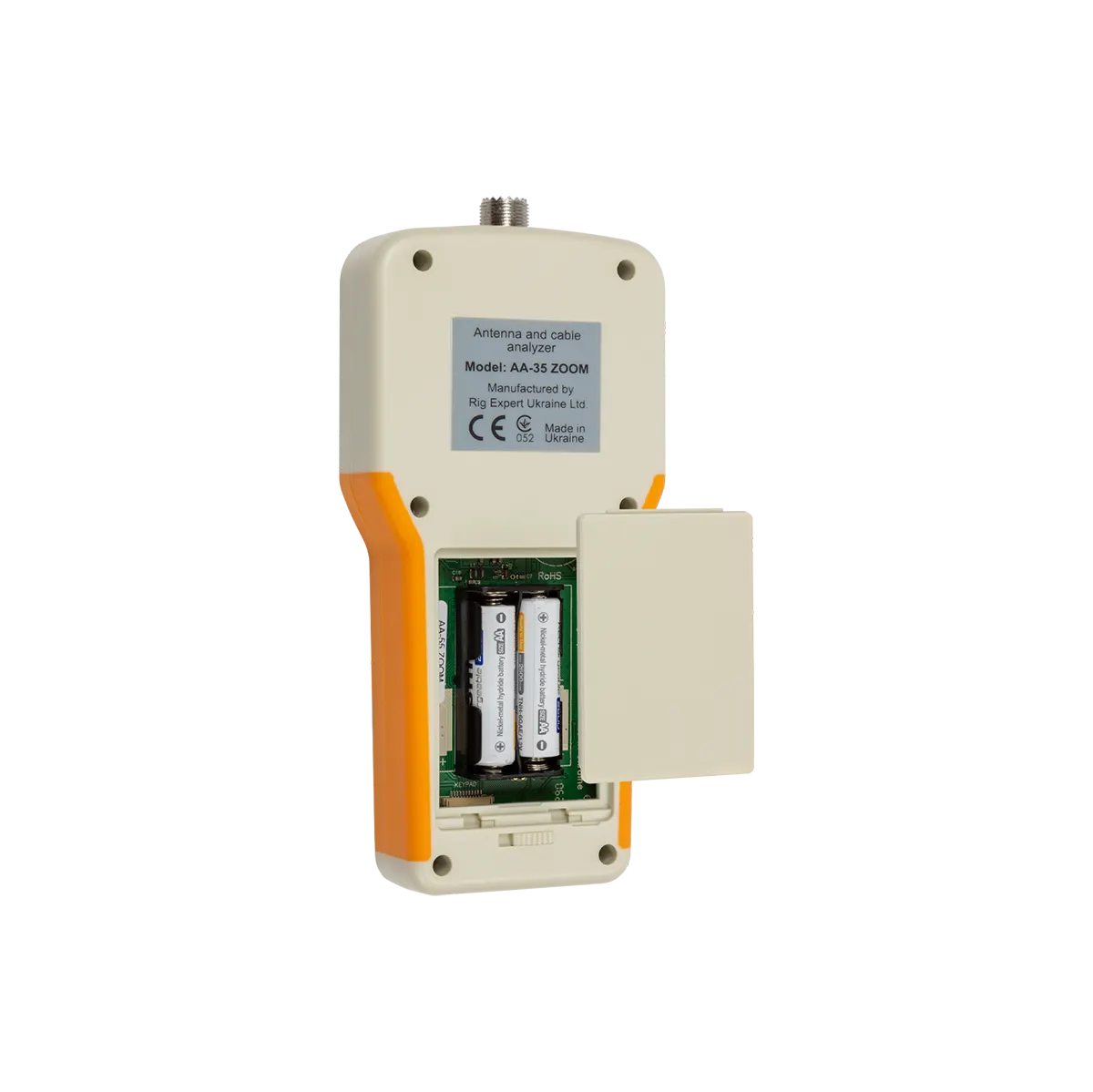

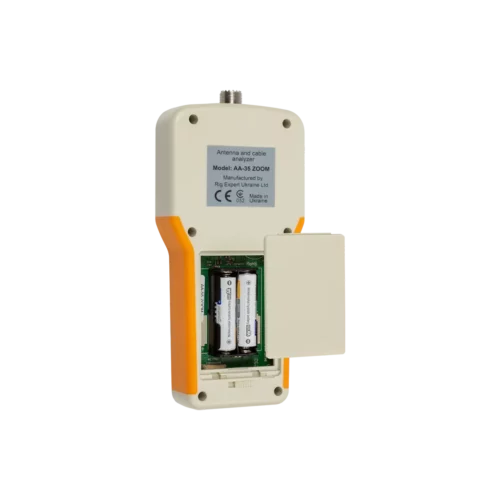

Power
- Max. 4 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used
- Two 1.2V Ni-MH batteries, type AA
- Two 1.5V alkaline batteries, type AA
- When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources
Interface
- 320Ă—240 color TFT display
- 6×3 keys on the water-proof keypad
- Menus and help screens in English (by default), Japanese, French, Ukrainian
- USB connection to a personal computer
Accessories inside the box
- Alkaline batteries
- Soft case
- USB cable
- User’s manual
Dimensions
- 103 mm x 207 mm x 37 mm (4.1 in x 8.1 in x 1.4 in)
Operating temperature
- 0…40 °C (32…104 °F)
Weight
- 310 g (10.9 Oz) w/o batteries
GTIN-13
- 4820185420105
Note
- Specifications are subject to change without notice
- Đśade in Ukraine

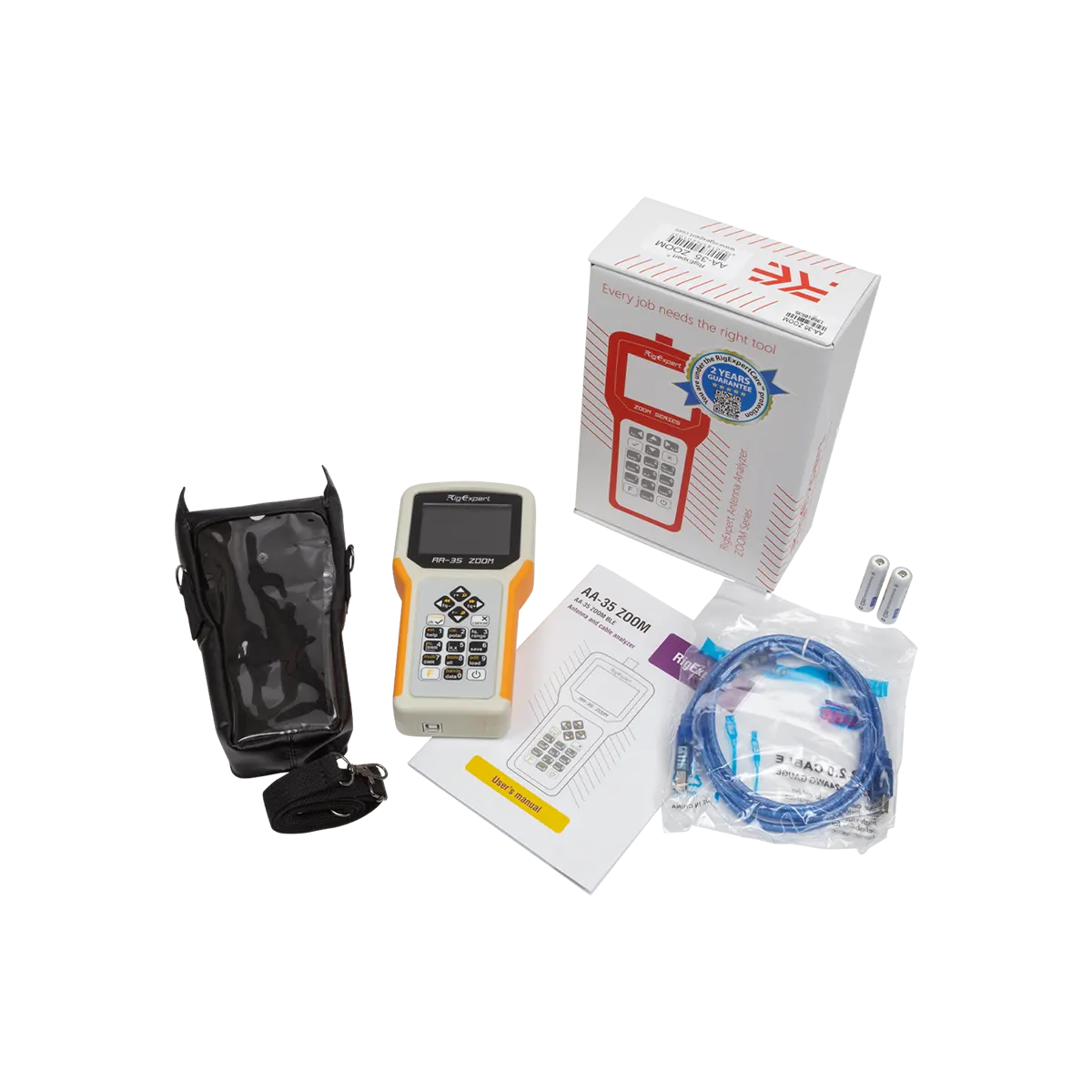

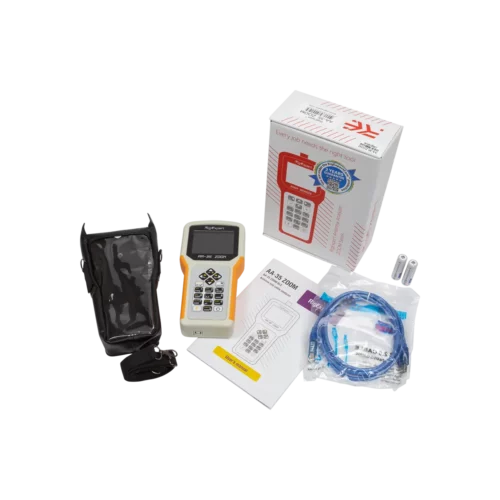

Package Includes
In the Box
- AA-35 Zoom Antenna Analyzer
- Alkaline batteries
- Soft case
- USB cable
- User’s manual
