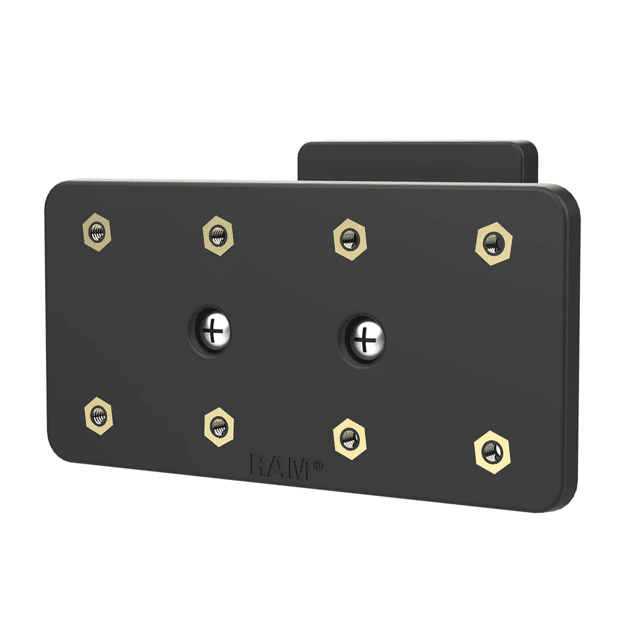

RAP-467U: RAM Dashboard Mounting Plate for ’18-26 Freightliner Cascadia

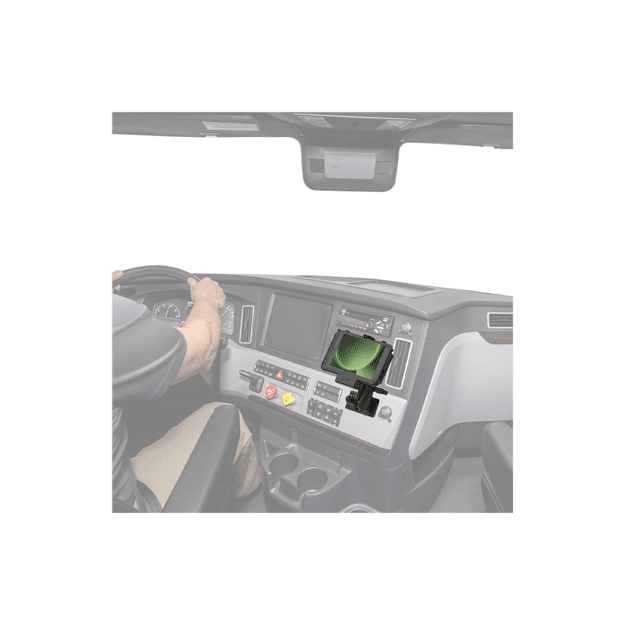

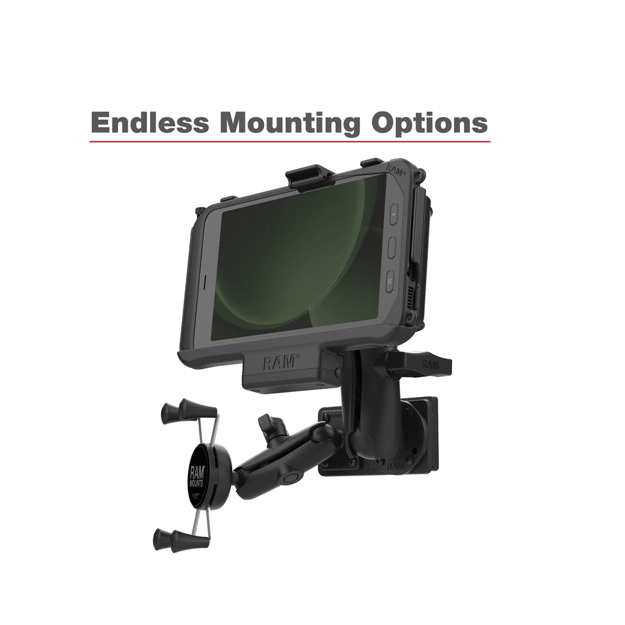

The RAM Dashboard Mounting Plate for ’18-26 Freightliner Cascadia (RAP-467U) is a custom-fit mounting plate that easily installs onto the dashboard of the Freightliner Cascadia ’18-’26 without drilling any additional holes. Install your preferred mounting solution for your tablet, phone, or ELD unit to this low-profile plate thoughtfully designed to maximize the room available in the cab. The plate features multiple orientations of VESA 75mm and AMPS hole patterns and wire routing options. Backed by a lifetime warranty.

RAP-467U Features & Specs

• Mounting plate made for Freightliner Cascadia ’18-26 dashboards
• Multiple AMPS hole patterns allow a range of positioning options as well as multiple device mounting
• Made of high-strength composites for durability and reliability in the most demanding environment
• Back by a lifetime warranty

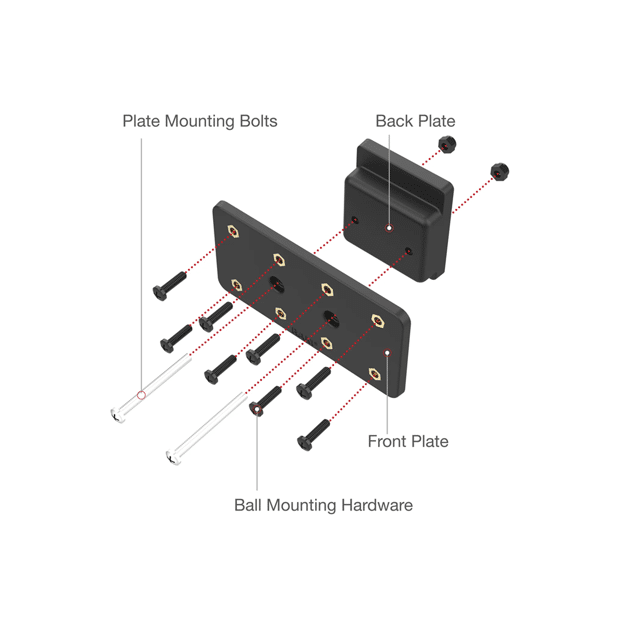

Hardware Included:

• (1) Front Plate
• (2) Back Plate
• (2) #8-32 x 1 1/2″ Machine Screws
• (2) #8-32 Nylock Nuts
• (4) #8-32 x 5/8″ Machine Screws
• (4) #8 Split Lock Washers

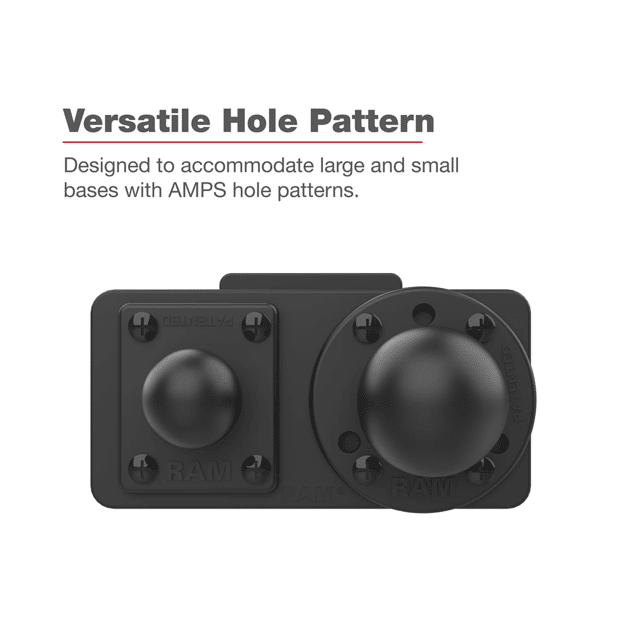

Hole Pattern:

4-Hole AMPS: 1.181″ x 1.496″

materials:

High strength composite

Weight:

0.26 lb
