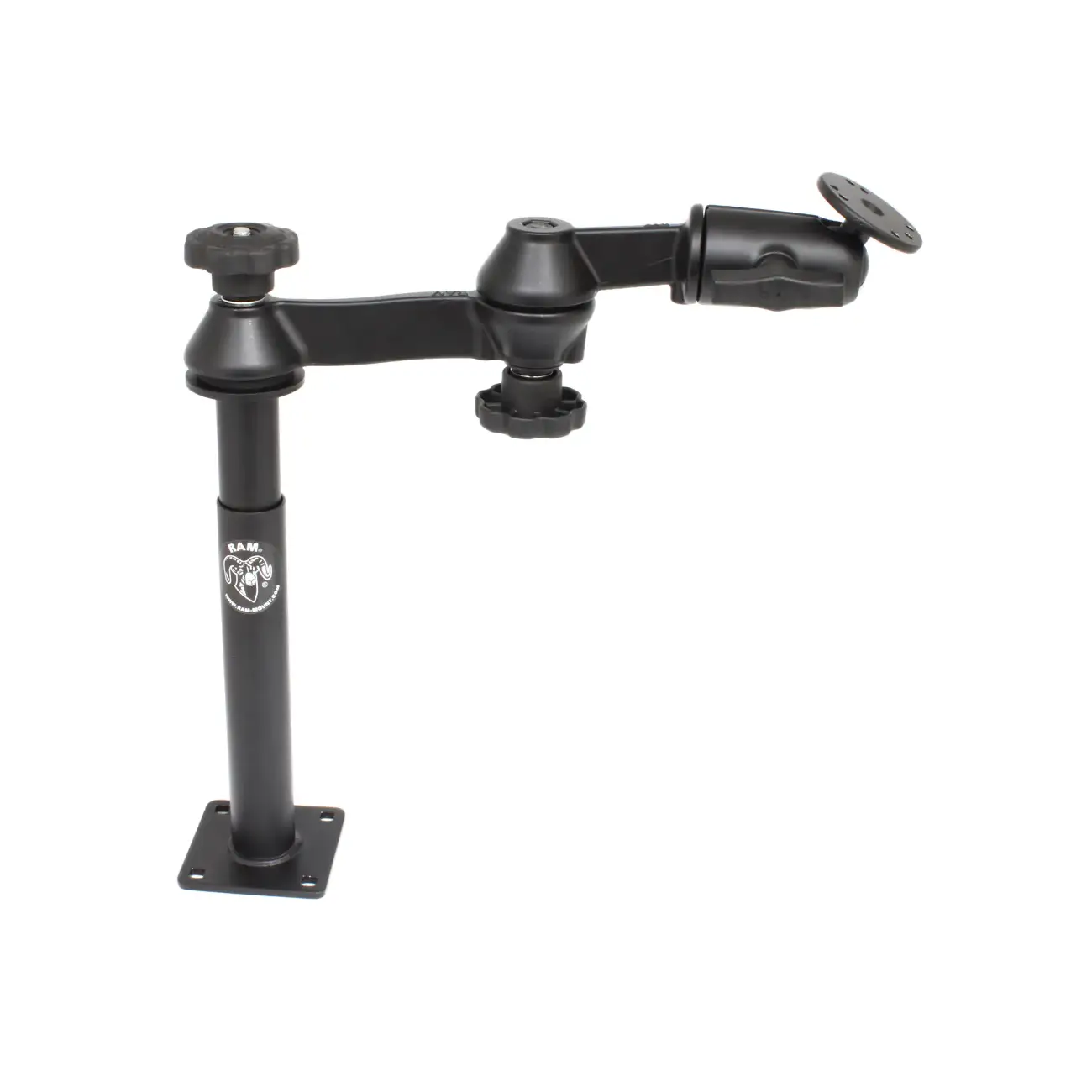

RAM-VP-SW1-89: RAM Tele-Pole with 8″ & 9″ Poles, Double Swing Arms & Round Plate

The RAM-VP-SW1-89 consists of a 9″ lower female Tele-Pole™, 8″ upper male Tele-Pole™, double swing arm and 2.5″ round base that contains the universal AMPs hole pattern. The lower female Tele-Pole™ will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole™. The height of the Tele-Poles™, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole™ becomes a rigid support for connecting devices or cradles. The double swing arm allows you to twist and tilt the viewing angle of your connected electronic device, when mounted on your RAM Vehicle Mount. The rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place. The length of the double swing arm is 12″.

RAM-VP-SW1-89 COMPONENTS

RAM-VP-TBF9U + RAM-VP-TTM8U + RAM-VB-110-1U

HARDWARE INCLUDED

• Assembly Hardware
• (4) 5/16″-18 x 1″ Carriage Bolts
• (4) 5/16″-18 Hex Nuts
• (4) 5/16″ Flat Washers
• (4) 5/16″ Split Lock Washers
• (4) Rubber Caps

PRODUCT DIMENSIONS

• Minimum Height: 16.3″
• Maximum Height: 21.3″

HOLE PATTERN

• Tele-Pole: 2.625″ x 2.625″
• Round Plate: 4-Hole AMPS: 1.181″ x 1.496″ & 3-Hole 120-Degree: 1.812″ Diameter

PLATE SIZE

• Round Plate: 2.5″ Diameter
• Lower Pole: 3.5″ x 3.5″

BALL SIZE

• C Size (1.5″)

MATERIALS

• Powder coated steel
• Marine-grade aluminum
