RAM-VB-181-SW1: RAM Vertical Drill-Down Laptop Mount
$356.95
This mount will fit all vehicles that contain flat vertical surfaces including fire engine dog houses, engine covers and RAM console boxes.
Out of Stock (On Order)
Get notified when this product is back in stock

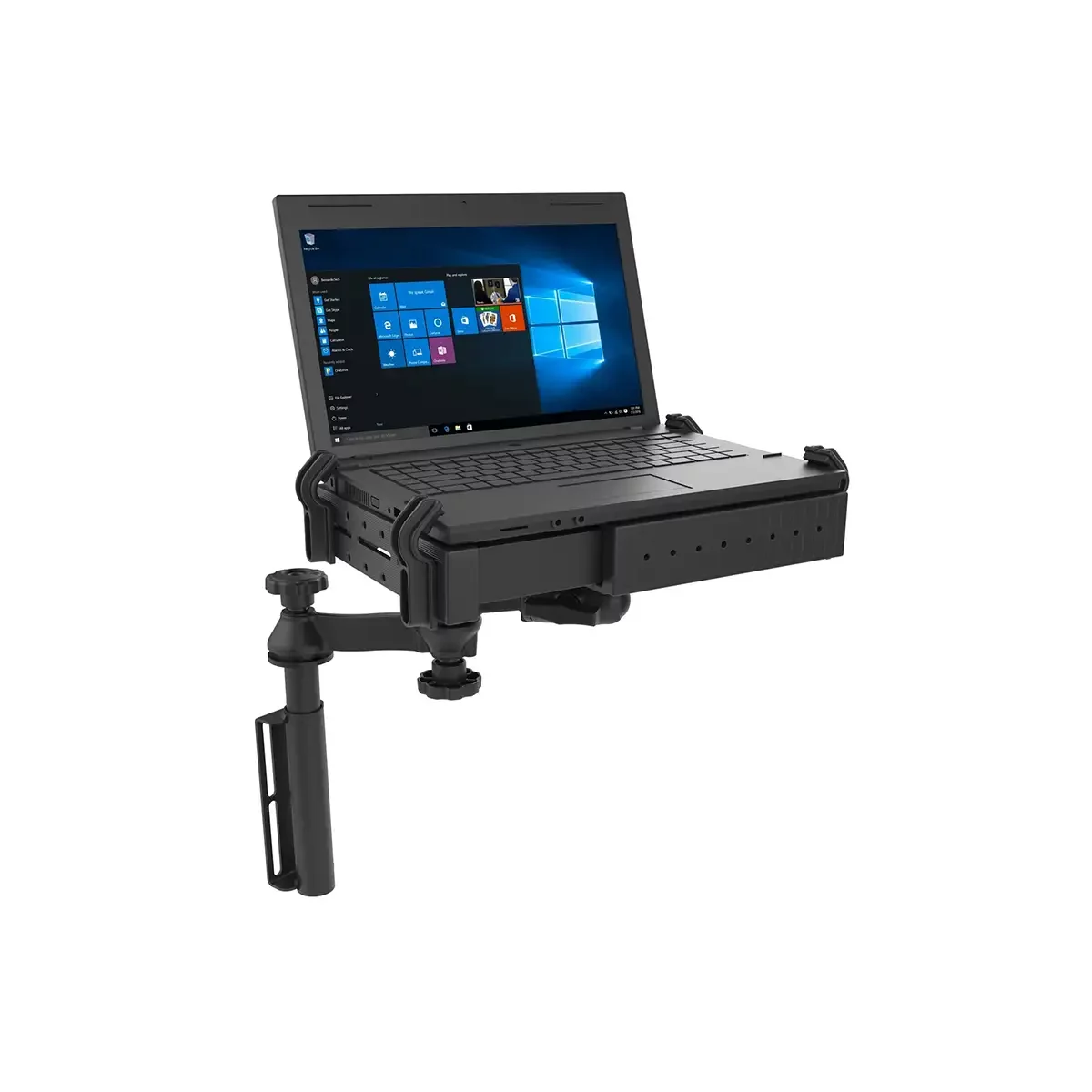

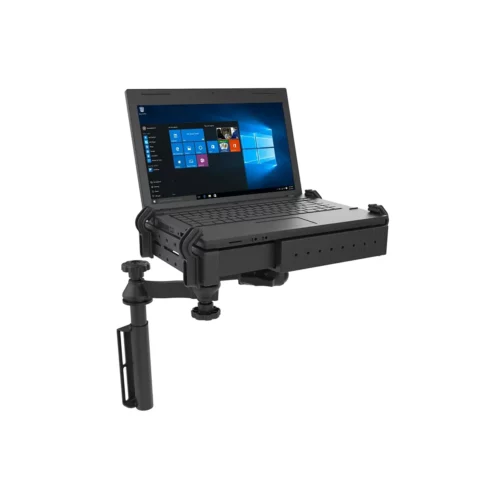

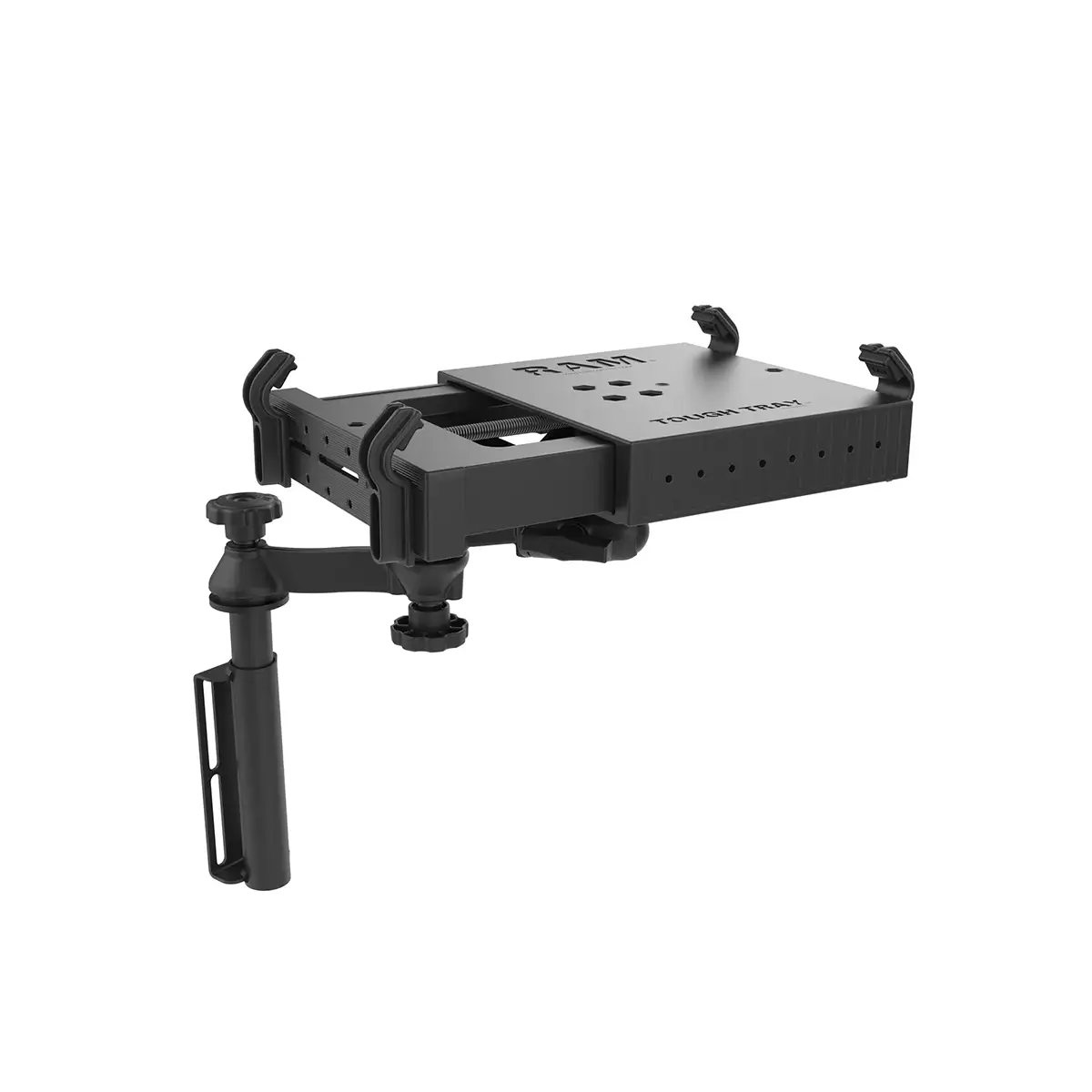

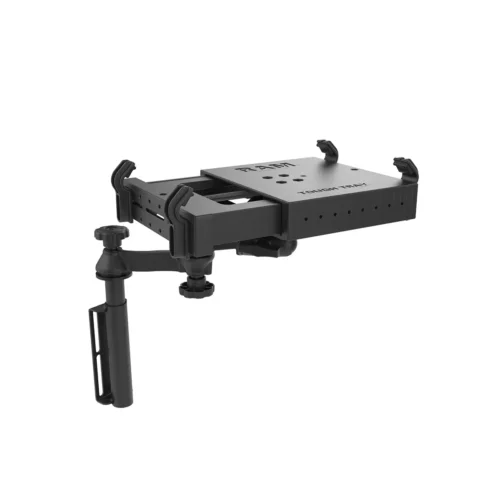

This drill-down laptop stand system installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM® Tough-Tray™ is spring loaded to accommodate 10″ to 16″ wide laptops (17″ wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.
RAM-VB-181-SW1 FEATURES

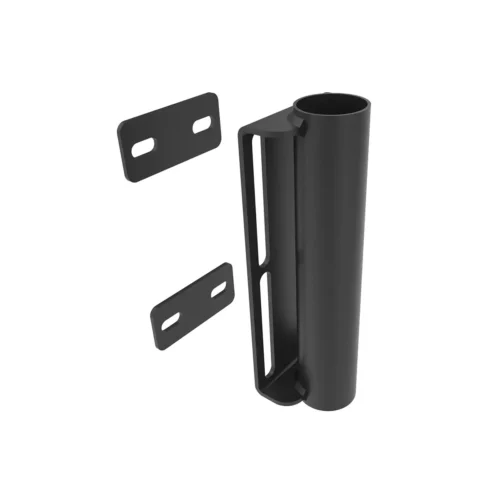

- RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments
- Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops
- Made of powder-coated steel and marine-grade aluminum
- Backed by a lifetime warranty
RAM-VB-181-SW1 COMPONENTS
RAM-VB-181 + RAM-VP-SW1-8 + RAM-234-3
HARDWARE INCLUDED
- Assembly Hardware
- (2) Backing Plates
- (4) 1/4″-20 x 1″ Hex Bolts
- (4) 1/4″-20 Hex Nuts
- (8) 1/4″ Flat Washers
- (4) 1/4″ Lock Washers
- (2) #10-24 x 3/4″ Machine Screws
- (2) #10 Fender Washers
- (1) 1/4″20 x 3/4″ Machine Screw
TRAY DIMENSIONS
- Width Range: 10″ – 16″
- Side Arm Clamp Height: .5″ – 1.75″
- Tray Depth: 10″
- Tray Thickness: 2.125″
BALL SIZE
- C Size (1.5″)
MATERIALS
- Powder coated steel
- Marine grade-aluminum
- High strength composite
| Weight | 12 lbs |
|---|---|
| Dimensions | 20 × 11 × 6 in |
| Brand | RAM Mounts |
