RAM-B-400-A-UN14W-V7M: RAM Quick-Grip 15W Waterproof Wireless Charging Mount with Tough-Claw
$258.95
In stock

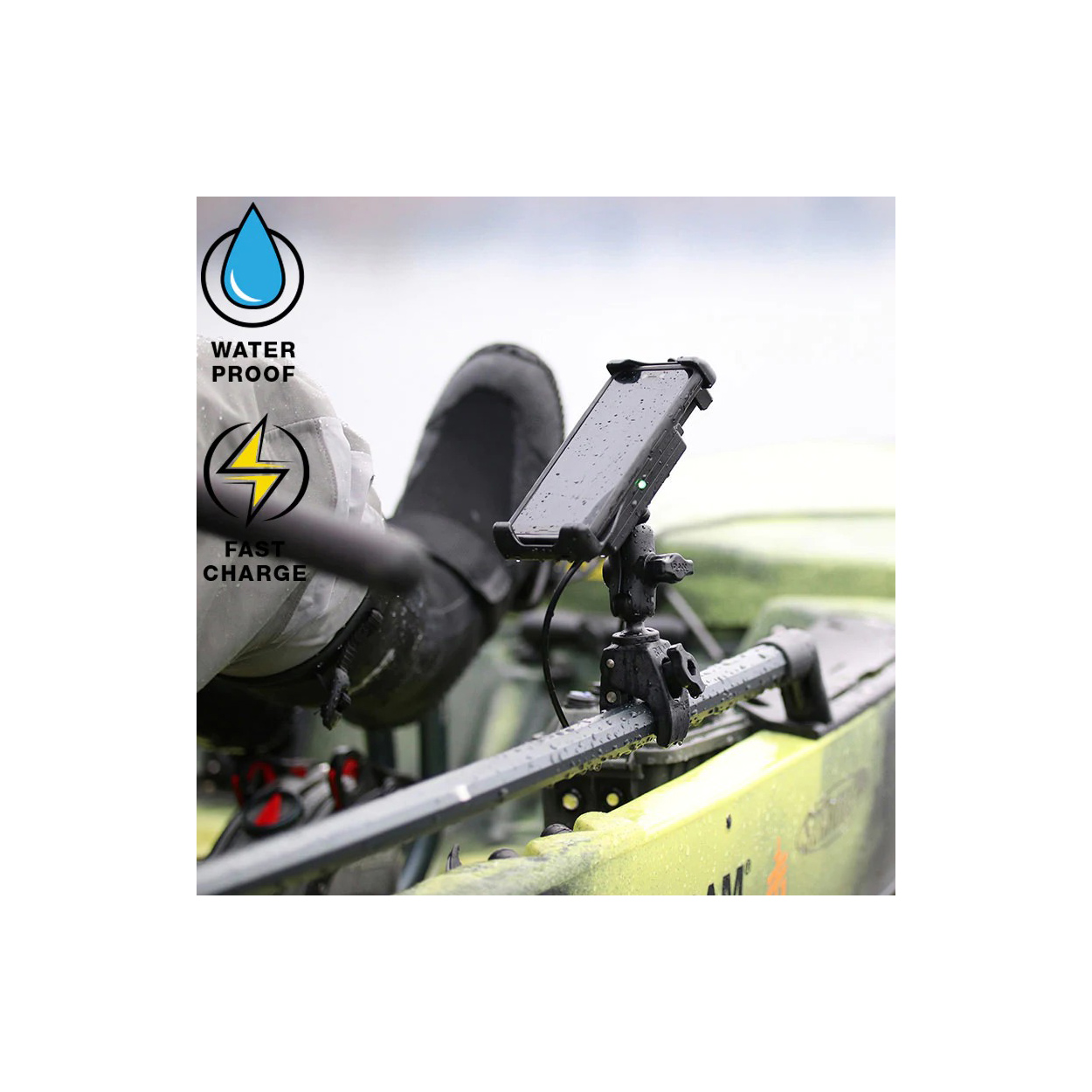

The RAM® Quick-Grip™ Wireless is a patented, universal waterproof wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. This RAM® Quick-Grip™ Wireless kit includes a B size diamond base featuring a 1” rubber ball, short length double socket arm, and a RAM® Tough-Claw™ clamping base. With the RAM® Tough-Claw™ base, you can easily attach the wireless phone charger to round, square, and odd-shaped rails and bars ranging from .625” to 1.5” in outer diameter. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.
RAM-B-400-A-UN14W-V7M FEATURES
- Waterproof Qi comaptible wireless phone charging cradle features spring-loaded RAM® Quick-Grip™ design and 15W maximum output

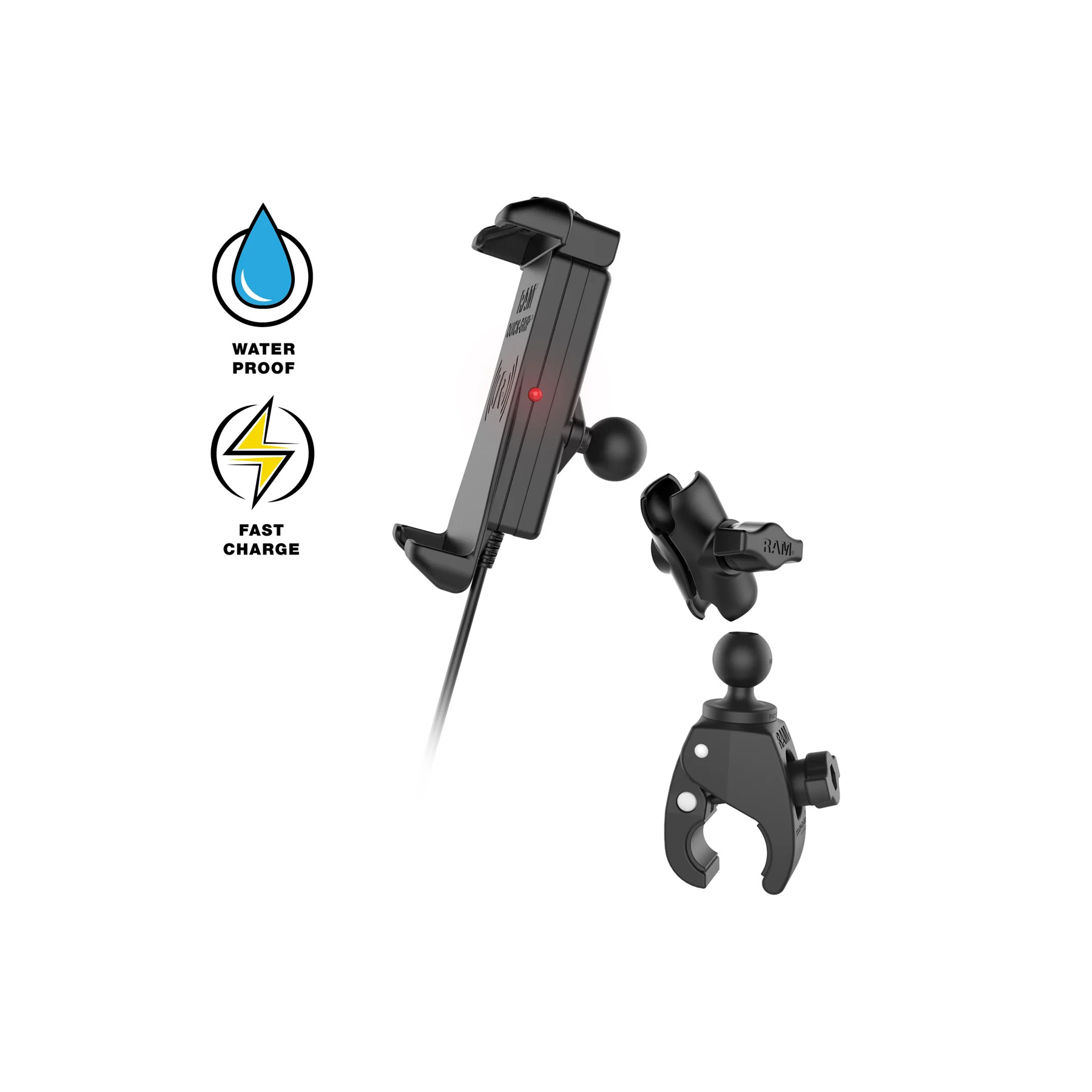

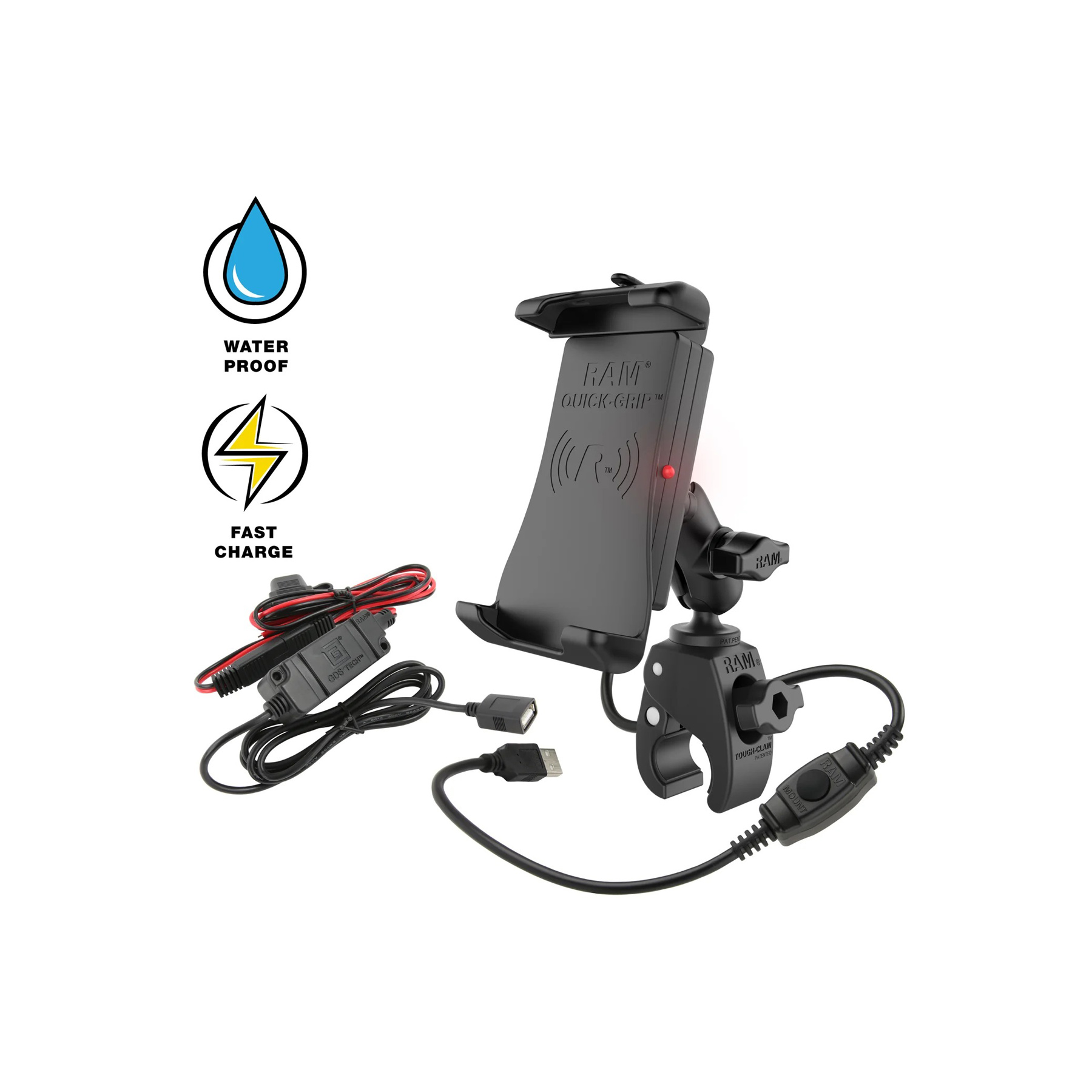

- Kit includes wireless charging cradle, B size diamond ball base, short double socket arm, RAM® Tough-Claw™ clamping base, and hardwire charger
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required
HARDWARE INCLUDED
- (1) Safety Tether
- (1) Silicon sleeve for USB waterproof connection
- (1) Hardwire Charger with Cable
- (4) Small zip ties
- (4) Large zip ties
HOLDER DIMENSIONS
- Height Range: 5.625″ – 6.625″
- Max Width: 3.125″
- Max Depth: .7″
CLAMP RANGE
- .625″ – 1.14″ diameter
SOCKET TO SOCKET LENGTH
- 1.75″
BALL SIZE
- B Size (1″)
WEIGHT CAPACITY
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb
MATERIALS
- High strength composite
- Stainless steel
| Weight | 1.85 lbs |
|---|---|
| Dimensions | 6.5 × 3.5 × 7.25 in |
| Brand | RAM Mounts |
| Ball Size | 1" – B |
| Manufacturer Part Number | RAM-B-400-A-UN14W-V7M |
Specifications
RAM-B-400-A-UN14W-V7M Specs
POWER SPECIFICATIONS
Input Power:5V-2A; 9V-1.67A
Output: 15W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
QI Compatible
Compatible with QC2.0/QC3.0 power supplies
OPERATING TEMPERATURE
0°C to +37.7°C
COMPLIANCE
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
CERTIFICATIONS
CE Certification
KC
e-Mark Certification
RCM Certification
FCC Certification
WARRANTY
1 year warranty
WEIGHT
3.13 lb
ADDITIONAL INFORMATION
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.
iPhone 12 and iPhone 13 products support a new and proprietary wireless charging standard not supported in this product.
