RAM-B-224-1-366U: RAM Twist-Lock Suction Cup Mount with 1/4″-20 Camera Adapter

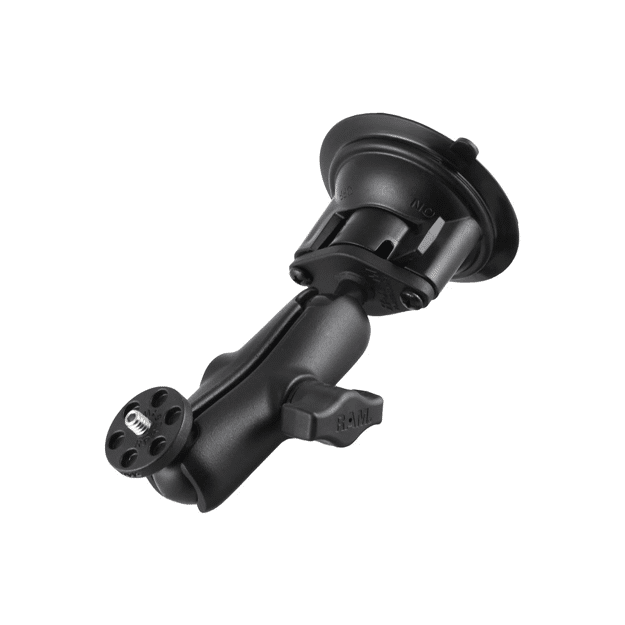

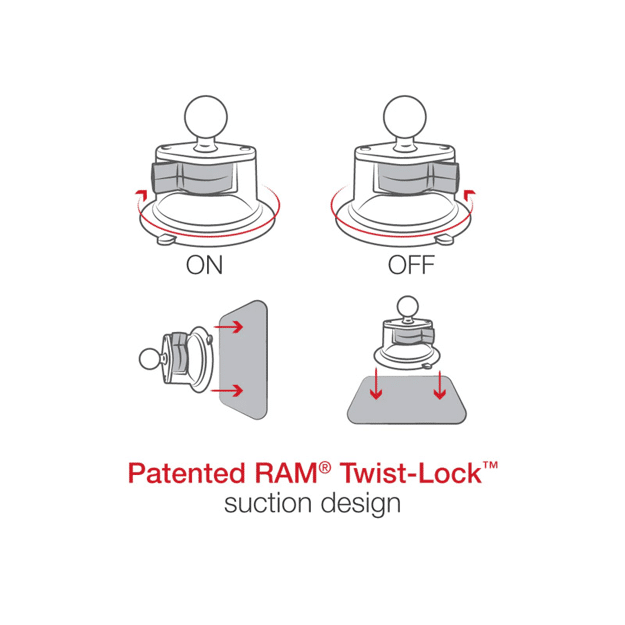

The RAM-B-224-1-366U consists of a 3.3″ suction cup twist lock base, double socket arm and 1″ ball, connected to a round plate with 1/4″-20 camera thread. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The male 1/4″-20 threaded steel stud will connect to any standard female thread found on camcorders, digital cameras and POV cameras. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Kit Components:

RAM-B-224-1U + RAM-B-201U + RAP-B-366U

Hardware Included:

Assembly Hardware

Suction Size:

3.3″ Diameter

Socket to Socket Length:

3″

Ball Size:

B Size (1″)

Weight Capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:

Marine-grade aluminum
High strength composite

Weight:

0.6 lb
