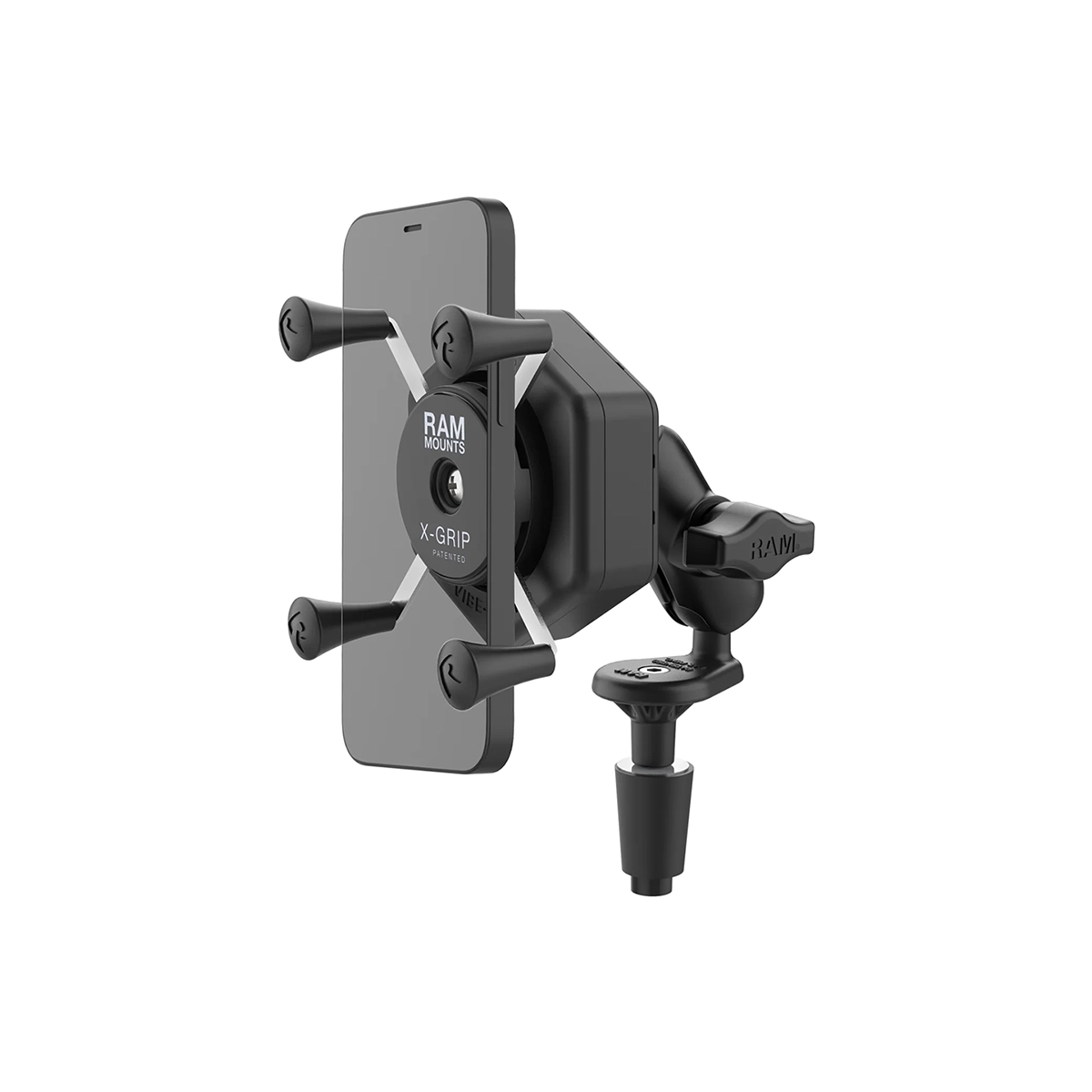

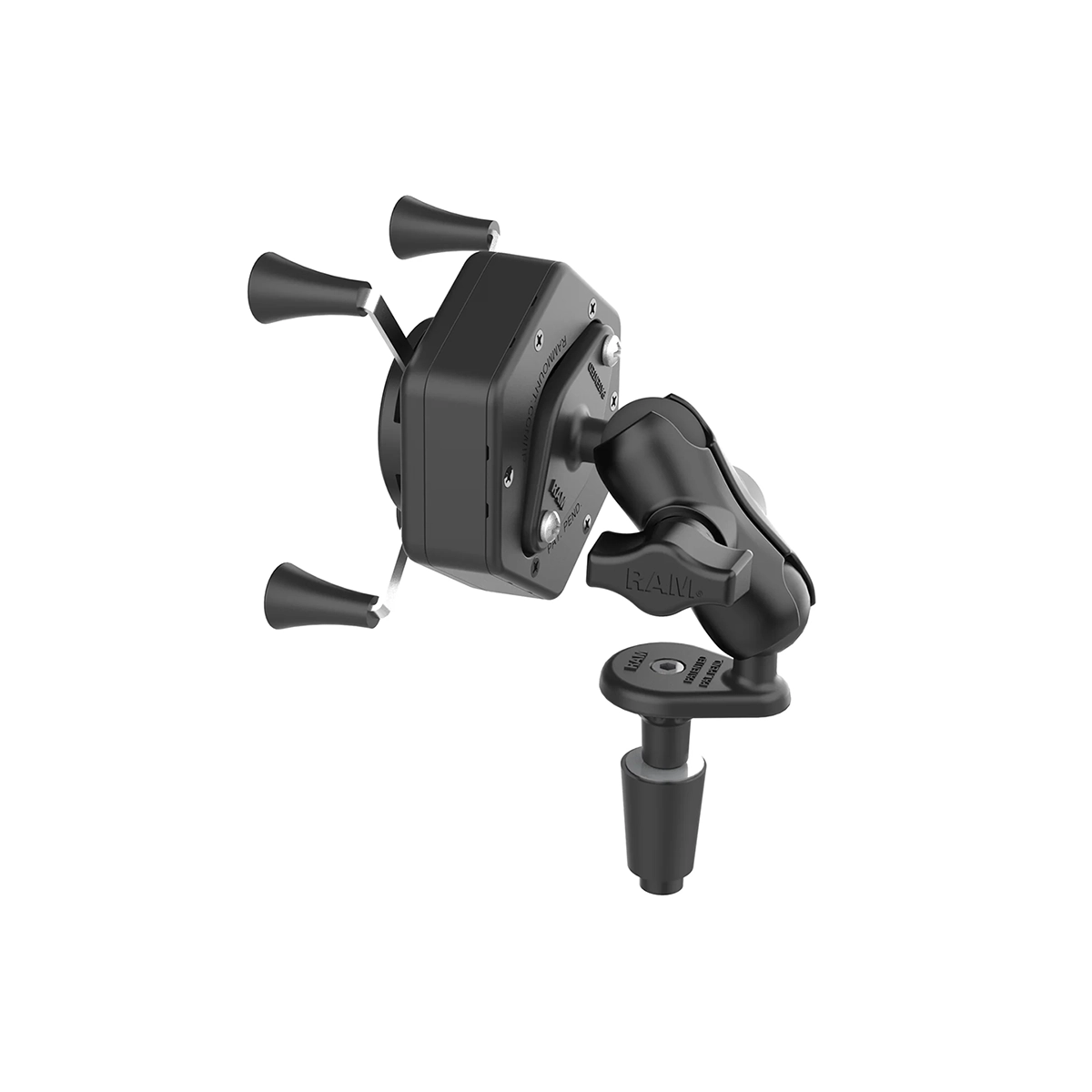

RAM-B-176-A-UN7-462: RAM X-Grip Phone Mount with Vibe-Safe & Fork Stem Base

The RAM X-Grip Phone Mount with Vibe-Safe & Fork Stem Base – Short (RAM-B-176-A-UN7-462) is a combination of the RAM X-Grip Phone Mount with Motorcycle Fork Stem Base and the RAM Vibe-Safe—the vibration damping accessory is designed to protect electronic devices from a wide range of vibration frequencies. This product comes pre-assembled with the device tether that is recommended for outdoor applications. This product comes with one (1) short B size arm and one (1) RAM Motorcycle Fork Stem Ball Base and an optional device tether that is recommended for outdoor applications. The holder is compatible with handheld devices that will fit the dimensions listed below, it is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

RAM-B-176-A-UN7-462 Components

RAM-HOL-UN7B-462 + RAM-B-201U-A + RAM-B-342

Hardware Included

(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) Expansion Plug for 12mm – 38mm (.5″ – 1.49″) Fork Stem Holes
(1) M5 x 60mm Machine Screw
(1) Steel Washer Set
(1) Nut Pocket Washer Set
(1) Brass Nylock Nut

Holder Dimensions

Width Range: 1.875″ – 3.25″
Depth Range: .875″ max

Socket to Socket Length

3″

Ball Size

B Size (1″)

Weight Capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials

Marine-grade aluminum
High strength composite
Stainless steel

Weight

0.98 lb

Additional Information

A reduction in vibration does not guarantee full protection of device. External immeasurable factors may cause damage to phones, cameras, and other devices while mounted in the RAM® Vibe-Safe™. National Products, Inc and GPS Central does not assume responsibility or liability for any such personal injury, death or property damage. RAM® mounts lifetime warranty is limited to RAM® mounts and components. The warranty does not include any device mounted or attached to a RAM® mount, such as a phone, GPS, camera, computer or other device.
