RAM-B-166-UN14W-1: RAM Quick-Grip 15W Waterproof Wireless Charging Suction Cup Mount
RAM-B-166-UN14W-1: RAM Quick-Grip 15W Waterproof Wireless Charging Suction Cup Mount

RAM-B-166-UN14W-1: RAM Quick-Grip 15W Waterproof Wireless Charging Suction Cup Mount

MPN: RAM-B-166-UN14W-1

$299.99

Out of Stock (On Order)

Get notified when this product is back in stock

SKU: RAM-B-166-UN14W-1 Categories: , Brand:

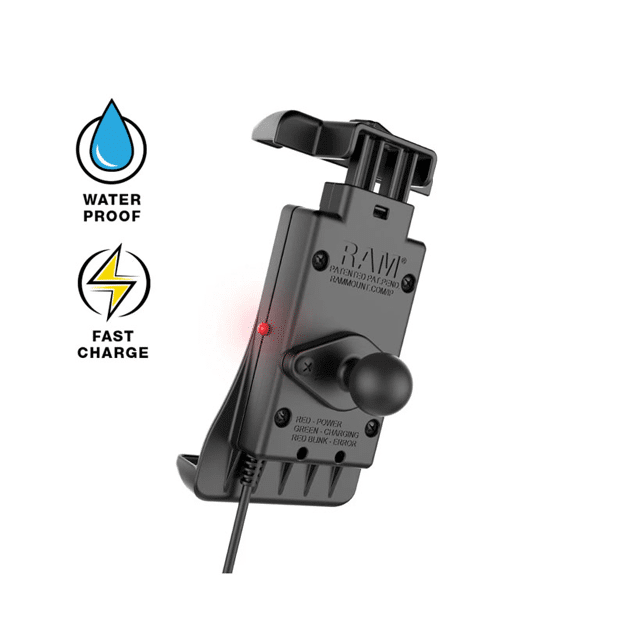

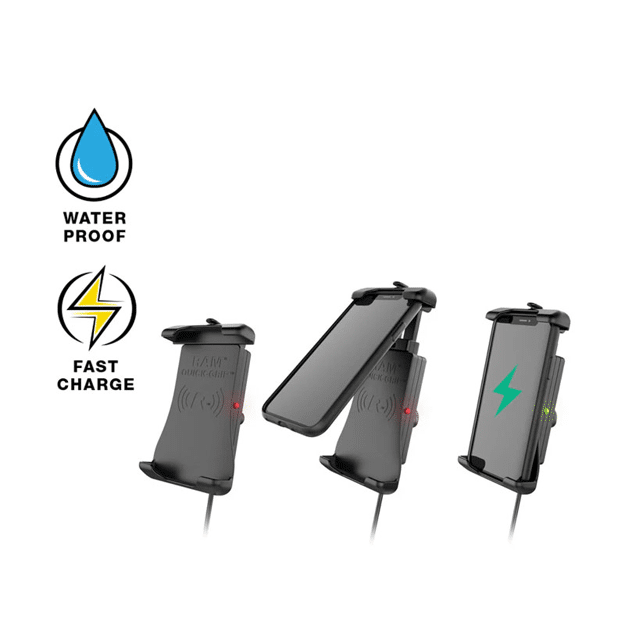

The RAM Quick-Grip Wireless is a patented, universal waterproof wireless charging cradle for phones. As part of the spring-loaded RAM Quick-Grip family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi compatible wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit.

This Qi wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications.

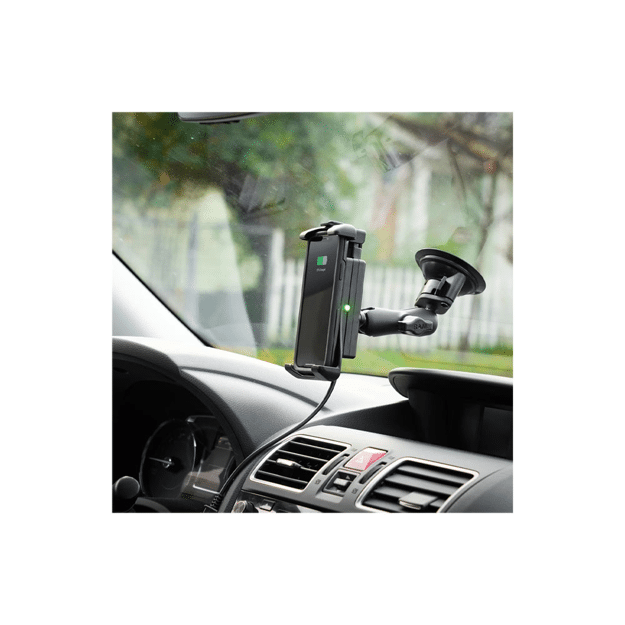

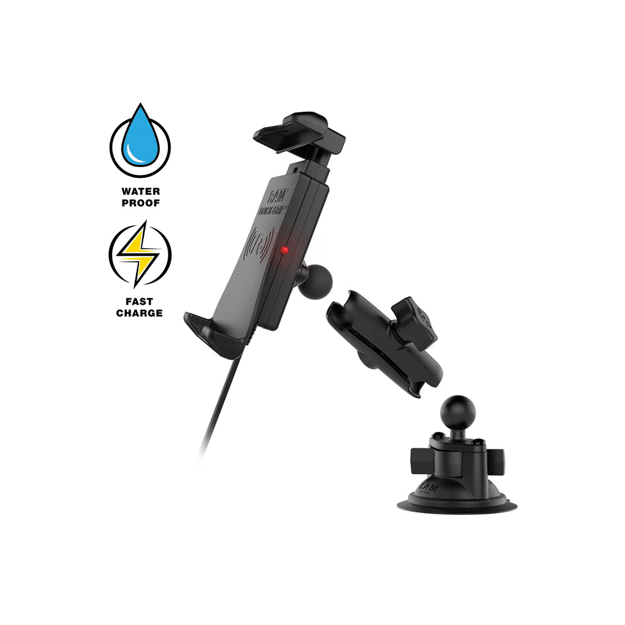

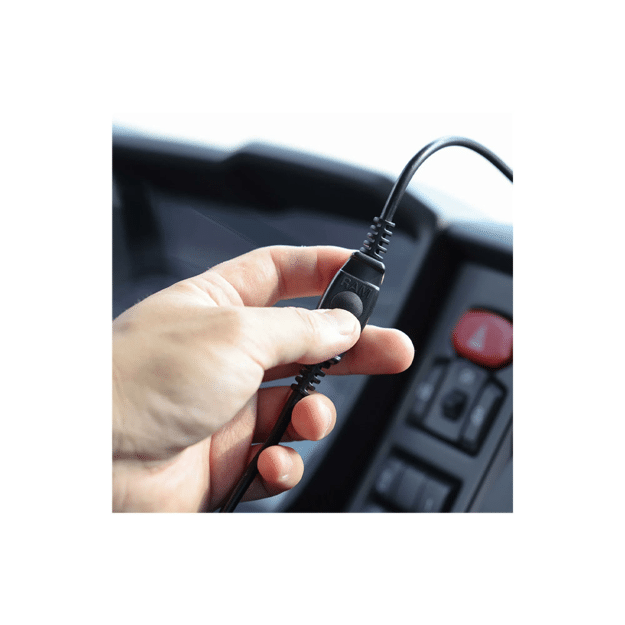

This RAM Quick-Grip Wireless suction cup kit includes a B size diamond base featuring a 1” rubber ball, medium length double socket arm, and RAM Twist-Lock suction cup. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.

RAM-B-166-UN14W-1 Kit Components

RAM-HOL-UN14WB-1 + RAM-B-201U + RAM-B-224-1U

RAM-B-166-UN14W-1 Features

  • Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® Quick-Grip™ design and 15W maximum output
  • Kit for vehicles includes wireless charging cradle, B size diamond ball base, medium double socket arm, and RAM® Twist-Lock™ suction cup
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • RAM® Mounts backed by lifetime warranty*, RAM® electronics backed by 1-year warranty with proof of purchase required

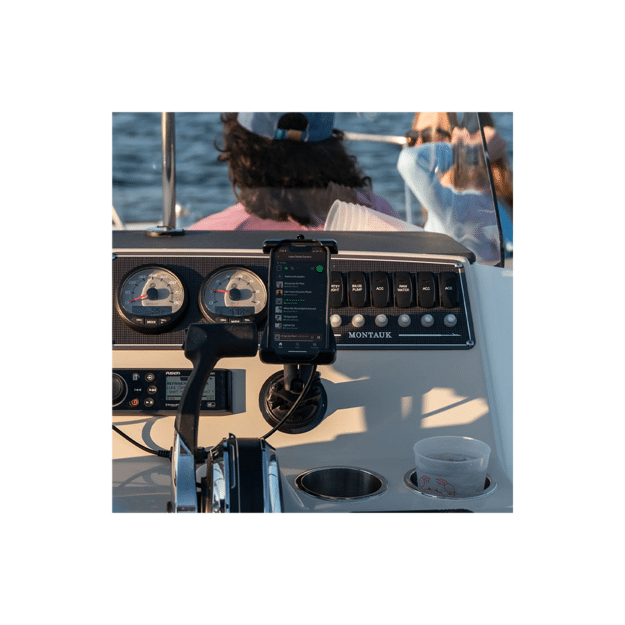

IMPORTANT: For open cockpit applications (i.e. motorcycles, ATVs, boats, etc.) apply silicone grease to the USB Type-A male & female connector to protect the connections and prevent corrosion. Failure to do so will void warranty. Click here for instructional video.

Weight 1.66 lbs
Dimensions 6.5 × 3.5 × 7.25 in
Brand

RAM Mounts
Manufacturer Part Number RAM-B-166-UN14W-1

Specifications

RAM-B-166-UN14W-1 Specs

Hardware Included:

  • (1) Safety Tether
  • (1) Silicon sleeve for USB waterproof connection
  • (1) 1.2 Meter USB Extension Cable
  • (4) Small zip ties
  • (2) Large zip ties

Holder Dimensions:

  • Height Range: 5.625″ – 6.625″
  • Max Width: 3.125″
  • Max Depth: .7″

Suction Size:

  • 3.3″ Diameter

Socket to Socket Length:

  • 3″

Ball Size:

  • B Size (1″)

Weight Capacity:

  • Standard Use: 2 lbs
  • Heavy-Duty Use: 1 lb

Materials:

  • Marine-grade aluminum
  • High strength composite
  • Stainless steel

Power Specifications:

  • Input Power:5V-2A; 9V-1.67A
  • Output: 15W
  • Conversion Efficiency: 85% Max
  • Maximum Case Thickness: 6mm
  • Working Frequency: 110-205KHZ
  • Product Standard: WPC v.1.2.4
  • Qi Compatible
  • Compatible with QC2.0/QC3.0 power supplies

Input Connector:

  • USB Type-A Male

Input Cable Length:

  • 20″ with optional 1.2M extension cable

Operating Temperature:

  • 0°C to +37.7°C

Regulatory:

  • Over current protection, short circuit protection and over temperature protection

Certifications:

  • FCC, IC, KC, CE, E-Mark, WEEE, RCM, and RoHS Compliant

Warranty:

  • 1 year warranty

Weight:

  • 1.65 lb
