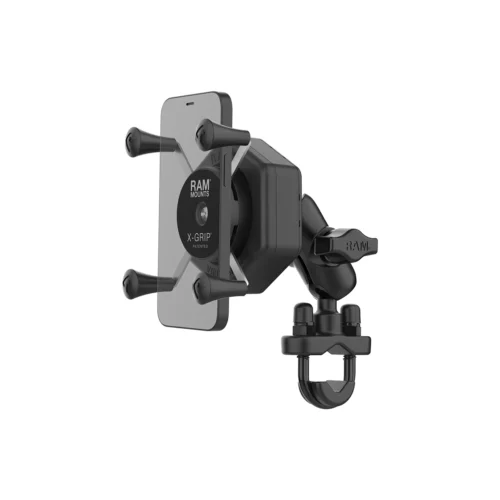

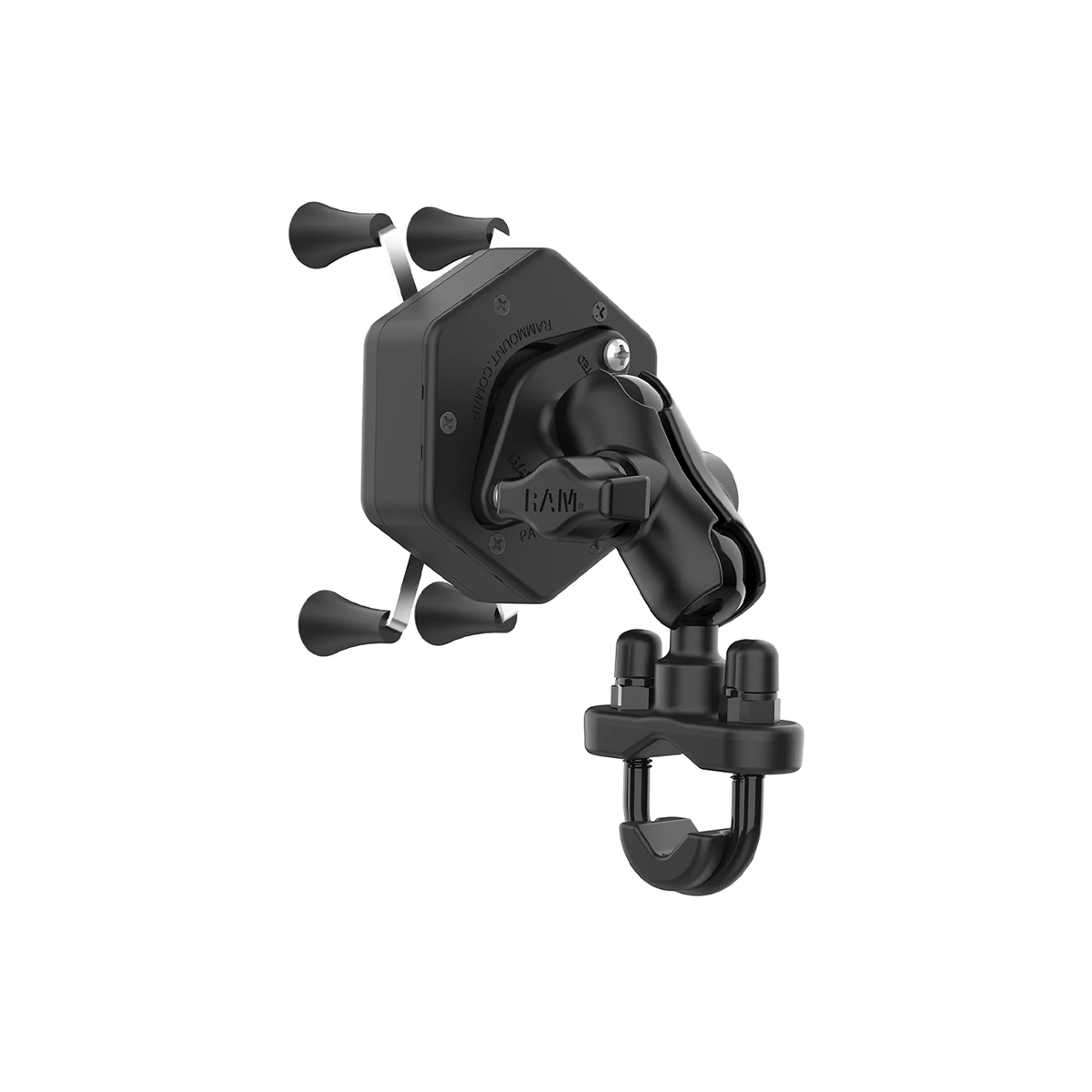

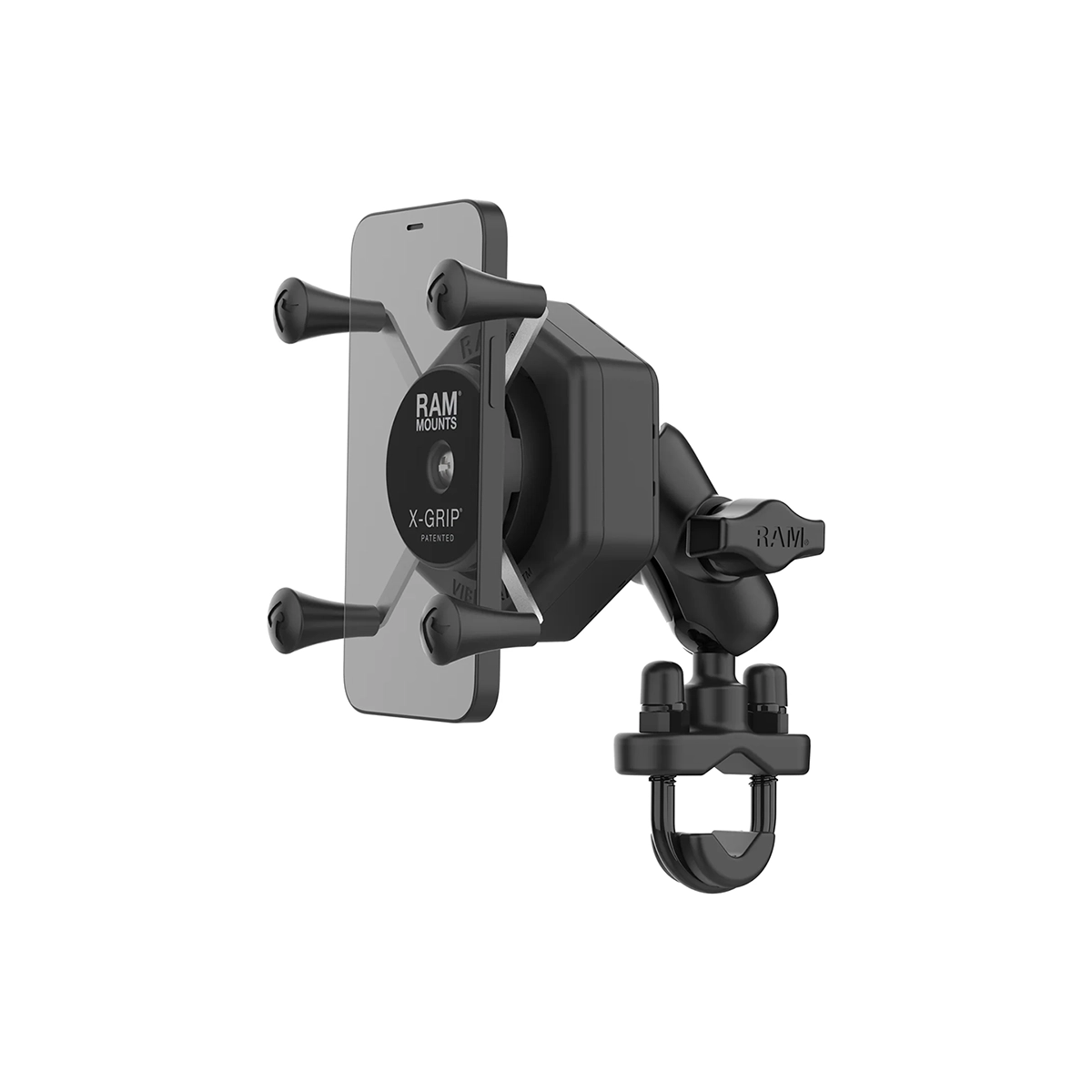

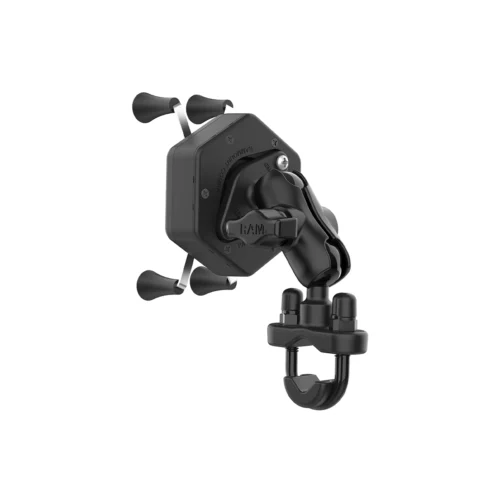

RAM-B-149Z-A-UN7-462: RAM X-Grip Phone Mount with Vibe-Safe & U-Bolt Base

The RAM X-Grip Phone Mount with RAM Vibe-Safe & U-Bolt Base – Short (RAM-B-149Z-A-UN7-462) is a combination of the RAM X-Grip Phone Mount with Handlebar U-Bolt Base and the RAM Vibe-Safe—the vibration damping accessory is designed to protect electronic devices from a wide range of vibration frequencies. The RAM X-Grip can rotate between portrait and landscape by loosening the center screw. This product comes with one (1) short B size arm and one (1) RAM U-Bolt Base that accommodates rails from .5″ – 1.25″ in diameter and an optional device tether that is recommended for outdoor applications. The holder is compatible with handheld devices that will fit the dimensions listed below, it is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

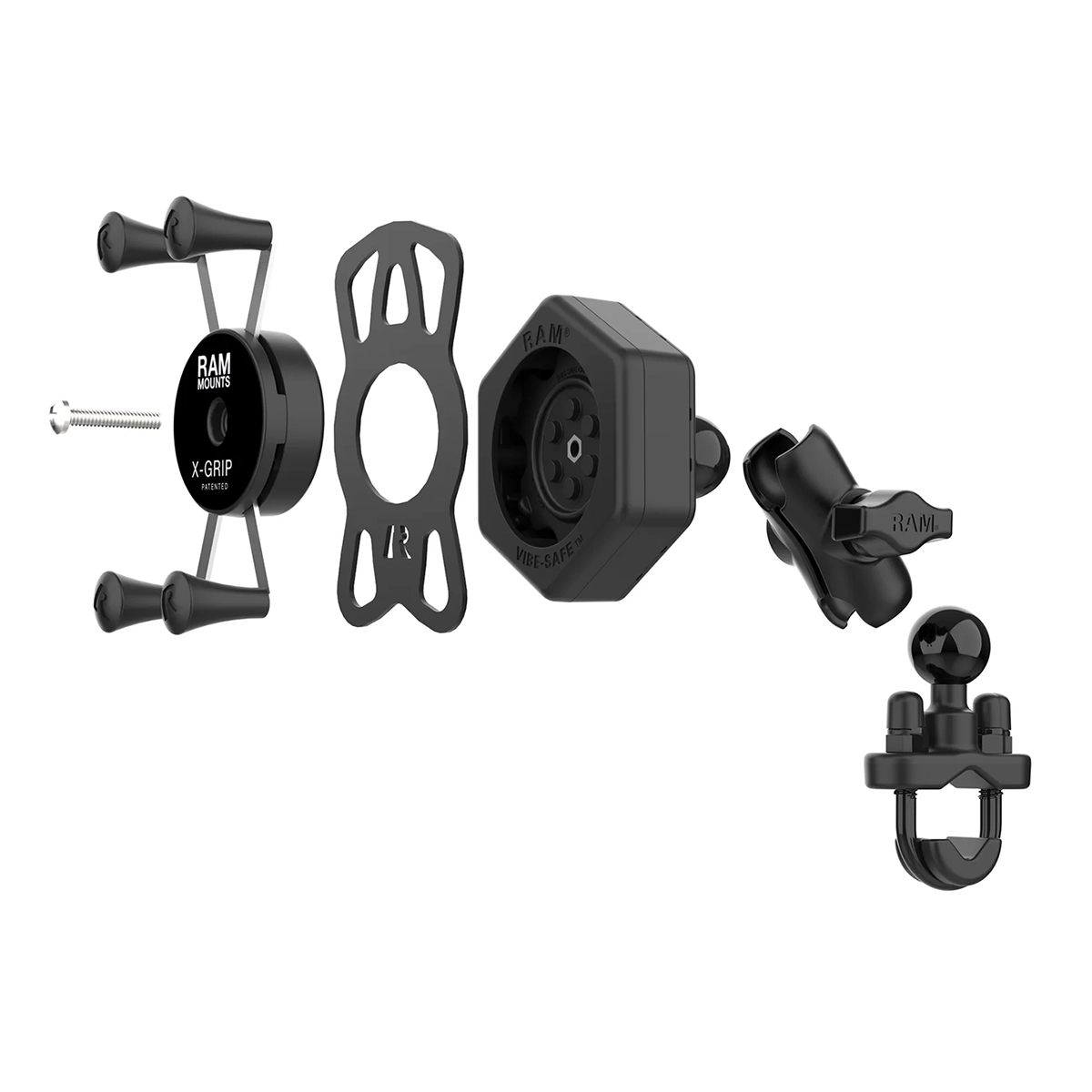

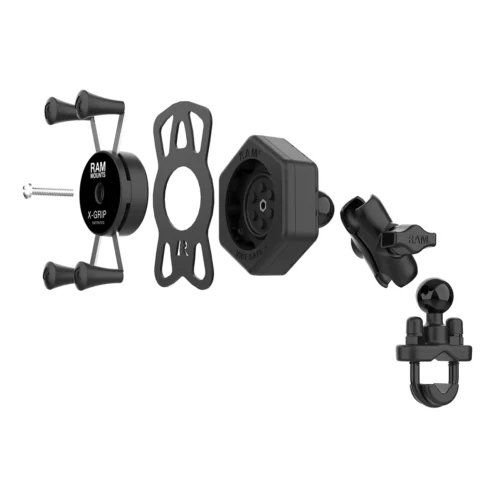

RAM-B-149Z-A-UN7-462 Components

RAM-HOL-UN7B-462 + RAM-B-201U-A + RAM-B-231ZU

Hardware Included

(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails
(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails
(2) 1/4″-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

Holder Dimensions

Width Range: 1.875″ – 3.25″
Depth Range: .875″ max

Clamp Range

.5″ – 1.25″ diameter

Socket to Socket Length

1.75″

Ball Size

B Size (1″)

Weight Capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials

Marine-grade aluminum
High strength composite
Stainless steel

Weight

0.97 lb

Additional Information

A reduction in vibration does not guarantee full protection of device. External immeasurable factors may cause damage to phones, cameras, and other devices while mounted in the RAM® Vibe-Safe™. National Products, Inc and GPS Central does not assume responsibility or liability for any such personal injury, death or property damage. RAM® mounts lifetime warranty is limited to RAM® mounts and components. The warranty does not include any device mounted or attached to a RAM® mount, such as a phone, GPS, camera, computer or other device.
