RAM-B-149Z-2-GOP1U: RAM ATV/UTV Handlebar U-Bolt Mount with Action Camera Adapter
$72.95
In stock

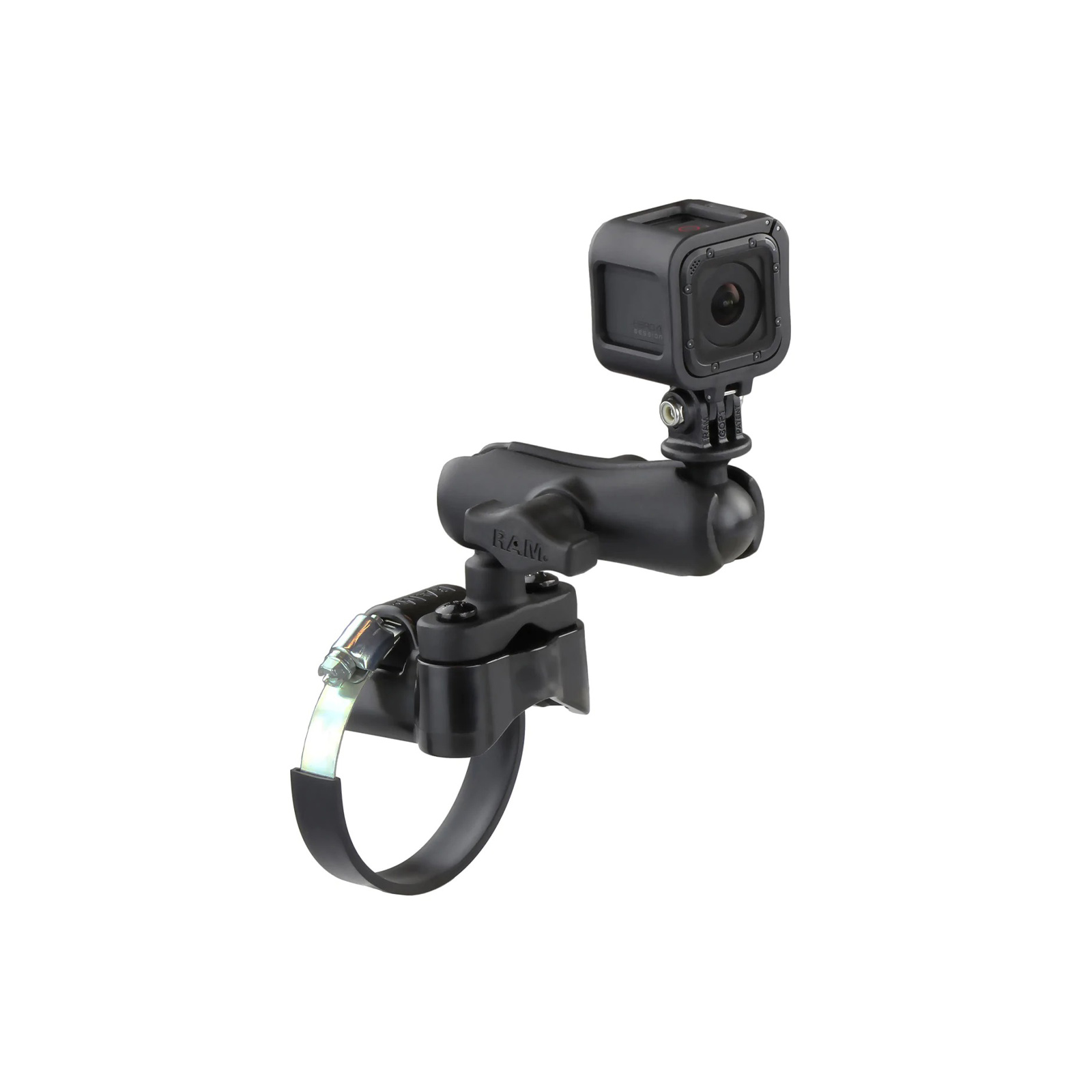

The RAM-B-149Z-2-GOP1U consists of a steel strap base, u-bolt bases, double socket arm and 1″ diameter ball with custom GoPro® Hero adapter. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware. The GoPro® Hero adapter attaches directly to the underside of the camera, replacing the factory mounting bracket.
COMPONENTS
RAP-B-202U-GOP1 + RAM-B-201U + RAM-B-231Z-2U

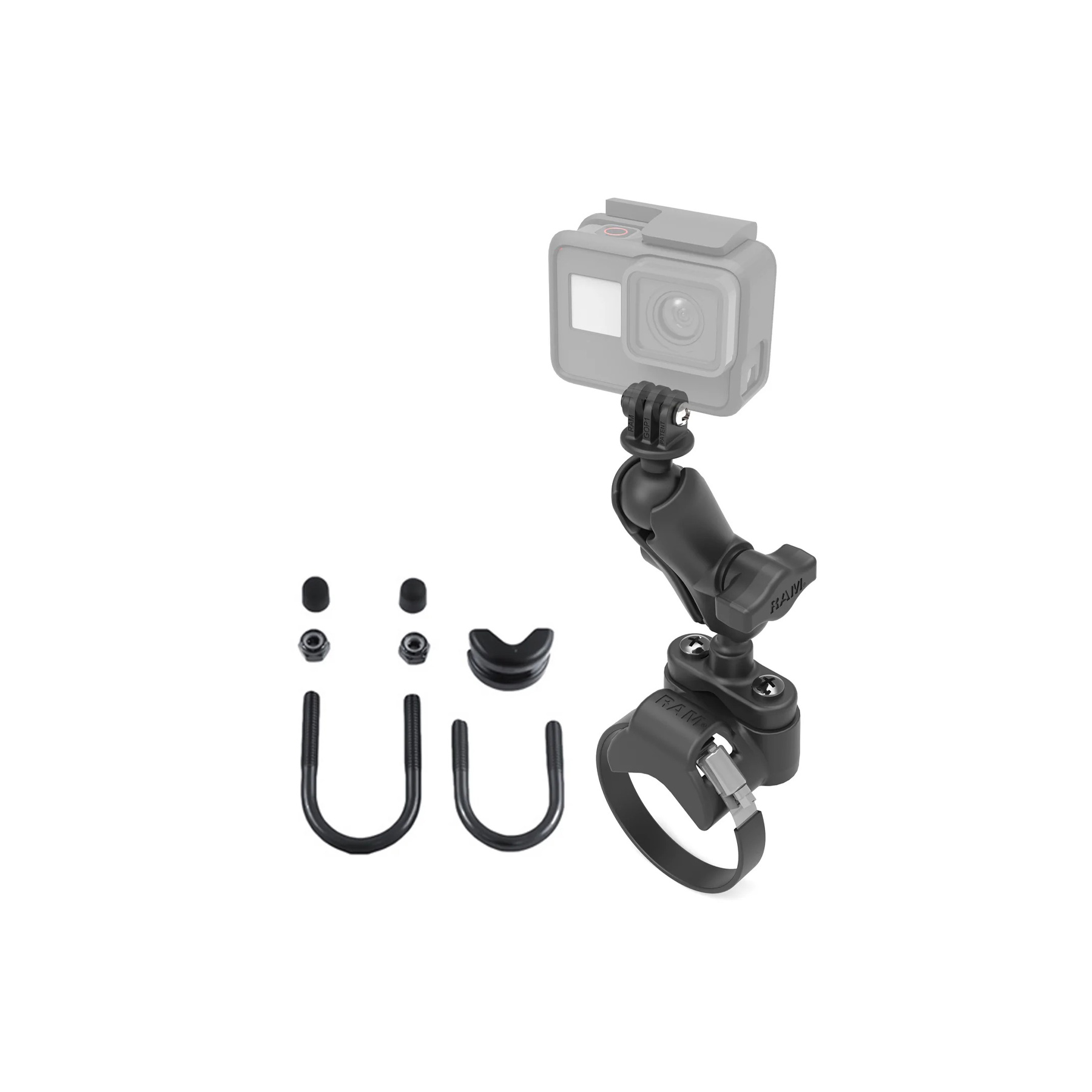

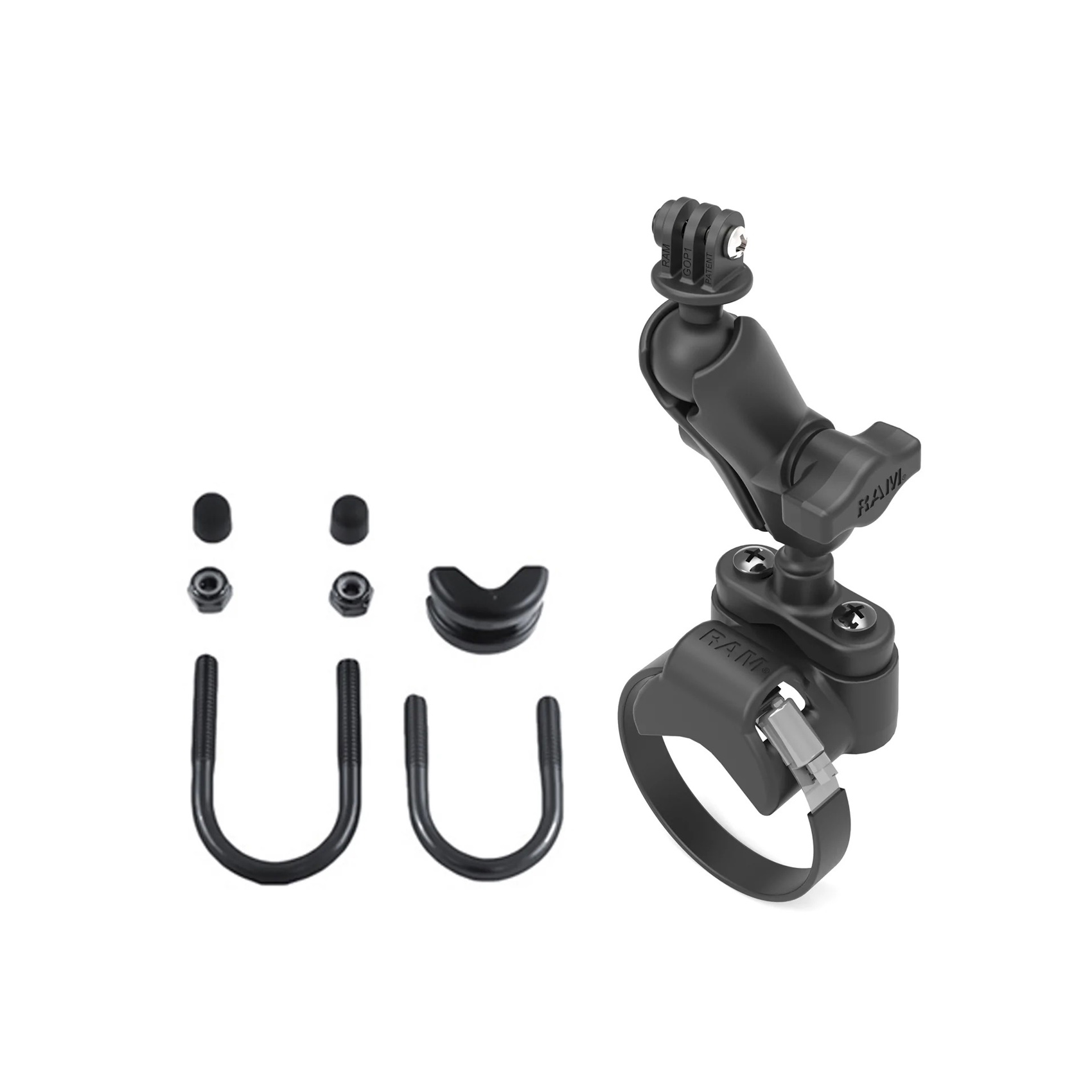

HARDWARE INCLUDED
- Assembly Hardware
- (1) Strap Clamp Adapter
- (2) 1/4″-20 x 1″ Machine Screws
- (2) 1/4″-20 Nylock Nuts
- (1) Zinc Worm Drive Strap Clamp
- (1) 6″ Rubber Strip
- (1) 1/4″-20 U-Bolt for .5″ – 1″ Rails
- (1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails
- (2) Rubber Caps
- (1) U-Bolt Spacer
CLAMP RANGE
- U-Bolt: .5″ – 1.25″ diameter
- Strap Clamp: 1.57″ – 3.15″ diameter
SOCKET TO SOCKET LENGTH
- 3″
BALL SIZE
- B Size (1″)
WEIGHT CAPACITY
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb
MATERIALS
- Marine-grade aluminum
- High strength composite
| Weight | 0.81 lbs |
|---|---|
| Dimensions | 7 × 4 × 1.5 in |
| Brand | RAM Mounts |
| Ball Size | 1" – B |
| Manufacturer Part Number | RAM-B-149Z-2-GOP1U |
