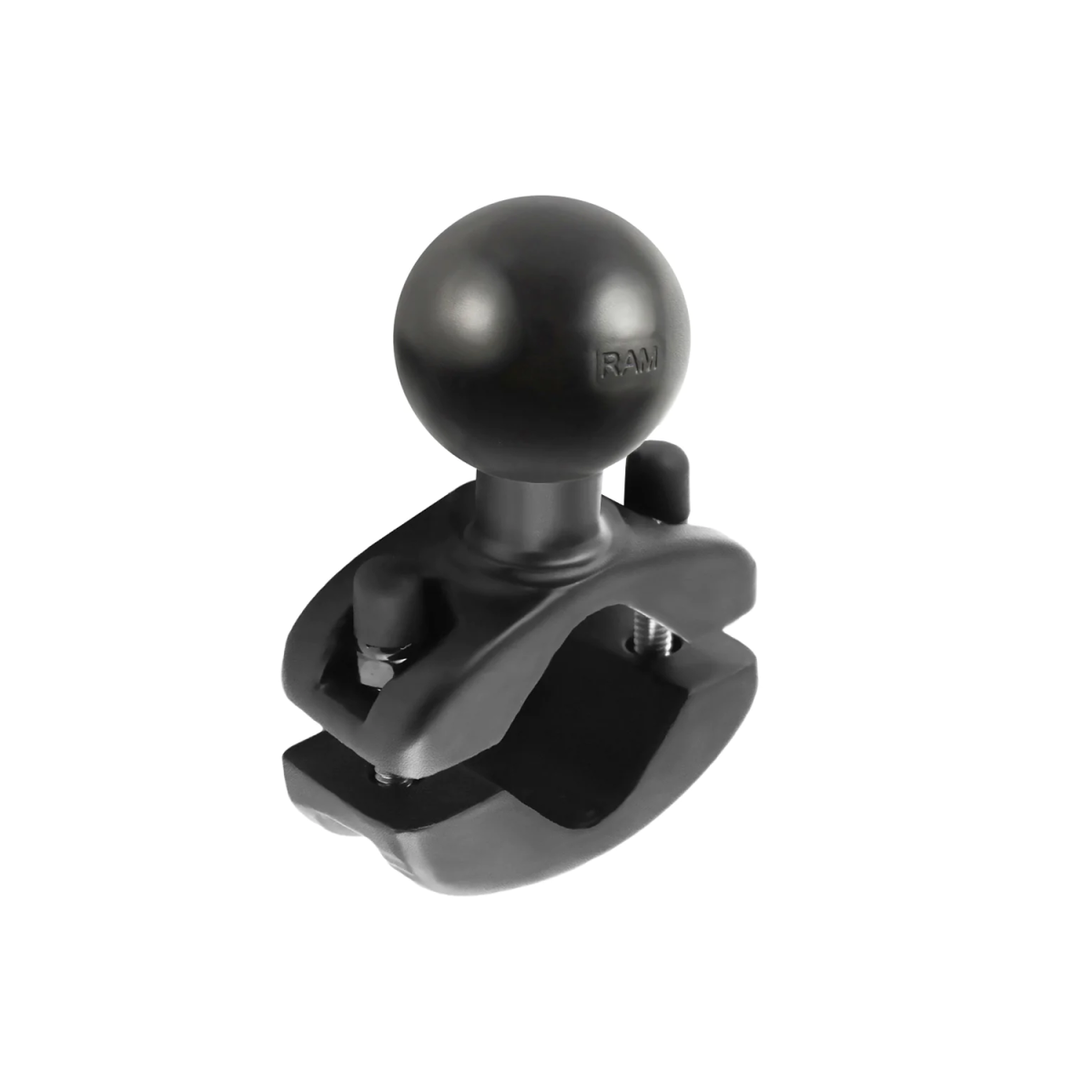

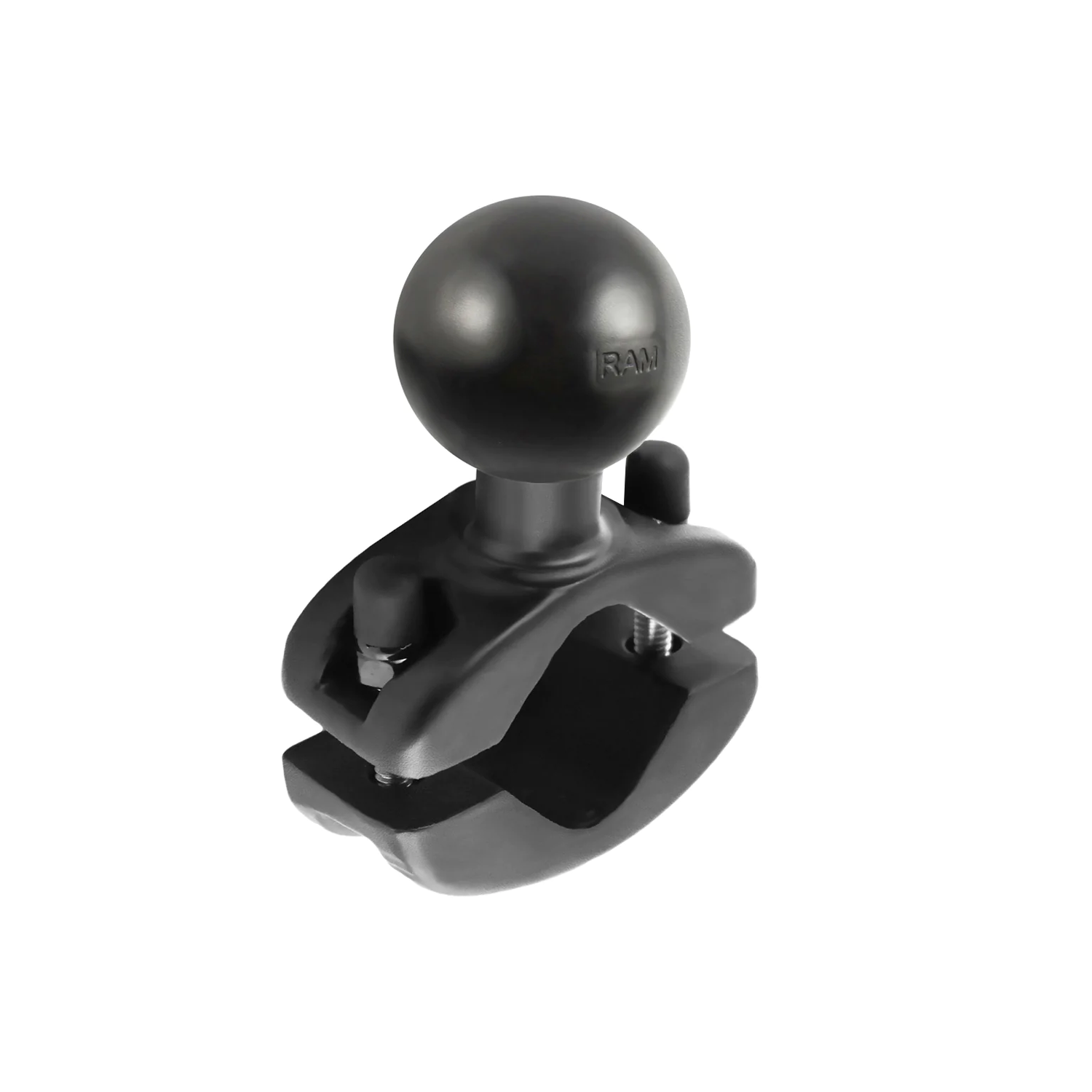

RAM-271U-12: RAM Rail Clamp Ball Base for 1.25" - 1.875" Rails - C Size

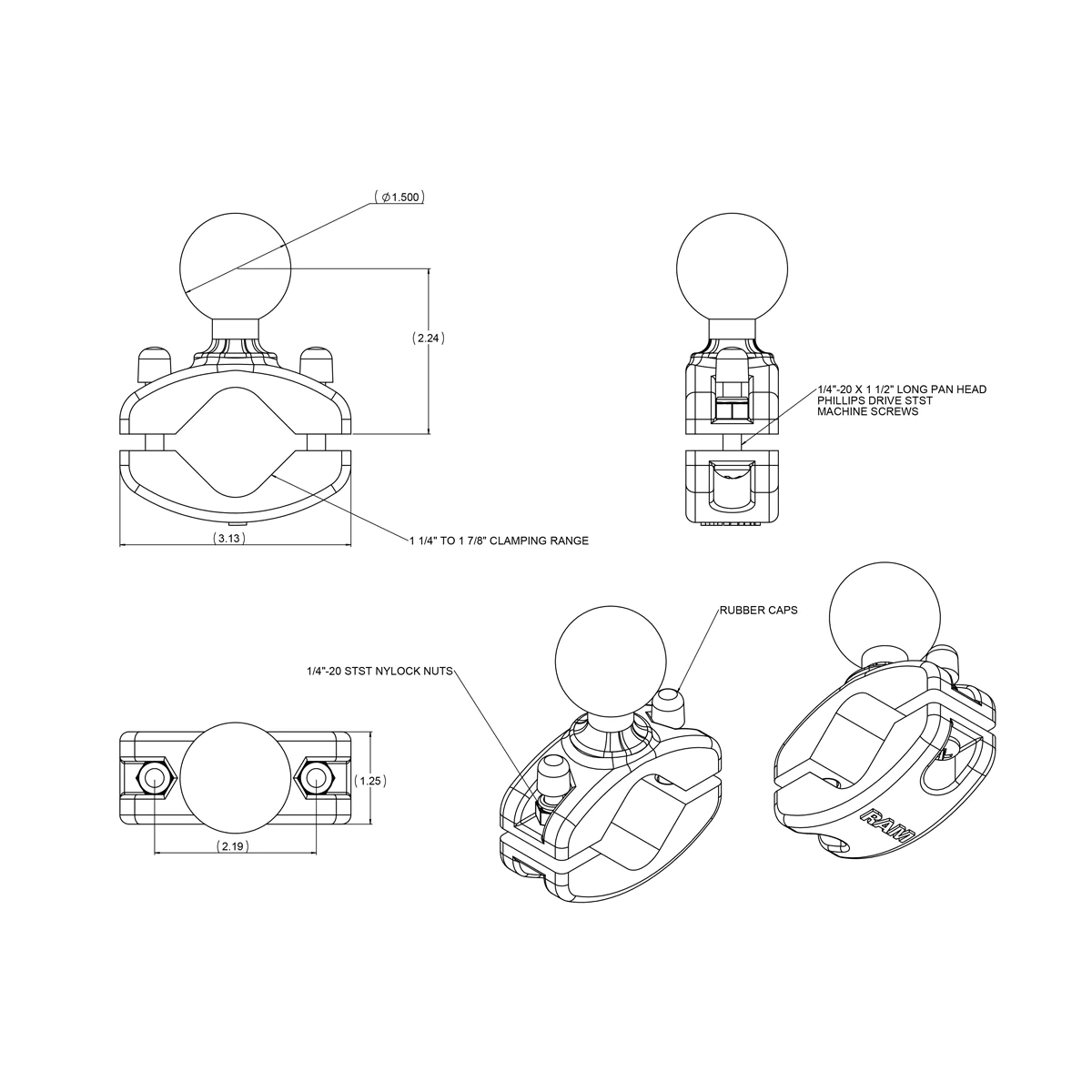

RAM-271U-12: RAM Rail Clamp Ball Base for 1.25" - 1.875" Rails - C Size technical graphics
RAM-271U-12: RAM Rail Clamp Ball Base for 1.25
RAM-271U-12: RAM Rail Clamp Ball Base for 1.25

RAM-271U-12: RAM Rail Clamp Ball Base for 1.25″ – 1.875″ Rails – C Size

MPN: RAM-271U-12

$61.95

In stock

RAM-271U-12: RAM Rail Clamp Ball Base for 1.25" - 1.875" Rails - C Size
This item: RAM-271U-12: RAM Rail Clamp Ball Base for 1.25" - 1.875" Rails - C Size

In stock

$61.95
$61.95
RAM-201U-B: RAM Short Double Socket Arm for C Sized Balls
RAM-201U-B: RAM Short Double Socket Arm for C Sized Balls

In stock

$34.95
RAM-201U: RAM Double Socket Arm for C Size Balls
RAM-201U: RAM Double Socket Arm for C Size Balls

In stock

$36.95
RAM-201U-D: RAM Long Double Socket Arm for C Sized Balls
RAM-201U-D: RAM Long Double Socket Arm for C Sized Balls

Out of Stock (On Order)

$68.95

SKU: RAM-271U-12 Categories: , , ,

The RAM-271U-12, round pipe base, consists of a 1.5″ rubber ball connected that will connect to a pipe tubing diameter from 1.25″ to 1.875″ in diameter.

  • Clamping base ideal for posts from 1.25″ to 1.875″ in diameter
  • Included C size 1.5″ RAM® rubber ball allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

HARDWARE INCLUDED

  • (2) 1/4″-20 x 1.5″ Screws
  • (2) 1/4″-20 Nylock Nuts
  • (2) Rubber Caps

CLAMP RANGE

  • 1.25″ – 1.875″ diameter

BALL SIZE

  • C Size (1.5″)

WEIGHT CAPACITY

  • Standard Use: 4 lbs
  • Heavy-Duty Use: 3 lbs
Weight 0.59 lbs
Dimensions 3 × 4 × 1.5 in
Brand

RAM Mounts
Ball Size

1.5" – C
Manufacturer Part Number RAM-271U-12
