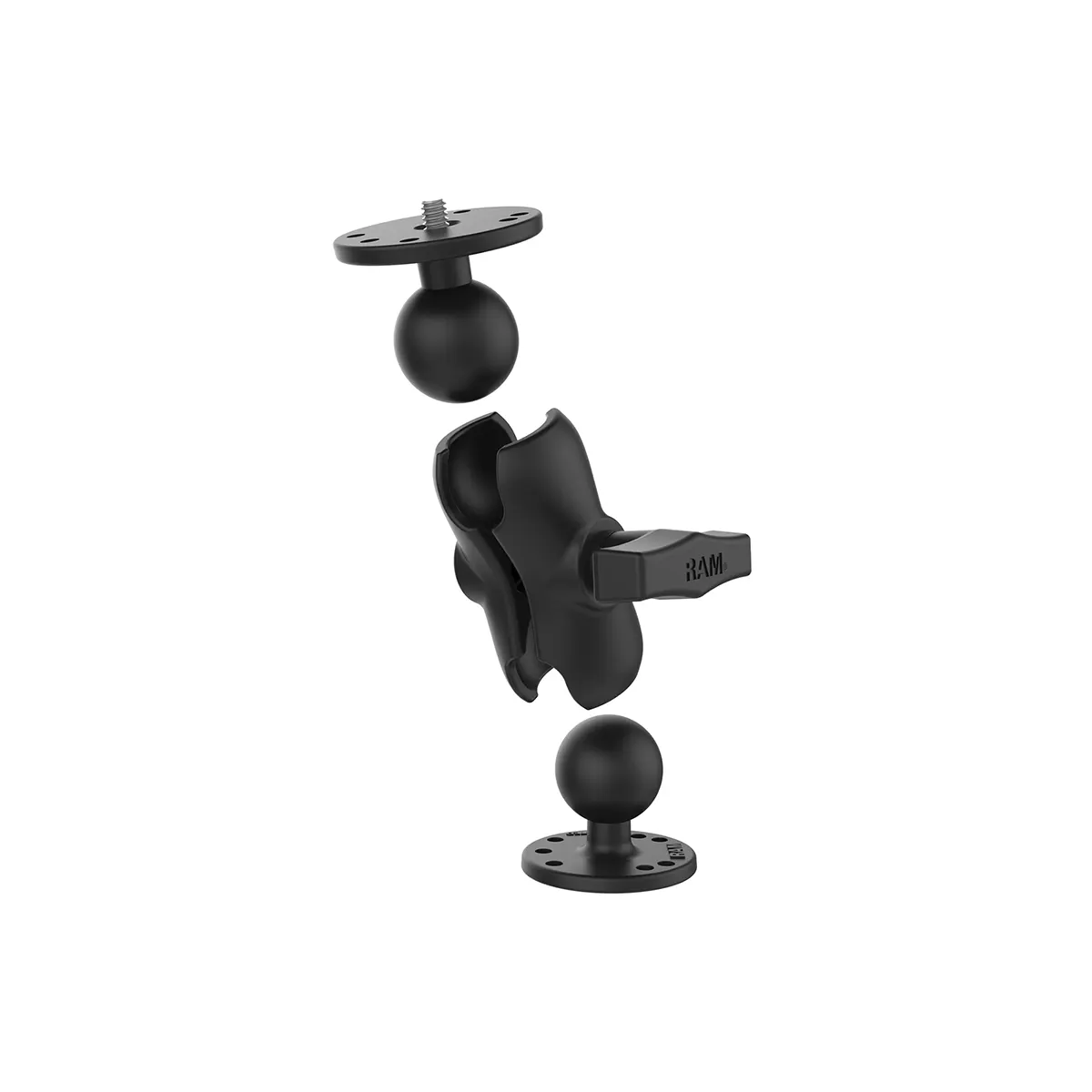

RAM-101AU-B components
RAM-101AU-B

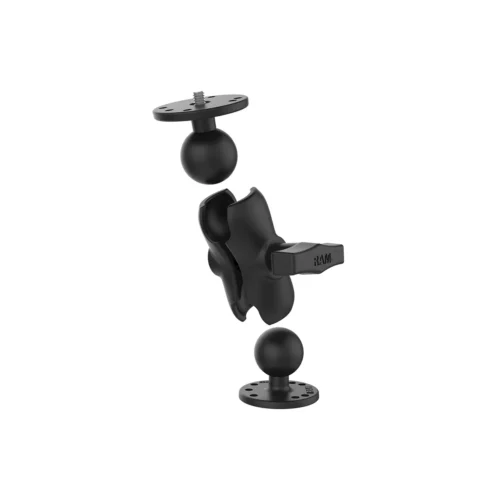

RAM-101AU-B components

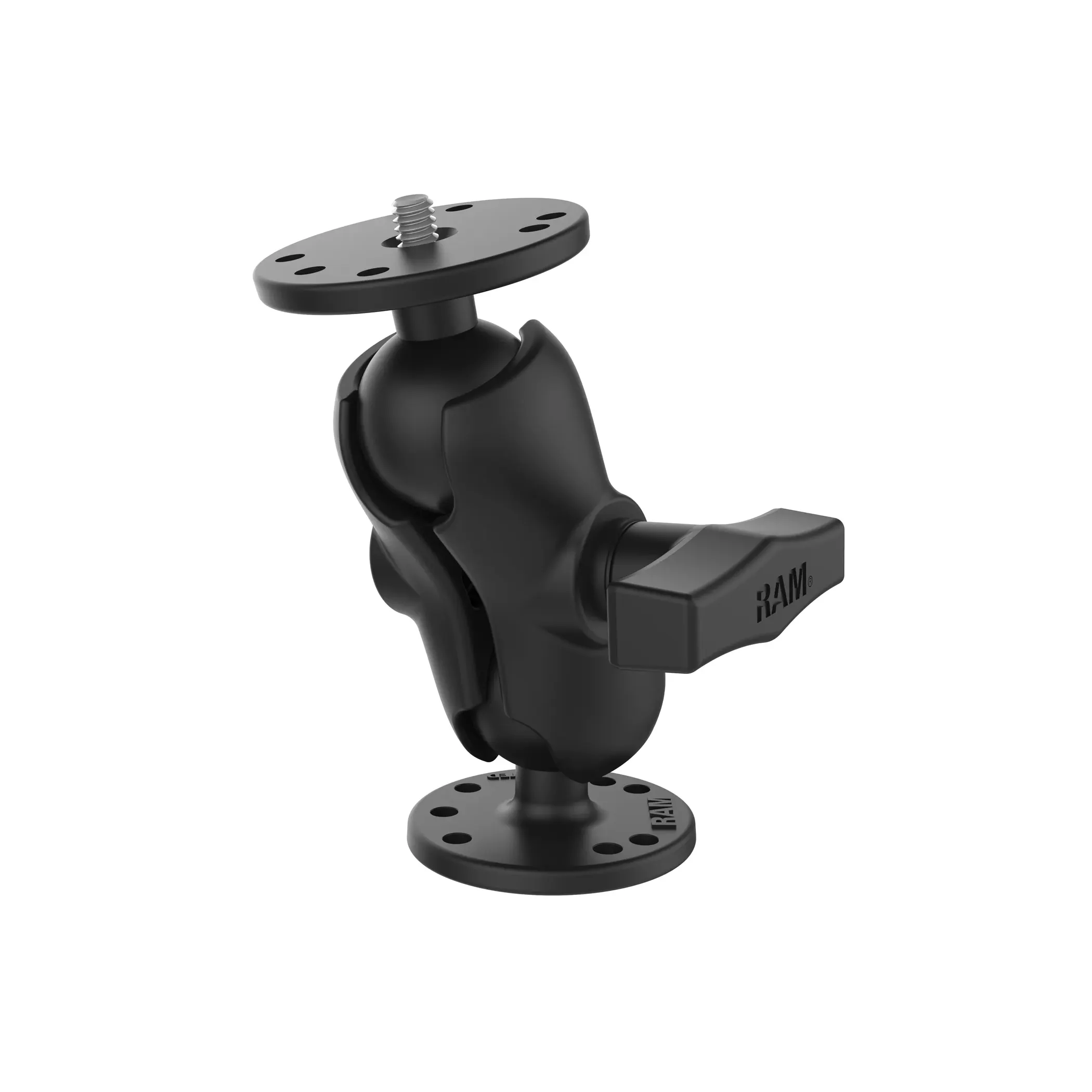

RAM-101AU-B: RAM Double Ball Mount with 1/4″-20 Male Thread – C Size Short

MPN: RAM-101AU-B

$81.95

Out of Stock (On Order)

Get notified when this product is back in stock

SKU: RAM-101AU-B Categories: , ,

The RAM-101AU-B, powder coated marine grade aluminum mount, consists of a 3.56″ double socket arm mount, one round 2.5″ diameter base with the universal AMPS hole pattern and round base with a 1/4″-20 threaded steel stud. The round base provides support and stability for cameras that rest on top of it. The male 1/4″-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras. This is a drill down mount. Loosen the double socket arm to achieve near-infinite viewing angles.

  • Double socket arm mount; consists of round plate featuring the AMPS hole pattern for attachment to compatible drill-down device holders and round base with male 1/4″-20 thread steel stud
  • Includes two round ball bases and C size short length double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

RAM-101AU-B Features:

Components

Product Dimensions

  • Overall Height: 5.225″

Socket to Socket Length

  • 2.5″

Hole Pattern

  • 4-Hole AMPS: 1.181″ x 1.496″
  • 3-Hole 120-Degree: 1.812″ Diameter

Plate Size

  • 2.5″ Diameter

Ball Size

  • C Size (1.5″)

Weight Capacity

  • Standard Use: 4 lbs
  • Heavy-Duty Use: 3 lbs

Materials

  • Marine-grade aluminum
Weight 0.9 lbs
Dimensions 5.5 × 2.5 × 2.5 in
Brand

RAM Mounts
Manufacturer Part Number RAM-101AU-B
