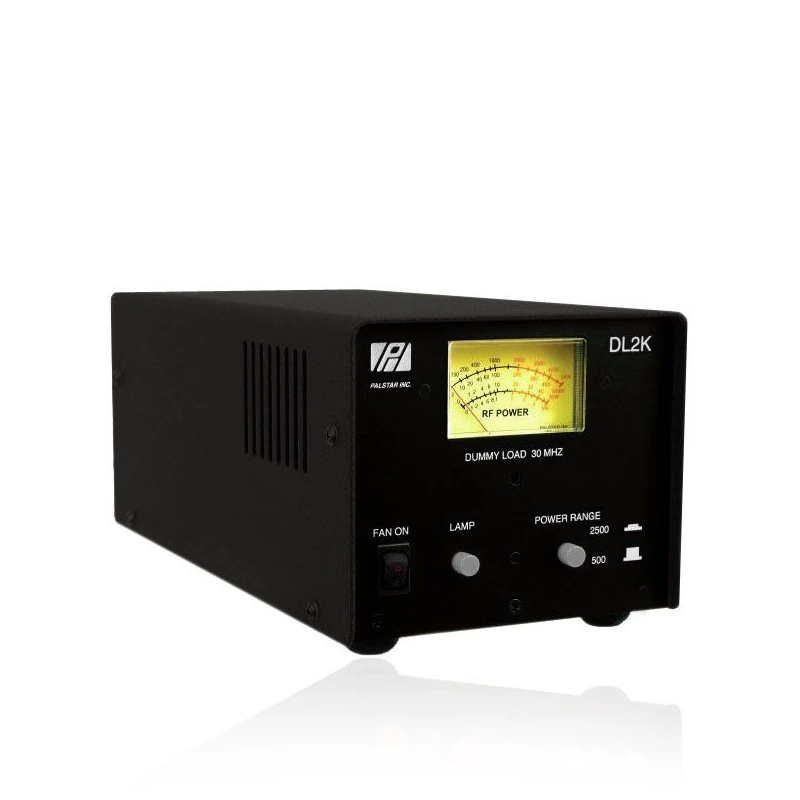

Palstar DL2K 2000W Dummy Load

MPN: PAL-DL2K

$620.00

Most dummy loads don’t have the real world power capability needed by Ham operators who use a high-power amplifier. Palstar’s solution: the DL2K that can handle 2000W for 1 minute, or 400W continuously.

Out of Stock (On Order)

Get notified when this product is back in stock

SKU: PAL-DL2K Categories: , ,

The Palstar DL2K 2000 Watt dummy load was born out of the need for a dummy load that allows for more time to tune your amp. Most dummy loads don’t have the real world power capability needed by Ham operators who use a high-power amplifier. Palstar’s solution: the DL2K that can handle 2000W for 1 minute, or 400W continuously. The DL2K has thermostatically controlled fan cooling, so the fan only runs when needed, or it can be switched on to run continuously.

Weight 5 lbs
Dimensions 6 × 12.5 × 5 in
Manufacturer Part Number PAL-DL2K

Product Specification

Palstar DL2K Specifications
Power rating:
2000 Watts for 1 minute
Frequency Range:
DC to 100 MHz
Cooling:

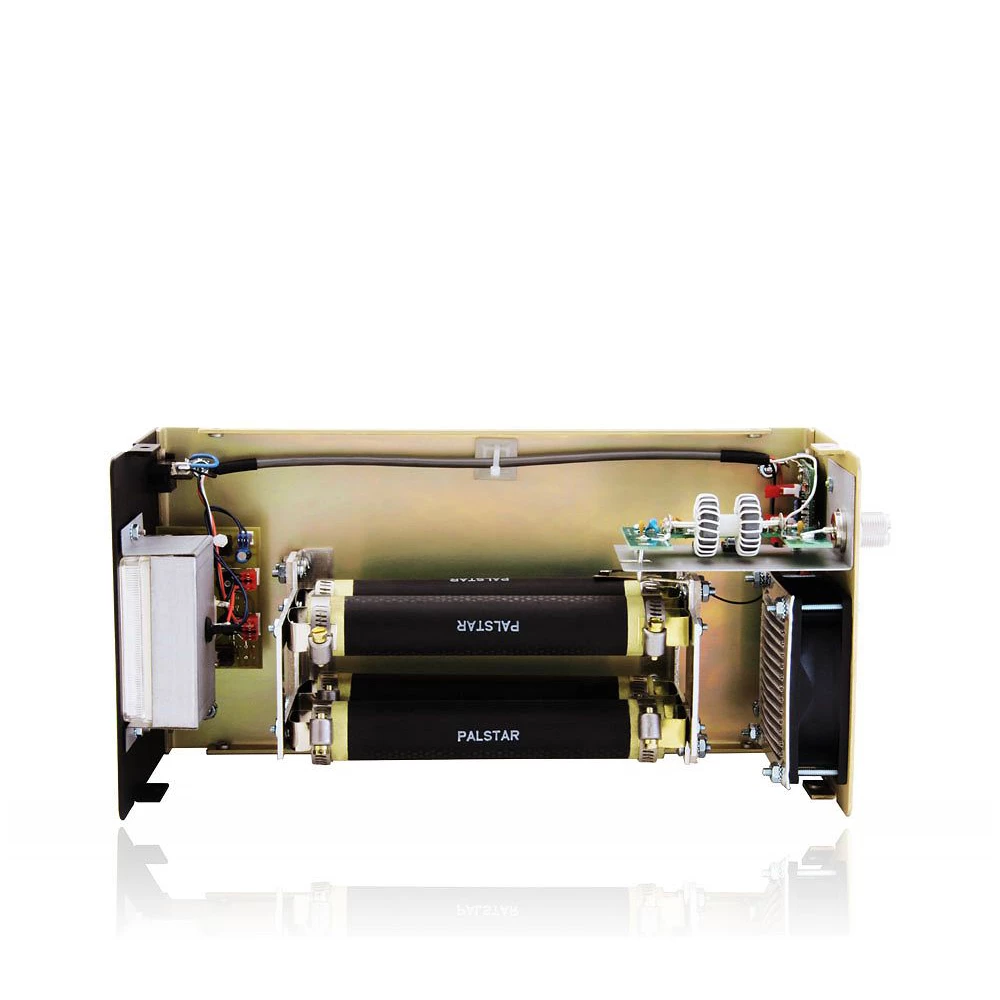

Fan (switched or thermostatically controlled)
Connector:

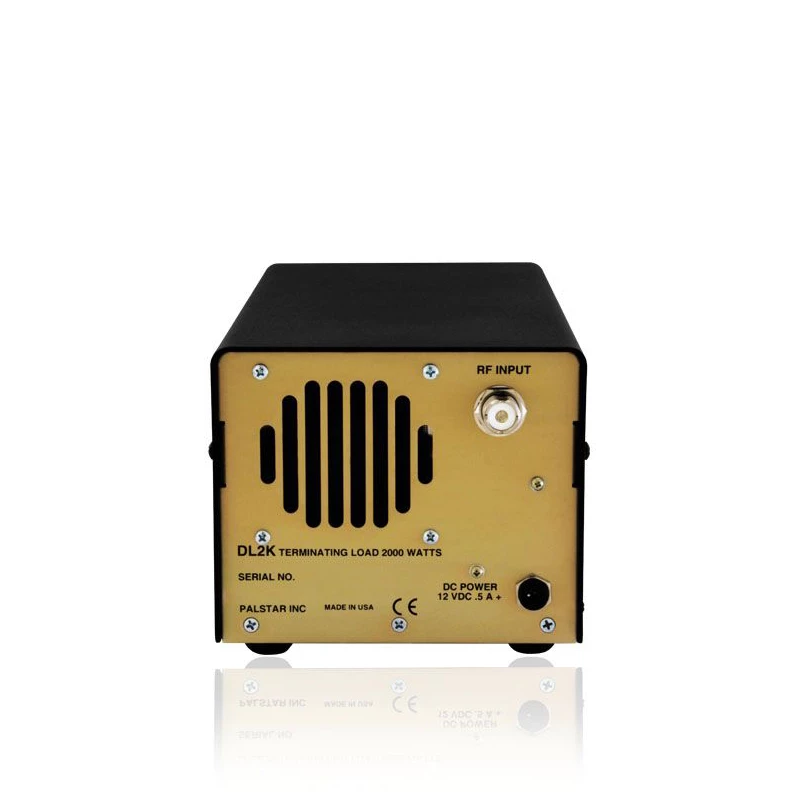

SO-329 Coax Input Connector
Metering:
Internal wattmeter and analog metering
Meter power range:
0-500 Watts/
0-2500 Watts
Power cable:
3pin Amphenol DC Included (USA Only)
Chassis:
.090 ga. aluminium iridite coated
Top cover:
.090 ga. aluminium powder coated
Front cover:
.090 ga. aluminium powder coated
Dimensions:
6″ wide x 5″ high x 12 1/2″ deep
Shipping weight:
5 lbs
