MaCo M106 6 Element 11/10M Yagi Antenna

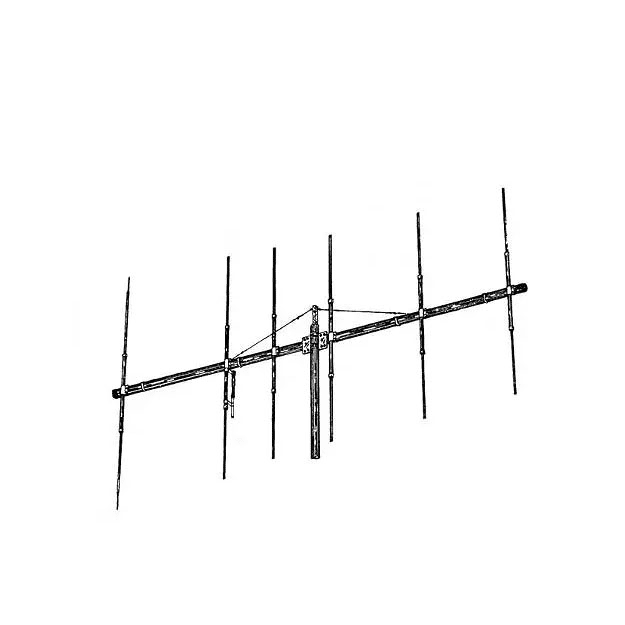

Maco M106 6 Element Yagi

10 / 11 metres

In the classic directional Yagi design, the 31′ long, 6 element M106 base station antenna can be mounted either vertically or horizontally for best base-to-mobile or base-to-base communications. The M106 features a Maco 2kW adjustable gamma match for high performance. Ruggedly built, using swaged & slotted tubing for maximum strength with minimum wind loading.

MaCo M106 Specs

Boom Length: 31′
Boom OD: 2″
Weight: 39 LBS
Number of Elements: 6
Longest Element: 19′
Turn Radius: 17′
Surface Area: 10.3 SQ FT

Gain: 17 dB
Power Multiplication: 50X
Front to Back Separation: 31 dB
Tuning: 10/11 METERS
