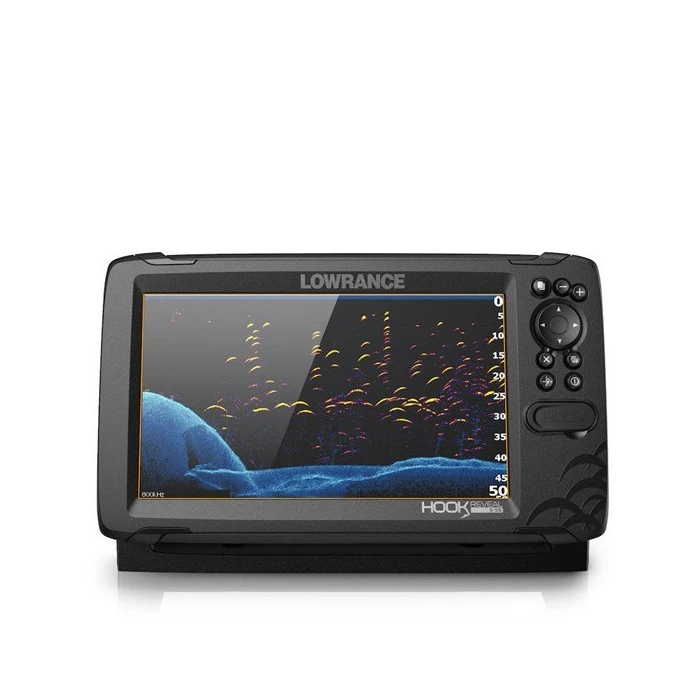

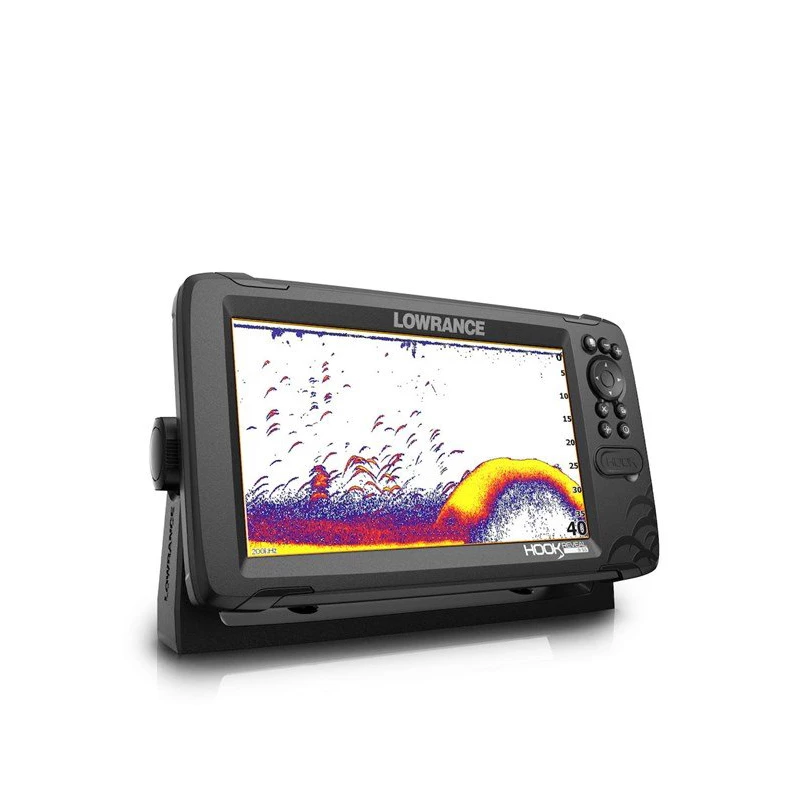

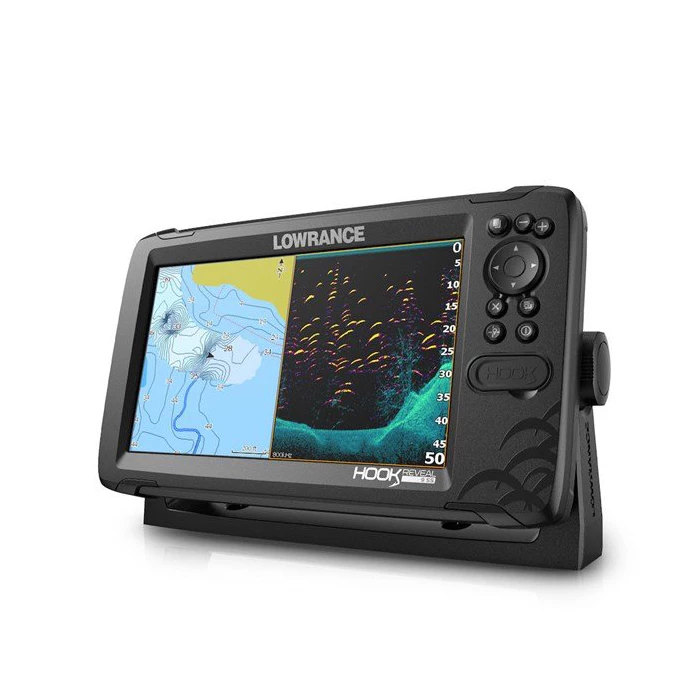

Lowrance HOOK Reveal 7 with 83/200 HDI ROW

Name: Lowrance HOOK Reveal 7 (000-15518-001) | GPS Central
SKU: 15996
Availability: OutOfStock

MPN: 000-15518-001

This item has been discontinued. No longer available.

Features Deep Water Performance & Base Map

SKU: 15996 Category: Discontinued Tag: Extended Warranty

The all-new HOOK Reveal makes fishing easier, delivering powerful performance with proven fish-finding tools including, Autotuning Sonar, DownScan Imaging™, improved deep water performance and now FishReveal™, which makes fish easier to see by combining the benefits of Lowrance CHIRP sonar and DownScan Imaging™ on one screen. Whether you’re fishing a local spot or unfamiliar water, find the best fishing areas with detailed C-Map charts or map uncharted water – in real time – with Genesis Live.

Key Features of the Lowrance HOOK Reveal 7:

FishReveal™- See fish light up on screen with FishReveal, combining the target separation of Lowrance CHIRP sonar with picture perfect DownScan Imaging views of structure and baitfish.
Genesis Live Real-Time Mapping – Create custom ½-foot contour maps of your local lake or uncharted water – in real time – on the display of your HOOK Reveal with Genesis Live.
Autotuning sonar – Spend more time fishing and less time reworking your sonar settings with HOOK Reveal Autotuning sonar, which ensures you get the best sonar image every time by automatically adjusting settings as fishing conditions change
83/200 HDI transducer with Med/High CHIRP and DownScan Imaging
Preloaded worldwide basemap
SolarMAX™ Display – Enjoy crisp and clear views of your display no matter the conditions – even in direct sunlight – with excellent clarity and daylight visibility of HOOK Reveal’s SolarMAX display.
New fish-finding color palettes
Optimized keypad with one-touch access to key features
Mapping options include C-MAP, C-MAP Genesis, Navionics® and more
microSD card slot
Easy front-dash or gimbal-bracket mount

Weight	4.85 lbs
Dimensions	11 × 8 × 9 in
Brand	Lowrance
Manufacturer Part Number	000-15518-001

Product Video

Package Includes

In the Box:

HOOK Reveal 7
83/200 HDI Transducer
Gimbal Bracket and Knobs
Power Cable
Corner Clips

Product Specifications

Lowrance HOOK Reveal 7 80/200 ROW Specifications:

Screen Brightness: >1000 NITS
GPS: 1 Hz GPS GLONASS WAAS EGNOS MSAS
Warranty Period: 1 Year + 4 additional years of upgrade options. Totaling 5 years
Weight: 1.25 lb (0.57 kg)
Power Consumption max: 1.25A @ 13VDC with backlight on full
Power Consumption typical: 1.25A @ 13VDC with backlight on full
Power Consumption min: 1.25A @ 13VDC with backlight on full
Shock Vibration: 100,000 cycles of 20 G
Compass Safe: 12″ (300mm)
Supply Voltage: 12v DC (10.8-17VDC)
Waypoints, Routes, Tracks: 3000 Waypoints 100 Routes 100 Trails
Time to First Fix: 30s
Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
Recommended Fuse Rating: 5A
Humidity: 60°C, 95% relative humidity (RH) for 18 hours
Viewing Angles: 80° top/bottom, 85° left/right
Display Resolution: 800 x 480
Dimensions W x H x D: 9.31″ (236.4 mm) x 6.46″ (164.2 mm) x 4.42″ (112.3 mm)
Charts supported: C-MAP Lake Insight, HDC-MAP Insight, Pro C-MAP (MAX N, MAX N+), C-MAP Genesis, Genesis Live, C-MAP Precision Contour HD (AMER ONLY), Navionics (Gold, NAV+ Platinum+), Insight (Pro and HD), Lowrance Regional Mapping Partners (No Photo/Satellite Overlay)
Cartography included: C-Map World Base Map
Correction: DGPS, WAAS
Approvals Compliance: FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
Mounting Type: Gimbal Bracket Front Dash Flush Mount
Sonar Compatibility: Integrated: CHIRP Broadband DownScan
Waterproofrating: IPX7 with card door closed
Interface: Keypad: 8-way directional keypad Zoom +/- Exit Enter/MenuWaypoint/CursorPower/LightPages
SD Card Storage: Micro SD Card(32 gb Max)
Backlight Color: Pure White LED
