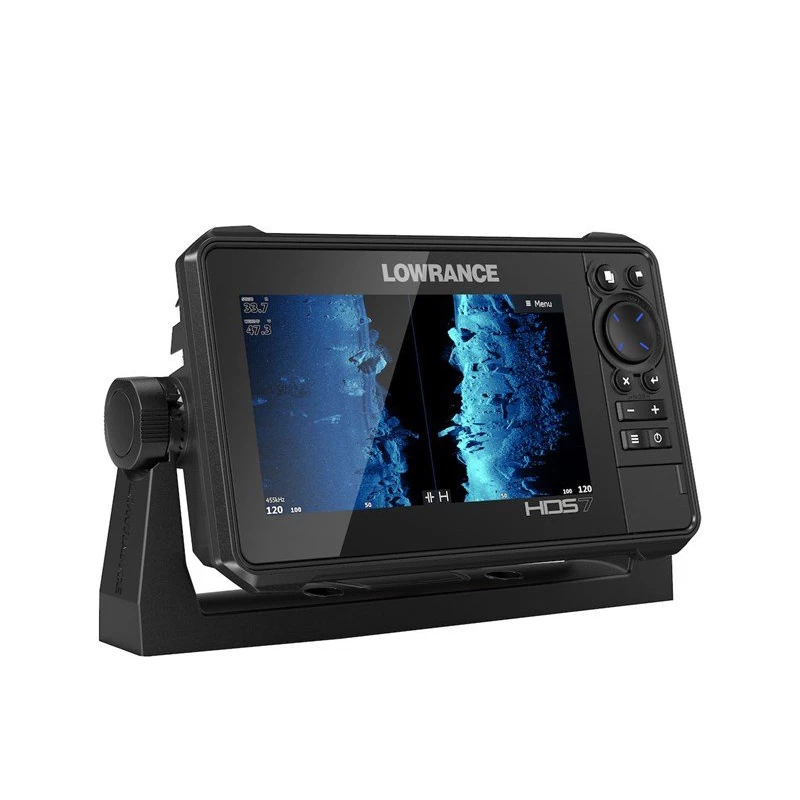

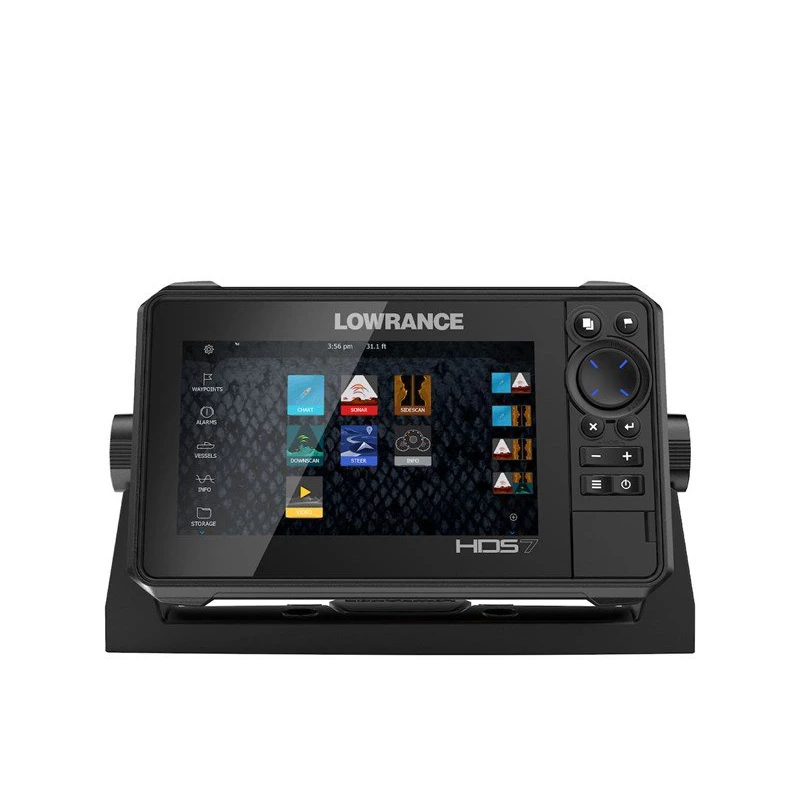

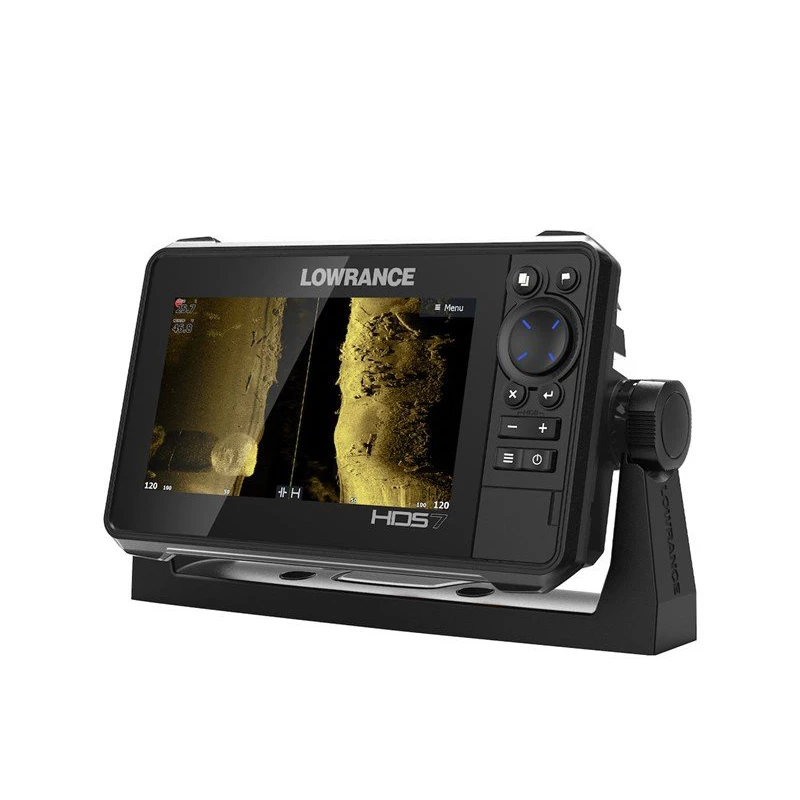

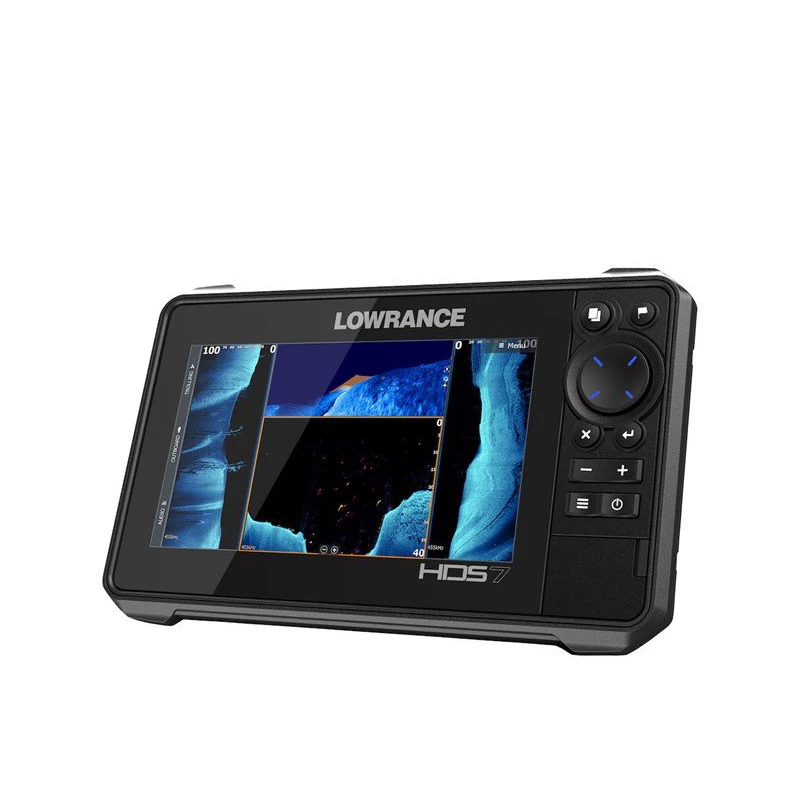

Lowrance HDS 7 Live 3-in-1
MPN: 000-14416-001
$1,625.00
This item has been discontinued. No longer available.
Prepare yourself for a new level of fishfinding performance with HDS LIVE, which includes built-in Lowrance® CHIRP sonar, support for Active Imaging™, StructureScan® 3D with Active Imaging and revolutionary LiveSight™ Real-Time Sonar.
Out of Stock (On Order)
Get notified when this product is back in stock
- Description
- Additional information
- Product Videos
- Product Specifications
- Package Includes
- Product Guides & Documentation
- Accessories
With HDS LIVE, we took the most popular fishfinder series on the professional fishing circuit and made it even better for all anglers with a sleek, new design, faster processor, best-ever built-in suite of HDS navigation tools and support for a wide array of new fishfinding technology, unmatched by any other fishfinder.
Prepare yourself for a new level of fishfinding performance with HDS LIVE, which includes built-in Lowrance® CHIRP sonar, support for Active Imaging™, StructureScan® 3D with Active Imaging and revolutionary LiveSight™ Real-Time Sonar. Equipped with the best set of navigation tools ever built into a fishfinder/chartplotter display, HDS LIVE features preloaded C-MAP® US Enhanced Inland and Coastal mapping, automatic routing support and new Genesis Live onscreen mapping offering precision real-time mapping, down to ½-foot contours.
Key features of HDS 7 Live 3-in-1:
- Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar ready
- Active Imaging™ 2-in-1 (Side/Down) sonar ready
- StructureScan® 3D with Active Imaging enhancements
- LiveSight real-time sonar compatible
- Smartphone notifications
- High-performance dual-core processor
- C-MAP Genesis Live onscreen mapping
- FishReveal™ Smart Target View
- High-resolution SolarMAX™ HD multi-touch screen
- Preloaded high-detail C-MAP® US Enhanced charts with 1-foot contours on 4,000 lakes
- C-MAP Easy Routing, Navionics Autorouting capability
- Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
- Live Network Sonar
- SiriusXM® Marine Weather and Audio compatible
- Wireless and Bluetooth® connectivity
- Heat Map Chart Overlay
- Enhanced Surface Clarity
- Quick Access Control Bar
- Touchscreen control of MotorGuide® Xi5 Trolling Motor , Outboard Pilot and Power Pole® anchors
- Radar and SonicHub®2 audio server connectivity
- NMEA 2000® engine support
- Optional mapping upgrades include C-MAP, Navionics® and more
| Weight | 9.26 lbs |
|---|---|
| Dimensions | 12.5 × 9 × 9.5 in |
Product Videos
Product Specifications
|
Lowrance HDS 7 Live 3-in-1 Specifications
|
|
|
Screen Brightness
|
>1200 Nits
|
|
Power Consumption typical
|
1.7A @ 13VDC with Full Backlight, Sonar on
|
|
Power Consumption min
|
1.7A @ 13VDC with Full Backlight, Sonar on
|
|
Update rate
|
10 Hz
|
|
Weather
|
SiriusXM via WM-3 (USA only)
|
|
GPS
|
10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
|
|
Shock Vibration
|
100,000 cycles of 20 G
|
|
Display Resolution
|
1024 x 600
|
|
Supply Voltage
|
12 v DC (10.8-17VDC)
|
|
Compass Safe
|
12″ (300mm)
|
|
GPS Receiver Channels
|
16
|
|
Ethernet Ports
|
1x 100 Mbit, 6 max MFD’s on a network
|
|
NMEA 2000 Connectivity
|
1x Micro-C
|
|
SD Card Storage
|
2 micro SD cards up to 32GB
|
|
Warranty Period
|
2 Year + 3 additional years of upgrade options totaling 5 years
|
|
Power Consumption max
|
2.4A @ 13VDC with Full Backlight, Sonar on
|
|
Position Accuracy
|
20m RMS
|
|
Weight
|
3.04lb (1.38kg)
|
|
Waypoints, Routes, Tracks
|
3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
|
|
Time to First Fix
|
30s
|
|
Storage Temperature Range
|
4°F to 140°F (-20°C to 60°C )
|
|
Radar compatibility
|
4G (Broadband) 3G (Broadband) Halo24 (Pulse Compression Dome Radar) Halo 3’/4’/6′ (Open Array Pulse Compression Radar)
|
|
Dimensions W x H x D
|
5.73in (145.6mm) x 9.21in (234.01mm) x 3.06in (77.7mm)
|
|
Operating Temperature Range
|
5°F to 131°F (-15°C to 55°C )
|
|
Recommended Fuse Rating
|
5A
|
|
Humidity
|
60°C, 95% relative humidity (RH) for 18 hours
|
|
Internal Storage
|
8.0 GB Internal
|
|
Viewing Angles
|
80° top/bottom, 80° left/right
|
|
AIS
|
AIS Chart and Radar overlay. Target vessel details
|
|
Charts supported
|
C-MAP (MAX N, MAX N+), C-MAP Genesis, C-MAP Precision Contour HD (AMER ONLY), Navionics (Gold, NAV+ Platinum+) Insight (Pro and HD) Lowrance Regional Mapping Partners
|
|
Cartography included
|
C-MAP US Enhanced Basemap (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)
|
|
Steering Modes
|
Course, Heading, Waypoint, Power Steer
|
|
Maneuvers Turn Patterns
|
Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
|
|
Digital Switching
|
Czone, Naviop
|
|
Correction
|
DGPS, WAAS
|
|
Mounting Type
|
Gimbal Bracket Front Dash Flush Mount Rear Dash Flush Mount
|
|
Bluetooth
|
Integrated Bluetooth 4.0 with support for Bluetooth Classic
|
|
Sonar Compatibility
|
Integrated: CHIRP Broadband Active Imaging DownScan Active Imaging SideScan Compatible with: SonarHub StructureScan StructureScan3D
|
|
Item Connectivity WiFi
|
Internal 802.11b/g/n and Compatible with WiFi-1 Module
|
|
Waterproof rating
|
IPX7 with card door closed
|
|
PC Connectivity
|
None
|
|
Autopilot
|
Outboard Pilot MotorGuide Xi5/Xi3 Trolling Motor * *requires Motorguide PinPoint Gateway
|
|
Video
|
Output: No Input: Composite video RCA – single channel via optional adaptor
|
|
Backlight Color
|
Pure White LED
|
|
Weather
|
SiriusXM via WM-3 (USA only)
|
|
Multimedia
|
SonicHub SonicHub2 FusionLink products any NMEA 2000 compliant Marine Audio products
|
|
Interface
|
Touchscreen: Full Multi-touch touchscreen Keypad: 8-way directional keypad Zoom +/- Exit Enter Menu Waypoint Power/Light
|
|
NMEA 0183 Sentences supported
|
TX / RX – GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX – NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX – SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX – CompassReceive HDG HDT HDMTransmit HDGTX / RX – WindReceive MWV MWDTransmit MWV MWDTX / RX – AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000
|
Package Includes
In the Box:
- HDS 7 Live 3-in-1
- Active Imaging 3-in-1 Transducer
- Power Cable
- Bezel and SD-Card Door
- Suncover
- Mounting Bracket
