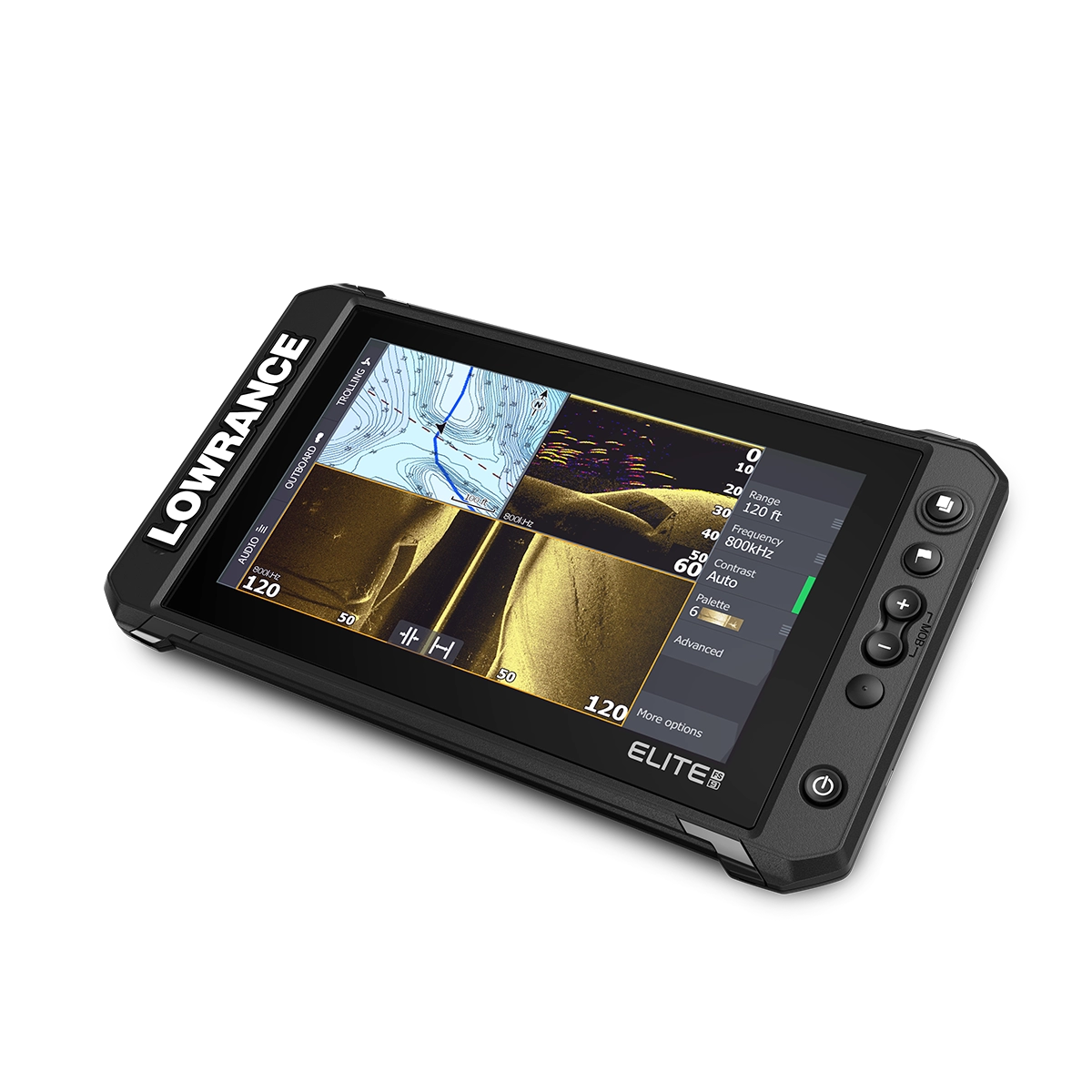

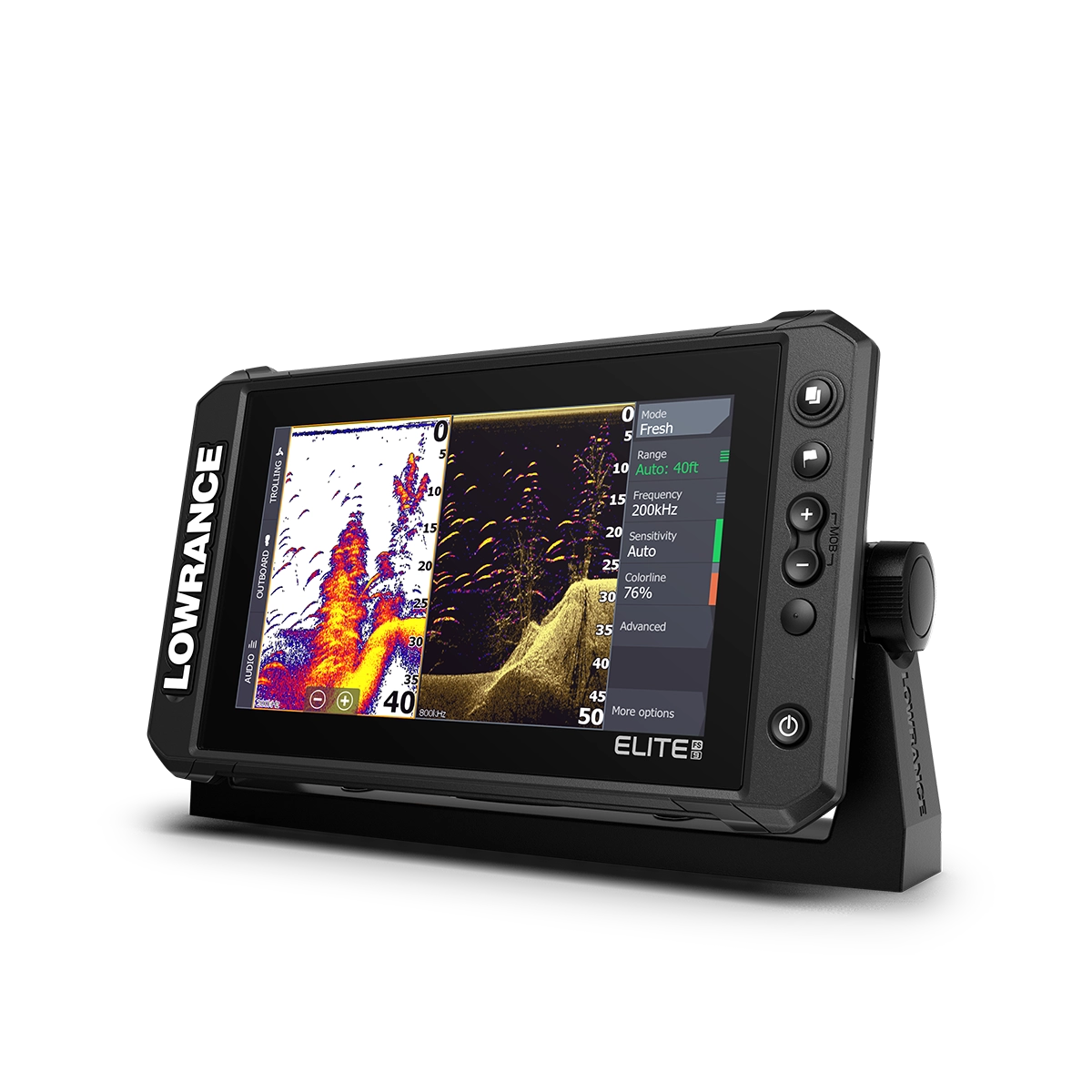

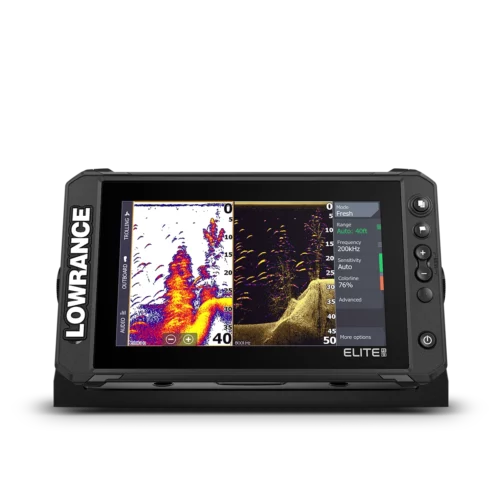

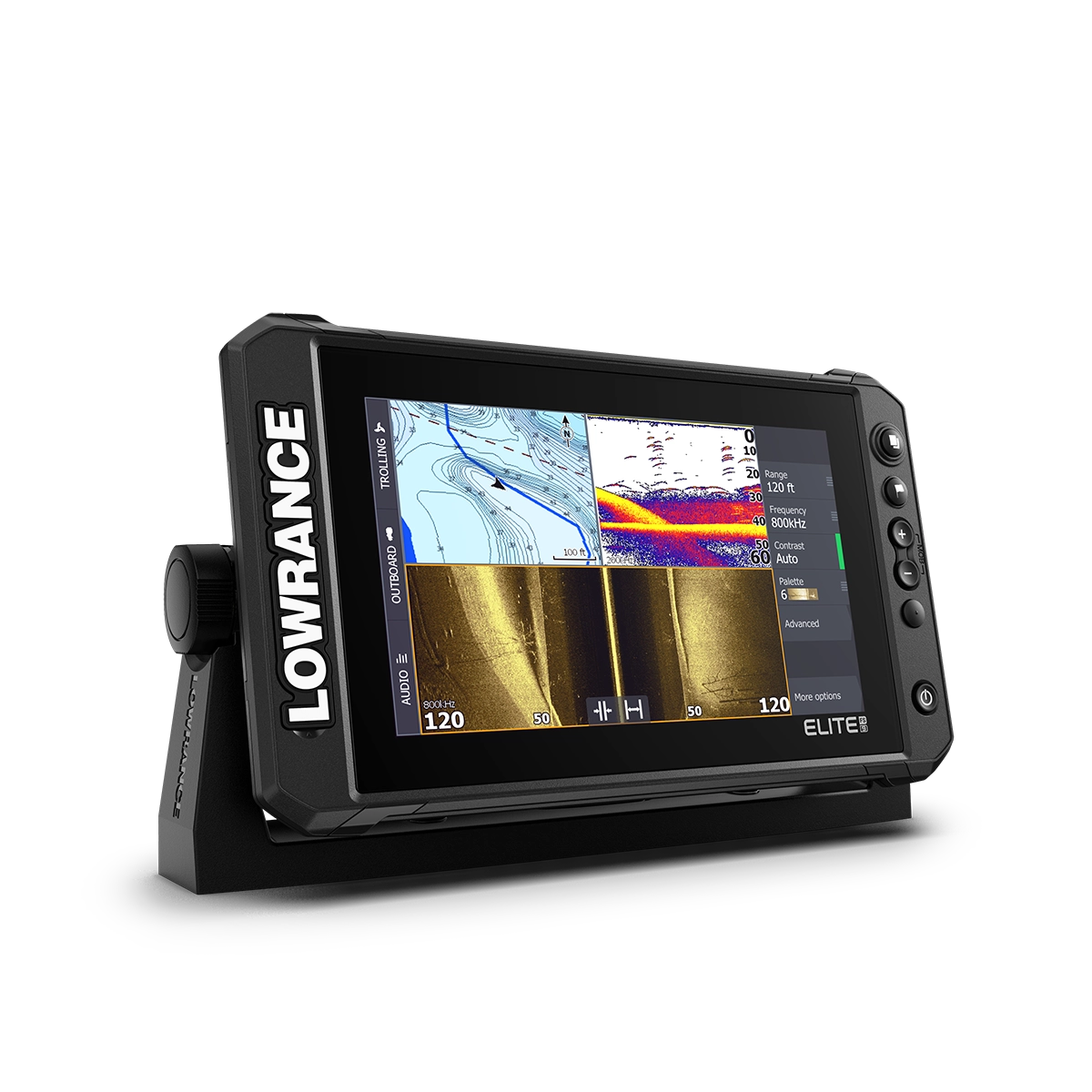

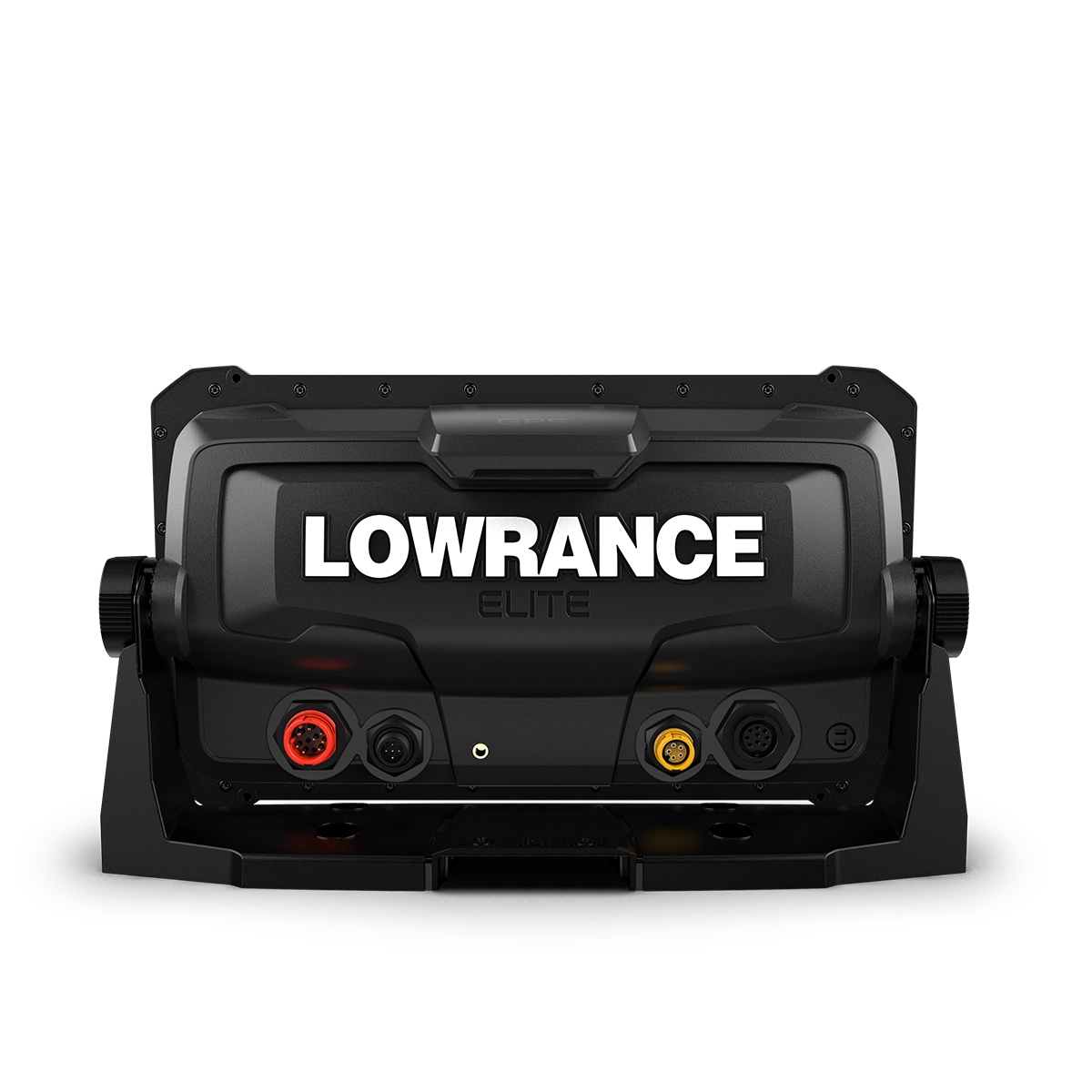

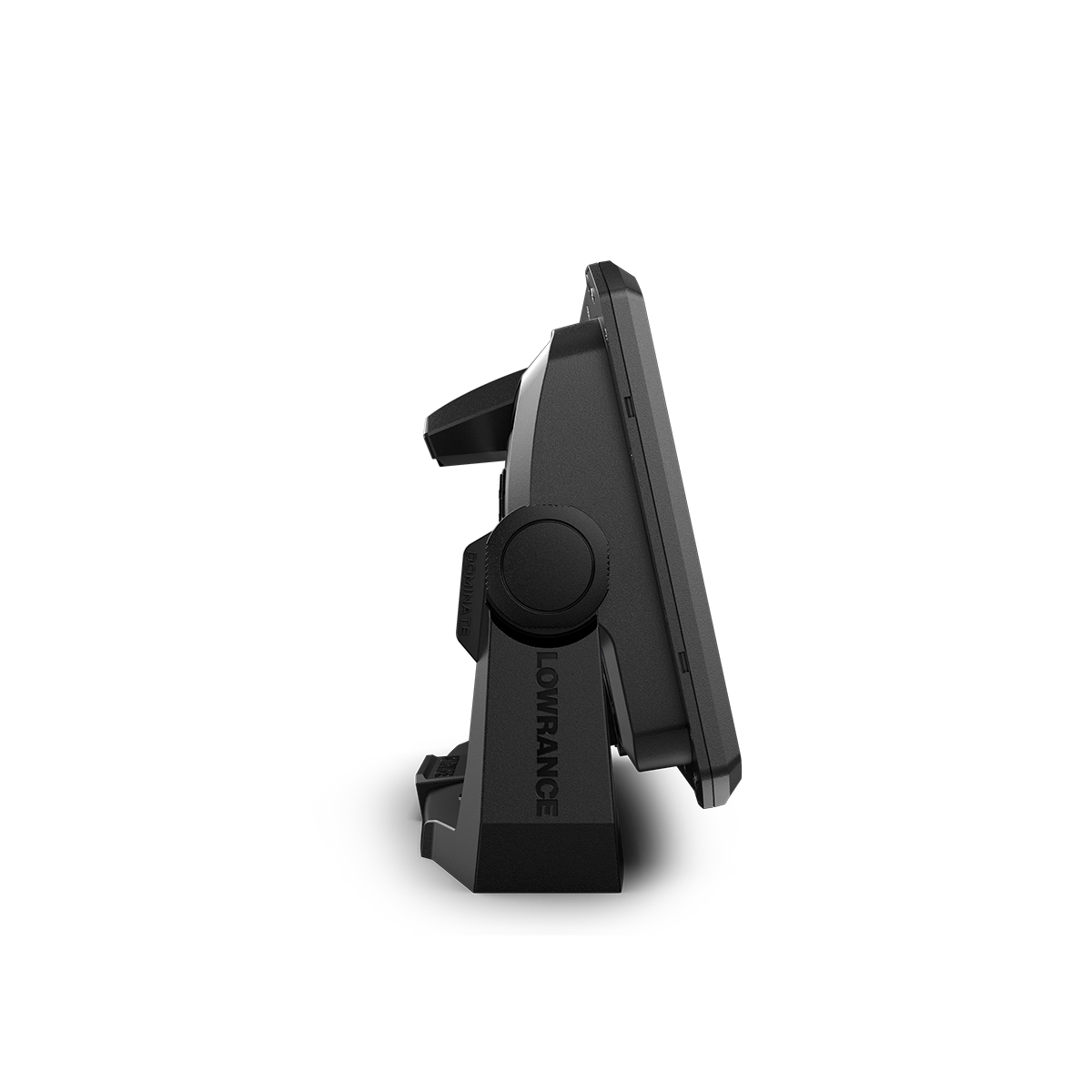

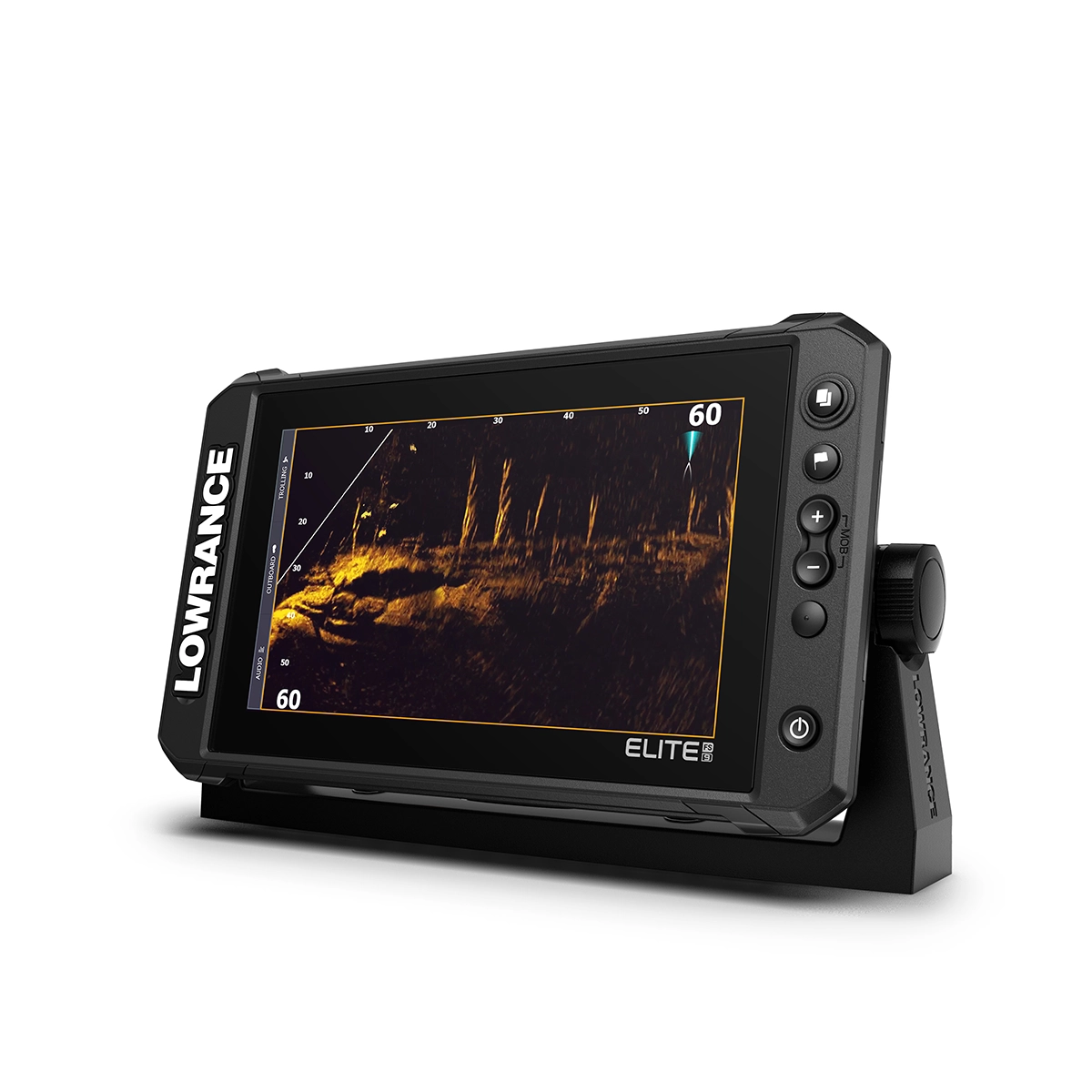

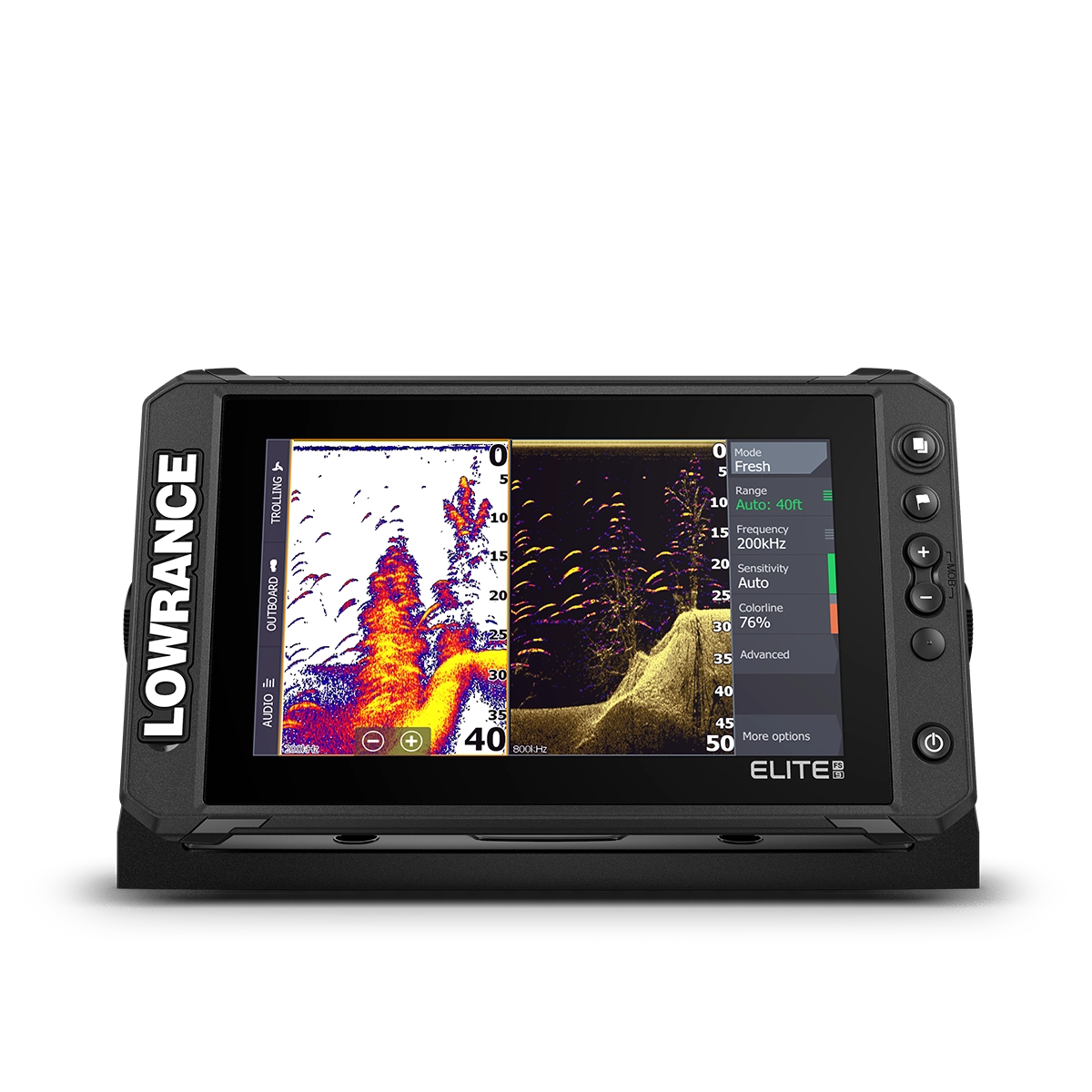

Lowrance Elite FS 9 with Active Imaging 3-in-1
$1,550.00
On sale until March 31, 2025
The new Elite Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget live sonar, Active Imaging and preloaded C-MAP Contour+ charts – to help you make the most of your time on the water.
Out of Stock (On Order)
Get notified when this product is back in stock
- Description
- Additional information
- Video
- Specifications
- Package Includes
- Product Guides & Documentation
- Accessories
Key Features of Elite FS9 Chartplotter:
- ActiveTarget Live Sonar ready
- Active Imaging 3-in-1 ready
- FishReveal
- Preloaded C-MAP Contour+ inland and coastal charts with high resolution, bathymetric 1-foot contours on 15,000+ U.S. Lakes and 9,400+ lakes in Canada
- Mapping options including C-MAP, Navionics and more
- C-MAP Easy Routing, Navionics Autorouting capability
- C-MAP Genesis Live onscreen mapping
- High-resolution multi-touch touchscreen
- Integrated wireless, NMEA 2000 and Ethernet connectivity
- Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor
The Elite Fishing System (FS) combines the power of Lowrance’s proven fishfinding tools with a more affordable display that’s easier to use and install. ActiveTarget and ActiveTarget 2 live sonars provide next-level visibility underwater. While Active Imaging and Active Imaging HD provide clarity all around the boat, with Lowrance CHIRP sonar, SideScan, DownScan Imaging and FishReveal. With compatibility across a wide range of charting options, Elite FS gives you all the tools you need to find and catch more fish.
Find More Fish with Proven Lowrance Sonar
See structure and cover with a new level of refined detail, and at a range unmatched by any other structure imaging technology with Active Imaging and Active Imaging HD* sonar featuring CHIRP, SideScan and DownScan with FishReveal. Get the best of CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, and also with Active Imaging HD on Sidescan, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.
*requires S3100 sonar module
Target Fish Live with New ActiveTarget 2 and ActiveTarget Live Sonar
Fish smarter when you know exactly what fish are doing – in real time – with ActiveTarget 2 and ActiveTarget Live Sonar. Enjoy high-resolution views of fish movements, tracking them in forward, down and scout views, as they swim around structure and cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up. Get a more complete picture around your boat with new ActiveTarget® 2, which delivers a smoother, more consistent image across the entire range.
Find Key Fishing Areas with Contour+
Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP® Contour+ inland and coastal charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high resolution, bathymetric 1-foot contours on 15,000+ U.S. lakes and 9,400+ lakes in Canada.
| Weight | 10.2 lbs |
|---|---|
| Dimensions | 16 × 14 × 5.5 in |
| Brand | Lowrance |
Video
Specifications
Lowrance Elite FS9 Specs
Display
- Backlight Color: Pure White LED
- Display Resolution: 800×480
- Screen Brightness: >1200 nits
- Viewing Angles: 50° top, 60°bottom, 70° left/right
Connectivity
- Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Ethernet Ports: 1 x 100Mbit
- Connectivity: Wi Fi Internal 802.11b/g/n
- NMEA 0183 Sentences supported: None
- NMEA 2000 Connectivity: 1 x Micro-C
- PC Connectivity: None
- SD Card Storage: 1 micro SD card up to 32GB (not included)
- Video: None
Cartography
- Charts supported: C-MAP (MAX N, MAX N+), C-MAP Genesis, C-MAP Precision Contour HD (AMER ONLY), Navionics (Gold, NAV+ Platinum+), Insight (Pro and HD), Lowrance Regional Mapping Partners
Electrical
- Power Consumption max: 2.0A @ 13VDC with backlight on full
- Power Consumption min: 2.0A @ 13VDC with backlight on full
- Power Consumption typical: 2.0A @ 13VDC with backlight on full
- Recommended Fuse Rating: 3A
- Supply Voltage: 12v DC (10.8-17VDC)
Environment
- Humidity: 60°C, 95% relative humidity (RH) for 18 hours
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
- Shock Vibration: 100,000 cycles of 20 G
- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
- Waterproof rating: IPX7 with card door closed
GPS
- Correction: DGPS, WAAS, MSAS, EGNOS, GLONASS
- GPS Receiver Channels: 16
- Position Accuracy: 20m RMS
- Time to First Fix: 30s
- Update rate: 10 Hz
MFD
- AIS: AIS Chart overlay. Target vessel details.
- Autopilot: Outboard Pilot, Ghost Trolling Motor, MotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
- Cartography included: C-MAP Contour + (US models) Navionics basemap (AMER, AUS/NZ and ROW models)
- Digital Switching: None
- GPS: 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
- Internal Storage: None
- Multimedia: SonicHub, SonicHub2, FusionLink products, any NMEA 2000 compliant Marine Audio products
- Sonar Compatibility:
- Integrated: CHIRP Broadband, Active Imaging, DownScan Active Imaging, SideScan
- Compatible with: SonarHub, StructureScan, StructurreScan 3D, LiveSight Active Target
- Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
- Weather: SiriusXM via WM-4 (USA only)
Physical
- Compass Safe: 12″ (300mm)

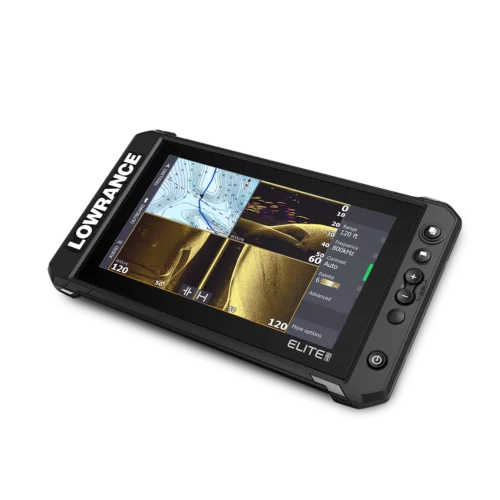

- Mounting Type: Gimbal Bracket or Dash Flush Mount
- Weight: 2.7 lbs (1.2 kg)
Other
- Interface: Multi-Touch Touchscreen Zoom +/-MOB = (+/- combined)Pages Waypoint Light/Power
- Languages: Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese – (simplified) China/简体中文, Chinese – (traditional) Taiwan/繁體中文Eastern European Language Pack:Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/TürkçeRussia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ УкраїнськаMiddle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
- Warranty Period: 2 Years
Package Includes
In the Box:
- Elite FS 9
- HDS/Elite/Hook/Mark Power Only Cable
- Fuse and fuse holder
- HDS-9 LIVE / Elite FS™ 9 Bracket
- Active Imaging 3-in-1 Transducer
- Elite FS™ 9 Suncover
Product Guides & Documentation
Accessories

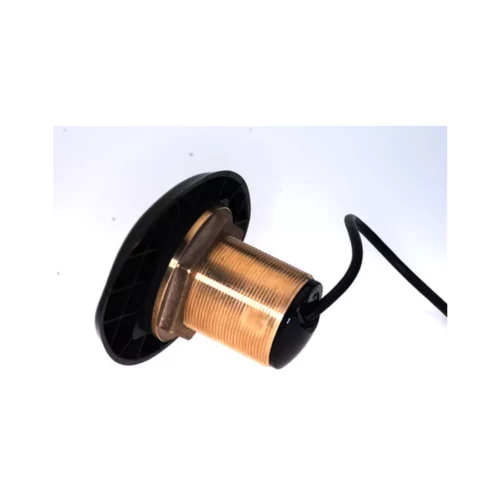

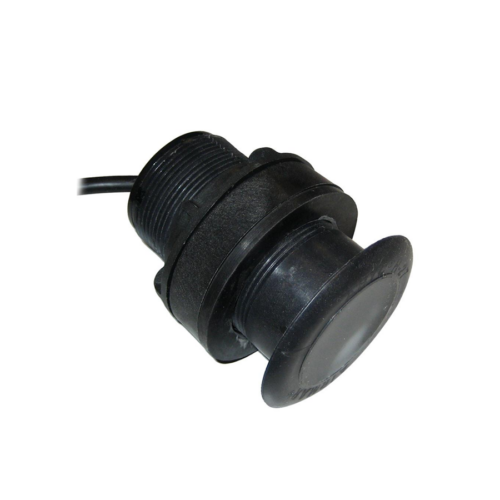

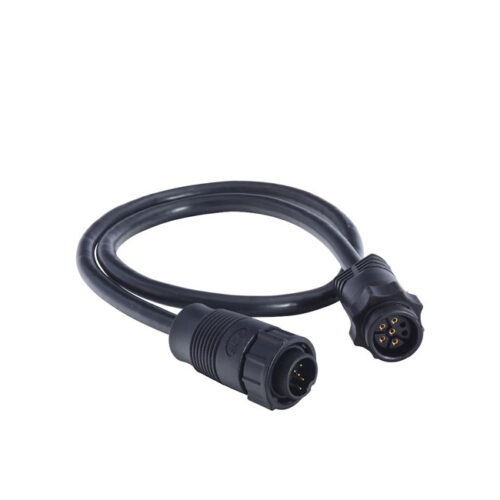

Optional Accessories …
