Lowrance ActiveTarget 2 XL Live Sonar
$2,519.00
Use coupon code: FREESHIP and enjoy FREE Ground shipping via UPS Standard within Canada!
Limited time offer. Bulk orders are subject to shipping charges.
Out of Stock (On Order)
Get notified when this product is back in stock
The only better live view involves getting your head wet
With 180° views, ActiveTarget® 2 XL is the world’s clearest, most complete live sonar.
Best-in-class resolution
Lowrance’s live sonar resolution was already best in class. Well, now it’s even sharper. The new XL transducer delivers the clearest possible views of fish and bait movement in real time.
Largest field of vision
Leave nothing unseen with full 180° XL live views across Forward, Down, and Scout modes – all from a single transducer.

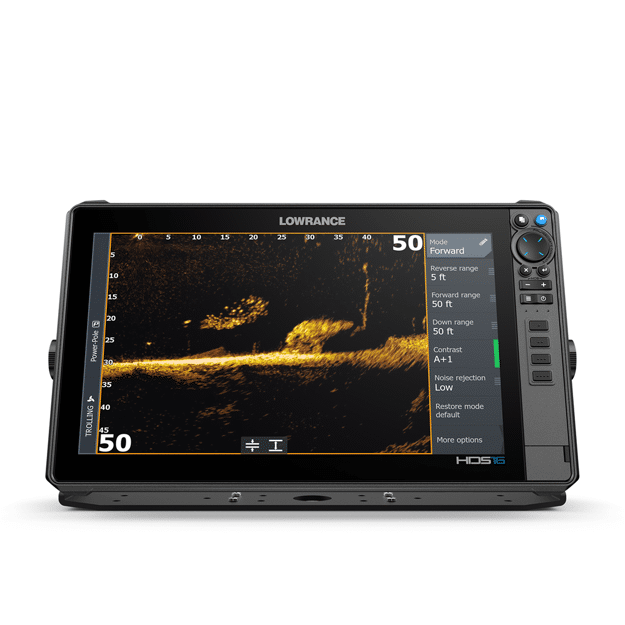

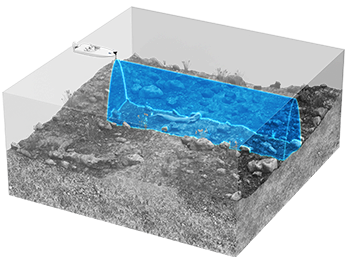

Forward XL ViewSurface-to-surface 180° views utilize the whole display, so you never miss a thing, from the moment your lure drops to the bite itself. |

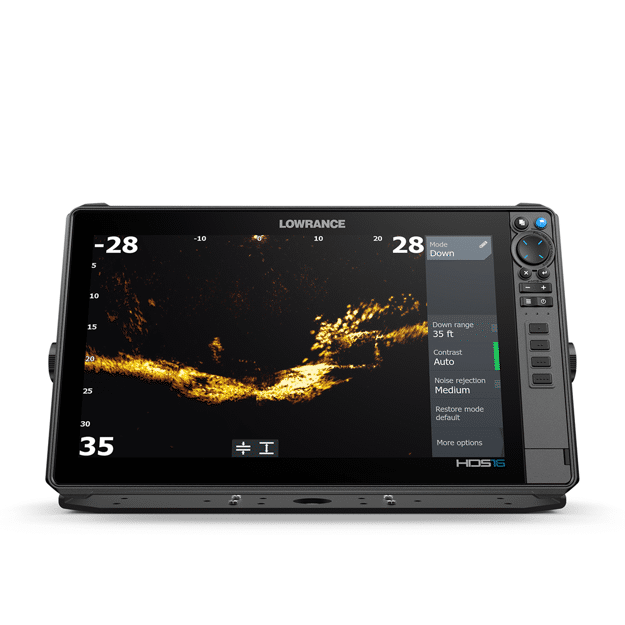

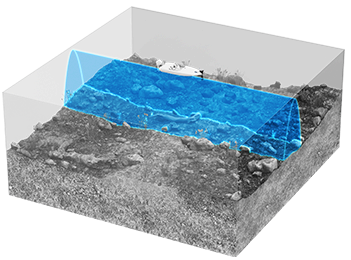

Down XL ViewSee the full expanded 180° live image beneath your boat, running right the way from front to back. |

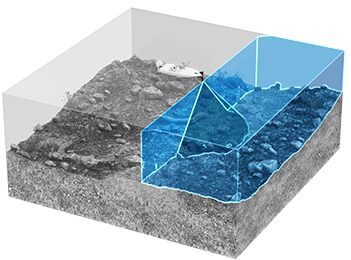

Scout XL ViewA live overhead 180° view helps you spot bait balls and big schools of fish up ahead of your boat. |
 |
 |
 |

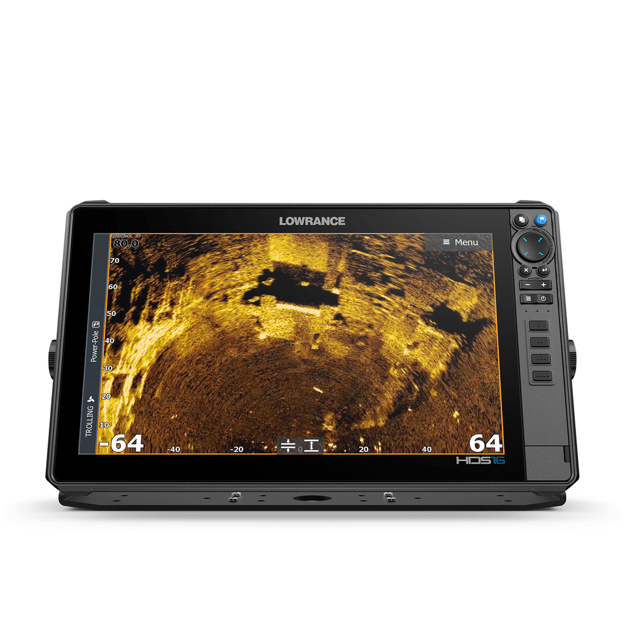

Industry-First Scout Live 360° View
Combining two systems unlocks an industry-first Scout Live 360° view around your entire boat*. This truly comprehensive live view means you can select the perfect place to cast without even having to move your boat. And you can say goodbye to interference with our industry-first ping sync technology.
*Dual transducers and modules required, HDS PRO only.
Quick-Switch Views

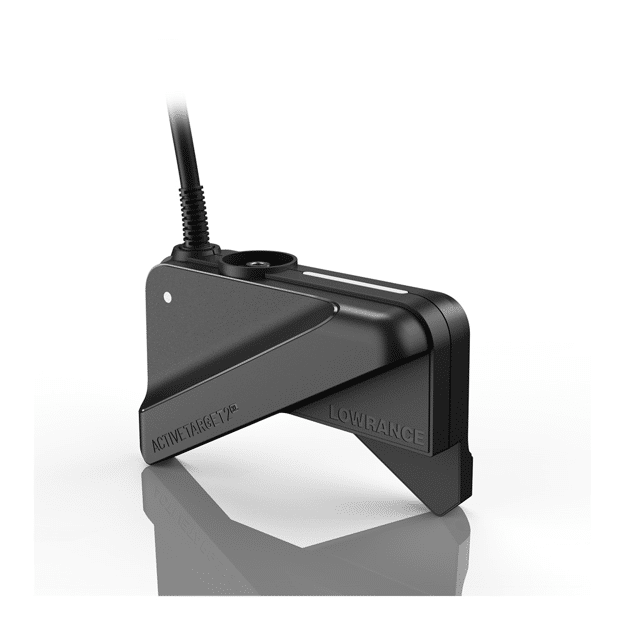

Why waste time adjusting your gear? A redesigned transducer lets you switch instantly between Forward XL and Down XL views from your display. No need to go fishing for your transducer. Just select your preferred view, and fish.
Mount Smarter, Scout Faster
A new bracket – which can be shaft- or motor-mounted** – also makes it quicker and easier to switch into Scout Mode. Once you’re there, quick-reference markers help you choose the right angle for deep or shallow water. With simple tricks like these, no one makes it easier to switch between sonar views.
**Motor-mount exclusive to Recon Trolling Motor
Easy Upgrade
ActiveTarget 2 XL is a one and done upgrade, with all views available from a single transducer. Anglers can even use their existing ActiveTarget 2 sonar module, reducing the amount of gear required. Simply mount the new XL transducer and cast. It’s also compatible with a wide range of Lowrance displays, including HDS® PRO, HDS® LIVE, HDS® Carbon and Elite FS®.
| Brand | Lowrance |
|---|---|
Video
Specifications
Lowrance ActiveTarget 2 XL Live Sonar Specs
Sonar
- Frequencies: 650-1300 kHz
- Max Depth: 200′ (60.96m)
- Beamwidth: 20° x 180°
Connectivity
- Ethernet: Yes: 1-100 Mbit Ethernet Port
Electrical
- Power Consumption, max.: 2.2A @ 10.8VDC
- Power Consumption, typical: 1.5A @ 13.8VDC
- Recommended Fuse Rating: 5A
- Supply Voltage: 10.8 VDC – 31.2 VDC
- Humidity: 60°C, 95% relative humidity (RH) for 18 hours
Environment
- Operating Temperature Range: Module: 5°F to 131°F (-15°C to 55°C )
Transducer (water): 32°F to 95°F (0°C to 35°C) - Shock and Vibration: 100,000 cycles of 20 G
- Storage Temperature Range: -22°F to 158°F (-30°C to 70°C )
- Waterproof Rating: IP67
Physical
- Dimensions (W x H x D): Module: 8.63″ (219.3mm) x 7.56″ (192.1mm) x 2.86″ (72.9mm)
Transducer: 7.08″ (179.9mm) x 4.47″ (113.6mm) x 2.68″ (68mm) - Mounting Type: Module: Surface Mount
Transducer: Bracket Mount - Weight: Module: 4.12 lbs (1.86 kg)
Transducer: 3.55lbs (1.61kg)
Warranty Period
- 2 years + 3 years of in service repairs or upgrades
Interface
- Ethernet to: HDS PRO, HDS LIVE, HDS Carbon, Elite FS

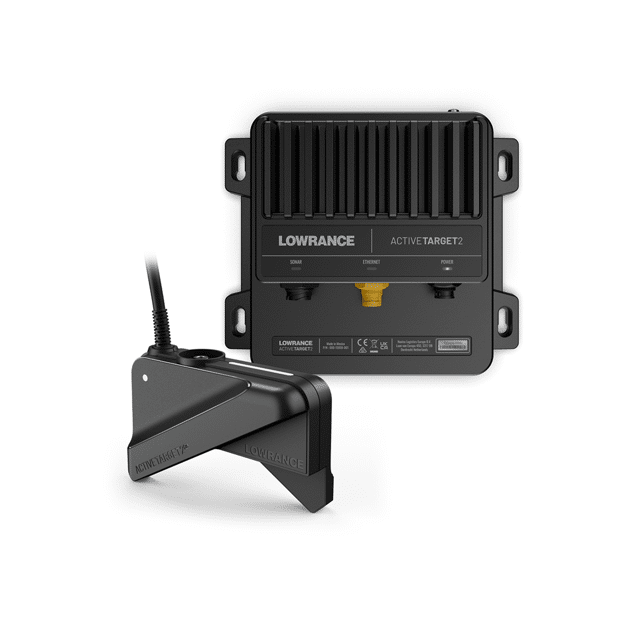

Package Includes
In the Box:
- ActiveTarget 2 Module
- ActiveTarget 2XL Transducer
- ActiveTarget 2XL Shaft Mount
- 15-foot Ethernet Extension Cable
- Power Cable
