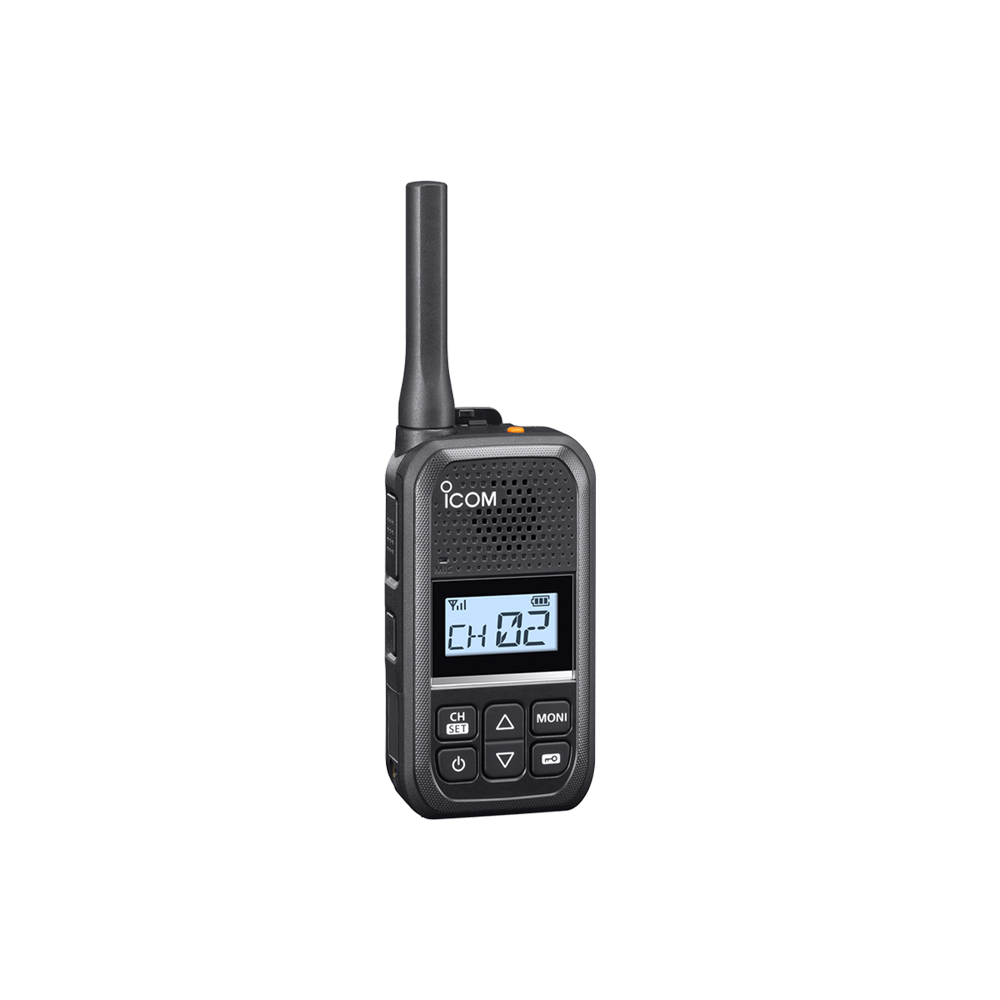

Icom IC-U20GM Canada GMRS/FRS Transceiver
$220.00
In stock
Canada GMRS/FRS Transceiver in the Palm of Your Hand
Compact body with dimensions of 94.0* x 50.0 x 26.7 mm and weighing only 157 g, 1W output power, 22 channels and up to 19 hours of operation. Rugged looks with IP54, MIL-STD810 weather proofing, and user-friendly operations. Versatility with various headset and earphone-microphone options and VOX hands-free functions. The elegant and smart IC-U20GM fits in the palm of your hand and strongly supports your business.
* Excluding antenna
Compact Size and Smart Rugged Design with Water Resistance
The compact body fits in the palm of your hand, adopting an elegant and smart design like nothing before. This sturdy handheld transceiver meets user-friendly operability with a new front panel layout design, hands-free VOX function, Voice Guide when switching channels, IP54 dust and water resistance meeting MIL-STD810G with a light-weight and rugged polycarbonate case.
19 Hours Operation with Detachable Type Battery
The BP-304A, 2350 mAh Lithium-Ion battery can supply 19-hour long operation that can be used continuously during day and night work shifts without battery replacement. The BP-304A can be fully charged with the BC-262, Charging Cradle, in approximately 5 hours.
USB Charging
Three types of battery charging can be done. In addition to charging with the BC-262 Charging cradle, there are direct radio body connection charging with USB Type-C™ cable* and charging BP-304A with BC-264 Battery charger.
* USB Type-C™ cable is for only battery charging, with no data transfer function.
PTT from Headset and Earphone Microphone
There are a variety of headsets, microphones and earphone-microphones that can be used in various work situations. The built-in VOX function provides convenient hands-free operation with the HS-94, HS-95, HS-97 and OPC-2006LS optional items.
Other Features
- A high definition and clear display with 4 Digits with 14 Segments
- A loud 600 mW AF output
- Includes 2 programmable keys
- CTCSS / DTCS tone squelch
- QR code for product authenticity check
| Brand | ICOM |
|---|---|
Video
Specifications
Icom IC-U20GM Specs
General
| IC-U20GM | ||
|---|---|---|
| Frequency Coverage | 462.5500 ~ 462.7250 MHz 467.5625 ~ 467.7125 MHz |
|
| Number of Channels | 22 Channels | |
| Type of Emissions | N : 11K0F3E(12.5 kHz) W : 16K0F3E (20.0 kHz) |
|
| Antenna impedance | 50 Ω | |
| Input Impedance (MIC) | 2200 Ω | |
| Output Impedance (Audio) | 8 Ω | |
| Operation Temperature Range | -30 ℃ ~ 60 ℃ | |
| Power Supply Voltage | 3.7 V DC nominal (Negative Ground) | |
| Current drain | Receive Max. Audio | 0.8 A Maximum |
| (Approximate) | Transmit | 1.3 A Maximum |

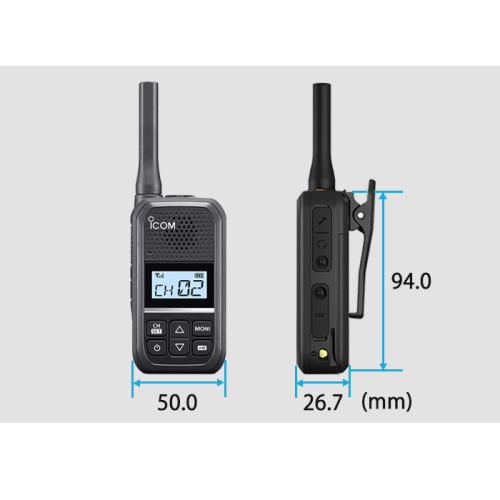

| Dimensions (H × W × D) | 156.0 × 50.0 × 26.7 mm including antenna 94.0 × 50.0 × 26.7 mm excluding antenna |
|
| Weight (Approximate) | 157 g | |
TRANSMITTER
| IC-U20GM | ||
|---|---|---|
| Output power | 1.0 W | |
| Modulation | Frequency Modulation | |
| Maximum Permissible Frequency Deviation | N : ±2.5 kHz W : ±5.0 kHz |
|
| Frequency Stability | ± 500 Hz | |
| Spurious Emissions | 80 dB typical | |
| Adjacent Channel Power | N : 65 dB typical W : 73 dB typical |
|
| Audio Harmonic Distortion (AF 1 kHz 40 % Deviation) |
5.0 % maximum. | |
| FM Hum and Noise | N : 56 dB typical W : 56 dB typical |
|
| Limiting Charact of Modulator | 70 % ~ 100 % maximum deviation | |
RECEIVER
| IC-U20GM | ||
|---|---|---|
| Sensitivity | 12 dB SINAD N : -122 dBm typical | |
| Audio Power Output | Internal Speaker | 600 mW typical @5 % distortion with 4 Ω |
| External Speaker | 150 mW typical @5 % distortion with 8 Ω | |
| Adjacent Channel Selectivity | N : 52 dB typical W : 68 dB typical |
|
| Intermodulation | 64 dB typical | |
| Hum and Noise | 47 dB typical | |
| Squelch Sensitivity (Threshold) | -123 dBm typical | |
Package Includes
n the Box:
- IC-U20GM Radio
- MB-127 Belt Clip
- BP-304A Battery Pack
- BC-262 Charging Cradle
- BC-263A USB Type-C AC adapter
