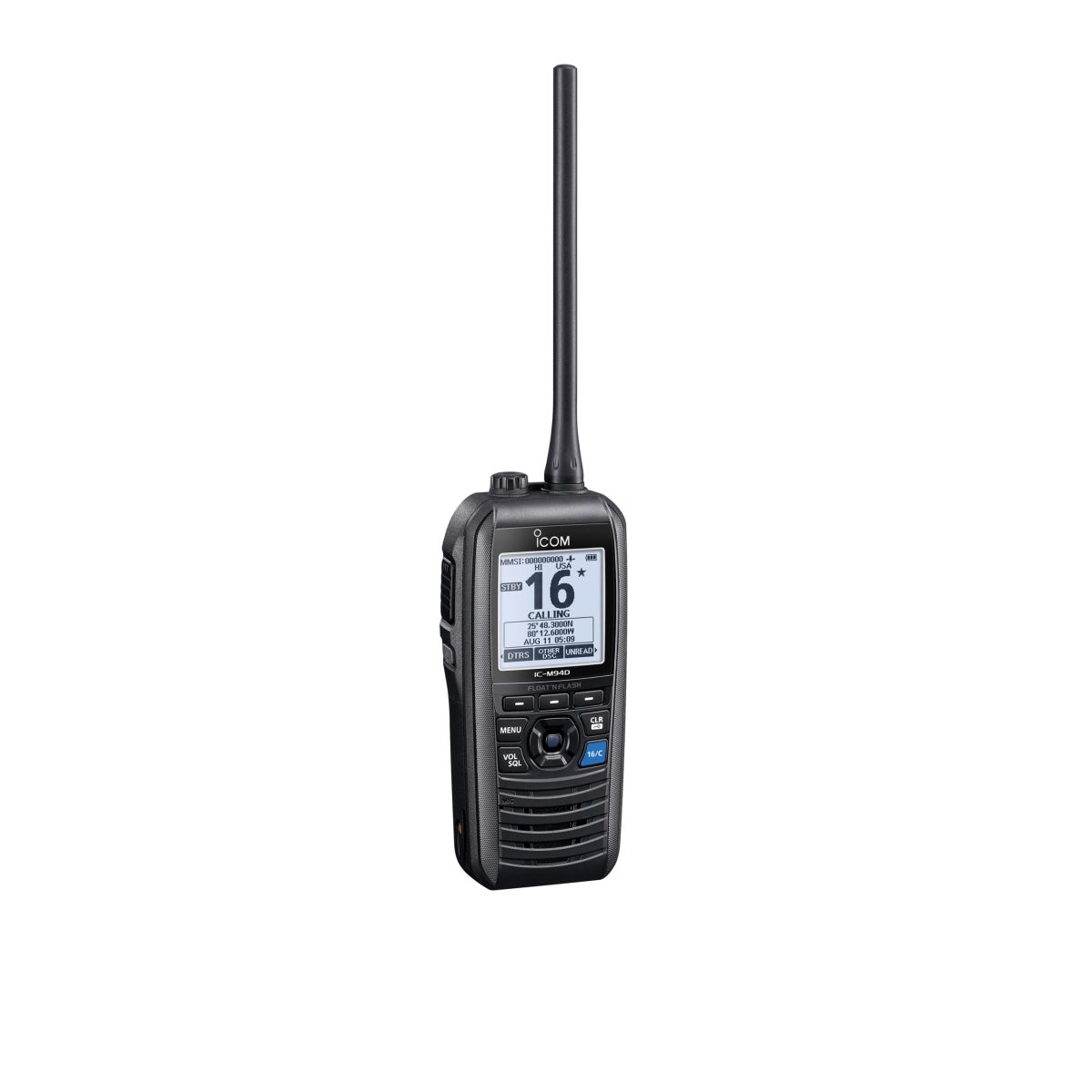

Icom IC-M94D
$449.99
VHF Marine Transceiver with DSC & AIS
In stock
- Description
- Additional information
- Product Specifications
- Package Includes
- Product Guides & Documentation
- Accessories
AIS Traffic Info, Now in Your Hand
Icom’s Class-H DSC VHF transceiver, the M94D is the world’s first handheld to possess the power of AIS. A class-leading 1500 mW speaker and ocean-conscious features, the M94D is perfect for small boats and leisure craft looking to stay safe and informed on the ocean.
| Output Power: | 6W |
| Battery Life: | 2400 mAh Li-ion battery, up to 10 hours Typical operation; Tx:Rx:Stand-by duty ratio = 5:5:90 |
| Waterproof Rating: | IPX7 |
| GPS: | Built-in |
| Floats: | Yes |
AIS Receiver with DSC
A combination of the Automatic Identification System (AIS) and Distress Signal Calling (DSC) provides users with peace of mind when out on the open sea. With the AIS target call function, users can set up DSC individual calls. Easy access to distress call button on rear panel button.
Simplified Navigation System
Access vessel traffic information and plot up to 50 waypoints for fishing spots or Man-Overboard (MOB) waypoints. The M94D’s back-lit screen is dimmable for easy readability under any lighting condition. The large screen allows for easy-to-read icons and text.
Ocean-Ready Features
Ready for the open seas. The M94D’s water-resistance measures make it ready to operate under any weather condition.
Float’n Flash
The M94D falls into water, the radio floats and automatically flashes, even when it is off. The LCD screen flashes to help show the radio’s position to easily retrieve.
AquaQuake™
If the M94D decides to take a swim, the AquaQuake draining function removes water from the grill by vibrating at a particular frequency, preventing audio degradation.
Additional Features of Icom M94D:
- Integrated GPS receiver
- Active Noise Cancelling technology
- IPX7 submersible (1 m depth of water for 30 minutes)
- Weather channel
- Dualwatch and Tri-watch functions
- Favorite channel function
- Supports 4-digit channels
- AquaQuake™ prevents audio degradation from a water-logged speaker
| Weight | 2.19 lbs |
|---|---|
| Dimensions | 9.5 × 8.25 × 3.25 in |
| Brand | ICOM |
Product Specifications
Icom IC-M94D Specifications:
|
General
|
|
|
Frequency range
|
Tx: 156.025–157.425MHz
Rx: 156.050–163.275MHz DSC: 156.525 MHz AIS (Rx): 162.025MHz |
|
Usable channel groups
|
INT, USA, CAN, WX channels
|
|
Type of emission
|
16K0G3E (FM), 16KOG2B (DSC), 16K0GXW (AIS)
|
|
Operating temperature
|
–20°C to +60°C ( –4°F to +140°F)
|
|
Antenna impedance
|
50Ω (STUD)
|
|
Current drain
Tx (6.0W/1.0W output) Rx (Inter SP/Exter SP Max. audio) |
1500 mA / 700 mA (approx.)
700 mA / 350 mA (approx.) |
|
Dimensions (projections not incl.)
|
60.9 × 145.8 × 43.8 mm; 2.4 × 5.7 × 1.7 in |
|
Weight
|
357 g; 12.6 oz
(With BP-306, antenna, MB-133) |
|
Transmitter
|
|
|
Output power (Hi/Low)
|
6W/1W |
|
Max. frequency deviation
|
±5kHz
|
|
Frequency stability
|
±10ppm
|
|
Spurious emissions
|
–68dBc typ
|
|
Receiver
|
|
|
Sensitivity (at 12dB SINAD)
DSC receiver (at 1% BER) AIS receiver (at 20% PER) |
0.25µV typical
0.56μV emf typical –107 dBm |
|
Squelch sensitivity (Threshold)
|
0.25µV typ.
|
|
Adjacent channel selectivity
DSC receiver (at 1% BER) |
70dB typ
73dBμ emf typical |
|
Spurious response
DSC receiver (at 1% BER) |
70dB typ
73dBμ emf typical |
|
Intermodulation rejection
DSC receiver (at 1% BER) |
70dB typ
68dBμ emf typical |
|
Hum and noise ratio
|
40dB
|
|
Audio output power (at 10% distortion)
Internal Speaker External Speaker |
1500 mW typical (8Ω load)
350 mW typical (8Ω load) |
Package Includes
In the Box:
- IC-M94D
- AC adapter
- Battery charger, BC-251
- Battery pack, BP-306
- Cigarette lighter cable, CP-26
- Belt clip, MB-133
- Antenna
- Hand strap
