Icom IC-M25 Handheld Marine Band Transceiver
$229.99
If you drop this floating radio overboard, it’s easier to find than ever, day or night.
Out of Stock (On Order)
Get notified when this product is back in stock
- Description
- Additional information
- Product Video
- Product Specification
- Package Includes
- Product Guides & Documentation
Icom pioneered the floating VHF marine radio and others followed. Setting a new trend with the IC-M24 and now the IC-M25. The IC-M25 has a flashing light feature that activates when the radio hits water, even if the power is off! If you drop this floating radio overboard, it’s easier to find than ever, day or night.
Float’n Flash™
11 Hours long battery Life
*Typical operation with Tx (Hi: Rx: standby = 5:5:90)

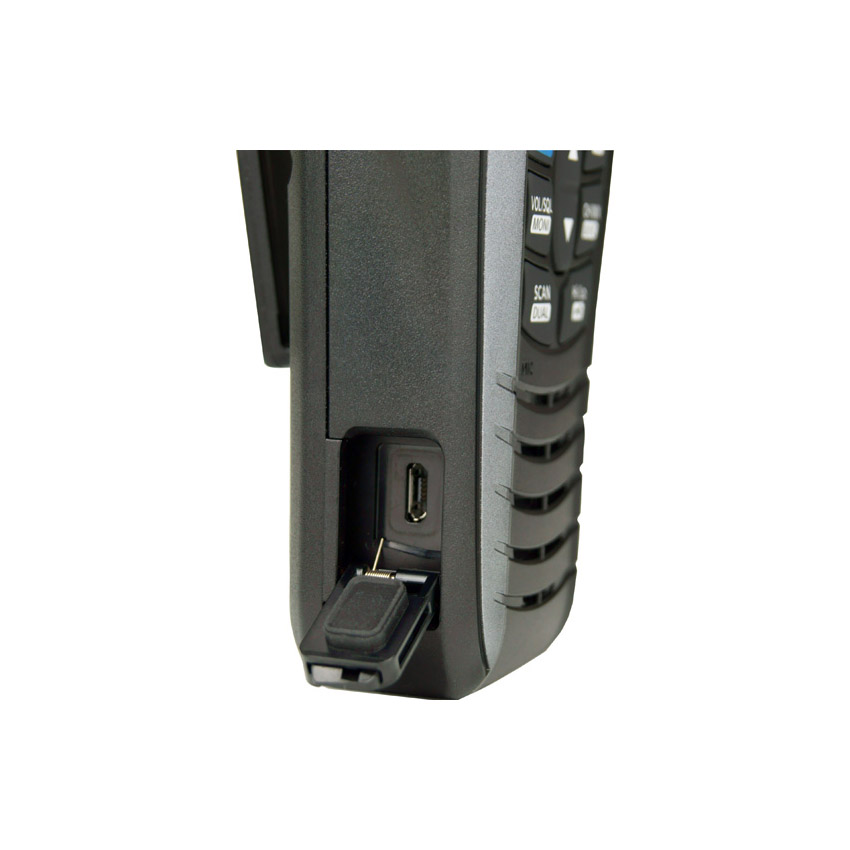

USB charging (Micro-B USB type)
*The IC-M25 accepts 5V/1A (Max.) input. Use of third-party products is not guaranteed.
AquaQuake™ draining function
Slim body and lightweight
The 7.76-ounce (220g) lightweight and 1.2 inch (30.5mm) slim body is the new benchmark for floating marine transceivers.
Large LCD, simple user interface
The IC-M25’s LCD is 30% larger than the IC-M24’s and clearly shows large channel number and status icons. The buttons on the front panel are well laid out and provide simple and straightforward operation.
550mW audio output
The IC-M25 provides a powerful 550mW audio output and received voice can be heard loud and clear. By holding the VOL/SQL button with â–˛ (up) button, the volume is instantly turned up to the maximum level.
Optional speaker microphone, HM-213
The optional waterproof speaker microphone, HM-213, provides commercial grade convenience while mounting the radio around the waist.
Other features
- IPX7 waterproof construction (1m depth of water for 30 minutes)
- 4-step battery life indicator
- Weather channel with weather alert (USA version only)
- Dual/Tri-watch functions
- Instant access to Channel 16 or programmable call channel
- Favorite channel function
- Monitor function opens noise squelch
- Auto scan function
- LCD auto backlighting
| Weight | 1.174 lbs |
|---|---|
| Dimensions | 8.75 × 8 × 2.75 in |
| Brand | ICOM |
Product Video
Product Specification
Icom M25 Specifications |
|
|
General
|
|
|
Frequency Range
Tx Rx |
156.025–157.425MHz
156.050–163.275MHz |
|
Usable channels
|
INT, USA, CAN, WX channels
|
|
Type of emission
|
16K0G3E (FM)
|
|
Current drain (at 3.7V DC)
Tx (High) Rx (at AF max.) |
2.3A
300mA/200mA typ. |
|
Operating temperature range
|
-20°C to +60°C; -4°F to +140°F
|
|
Antenna Impedance
|
50Ω
|
|
Dimensions (WĂ—HĂ—D)
(Projections not included) |
56.6×134.2×30.5mm;
2.23×5.28×1.2in |
|
Weight (approx.)
|
220g; 7.8oz (With FA-SC59V and MB-133)
|
|
Transmitter
|
|
|
Output power (Hi/Mid/Low)
|
5W (High),1W (Low) |
|
Max. frequency deviation
|
±5.0kHz
|
|
Frequency stability
|
±10ppm
|
|
Spurious emissions
|
-68dBc typical
|
|
Adjacent channel power
|
70dB
|
|
Audio harmonic distortion
|
10% (at 60% dev.)
|
|
Residual modulation
|
40dB
|
|
Receiver
|
|
|
Sensitivity (at 12dB SINAD)
|
0.25µV typical
|
|
Squelch sensitivity
|
0.25µV typ. (at threshold)
|
|
Adjacent Channel Selectivity
|
70dB typical
|
|
Spurious response
|
70dB typical
|
|
Intermodulation Rejection
|
70dB typical
|
|
Hum and noise ratio
|
40dB typical
|
|
Audio output power
(at 10% distortion, 8 Ω) |
Internal SP: 550mW typ. (12Ω load)
External SP: 300mW typ. (4Ω load) |
Measurement made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
Applicable IP Rating and environment test
Ingress protection standard: waterproof – IPX7 (submersible protection)
Package Includes
In the Box:
- IC-M25
- USB charger, BC-217SA
- Belt clip, MB-133
- Hand strap
- Antenna, FA-SC59V
