Icom IC-M25 EVO
$229.99
Out of Stock (On Order)
Evolution of the Popular Marine Radio
The IC-M25 EVO is an upgraded model of the extremely popular IC-M25 floating VHF marine handheld transceiver. The IC-M25 EVO is designed with an improved grip texture for easier handling, and larger buttons for easier operation. Moreover, it has adopted a new power-saving Eco Mode which will allow approximately about 14 hours of operation, which is about a 30% improvement. Furthermore, a USB Type-C™ charging port is standard. The IC-M25 EVO still retains its compact and lightweight body, and industry leading Float’n Flash™ and submersible design.
Float’n Flash™
If the IC-M25 EVO is accidentally dropped into water, it floats, flashes, and emits an alarm, reducing the risk of loss during water activities. Icom has led the marine handheld radio industry with this technology since the introduction of the IC-M33 in 2006.
Enhanced Practical Design

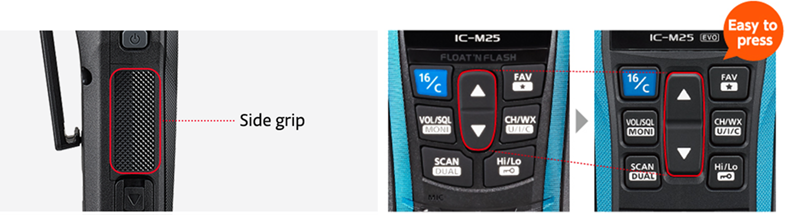

The IC-M25 EVO is built for practicality, featuring an improved side grip texture for a secure, anti-slip hold even with wet hands. Enlarged user-friendly buttons ensure easy operation for channel navigation.
Lightweight and Compact Body
Weighing just 228 g (8.0 oz) and with a slim body depth of 31.2 mm (1.2 in), the IC-M25 EVO is lightweight and easy to carry for extended periods. Its compact body allows for seamless one-handed operation during activities.
Power Saving Eco Mode Realizes 14 Hours Operation
The IC-M25 EVO offers up to 14 hours* of extended operation with its power-saving Eco Mode. By reducing transmit power to 2.5 W, the operating time increases by approximately 30% compared to the standard 5 W output. This long battery life makes it ideal for your adventures.
* Typical operation with Tx (Mid): Rx: Standby=5:5:90
Two Color Selections
The IC-M25 EVO has two color options: Black or Marine Blue. You can choose one to match your style and adapt to different operating conditions. Whether you prefer the versatility of Black or the high visibility of Marine Blue, these choices ensure both functionality and style on the water.

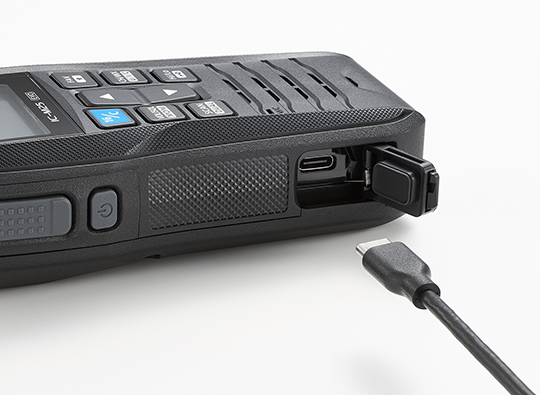

USB Type-C™ Charging Port
Adopting a USB Type-C™ port, which is commonly used worldwide, it charges the battery pack in approximately three hours. Additionally, charging with portable batteries* (user supplied), provides added convenience and mobility.
* USB PD is not supported.
AquaQuake™
The AquaQuake™ draining function prevents audio degradation from a water-logged speaker. This function removes water from the speaker grill by vibrating the speaker cone. Even if you get splashed by rain or waves, you can quickly restore the clear audio with AquaQuake™.
Loud and Clear Audio
With a powerful 700 mW audio output, the IC-M25 EVO delivers loud and clear sound, ensuring reliable communication even in noisy environments with engine noise or wind interference.
Other Features
- IPX7 waterproof construction (1 m depth of water for 30 minutes)
- 4-step battery life indicator
- 2-step power save function
- Weather channel with weather alert
- Dual/Tri-watch functions
- Instant access to CH 16 or programmable call channel
- Favorite channel function
- Monitor function opens noise squelch
- Auto scan function
| Brand | ICOM |
|---|---|
| Colour | Black – IC-M25 EVO, Blue – IC-M25 EVO |
Video
Specifications
Icom IC-M25 EVO Specs
General
| Frequency range | Tx | 156.025 ~ 157.425 MHz |
|---|---|---|
| Rx | 156.050 ~ 163.275 MHz | |
| Usable channel groups | INT, USA, CAN, WX channels | |
| Type of emission | 16K0G3E (FM) | |
| Power supply voltage | 3.7 V DC nominal | |
| Current drain | Tx | 2.3 A |
| Rx (Internal SP/External SP) | 400 mA/230 mA (max. audio) | |
| Operating temperature range | –20°C ~ +60°C, –4°F ~ +140°F | |
| Antenna impedance | 50 Ω | |
| Dimensions (W Ă— H Ă— D) (Projections not included) |
56.5 Ă— 134.0 Ă— 31.2 mm, 2.2 Ă— 5.3 Ă— 1.2 in |
|
| Weight (approximately) | 228 g, 8.0 oz (with antenna and MB-133） | |
| Ingress Protection Standard | IPX7 (Waterproof protection) | |
Transmitter
| Output power | Approximate 5 W / 2.5 W / 1 W | |
|---|---|---|
| Max. frequency deviation | ±5.0 kHz | |
| Frequency stability | ±10 ppm | |
| Spurious emissions | –68 dBc typical | |
| Adjacent channel power | More than 70 dB | |
| Residual modulation | More than 40 dB | |
Receiver
| Sensitivity | 0.25 ÎĽV typical (at 12 dB SINAD) | |
|---|---|---|
| Squelch sensitivity | 0.25 ÎĽV typical (at threshold) | |
| Adjacent channel selectivity | 70 dB typical | |
| Spurious response | 70 dB typical | |
| Intermodulation | 70 dB typical | |
| Audio output power (at 10% distortion) |
Internal SP | 700 mW typical (8 Ω load) |
| External SP | 300 mW typical (4 Ω load) | |
Measurements made in accordance with TIA/EIA-603.
All stated specifications are subject to change without notice or obligation.
Package Includes
In the Box:
- IC-M25 EVO transceiver
- USB Type-CÂ cable, OPC-2480
- Belt clip, MB-133
- Antenna
- Hand strap
