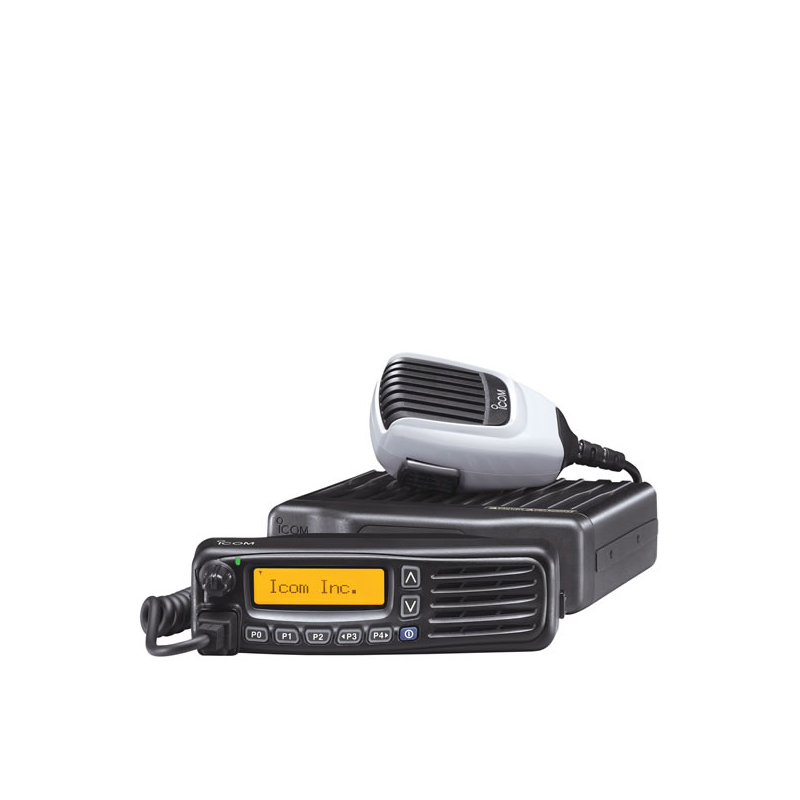

Icom IC-F5061/D
Price range: $850.00 through $1,150.00
In stock
LTR/Conventional/Digital* Multi-Mode Professional Mobile VHF Transceiver
Purchaser MUST have a letter of approval from the licensee, as ALL commercial radios sold by GPS Central will be programmed with the approved frequencies before leaving our premises.
Licensing is the responsibility of the purchaser by Industry Canada.
Designed for public safety, transportation and delivery service users, the IC-F5061/D series offers advanced multi-mode operations. This includes advanced multi mode operations, IDAS 6.25kHz digital options*, advanced scanning and flexible installation suitable for mobile and base stations. Just try and outgrow this radio!
* Optional UT-126H required for IC-F5061. UT-126H is already installed in IC-F5061D
Built-in basic LTR mode operation
Group, selective and phone calls are available in built-in LTR™ mode. MDC signaling is also available on LTR™ mode.
Optional 6.25kHz digital mode ready
Optional 6.25kHz digital mode is available.
Built-in versatile tone signaling
Use the built-in CTCSS, DTCS, 2-Tone 5-Tone or MDC 1200 capability to set up your own talk groups, and have your radio standby quietly when other groups are talking. Up to 10 2-Tone, 8 5-Tone codes can be decoded on a single memory channel.
IP54 dust-protection and splash resistance (Controller only)

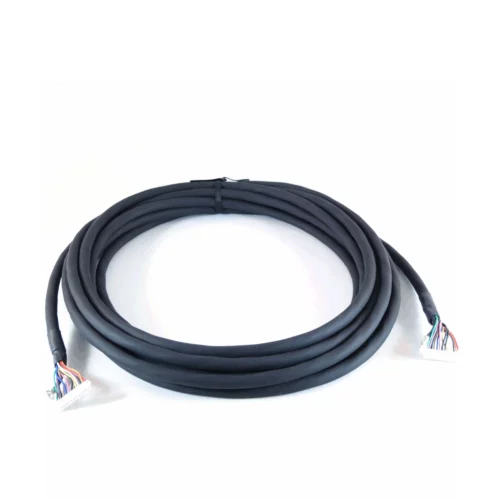

When used with the optional separation kit, RMK-3, and separation cable, the front panel of the IC-F5061 series can be detached from the main unit. The control head has dust-protection and splash resistance construction equivalent to IP54.
Voting scan (Analog mode only)
The voting mode scanning detects the S-meter level of repeater stations and automatically selects the strongest station or the first station to exceed the preset S-meter level, useful for roaming 2 or more repeater sites.
Optional Active Noise Canceling Microphone
The optional active noise canceling microphone HM-211 can automatically reduce noise in extremely noisy environments and assist in transmitting clear and accurate audio.
Other features
- The mode slave setting automatically selects the scanning list, according to the operating channel
- Nuisance delete
- Built-in inversion-type voice scrambler and optional UT-109R/UT-110R available
- Large dot matrix display and multi-function LCD
- 8 DTMF autodialing memories and ANI function

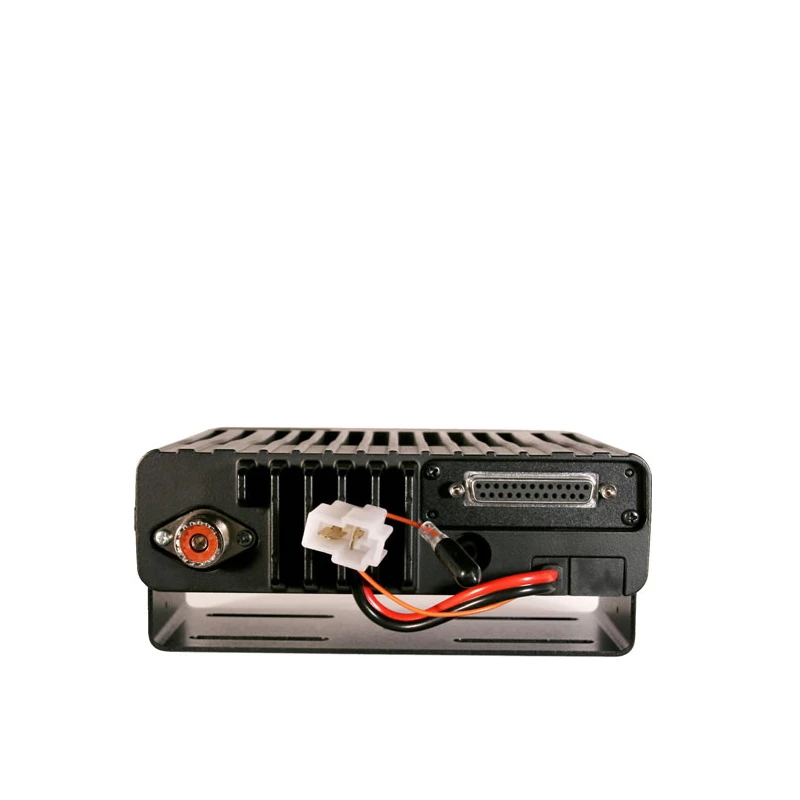

- D-Sub accessory connector, ignition sensing line and more…
| Weight | N/A |
|---|---|
| Dimensions | N/A |
Accessories
ICOM IC-F5061Â &Â IC-F5061DÂ Accessories
Optional Accessories …
Specifications
|
Icom IC-F5061/D Specifications
|
|||
|
GENERAL
|
|||
|
Frequency coverage
|
136–174 MHz
|
||
|---|---|---|---|
|
Number of channels
|
512 ch/128 zones
|
||
|
Channel spacing
|
12.5/25, 15/30; 6.25 (option) kHz; 6.25kHz* (*digital)
|
||
|
Type of emission
|
16K0F3E, 11K0F3E, 8K10F1E/D
|
||
|
Current drain
(approx.) |
Tx High
|
14A/7A (50/25W)
|
|
|
Rx
|
Max. audio
|
1.2A
|
|
|
Standby
|
300 mA
|
||
|
Dimensions (WĂ—HĂ—D)
(projections not included) |
160Ă—45Ă—150 mm; 6.3Ă—1.77Ă—5.91 in |
||
|
Weight (approx.)
|
1.3kg; 2.9lb |
||
|
TRANSMITTER
|
|
|
RF output power
|
50W
|
|---|---|
|
Spurious emissions
|
75dB (typ.)
|
|
Frequency stability
|
±1.0ppm
|
|
Audio harmonic distortion
|
3% typical; 40% deviation
|
|
FM Hum and Noise
|
45dB typ. (W); 40dB typ. (N)
|
|
RECEIVER
|
|
|
Sensitivity at 12dB SINAD
|
0.25ÎĽV (typ. analog),
0.20ÎĽV (typ. digital at 5% BER) |
|---|---|
|
Adjacent channel selectivity (W/N)
|
85/75dB (typ.)
|
|
Spurious response rejection
|
90dB (typ.)
|
|
Intermodulation rejection
|
77dB (typ.)
|
|
AF output power
(at 5% distortion with an 4 Ω load) |
4W (typ.)
|
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard | MIL-810 F Method, Proc. |
|---|---|
|
High Temperature Storage
|
501.4 I
|
|
High Temperature Operation
|
501.4 II
|
|
Low Temperature Storage
|
502.4 I
|
|
Low Temperature Operation
|
502.4 II
|
|
Temperature Shock
|
503.4 I
|
|
Rain Blowing
|
506.4 I*
|
|
Rain Drip
|
506.4 III*
|
|
Humidity Induced
|
507.4
|
|
Vibration
|
514.5 I
|
|
Shock Functional
|
516.5 I
|
|
Shock Transit Drop
|
516.5 IV
|
Also meets equivalent MIL-STD-810 -C, -D, -E and -F.
All stated specifications are subject to change without notice or obligation.
Package Includes
Package Includes:
- IC-F5061/D
- Hand microphone (HM-148G)
- Microphone hanger
- DC power cable
- Key assign stickers

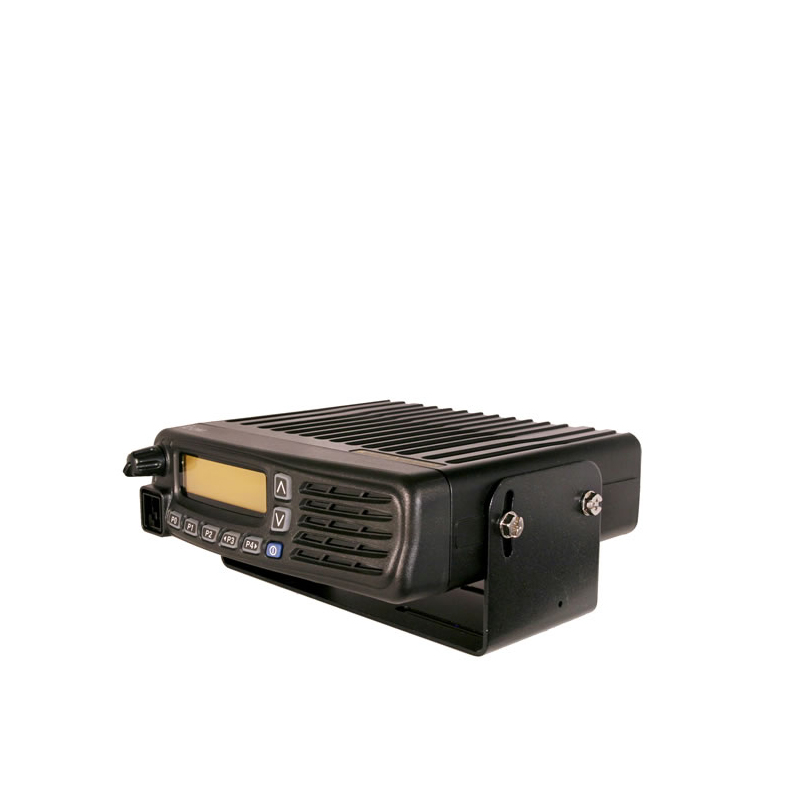

- Mounting bracket kit
