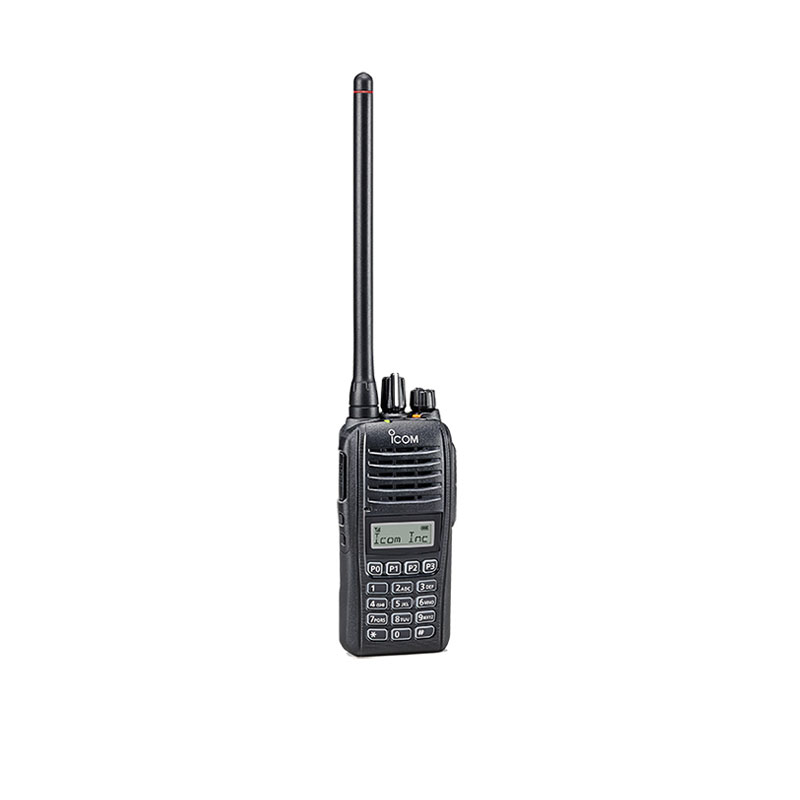

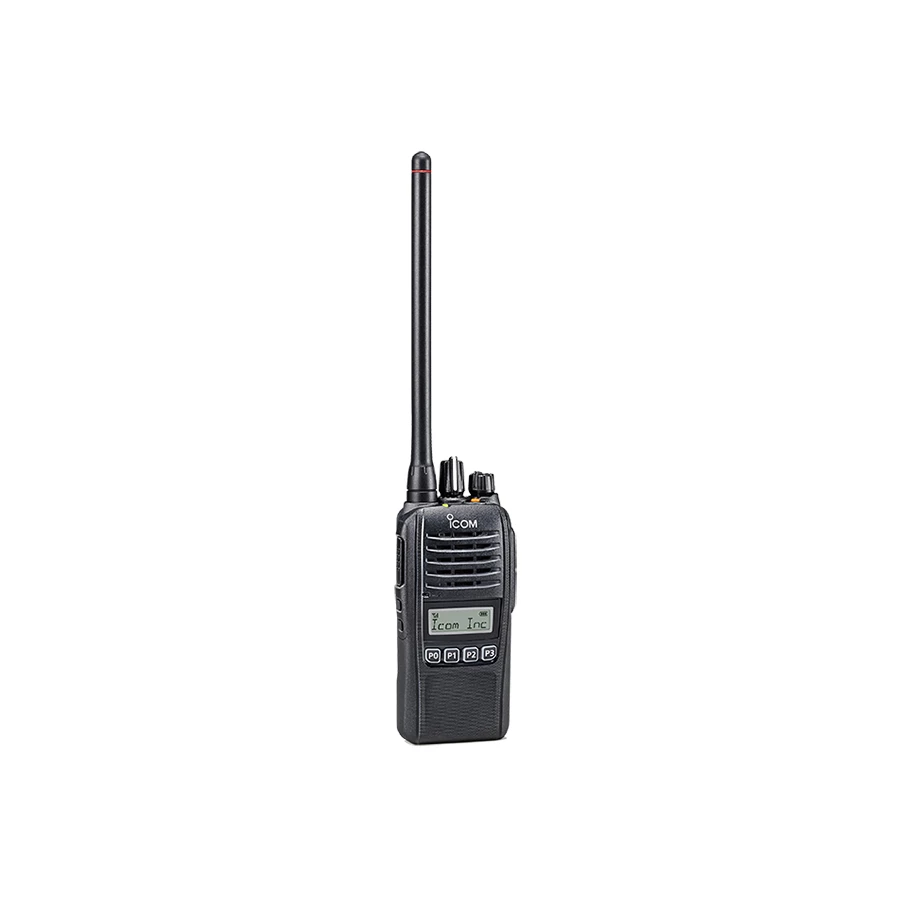

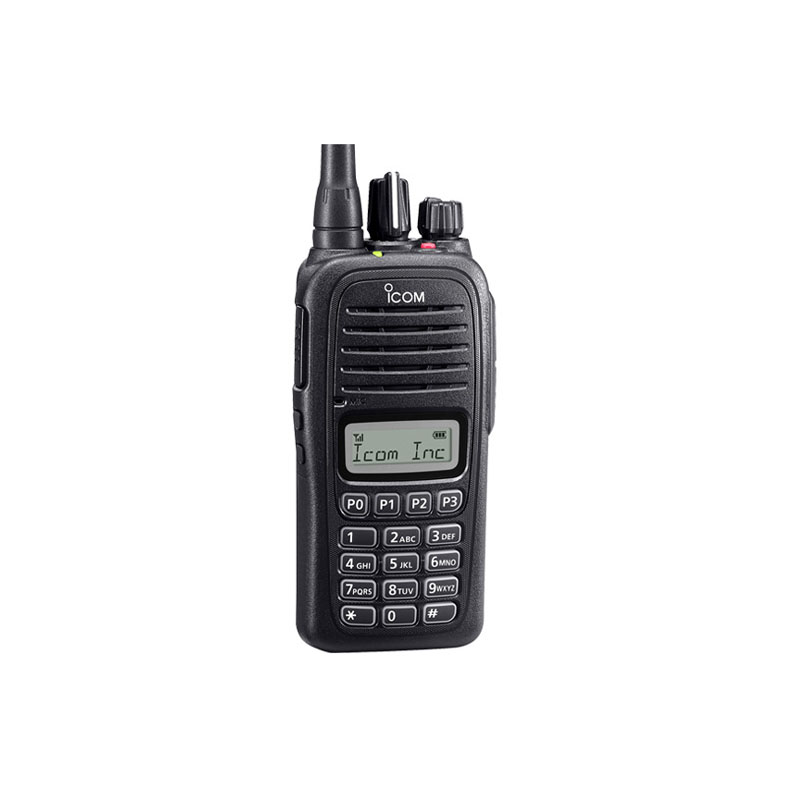

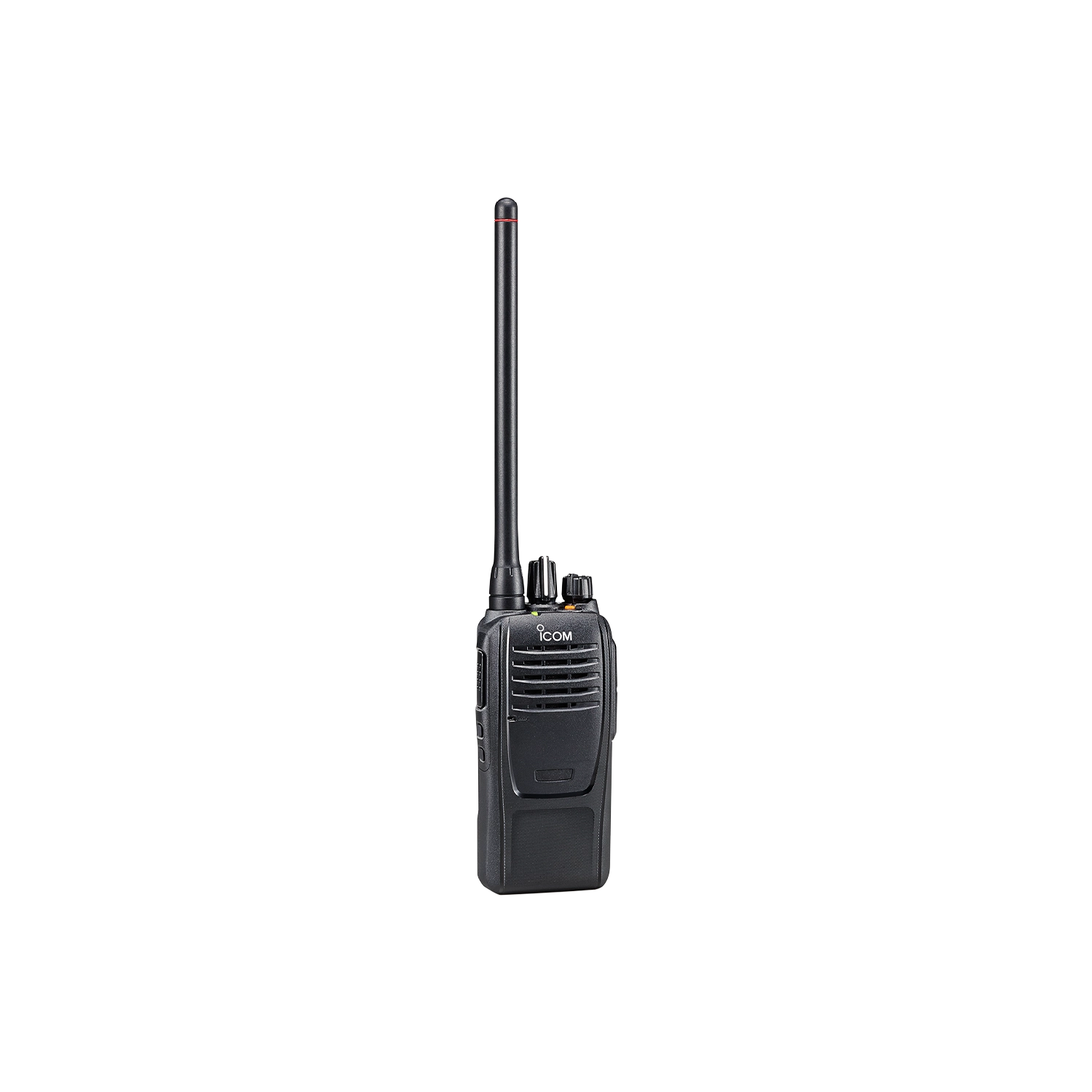

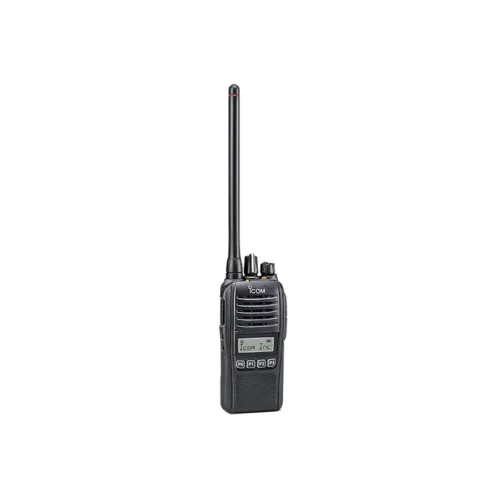

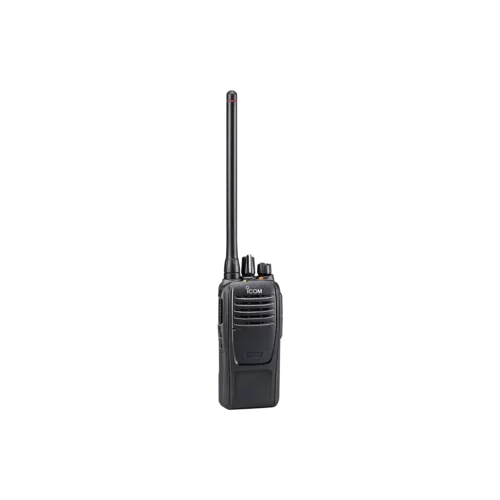

Icom IC-F1000T/S and IC-F2000T/S
Price range: $320.00 through $395.00
In stock
Compact, Slim Dimensions IP67 Waterproofing and Full of Useful Features
Purchaser MUST have a letter of approval from the licensee, as ALL commercial radios sold by GPS Central will be programmed with the approved frequencies before leaving our premises.
Licensing is the responsibility of the purchaser by Industry Canada.
To obtain a license:
- Go to Spectrum Management System – Government of Canada
- Register: Click on Online Registration on the left hand side
- Fill out license application: Click on Radiocommunication Licensing Services on the left hand side
IP67 Dust-tight & Waterproof Protection
The IC-F1000 series has a 24.5mm slim depth with IP67 waterproof casing. The transceiver can withstand 1m depth of water for 30 minutes. Its dust-tight construction prevents the ingress of powder dust, sand, mud and other objects.
Easy to Hear in a Noisy Environment
The large 36mm speaker of the transceiver provides clear companded 800 mW* audio. The built-in BTL amplifier doubles the audio output power and delivers loud and intelligible voice to a radio operator working in noisy environments.
* Typical with internal speaker
Inversion Voice Scrambler
The built-in inversion voice scrambler provides secure conversation. Up to 16 codes are selectable.
14 Hours of Operating Time with Supplied Waterproof Battery

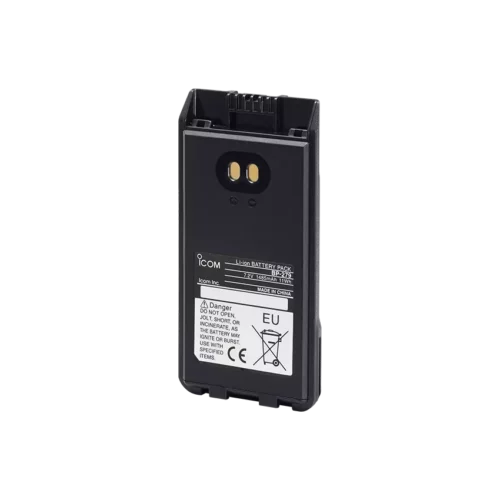

The supplied waterproof Li-Ion battery pack, BP-279 (1570mAh typ.), provides 14 hours* of operating time.
* Tx:Rx:Standby=5:5:90. Power save function ON.
Quiet Stand-by and More
The IC-F1000 series has built-in 2-Tone, 5-Tone, CTCSS and DTCS signaling capabilities for group communication and selective calling..
MDC 1200 Compatible
The following MDC features are programmable.
- PTT ID
- Emergency (No ACK transmission)
- Radio check (RX only)
- Stun/Revive (RX only)
- Transmit status messages (LCD types only)
- 100 alias table (LCD types only)
Channel Announcement
When you rotate the channel knob, the radio announces the channel number.
Convenient for making radio adjustments without having to look at the radio.
Other Features
- 8 DTMF autodial memories
- BIIS PTT ID and emergency call
- “Shift key” function increases number of programmable key assignments
- Surveillance function
- Escalating alarm
| Weight | N/A |
|---|---|
| Dimensions | N/A |
Specifications
|
Icom IC-F1000/T/S Specifications
|
||||
|
GENERAL
|
||||
|
Frequency coverage
|
F1000/S/T
136–174 MHz |
F2000/S/T 400-470MHz 450-512MHz |
||
|---|---|---|---|---|
|
Number of channels
|
F1000
16 channels F1000S/T 128 |
F2000
16 channels F2000S/T 128 |
||
|
Channel spacing
|
12.5/25kHz
|
|||
|
Type of emission
|
16K0F3E*/11K0F3E
|
|||
|
Current drain
(approx.) |
Tx High (at 5W)
|
F1000/S/T
1.3A |
F2000/S/T
1.3A |
|
|
Rx
|
Rated output
|
77mA
|
80mA
|
|
|
Standby
|
330mA
|
330mA
|
||
|
Operating temperature range
(Radio specification) |
–30°C to +60°C; –22°F to +140°F
|
|||
|
Antenna impedance
|
50Ω
|
|||
|
Dimensions (W×H×D)
(projections not included) |
52.2×111.8×24.5mm
2.06×4.4×0.96 in (With BP-279) |
|||
|
Weight (approx.)
|
240g; 8.47oz (With BP-279)
|
|||
|
TRANSMITTER
|
||
|
RF output power
|
F1000/S/T
5W, 2W, 1W (Hi, L2, L1) |
F2000/S/T 4W, 2W, 1W (Hi, L2, L1) |
|---|---|---|
|
Max. frequency deviation (W/N)
|
± 5.0kHz/±2.5kHz
|
|
|
Spurious emissions
|
70dB min.
|
|
|
Frequency stability
|
±2.5ppm
|
|
|
Audio harmonic distortion
|
.0%/1.5% typ.
(AF 1kHz 40% deviation) |
|
|
FM Hum and Noise
|
46/40dB typ.
|
|
|
Ext. microphone connector
|
3-conductor 2.5 (d) mm (1/10ʺ)/2.2kΩ
|
|
|
RECEIVER
|
||
|
Sensitivity (at 12dB SINAD)
|
0.25μV typ.
|
|
|---|---|---|
|
Adjacent channel selectivity
|
F1000/S/T
76/53dB typ. |
F2000/S/T
73/56dB typ. |
|
Spurious response rejection
|
70dB min.
|
|
|
Intermodulation rejection
|
F1000/S/T
74dB typ. |
F2000/S/T
73dB typ. |
|
Hum and noise (W/N)
|
F1000/S/T
51/45dB typ. |
F2000/S/T
49/43dB typ. |
|
AF output power
(at 5% distortion) |
800mW typ. (Internal SP, 12Ω load)
400mW typ. (External SP, 8Ω load) |
|
|
Ext. speaker connector
|
2-conductor 3.5 (d) mm (1⁄8ʺ)/8Ω
|
|
Measurements made in accordance with TIA-603 (USA/EXP).
All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
|
Standard
|
MIL-810 G Method, Proc.
|
|
Low Pressure Storage
|
500.5 I
|
|---|---|
|
Low Pressure Operation
|
500.5 II
|
|
High Temperature Storage
|
501.5 I
|
|
High Temperature Operation
|
501.5 II
|
|
Low Temperature Storage
|
502.5 I
|
|
Low Temperature Operation
|
502.5 II
|
|
Temperature Shock
|
503.5 I-C
|
|
Solar Radiation
|
505.5 I
|
|
Rain Blowing
|
506.5 I
|
|
Rain Drip
|
506.5 III
|
|
Humidity Induced
|
507.5 II
|
|
Salt Fog
|
509.5
|
|
Dust Blowing
|
510.5 I
|
|
Vibration
|
514.6 I
|
|
Shock Functional
|
516.6 I
|
|
Shock Transit Drop
|
516.6 IV
|
Also meets equivalent MIL-STD-810 -C, -D, -E and -F.
|
Ingress Protection Standards (IC-F1000/T/S, IC-F2000/T/S & HM-168LWP)
|
|
|
Dust & Water
|
IP67 (Dust-tight and waterproof protection)
|
All stated specifications are subject to change without notice or obligation.
Package Includes
IC-F1000T Package Includes:
- IC-F1000T
- Battery pack, BP-279
- Desktop charger, BC-213
- AC adapter, BC-123S
- Belt clip, MB-133
- Antenna
IC-F1000S Package Includes:
- IC-F1000S
- Battery pack, BP-279
- Desktop charger, BC-213
- AC adapter, BC-123S
- Belt clip, MB-133
- Antenna
IC-F2000S Package Includes:
- IC-F2000S
- Battery pack, BP-279
- Desktop charger, BC-213
- AC adapter, BC-123S
- Belt clip, MB-133
- Antenna
IC-F2000T Package Includes:
- IC-F2000T
- Battery pack, BP-279
- Desktop charger, BC-213
- AC adapter, BC-123S
- Belt clip, MB-133
- Antenna
IC-F2000 Package Includes:
- IC-F2000
- Battery pack, BP-279
- Desktop charger, BC-213
- AC adapter, BC-123S
- Belt clip, MB-133
- Antenna
Accessories
ICOM IC-F1000T/S, IC-F2000/T/S Accessories
Optional Accessories …
Optional Accessories …
