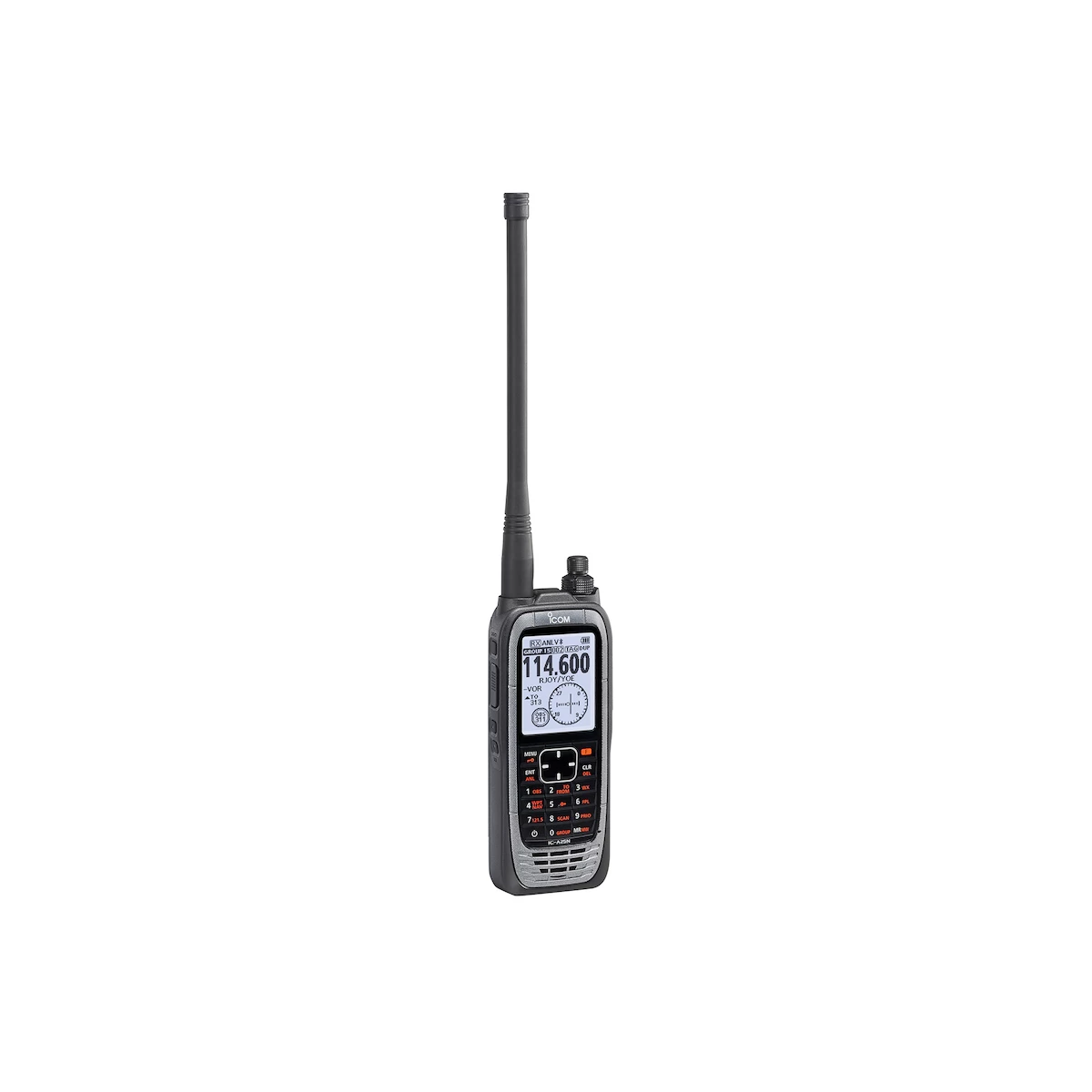

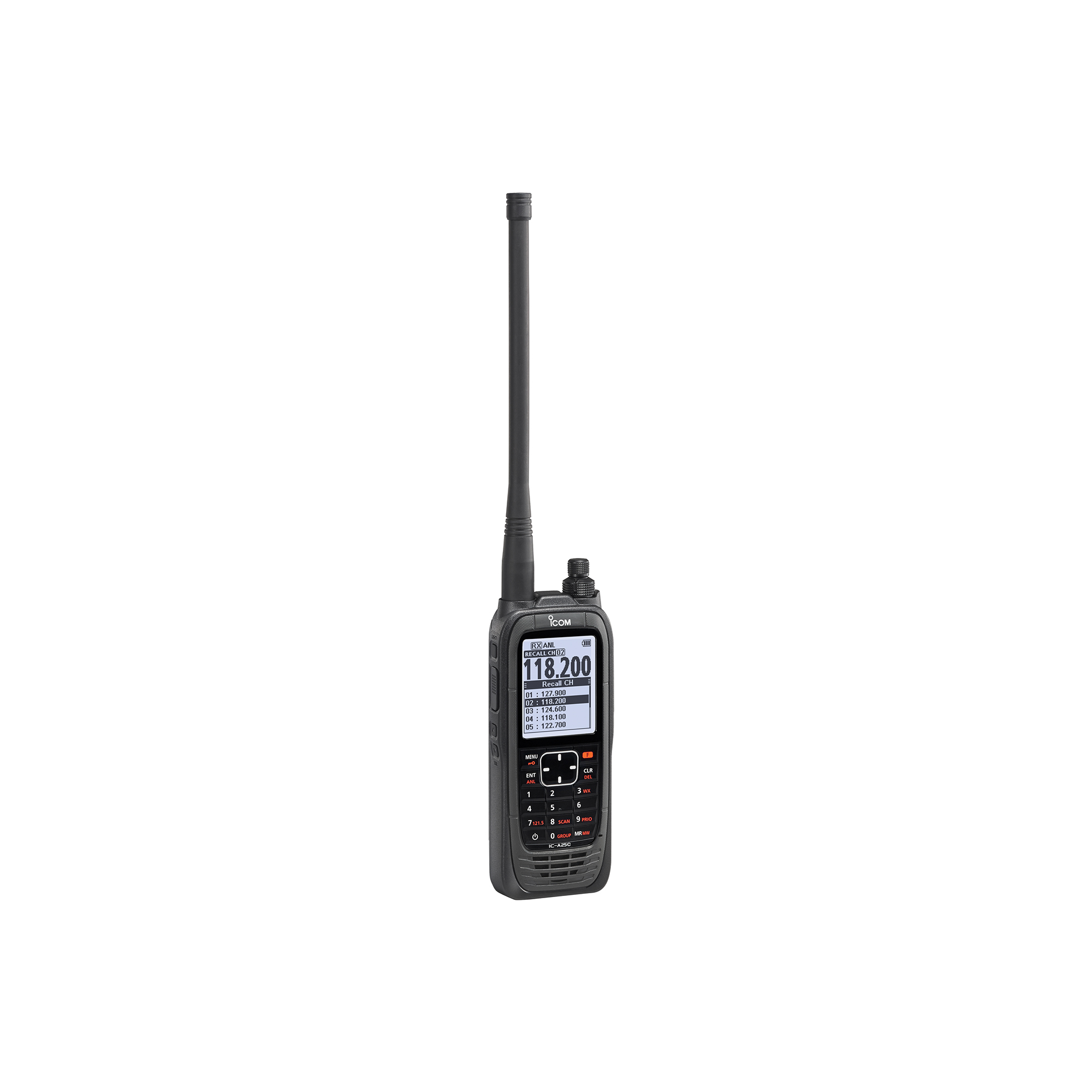

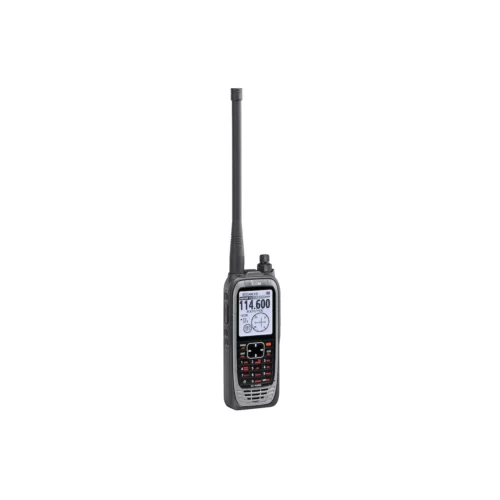

Icom IC-A25C & IC-A25N VHF Airband Handheld Transceivers
Price range: $479.99 through $799.99
The Icom IC-A25C & IC-A25N airband transceivers feature an easy-to-use interface and large 2.3-inch LCD display combine to provide stress-free programming and in-flight operation for aviators.
In stock
- Description
- Additional information
- Product Specification
- Package Includes
- Product Guides & Documentation
- Accessories
Icom IC-A25C & IC-A25N Features
Head in the Right Direction with the A25 Airband Transceiver Series
The A25 series is a powerful air band handheld transceiver with 6 watts of power and an IP57 waterproof rating; weather cannot stop these radios. The handheld aviation radio includes a large 2350mAh Li-ion battery, providing a long operating time. The easy-to-use interface and large 2.3-inch LCD display combine to provide stress-free programming and in-flight operation. Built-in Bluetooth®, GPS and VOR navigation are available in the A25N NAV/COM version.
| Output power: | 6W typ. (PEP), 1.8W (CW) |
| Frequencies: |
TX (COM)
RX (COM/NAV) RX (Weather) 118.00-136.975MHz
108.00-136.975MHz 161.650-163.275MHz |
| Channel spacing: | 8.33/25KhZ |
| Channels: | 200 (20CH x 10 banks) |
| Battery life: | 2350mAh Li-ion battery, up to 10.5 hours Typical operation; Tx:Rx:Stand-by duty ratio = 5:5:90, Power save ON |
| Versions: | Communications only transceiver (IC-A25C) Communications transceiver plus navigation (IC-A25N) |

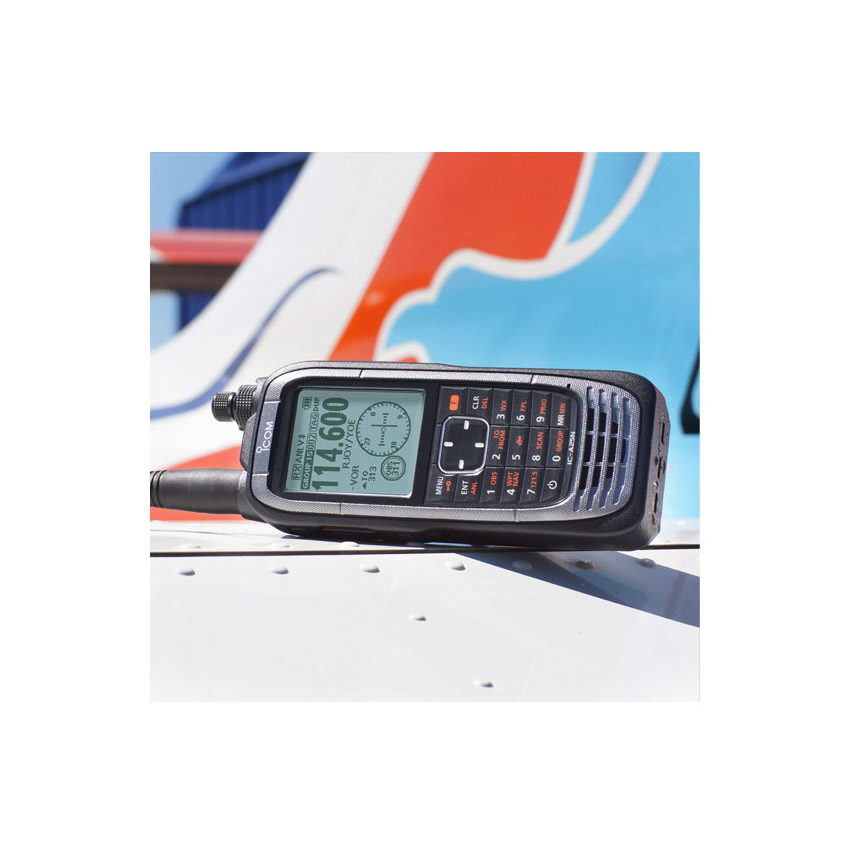

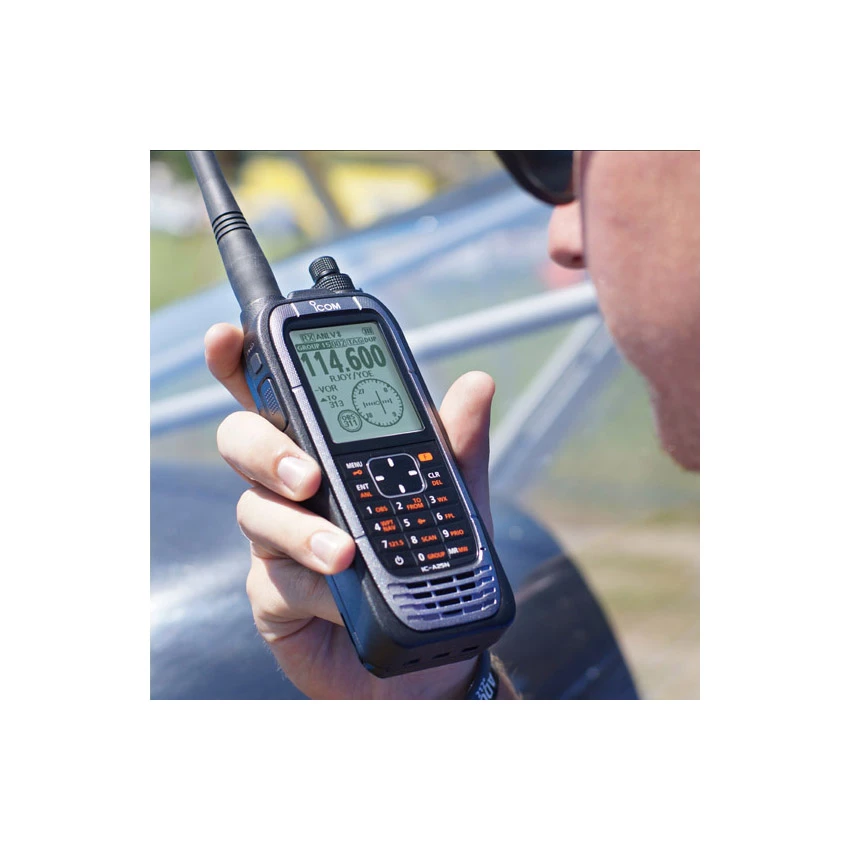

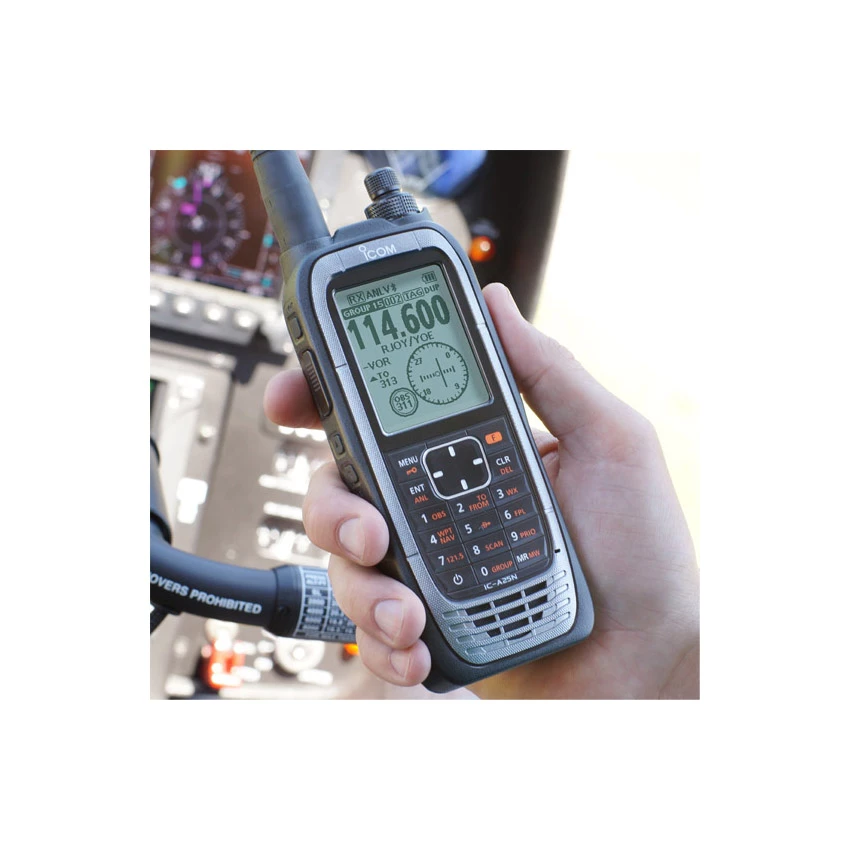

Large Easy-To-View LCD
The Icom A25’s large 2.3-inch LCD provides user-friendly, graphic screens. The day mode allows pilots to view the screen in direct sunlight and the night mode makes it easy to read in the dark.
Aviation Navigation Functions
Built-in GPS and Bluetooth® redefined navigation in the A25N aviation airband transceiver. Design flight plans with an Android™ or iOS™ device and import them into the A25 with the Bluetooth® feature. While using GPS, the waypoint NAV will guide pilots to their destination. Up to 10 flight plans and 300 waypoints can be stored in the A25. Other navigational features, like VOR indicators, can help keep a pilot’s heading precise and alert them if they divert from course. All these functions and more increase safety up in the air.
VOR Navigation Functions
- CDI (Course Deviation Indicator) looks like a real VOR instrument and displays any deviation from your course.
- OBS (Omni Bearing Selector) enables you to change course from your original flight plan.
- TO-FROM indicator shows the position relationship between your aircraft and the course selected by the OBS.
- ABSS (Automatic Bearing Set System) enables you to set the current course as a new course.
Other Airband Transceiver Features
- “Flip-flop” channel recall
- Smart battery with detailed battery status
- 121.5MHz emergency key
- Weather channels
- Priority watch
- VFO scan, memory-channel scan, priority scan
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | ICOM |
| Model | Icom IC-A25C (COMM channels only), Icom IC-A25C SPORT (COMM channels only), Icom IC-A25N (NAV and COMM channels) |
Product Specification
Icom IC-A25 VHF Airband Transceiver Specifications |
|||
|
General
|
|||
|
NAV and COM |
|
||
|
Frequency Coverage
Tx Rx RX (Weather) |
|
||
|
Channel spacing
|
25/8.33 kHz
|
||
|
Type of emission
|
6K00A3E, 5K60A3E, 16K0G3E (Weather)
|
||
|
Power supply requirement
|
7.2 V DC (BP-288), 11.0 V DC (External DC Jack)
|
||
|
Current drain (approximately) Tx High |
Less than 1.8 A |
||
|
Antenna impedance
|
50 Ω
|
||
|
Operating Temperature Range
|
–10°C to +60°C; 14°F to 140°F
|
||
|
Dimensions (W×H×D) (projections not included)
|
58.9 × 148.4 × 31.8 mm; 2.3 × 5.8 × 1.3 in |
||
|
Weight (approximately)
|
340 g; 12.0 oz. (with BP-288)
|
||
|
Transmitter
|
|||
|
Output power (at 7.2 V DC)
|
6.0/1.8 W typical (PEP/carrier) |
||
|
Audio harmonic distortion
|
Less than 10% (at 60% modulation)
|
||
|
Hum and noise ratio
|
More than 35 dB
|
||
|
Spurious emissions
|
More than 46 dB
(Exclude fc±62.5 kHz for AM mode) (Exclude fc±20.825 kHz for AM-N mode) |
||
|
Frequency stability
|
±0.4 kHz
|
||
|
Receiver
|
|||
|
Intermediate frequencies
1st 2nd |
46.35 MHz
450 kHz |
||
|
Sensitivity (typ)
NAV/COM (6 dB S/N) WX (12 dB SINAD) |
Less than 0 dBμ
Less than –8 dBμ |
||
|
Squelch sensitivity (at threshold)
|
Less than 0 dBμ (AM), Less than –5 dBμ (FM)
|
||
|
Audio output power
|
More than 350 mW typ. (8 Ω load/60% Mod. at 10% distortion)
|
||
|
Hum and noise
|
More than 35 dB (at 30% modulation)
|
||
|
Spurious response
|
More than 60 dB (AM), More than 30 dB (FM)
|
||
|
Audio output power
|
More than 350 mW typ. (8 Ω load/60% Mod. at 10% distortion)
|
||
|
Ext. speaker connector
|
3-conductor 3.5 (d) mm (1⁄8ʺ)/8 Ω
|
||
Package Includes
IC-A25N and IC-A25C#56 Package Includes:
- IC-A25N OR IC-A25C airband handheld transceiver

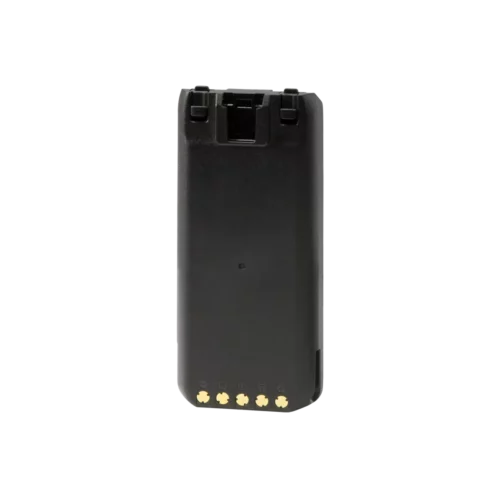

- Battery Pack

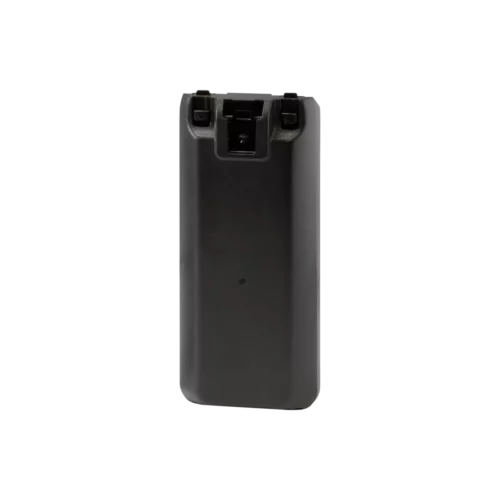

- Battery Case

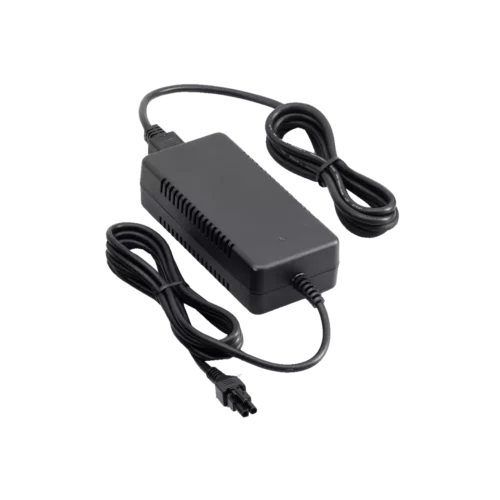

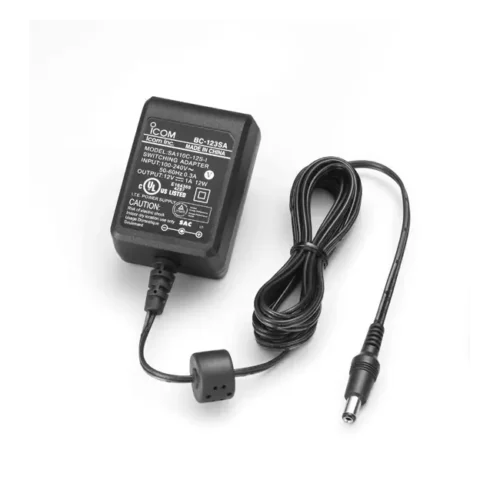

- Rapid charger & AC adapter
- Headset adapter
- Hand strap
- Belt clip

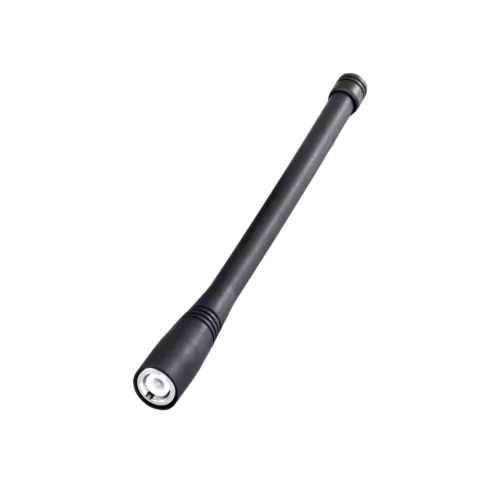

- Antenna
IC-A25C#66 SPORT Package Includes:
- IC-A25C#66 airband handheld transceiver
- Battery Case (requires 6 x AA batteries, NOT included)
- Hand strap
- Belt clip
- Antenna
Product Guides & Documentation
View the following Icom IC-A25 manual and guide to get the most out of your airband transceiver.
Accessories

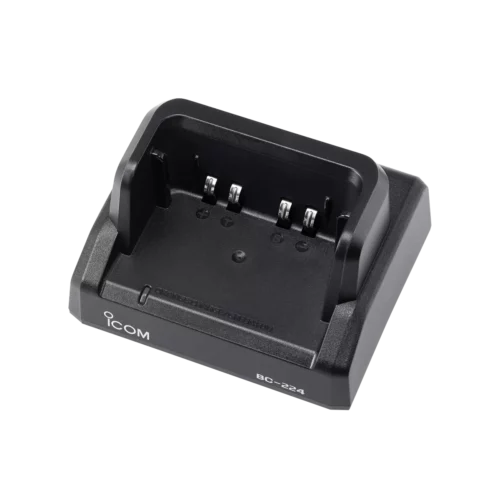

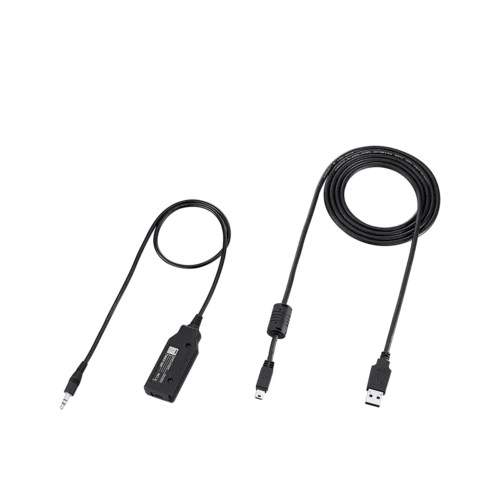

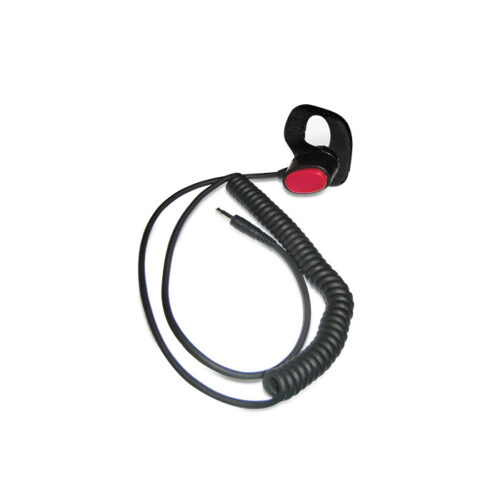

Optional Accessories …
