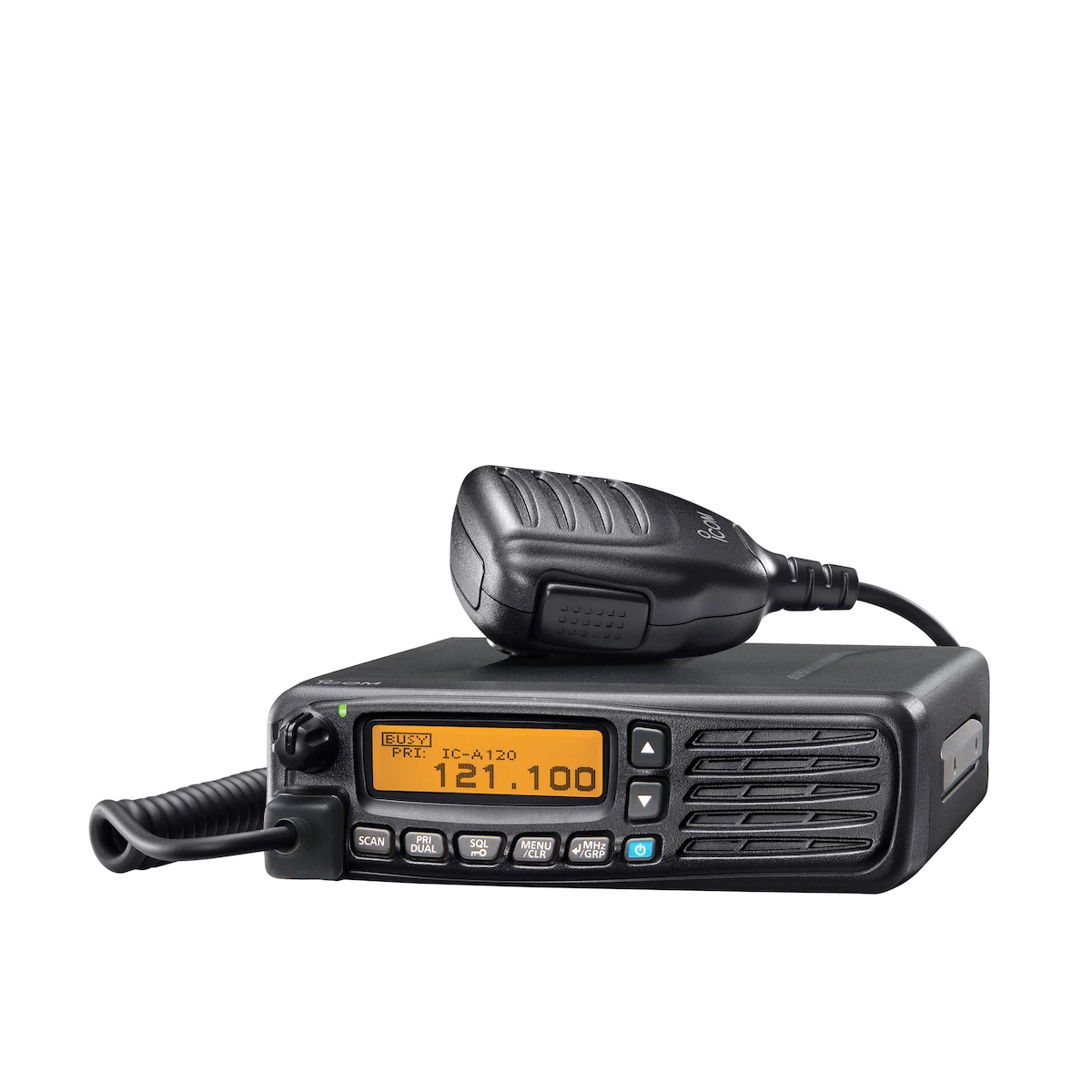

Icom IC-A120 VHF Air Band Mobile Radio
$1,249.00
VHF Air Band Mobile Radio
In stock
- Description
- Additional information
- Product Specification
- Package Includes
- Product Guides & Documentation
- Accessories
Icom’s A120 air band mobile introduces two new features: Active Noise Cancelling (ANC) and Bluetooth® capabilities. The newly added built-in ANC reduces background noise and is effective in extremely noisy airport environments. The automatic noise limiter (ANL) reduces pulse-type noise such as engine ignition. Insert the optional UT-133 Bluetooth® unit and connect a third-party wireless Bluetooth® headset.
This unit is great for any mobile application and it’s available in a base station. Both are built to mil spec for superb reliability!
| Output power: | 36W (P.E.P) |
| Frequencies: | 118.000-136.992MHz |
| Channel spacing: | 8.33/25kHz |
| Channels: | 200 with 12 character channel names |
| LCD display: | Dot-matrix with alphanumeric characters & icons |
| Waterproof rating: | IP54 dust protection & water resistant |
| Mount option: | Mounting bracket included |
ON-hook scan and dualwatch functions
The ON-Hook scan function automatically starts scanning when the hand microphone is hooked on the microphone hanger. When you take the microphone OFF hook, the scanning stops at the priority channel or displayed channel. The Dualwatch function checks the priority and operating channels alternatively.
Side tone function
When using a third-party headset with the optional OPC-871A headset adapter, the side tone function allows you to monitor your own transmitted voice via the connected headset. Even when using a hand microphone, your voice can be monitored from the headset.
Additional features
- Compatible with both 12V and 24V systems
- Dualwatch and priority scan functions
- Power on password protection
- CI-V commands for external control
- Connect with other radio devices with the VE-PG3 RoIP gateway
| Weight | 5.97 lbs |
|---|---|
| Dimensions | 10.25 × 8.75 × 6 in |
| Brand | ICOM |
Product Specification
|
Specifications
|
|
|
General
|
|
|
Frequency range (Tx/Rx)
|
118.000–136.992MHz
|
|
Channel spacing
|
25kHz/8.33kHz
|
|
Type of emission
|
A3E (AM)
|
|
Number of memory channels
|
200 channels
|
|
Antenna connector
|
M type (50Ω)
|
|
Power supply requirement
|
13.75V/27.5V DC
|
|
Current drain (at 13.75 V DC)
Transmitting Receiving |
5.0A (maximum)
4.0A (at AF max.), 0.5A (at stand-by) |
|
Operating temperature range
|
-30°C to +60°C;
|
|
Frequency stability
|
±5ppm (–30˚C to +60˚C)
|
|
Dimensions (WĂ—HĂ—D, Projections not included)
|
161Ă—45Ă—193 (mm); 6.34Ă—1.77Ă—7.6 (in) (approximately)
|
|
Weight (approx.)
|
1.5kg; 3.3lb
|
|
Transmitter
|
|
|
Output power (at 13.75V)
(Carrier Power) |
9.0W typ.
|
|
Modulation
|
70% to 100%
|
|
Spurious emissions
(* Harmonics/Non-harmonics, 30MHz–1GHz) |
Less than 60dB
|
|
Microphone impedance
|
600Ω
|
|
Receiver
|
|
|
Intermediate freq.
|
38.85MHz/450kHz (1st/2nd)
|
|
Sensitivity (pd)
|
1 ÎĽV (6dB S/N)
|
|
Selectivity
8.33kHz 25kHz |
2.778/7.37kHz (6dB/60dB)
8/25kHz (6dB/60dB) |
|
Spurious response
|
More than 74dBÎĽ
|
|
Audio output power
Internal SP (8Ω load) External SP (8Ω load) Headphone (500Ω load) |
10% distortion, 60% modulation
1.5W typical More than 10W More than 100mW |
Package Includes
In the Box:
- IC-A120
- Hand microphone, HM-216
- DC power cable
- Microphone hanger kit
- Mounting bracket kit
- Fuses
