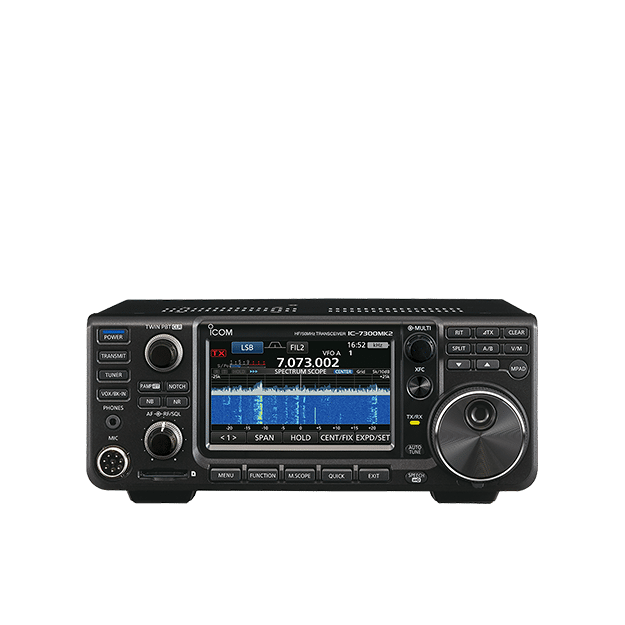

Icom IC-7300MK2 HF/50MHz Transceiver
$2,199.99
Out of Stock (On Order)
Get notified when this product is back in stock
- Description
- Additional information
- Video
- Specifications
- Package Includes
- Product Guides & Documentation
- Accessories
The IC-7300MK2 is the next-generation compact HF transceiver, building on the worldwide success of IC-7300 which is sold over 100,000 units globally.
Enhanced Performance
Improved RMDR and Phase Noise Characteristics
The IC-7300MK2’s RMDR is improved to about 105 dB* typical (at 2 kHz separation) and transmit Phase Noise characteristics are improved by about 12 dB (at 1 kHz frequency separation) compared to the previous model. The superior Phase Noise characteristics reduce noise components in both receive and transmit signals.
Lower Heat Generation and Lower Power Consumption
Through component selection and DC power optimization, the IC-7300MK2 reduces heat generation and enables stable operation during extended operating periods, such as contest operation. Compared to the previous model, the IC-7300MK2 reduces power consumption from 0.9 A to 0.7 A (typical) during RX standby.
Firsts for Icom HF radios
HDMI ™ Port for an External Display
As a first for Icom’s HF/50 MHz radios, the IC-7300MK2 incorporates an HDMI™ port for external display connection. Operating information, such as frequency, scope, waterfall, and menus, can be shown on a large monitor, and audio can also be output through HDMI™ to the display’s speakers.
RX Antenna IN/OUT Connectors
The RX Antenna IN/OUT connectors enable you to take advantage of antenna characteristics for optimized reception, such as avoiding
interference and QRN. External bandpass filters and preamps can also be connected to these connectors.
Simplified RS-BA1 Remote Control
Whether from a remote location within your home QTH, or from a remote location somewhere around the world, the RS-BA1 (Version 2) software enables you to operate your IC-7300MK2. With the addition of an Ethernet connector, a base station computer is not required. You are able to remotely turn the radio ON or OFF through the Internet.
Built-in CW Decoder
Another first for Icom’s HF/50 MHz radio, the IC-7300MK2 can decode Morse code signals without using a PC or other external equipment. The decode filter automatically follows the target signal, and keying speed is automatically adjusted.
USB Type-C ™ with Dual COM + Audio
The IC-7300MK2 provides a USB Type-C™ port with dual virtual COM ports and audio In/Output. You can use two applications simultaneously, such as FT8, logging and contest software, with just one USB cable.
Packed with features for serious operators, the IC-7300MK2 is ideal for contesting and DX hunting.
| Weight | 14.4 lbs |
|---|---|
| Dimensions | 14 × 12 × 10 in |
| Brand | ICOM |
Video
Specifications
Icom IC-7300MK2 Specs
General
| Frequency coverage (USA version)*1 |
Rx | 0.030 ~ 74.800 MHz (Guaranteed range: 0.500 ~ 29.999, 50.000 ~ 54.000 MHz) |
|---|---|---|
| Tx | 1.800 ~ 1.999 MHz 3.500 ~ 3.999 MHz 5.255 ~ 5.405 MHz*2 7.000 ~ 7.300 MHz 10.100 ~ 10.150 MHz 14.000 ~ 14.350 MHz 18.068 ~ 18.168 MHz 21.000 ~ 21.450 MHz 24.890 ~ 24.990 MHz 28.000 ~ 29.700 MHz 50.000 ~ 54.000 MHz |
|
| Frequency coverage (EUR version)*1 |
Rx | 0.030 ~ 74.800 MHz (Guaranteed range: 0.500 ~ 29.999, 50.000 ~ 54.000, 70.000 ~ 70.500 MHz) |
| Tx | 1.800 ~ 1.999 MHz 3.500 ~ 3.800 MHz 5.255 ~ 5.405 MHz*2*3 7.000 ~ 7.200 MHz 10.100 ~ 10.150 MHz 14.000 ~ 14.350 MHz 18.068 ~ 18.168 MHz 21.000 ~ 21.450 MHz 24.890 ~ 24.990 MHz 28.000 ~ 29.700 MHz 50.000 ~ 52.000 MHz 70.000 ~ 70.500 MHz |
|
| Mode | A1A (CW), A3E (AM), J3E (SSB), F1B (RTTY), F3E (FM) | |
| Number of channels | 101 (99 regular, 2 scan edges) | |
| Antenna impedance | 50Ω unbalanced | |
| Antenna connector | SO-239 Ă— 1 SMA Ă— 2 (RX antenna IN/OUT) |
|
| Power supply requirement | 13.8 V DC ±15% | |
| Power consumption | Tx | 21 A |
| Rx | 0.7 A typical (Standby), 1.25 A (Maximum audio) |
|
| Operating temperature range | –10 ˚C ~ +60 ˚C; 14 ˚F ~ 140 ˚F | |
| Frequency stability | ±0.5 ppm or less (–10 ˚C ~ +60 ˚C; 14 ˚F ~ 140 ˚F) |
|
| Frequency resolution | 1 Hz | |
| Dimensions (WĂ—HĂ—D) (projections not included) |
240 Ă— 94 Ă— 237.6 mm; 9.4 Ă— 3.7 Ă— 9.4 in |
|
| Weight (approximately) | 4.1 kg; 9.0 lb | |
*1 Varies according to version.
*2 Some frequency bands are not guaranteed.
*3 Please refer to the Amateur Radio regulations in your country for the 5 MHz band operation. The 5 MHz band is only available depending on the version.
Transmitter
| Output power | HF/50 MHz bands | SSB/CW/FM/RTTYÂ Â Â 0.6 ~ 100 W AMÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 0.125 ~ 25 W |
|---|---|---|
| 70 MHz band*4 | SSB/CW/FM/RTTYÂ 0.3 ~Â 50 W AMÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â 0.075 ~Â 12.5 W |
|
| Modulation system | SSB | Digital P.S.N. modulation |
| AM | Digital Low power modulation | |
| FM | Digital Reactance modulation | |
| Spurious emission | Unwanted emission | HF bands     –50 dB or less 50 MHz band  –63 dB or less 70 MHz band  –60 dB or less |
| Out-of-band emission | HF bands     –40 dB or less 50 MHz band  –60 dB or less 70 MHz band  –60 dB or less |
|
| Carrier suppression | 50 dB or more | |
| Unwanted sideband | 50 dB or more | |
| Microphone impedance | 600 Ω | |
*4 Depending on the transceiver version.
Receiver
| Receiver system | Direct Sampling Superheterodyne | ||||
|---|---|---|---|---|---|
| Intermediate frequency | 12 kHz | ||||
| Sensitivity *5 | 0.5 ~ 1.799 MHz | 1.8 ~ 29.999 MHz | 50 MHz band | 70 MHz band*6 | |
| SSB/CW: (at 10 dB S/N) |
– | –16 dBμV (0.16 μV) |
–18 dBμV (0.13 μV) |
–16 dBμV (0.16 μV) |
|
| AM: (at 10 dB S/N) |
22 dBÎĽV (12.6 ÎĽV) |
6 dBÎĽV (2.0 ÎĽV) |
0 dBÎĽV (1.0 ÎĽV) |
0 dBÎĽV (1.0 ÎĽV) |
|
| FM (at 12 dB SINAD) |
– | –6 dBμV (0.5 μV)*7 |
–12 dBμV (0.25 μV) |
–12 dBμV (0.25 μV) |
|
| Sensitivity for RED version.*8 | 1.8 ~ 2.999 MHz | 3.0 ~ 29.999 MHz | 50 MHz band | 70 MHz band*6 | |
| SSB: (at 12 dB SINAD) |
10 dBμV emf | 0 dBμV emf | –6 dBμV emf | –6 dBμV emf | |
| AM: (at 12 dB SINAD) |
16 dBÎĽV emf | 6 dBÎĽV emf | 0Â dBÎĽV emf | 0Â dBÎĽV emf | |
| FM (at 12 dB SINAD) |
– | 0 dBμV emf*7 | –6 dBμV emf | –6 dBμV emf | |
| Squelch sensitivity (Threshold) |
SSB | 15 dBÎĽV (5.6 ÎĽV) or less (HF: Preamp 1 ON, 50/70 MHz: Preamp 2 ON) | |||
| FM | –10 dBμV (0.3 μV) or less (HF: Preamp 1 ON, 50/70 MHz: Preamp 2 ON) | ||||
| Selectivity (Filter shape: Sharp) |
–6 dB | –40 dB | |||
| SSB (BW: 2.4 kHz) |
2.4 kHz or more | 3.4 kHz or less | |||
| CW (BW: 500 Hz) |
500 Hz or more | 700 Hz or less | |||
| RTTY (BW: 500 Hz) |
500 Hz or more | 800 Hz or less | |||
| AM (BW: 6 kHz) |
6.0 kHz or more | 10 kHz or less | |||
| FM (BW: 15 kHz) |
12.0 kHz or more | 22 kHz or less | |||
| Spurious and image rejection | HF bands | 70 dB or more | |||
| 50/70 MHz band*6 | 70 dB or more (Except for ADC Aliasing)*9 | ||||
| Audio output power | 2.5 W or more (at 10 % distortion with an 8 Ω load, 1 kHz) |
||||
*5 Or less, HF: Preamp 1 ON, filter shape Soft, 50/70 MHz: Preamp 2 ON, filter shape Soft.
*6 Depending on the transceiver version.
*7 28.0 ~ 29.7 MHz only.
*8 Or less, HF: Preamp 1 ON, filter shape Soft, 50/70 MHz: Preamp 2 ON, filter shape Soft, BW: SSB=2.4 kHz, AM=4 kHz, 60 % modulation, FM=7 kHz, 60 % modulation
*9 ADC Aliasing frequency: 124.032 MHz – RX frequency.
Tuner
| Frequency range | 1.8 ~ 70 MHz bands |
|---|---|
| Matching impedance range | 16.7 ~ 150Ω unbalanced (3 : 1 VSWR or less) |
| Tuning accuracy | 1.5 : 1 VSWR or less |
| Tuning time | 2 ~ 3 seconds (average) 15 seconds (Maximum) |
Package Includes
In the Box:
- IC-7300MK2
- Hand microphone, HM-219
- DC power cable
- Fuses
- Plugs
