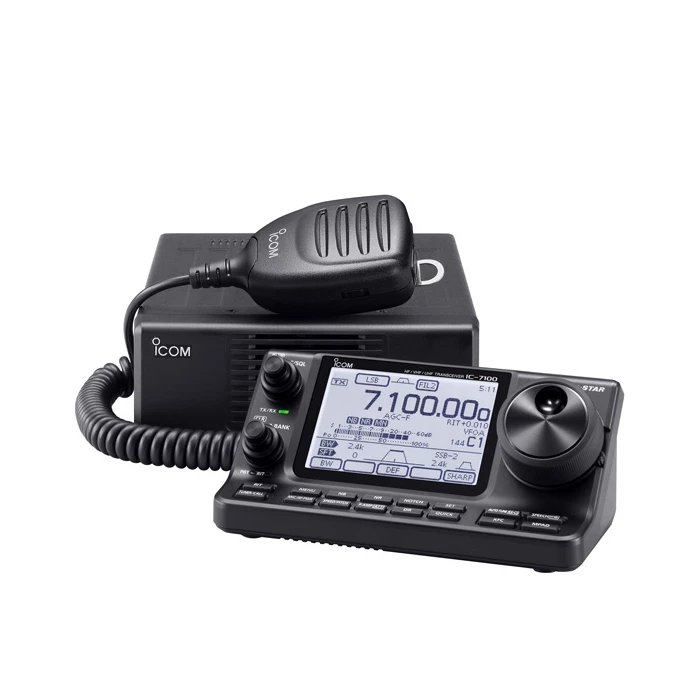

Icom IC-7100 HF/VHF/UHF Transceiver
$1,850.00
HF-70cm transceiver with touch screen control head
In stock
- Description
- Additional information
- Product Specification
- Package Includes:
- Product Guides & Documentation
- Accessories
HF-70cm transceiver with touch screen control head
Multi-band, All Mode Operation at Your Fingertips!
- Touch Screen Control Portal
- Control Head
- D-STAR Ready
- IF DSP Features
- Built-in SD Card Slot for voice storage and data cloning
- Dual DSP chips deliver versatile digital processing performance
- Built-in RTTY demodulator and decoder
- Multi-function meter
- SWR graphic display
- DSP controller RF speech compressor
- Total of 505 memory channels
- Voice recording and playback functions
- ± 0.5ppm high frequency stability
- Optional RS-BA1 IP control remote control software
Icom IC-7100 HF/VHF/UHF Transceiver
In 1995, almost two decades ago, Icom has changed the way hams think about mobile HF communication with their introduction of the IC-706. Since that time, the Icom Mobile HF radios have been the Performance HF mobile radio of choice. Now, at the 2012 Tokyo Hamfair, Icom has once again changed mobile HF communications with the introduction of the IC-7100.

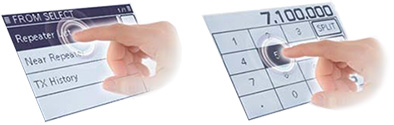

Touch Screen Control Portal
An amateur radio first! The radio control head features a large, multi-function, “touch screen”‘ DOT-Matrix LCD display that is positioned for easy view and operation. This is an important feature as the controller display not only provides information, but is your control portal to the IC-7100’s feature settings and menus.
Control Head
Breaking the the concept that a radio panel should be flat, the IC-7100’s control head is designed for an optimal view angle for the LCD as well as the spacing for large fingers, and plenty of room to have a large internal speaker along with a CW keyjack, phone/speaker, microphone, and control cable. (unit includes standard microphone, not optional DTMF model)
D-STAR READY*
The IC-7100 provides D-STAR DV mode digital voice and low speed data communication.
(* No info on operations bands beyond 2m/70cm)
IF DSP features
The latest 32-bit floating point DSP supports many digital processing features such as digital IF filter, twin PBT, manual notch filters. Of course, those highgrade digital processing features work on all ham bands, from HF to the 70cm band.
Other Features:
- Built-in SD Card Slot for voice storage and data cloning
- Dual DSP chips deliver versatile digital processing performance
- Built-in RTTY demodulator and decoder
- Multi-function meter
- SWR graphic display
- DSP controller RF speech compressor
- Total of 505 memory channels
- Voice recording and playback functions
- 70–70.5MHz coverage, 50W output power (for Europe versions only, varies according to version.)
- ± 0.5ppm high frequency stability
- Optional RS-BA1 IP control remote control software
| Weight | 8.86 lbs |
|---|---|
| Dimensions | 12.75 × 8.5 × 8 in |
| Brand | ICOM |
Product Specification
Icom IC-7100 Specifications: |
||||||||||||||||||||||||||||||||
|
General
|
||||||||||||||||||||||||||||||||
|
Frequency Coverage*1
|
Receive
|
0.030–199.999*2 400.000–470.000*2
|
||||||||||||||||||||||||||||||
|
Transmit
|
1.800–1.999 3.500–3.999 5.255–5.405*2 7.000–7.300 10.100–10.150 14.000–14.350 18.068–18.168 21.000–21.450 24.890–24.990 28.000–29.700 50.000–54.000 144.000–148.000 430.000–450.000
*1 Showing USA version. Varies according to version. *2 Some frequency bands are not guaranteed. |
|||||||||||||||||||||||||||||||
| Mode |
USB, LSB, CW, RTTY, AM, DV, FM, WFM (Rx only)
|
|||||||||||||||||||||||||||||||
|
Number of channels
|
495 regular, 4 call, 6 scan edges, 900 D-STAR repeater channels
|
|||||||||||||||||||||||||||||||
|

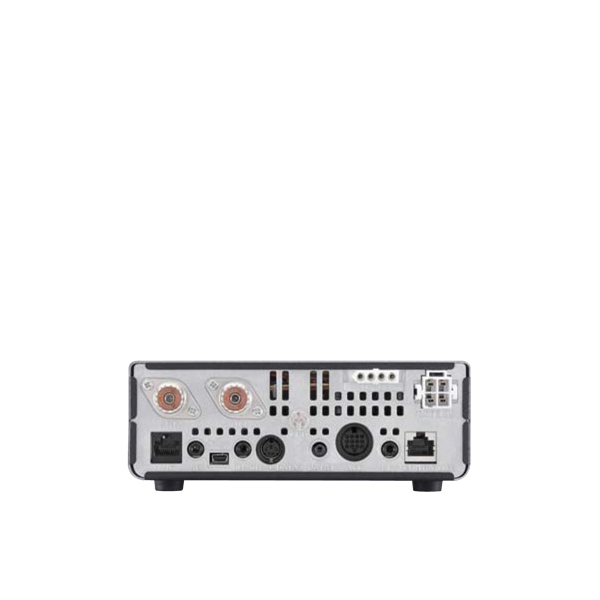

Antenna connector
|
SO-239×2 (one each for HF/50MHz and 144/430/440MHz, 50Ω )
|
|||||||||||||||||||||||||||||||
|
Frequency stability
|
±0.5ppm (0°C to +50°C @ 430MHz)
|
|||||||||||||||||||||||||||||||
|
Power supply requirement
|
13.8V DC ±15%
|
|||||||||||||||||||||||||||||||
|
Current drain (approx.)
|
TX (Max. power): 22A (HF/50MHz), 16A (144/440MHz)
RX (Max. audio/standby): 1.2A/0.9A |
|||||||||||||||||||||||||||||||
|
Operating temperature range
|
–10°C to +60°C; +14°F to +140°F | |||||||||||||||||||||||||||||||
|
Dimensions (WĂ—HĂ—D;
Projections not included) |
Main unit 167Ă—58Ă—225 mm; 6.57Ă—2.28Ă—8.86 in
projections not included) Controller 165Ă—64Ă—78.5 mm; 6.5Ă—2.52Ă—3.09 in |
|||||||||||||||||||||||||||||||
|
Weight (approx.)
|
Main unit 2.3 kg; 5.1 lb Controller 0.5 kg; 1.1 lb
|
|||||||||||||||||||||||||||||||
|
Transmitter
|
||||||||||||||||||||||||||||||||
|
Output power (at 13.8V DC)
|
|
|||||||||||||||||||||||||||||||
| Modulation system | SSB : Digital P.S.N. modulation, AM : Digital low power modulation FM : Digital phase modulation, DV : GMSK digital phase modulation |
|||||||||||||||||||||||||||||||
|
Spurious emissions
|
Less than –50dB (HF bands), Less than –63dB (50MHz)
Less than –60dB (144/430/440MHz) |
|||||||||||||||||||||||||||||||
| Unwanted sideband | More than 50dB | |||||||||||||||||||||||||||||||
|
Carrier suppression
|
More than 50dB
|
|||||||||||||||||||||||||||||||
|
Receiver
|
||||||||||||||||||||||||||||||||
|
Intermediate frequencies SSB/CW/AM/FM/RTTY/DV
WFM |
124.487MHz, 455kHz, 36kHz
134.732MHz, 10.700MHz |
|||||||||||||||||||||||||||||||
|
Sensitivity
|
(HF: Preamp-1 ON, 50MHz: Preamp-2 ON, 144/430/440MHz: Preamp ON)
|
|||||||||||||||||||||||||||||||
|
Selectivity
|
|
|||||||||||||||||||||||||||||||
| Spurious and image rejection | More than 70dB (HF/ 50MHz), More than 65dB (144/430/440MHz) (except 1/2 IF through on 50MHz, IF through on 144MHz) | |||||||||||||||||||||||||||||||
|
Audio output power
|
More than 2.0W (10% distortion, 8Ω load, 13.8V DC)
|
|||||||||||||||||||||||||||||||
Package Includes:
Package Includes:
- IC-7100
- Hand microphone, HM-198
- Separation cable, OPC-2253
- DC power cable
- 13-pin plug ACC cable
- CW keyer plug
- USB cable
- Spare fuses
- Ferrite bead*
