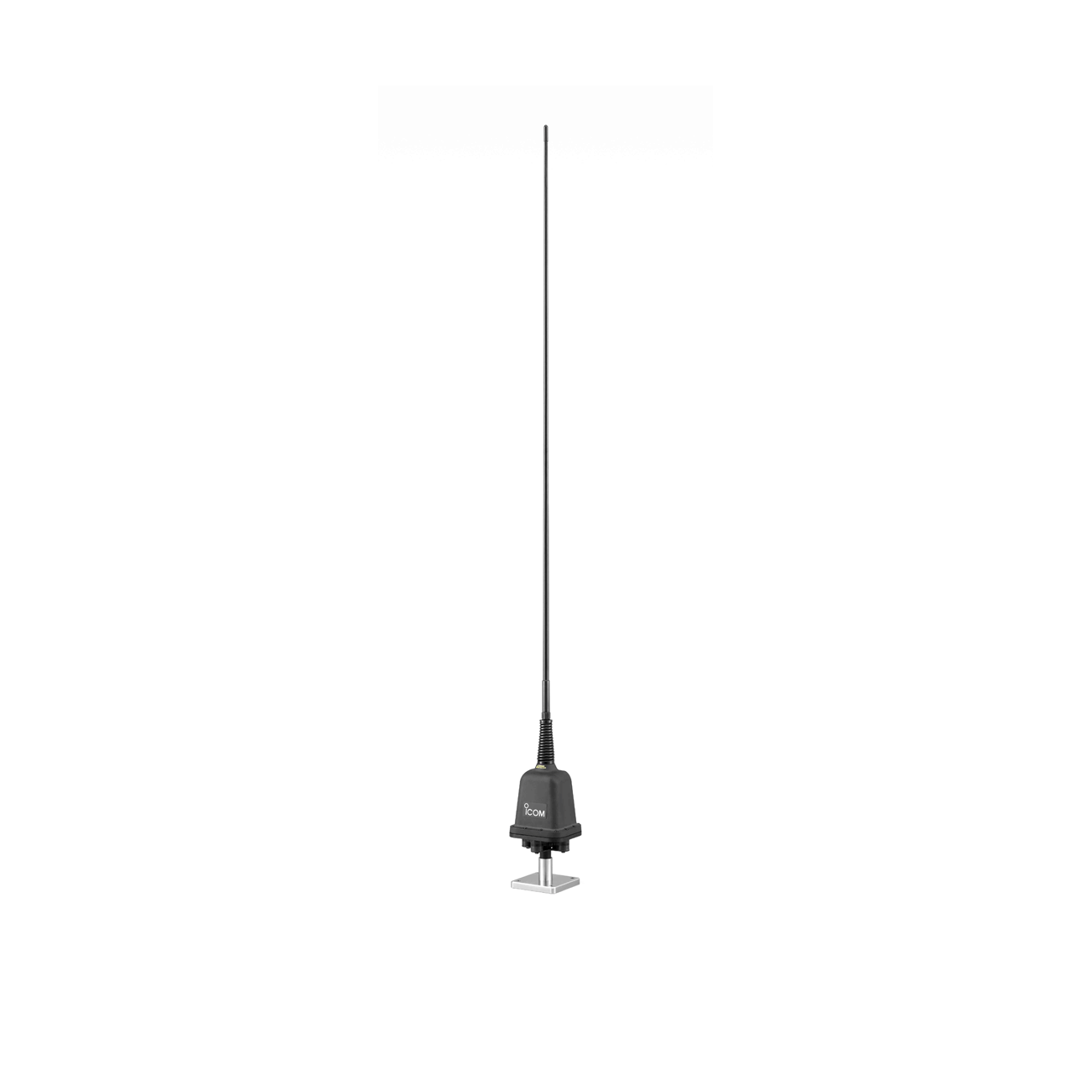

Icom AH-740 Relay-Driven Compact Antenna
MPN: AH-740
$2,160.00
Relay-driven compact automatic tuning antenna.
Out of Stock (On Order)
Get notified when this product is back in stock
- Relay-driven compact automatic tuning antenna
- Compact and lightweight (3.5kg)
- 150mS typical high speed tuning (while memory tuning)
- Low power consumption (0.4A typical)
- Requires OPC-2321 Control Cable
| Weight | 7.7 lbs |
|---|---|
| Dimensions | 9.37 × 5.71 × 6.3 in |
Accessories
Optional Accessories …
$155.00
On backorder
Specifications
Icom AH-740 Specifications |
|
|
Frequency coverage
With 1.54m whip antenna With AH-5NV |
2.5–29.9999MHz 2.2–29.9999MHz |
|
Output power rating
|
SSB/DATA: 125W PEP
|
|
VSWR
With 1.54m whip antenna With AH-5NV |
1.5:1 typical (50Ω) 1.5:1 typical (50Ω) |
|
Tuning speed
New channel Memory tune |
2–3 S typical 150 mS typical |
|
Number of memory channels
|
45 channels
|
|
Operating temperature
|
−40°C to +70°C; −40°F to +158°F
|
|
Power supply requirement
|
13.8V DC (10.8–15.87V)
|
|
Power consumption
|
0.4A typical
|
|
Tune power
|
5–15W PEP,
Rated 10W PEP |
|
Dimensions (W×H×D)
(Projections not included)Height (with whip + spring) |
238×145×160 mm;
9.37×5.71×6.3 in (Base unit) 1909 mm; 75.16 in |
|
Weight (approx.)
|
3.5kg; 7.7lb
|
|
Mounting
|
M16×45mm
|
|
Environmental test
|
MIL-STD-810-G
|
|
IP Rating
|
IP 55 dust-protection and water jet resistance
|
|
Supplied accessories
|
6m; 19.7ft control cable and 6m; 19.7ft coaxial cable
|
* Maximum 6 minute continuous transmission at 35°C.
