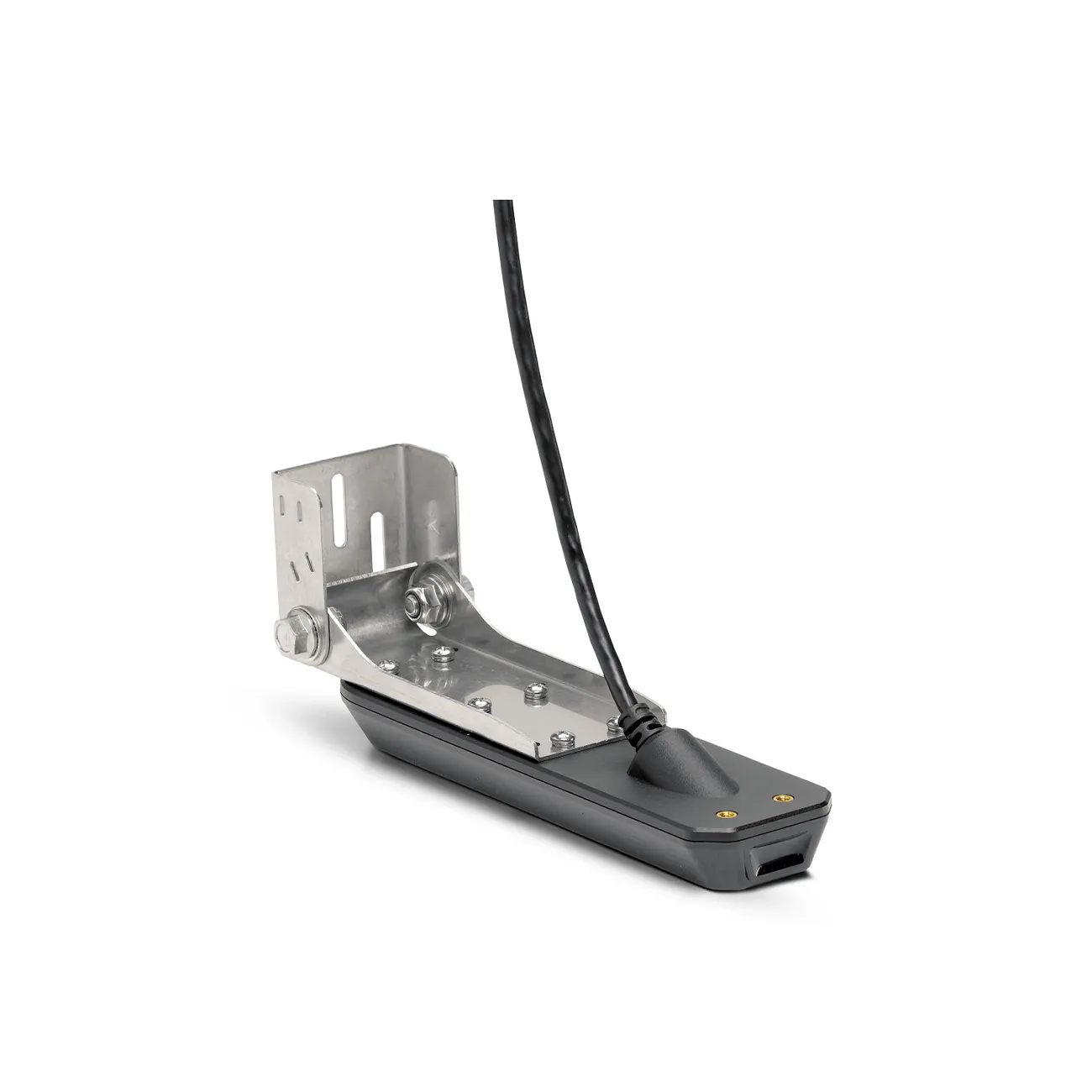

Humminbird XM 9 HW MSI T Transducer

Transom Mount, MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP 2D Sonar, 800kHz/455 kHz and 1.2 MHz with a CHIRP range of 150-220kHz. Includes built-in temperature sensor.

• Compatible with: HELIX 12/10/9/8 CHIRP MEGA SI+ G3N, HELIX 15/12/10/9/8 CHIRP MEGA SI+ G4N.
• Cable Length: 20 Feet
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)
• MEGA Side Imaging+ Frequencies – Max Range (side-to-side): 455kHz: 440-500 kHz – 800ft (244m), 800kHz: 790-850 kHz – 250ft (76m), MEGA SI+: 1075-1150 kHz – 400ft (122m)
• MEGA Down Imaging+ Frequencies – Max Depth: 455kHz: 440-500 kHz – 400ft (122m), 800kHz: 790-850 kHz – 125ft (38m), MEGA DI+: 1075-1150 kHz – 200ft (61m)
• 1-Year Limited Warranty
