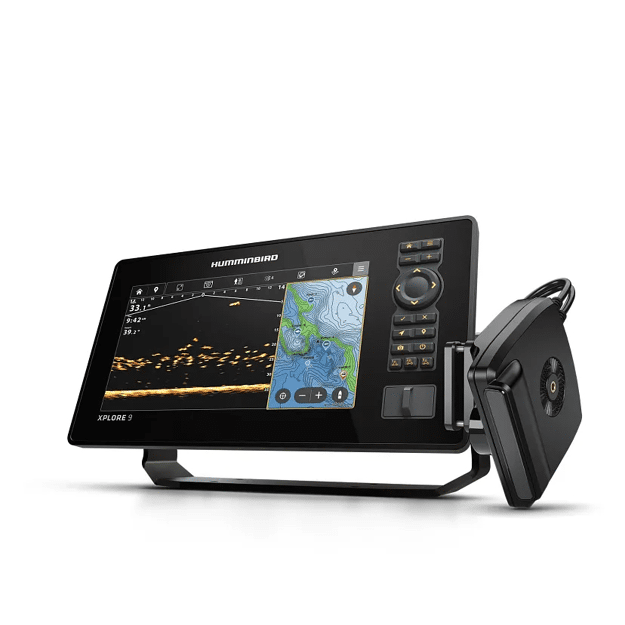

Humminbird ICE XPLORE 9 + MEGA Live 2 Bundle
Humminbird ICE XPLORE 9 + MEGA Live 2 Bundle

Humminbird ICE XPLORE 9 + MEGA Live 2 Bundle

MPN:

$3,999.99

In stock

SKU: HUM-ICEX9ML2-CHO Categories: Ice Fishing Bundles, With Mapping, Ice Fishing Brand: Humminbird
Browse Another Category
  • New Arrivals
  • GPS Units
  • Marine
    • AIS
    • Autopilot
    • Chartplotters
    • Chartplotters & Sonar Combos
    • Charts
    • Entertainment
    • Downriggers
    • Handhelds
    • Fishfinders
    • Ice Fishing
      • Ice Fishing Accessories
      • Ice Augers
      • Ice Fishing Bundles
    • Marine Accessories
    • Marine Instruments & Sensors
    • Radars
    • Remote Sounders & Black Boxes
    • Transducers
    • Trolling Motor
  • Tracking
  • Universal RAM Mounts
  • Radios
  • Metal Detecting
  • Outdoors
  • On Sale
  • Gift Certificates
  • Warranties
  • Discontinued
  • Description
  • Additional information
  • Video
  • Specifications
  • Package Includes
  • Product Guides & Documentation
  • Accessories

Take your ice fishing to the next level with the ICE XPLORE + MEGA Live 2 Bundle delivering next-gen clarity, helping anglers catch more fish and enjoy every moment on the ice. Built for hardwater, this bundle delivers unmatched clarity, precision, and control beneath the ice. The XPLORE Series fish finder combines a vivid touchscreen display with intuitive mapping and sonar features, while the MEGA Live 2 provides real-time sonar imaging so you can see fish, structure, and lure action in incredible detail. Outfitted with right-sized, cold-weather-ready cables and accessories tailored for ice fishing, this bundle is ready to hit the ice when you are.

Note: third-party ice shuttle and pole required for setup. We recommend the ArcLab 12V Deluxe Electronics Shuttle Humminbird MEGA Live 2 Pole Bundle

9″ ICE XPLORE+ MEGA Live 2 Bundle Features:

  • Next-Gen Clarity: XPLORE Series and MEGA Live 2 deliver ultra-detailed views in real-time, making it easier to find and stay on fish.
  • Designed for Ice: Includes ice-specific cable lengths, inline fuses and connectors for hassle-free setup and reliability in cold conditions.
  • Ice Mode: Streamlined features and functionality, for a custom ice experience. Flip back to Open Water Mode when it’s time to move your XPLORE and MEGA Live 2 to your boat.
  • Real-Time MEGA Live 2 Sonar: Watch fish move, react, and strike your lure with the next-gen clarity of MEGA Live 2 in Forward or Down Mode, now with real-time zoom.
  • Lakemaster Mapping Included: Ice XPLORE fish finders come with LakeMaster® mapping with features like SmartStrike® to keep you on the fish.
  • Custom Bundle: Pre-matched components streamline compatibility and installation, ready for your choice of ice shuttle and pole for full on-ice functionality.
  • Warranty: Ice XPLORE includes a 2-year limited warranty (Additional third year of warranty is available with product registration). MEGA Live 2 is covered by a 2-year warranty.
  • 2D Flasher Modes: XPLORE units now support advanced 2D flasher modes for enhanced vertical jigging and ice fishing visibility. (Requires XI 14 transducer).
  • Included Components: XPLORE fish finder; 18” Power cable with spade connectors and inline fuse; Premium Silicone cover; Gimbal bracket; XPLORE Map Card, MEGA Live 2 Transducer; Compact Pole-mount; 5′ Ethernet Cable, 4′ Power cable with spade connectors and inline fuse
Brand

Humminbird

Video

Specifications

9″ ICE XPLORE+ MEGA Live 2 Bundle Specs:

Display Size – Diagonal 10.1 in
Length 6.26 in | 15.9 cm
Height 11.69 in | 29.69 cm
Width 3.3 in | 8.38 cm
Weight 4 lb 4.48 oz | 1.94138 kg
Display Pixel Matrix 1280 x 720
Transducer Included MEGA Live Imaging
Compatible With Minn Kota US2 Sonar, Minn Kota i-Pilot Link, Radar, One-Boat Network, MEGA Live 2
Features Touch Screen, MEGA Live Imaging, Networking, Built In GPS, All Season, Bluetooth, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging+, Wi-Fi
Memory Card Slot Dual Micro SD
Sonar-Standard MEGA Side Imaging+, MEGA Down Imaging, MEGA Side Imaging, MEGA Down Imaging+
Sonar-Coverage 20°, 42°, 60° & (2) 86° @ -10dB
Sonar-Optional 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
Live Sonar-Coverage 20 degrees x 120 degrees
CHIRP – Frequencies Supported Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
Sonar-Frequencies Supported 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA
Depth-Sonar 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
CHIRP – Imaging Frequencies Supported 455 kHz SI+ (405-505 kHz), 455 kHz DI+ (420-520 kHz), Compact MEGA SI+ (1100-1200 kHz)
Depth-Down Imaging 200 ft (MEGA), 400 ft (455 kHz)
Range-Side Imaging (Side-To-Side) 800 ft (455 kHz), 400 ft (MEGA)
Interface Touch Screen, Keypad Control
Power Draw 2.2 Amps
Power Input 10.8-20 VDC
Power Output Peak-to-Peak 8000 Watts
Power Output RMS 1000 Watts
Screen Snap Shot Included
Sonar Recording Included
Mount-Standard Gimbal
Mount-Standard Size 11.690 in W x 6.569 in H x 3.884 in D
Mount-Optional In-Dash Mounting Kit
Transducer Mount Location Portable
GPS Chartplotting Included
GPS Receiver Internal
GPS Trackplotting Included
Waypoints, Routes, Tracks/Points 10,000, 50, 50/20,000
360 Imaging Compatibility Yes
MEGA Live Compatibility Yes
Humminbird Basemap Included
LakeMaster Compatibility Yes
CoastMaster Compatibility Yes
Navionics Gold/HotMaps Compatibility Yes
Navionics Platinum+ Compatibility Yes
Platinum Compatibility Yes
Minn Kota Advanced GPS Navigation Compatibility Yes
Minn Kota i-Pilot Link Compatibility Yes
Minn Kota Talon Shallow Water Anchor Compatibility Yes
Radar Compatibility Yes
5-Port Ethernet Switch Compatibility Yes
AIS Compatibility Optional
Autopilot Compatibility No
Heading Sensor GPS Compatibility No
Heading Sensor GPS (NMEA 2000) Compatibility Yes
NMEA2000 Included
Target Separation 2.5 in
Upgradable Software Yes
View Preset Keys Yes
X-Press Menu System Yes
Custom Digital Readout Yes
Custom View Selections Yes
Display Colors Grayscale 24-Bit
Display Type Color TFT
Speed Included
Temperature Built In
Temperature Alarm Yes
Temperature Graph Yes
HDMI Compatible No
Warranty Three-Year Warranty with Registration, One-Year Warranty

Package Includes

In the Box:

  • XPLORE 9 fish finder
  • 18” Power cable with spade connectors and inline fuse
  • Premium Silicone cover
  • Gimbal bracket
  • XPLORE Map Card
  • MEGA Live 2 Transducer
  • Compact Pole-mount
  • 5′ Ethernet Cable
  • 4′ Power cable with spade connectors and inline fuse

Product Guides & Documentation

Humminbird XPLORE ICE Series Installation Guide (pdf)



Accessories

Optional Accessories …

ArcLab 12V Deluxe Electronics Shuttle Pro Series Ice Bundle

ArcLab 12V Deluxe Electronics Shuttle Humminbird MEGA Live Pole Bundle

$786.00
On backorder
ArcLab Mega Live 2 Transducer Mount (HTM-Slug)

ArcLab Mega Live 2 Transducer Mount (HTM-Slug)

$52.00
In stock
ArcLab LVS32 Garmin LiveScope Ice Bundle

ArcLab Humminbird MEGA Live 2 Ice Bundle

$419.00
In stock
NEW
Humminbird MEGA Live 2 Forward-Facing Sonar

Humminbird MEGA Live 2 Forward-Facing Sonar

$2,239.99
In stock
ArcLab 5200 Series 12V Deluxe Electronics Shuttle

ArcLab 5200 Series 12V Deluxe Electronics Shuttle

$329.95
In stock
Humminbird HELIX ICE Conversion Kit

Humminbird HELIX ICE Conversion Kit

$524.99
On backorder
Navionics Platinum+ Cartography on microSD

Navionics Platinum+ Cartography on microSD

$339.99 – $539.99Price range: $339.99 through $539.99
In stock, some on backorder

Select a Model to See Availability

Navionics+ Cartography on microSD

Navionics+ Cartography on microSD

$209.99 – $269.99Price range: $209.99 through $269.99
In stock, some on backorder

Select a Model to See Availability

Humminbird AutoChart Zero Line SD Card North America

Humminbird AutoChart Zero Line SD Card North America

$130.00
In stock

Optional Accessories …

ArcLab 12V Deluxe Electronics Shuttle Pro Series Ice Bundle

ArcLab 12V Deluxe Electronics Shuttle Humminbird MEGA Live Pole Bundle

$786.00
On backorder
ArcLab Mega Live 2 Transducer Mount (HTM-Slug)

ArcLab Mega Live 2 Transducer Mount (HTM-Slug)

$52.00
In stock
ArcLab LVS32 Garmin LiveScope Ice Bundle

ArcLab Humminbird MEGA Live 2 Ice Bundle

$419.00
In stock
NEW
Humminbird MEGA Live 2 Forward-Facing Sonar

Humminbird MEGA Live 2 Forward-Facing Sonar

$2,239.99
In stock
ArcLab 5200 Series 12V Deluxe Electronics Shuttle

ArcLab 5200 Series 12V Deluxe Electronics Shuttle

$329.95
In stock
Humminbird HELIX ICE Conversion Kit

Humminbird HELIX ICE Conversion Kit

$524.99
On backorder
Navionics Platinum+ Cartography on microSD

Navionics Platinum+ Cartography on microSD

$339.99 – $539.99Price range: $339.99 through $539.99
In stock, some on backorder

Select a Model to See Availability

Navionics+ Cartography on microSD

Navionics+ Cartography on microSD

$209.99 – $269.99Price range: $209.99 through $269.99
In stock, some on backorder

Select a Model to See Availability

Humminbird AutoChart Zero Line SD Card North America

Humminbird AutoChart Zero Line SD Card North America

$130.00
In stock

Retail Store

#8, 711 48th Ave SE,
Calgary, AB T2G 4X2

Store Hours

Mon-Fri: 9am - 5pm MST

Saturday: 9am - 2 pm MST

Sunday: CLOSED

Contact Us

Phone: 403-239-1400

Mon-Fri: 9am - 5pm MST

Saturday: 9am - 2pm MST

Email:

[email protected]

[email protected]

FAQs

Contact Us

About Us

About Us

Price & Customer Service Policy

Testimonials

Our Blog

Sign up for our Newsletter!

Shipping & Payments

Ordering &
Payment

Shipping Info

Return Policy

Extended Warranties

Gift Cards

Your Account

Sign In

View Cart

Return Authorization

Would you like to add a warranty? Adding warranty can help protect your investment.

Yes, please add warranty ().

No thanks, don't add warranty.

SecurityMetrics card safe certification logo
security
  • Terms of Use
  • Privacy Policy
  • ©GPS Central 2001 - 2026
  • Amateur Radios
    • 2-Way Radios
    • Amateur Radios
    • Avionic Radios
    • CB Radios
    • Commercial Radios
    • Marine Radios
    • Scanners
    • Shortwave
    • Weather Radios
    • Amateur Antennas
      • Antenna Accessories
      • CB Antennas
      • HF Antennas
      • VHF/UHF Antennas
      • Analyzers
      • Baluns & Ununs
      • Dummy Loads
      • Duplexers & Triplexers
      • Lightning Protection
      • Rotors & Rotators
      • Power & SWR Meters
    • Amateur Accessories
      • CB Accessories
      • Amateur Books
      • Adapters
      • Amateur Books
      • Amplifiers
      • Batteries & Chargers
      • Cases
      • Cables
      • Coax Cables
      • Connectors
      • Headsets & Speakers
      • Microphones
      • Mounts & Brackets
      • Power Supplies
      • Programming Software
  • GPS Units
    • Automotive GPS
    • Aviation GPS
    • GNSS & GIS
    • GPS/OEM Sensors & Receivers
    • Handhelds
    • Personal Locator Beacons (PLBs)
    • Satellite Messengers
    • Fitness & Wearables
      • Cycling
      • Golfing
      • Running
      • Smartwatches
    • GPS Accessories
      • Antennas
      • Batteries
      • Cases & Covers
      • Data Cards
      • Maps & Charts
      • Mounts
      • Power Supplies
      • Smartwatch Accessories
      • Traffic & XM Receivers
  • RAM Mounts
    • Arms & Connectors
    • Adapters
    • Holders & Cradles
    • Drill-Down Vehicle Mounts
    • RAM Tough-Track
    • RAM Bases
      • Aircraft Bases
      • Automotive & Flat Surface Bases
      • Motorcycle & All-Terrain Bases
      • Marine Bases
    • No-Drill Vehicle Mounts
      • Complete Vehicle Kits
      • No-Drill Vehicle Bases
      • Tele-Poles & Swing Arms
      • No-Drill Vehicle Mount Accessories
    • RAM Mount Subassemblies
      • 1.5″ Ball Subassemblies
      • Aviation RAM Mounts
      • Automotive & Flat Surface Mounts
      • Marine RAM Mounts
      • Motorcycle & All Terrain Mounts
      • Pin-Lock Security
      • Various RAM Mounts
  • Marine
    • Marine GPS & Navigation
      • Autopilots
      • Chartplotters
      • Chartplotters & Sonar Combos
      • Handhelds
      • Fishfinders
    • Charts
    • Marine Accessories
      • Marine Cameras
      • Scotty Fishing Products
    • Entertainment
    • Downriggers
    • Instruments & Sensors
    • Ice Fishing
      • Ice Augers
      • Ice Fishing Bundles
      • Ice Fishing Accessories
    • Radars
    • Remote Sounders & Black Boxes
    • Transducers
    • Trolling Motors
      • Trolling Motor Accessories
  • Tracking
    • Asset
    • Vehicle
    • Personal
      • Personal Location Beacons (PLBs)
      • Satellite Messengers
  • Metal Detecting
    • Metal Detectors
      • Gold
      • Treasure
      • Walk Throughs & Security
    • Rentals
      • Handheld Security
      • Walk Throughs
    • Metal Detecting Accessories
      • Coils, Coil Covers & Skidplates
      • Digging Tools & Scoops
      • Gold Panning Tools
      • Headphones
      • Pinpointers
      • Rods & Shafts
  • Outdoor
    • Batteries
    • Cameras
      • Backup Cameras
      • Dash Cameras
      • Marine Cameras
      • Outdoor Cameras
      • Camera Accessories
    • Dog Training
    • Motorsport Headsets
    • Hunting Scopes & Sights
    • Satellite Phones
    • Survival Products
      • Animal Deterrent Products
      • Outdoor Survival Products
      • Signal Flares & Launchers
    • Signal Boosters
    • Weather Stations & Products
  • New Arrivals
  • On Sale!
    • Refurbished
    • Bundles
    • Clearance
    • Demo
    • Rebates
  • Login
  • Newsletter
  • canada canada
    100%
    Canadian

    All prices are in CDN dollars.

  • shipping shipping
    Secure, Same Day
    Shipping!
  • contact shipping
    Call Us
    Toll Free at

    1-800-585-9331
