Glomex RA106GRPSB25 antenna

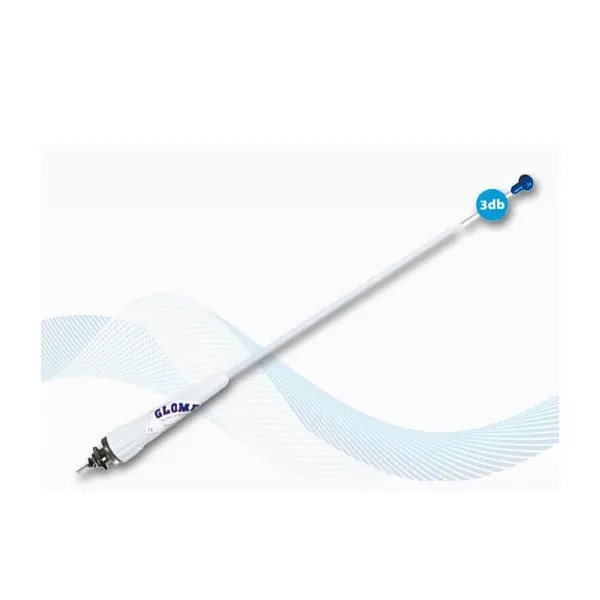

Glomex RA106GRPSB25 Fiberglass Marine VHF Antenna for Sailboat

MPN: RA106GRPSB25

$112.00

Out of Stock (On Order)

Get notified when this product is back in stock

SKU: GLO-RA106GRPSB25 Categories: ,

RA106GRPSB25 is a VHF antenna designed for sailboats with a fibreglass rod which takes advantage of white polyurethane paint, assuring a total protection of the antennas’ inside copper components.

It’s equipped with Glomex “RA106 solderless” special connector, waterproof and solderless, easing the installation.

Technical Specs of RA106GRPSB25:

  • FREQUENCY RANGE: 156/162 MHz
  • GAIN AVERAGE: 3dB
  • IMPEDANCE: 50 ohms
  • POLARIZATION: Vertical
  • SWR: ≤ 1,3 at 156,8 MHz
  • MAX INPUT POWER: 100 W
  • DC GROUND: Yes
  • ANTENNA LENGTH: 900mm/35”
  • ANTENNA WEIGHT: 180g/6,35oz
  • TERMINATION: RA106 solderless connector
Weight 2.97 lbs
Dimensions 44 × 5 × 2 in
Brand

Glomex
Manufacturer Part Number RA106GRPSB25

Package Includes

SUPPLIED ACCESSORIES with the RA106GRPSB25:

  • COAXIAL CABLE – 25m/82′ RG58ALL.
  • PL259 male nickel-plated CONNECTOR (code RA132).
  • PVC rubber protection for connector (code RA138).
  • NYLON FEED-THRU (code RA140).
  • ELECTROPOLISHED STAINLESS STEEL MASTHEAD BRACKET (code RA106BRACKINOX).
