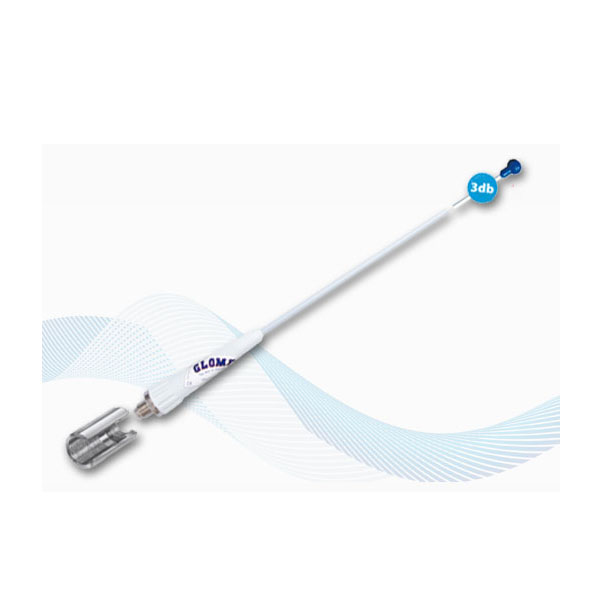

Glomex RA106GRPPB6135 VHF Marine Antenna

MPN: RA106GRPPB6135

$128.00

Due to the size of this antenna, additional shipping charges will apply.

Out of Stock (On Order)

Get notified when this product is back in stock

SKU: GLO-RA106GRPPB6135 Categories: ,

3db, 900mm (35″), Fiberglass, 4.5m (15′) Coax Cable

The RA106 series antennas are reliable and solid, ideal for any type of boat, whether a sailboat or a motorboat and for tenders as well (version RIB).

RA106GRPPB6135 is a VHF antenna designed for motorboats with fibreglass rod which takes advantage of white polyurethane paint, assuring a total protection of the antennas’ inside copper components. It’s equipped with a 4,5m coaxial cable, a 4 way nylon ratched mount, ad adaptor, a feed-thru, a Glomex “RA106 solderless” special connector, waterproof and solderless and a threaded protection.

INSTALLATION:

  • Power Boat
Weight 1.63 lbs
Dimensions 41 × 4 × 2.5 in
Brand

Glomex
Manufacturer Part Number RA106GRPPB6135

Product Specifications

TECHNICAL SPECIFICATIONS

FREQUENCY RANGE 156/162 MHz
GAIN AVERAGE 3dB
IMPEDANCE 50 ohms
POLARIZATION Vertical
SWR ≤ 1,3 at 156,8 MHz
MAX INPUT POWER 100 W
DC GROUND Yes
ANTENNA LENGHT 900mm/35”
ANTENNA WEIGHT 180g/6,35oz
TERMINATION RA106 solderless connector

Package Includes

In the Box:

  • RA106GRPPB6135 Antenna
  • 4.5m Coax Cable
  • PL259 Male Connector
  • RA138 Threaded Protection
  • RA135 4-Way Ratchet Mount
  • RA106ADAPT1X14
  • RA140 Feed-Thru
