Garrett PD 6500i Walk-through Security Metal Detector
Price range: $9,549.00 through $9,999.00
The PD 6500i leads the industry with superior pinpoint technology and unmatched discrimination features.
In stock
- Description
- Additional information
- Product Video
- Specifications
- Product Guides & Documentation
- Accessories
Please contact us for a shipping quote.
Looking to rent one for your event? Click here for rental information
The Garrett PD 6500i leads the industry with superior pinpoint technology and unmatched discrimination features. Designed for maximum throughput without compromising security, thePD 6500i is the walk-through metal detector of choice for security professionals worldwide.
Dual detection: with transmitters and receivers in each panel, the PD 6500i is the equivalent of two detectors in one. By scanning from both sides, the PD 6500i metal detectors provide superior detection, uniformity and performance.
Key Features:
- 33 pinpoint zones to precisely identify multiple target locations from head to toe on the left, center and right sides of the body.
- More than 20 standard programs for security application versatility.
- International security standards—The PD 6500i meets the world’s highest test certifications, including the following international airports:
- Dual detection:Â with transmitters and receivers in each panel, the PD 6500i is the equivalent of two detectors in one. By scanning from
both sides, the PD 6500i provides superior detection, uniformity and performance. - Advanced broadband detection technology provides superior target analysis, ferrous and non-ferrous weapons detection, discrimination and higher throughput.
- Directional counter with four settings for counting (forward, reverse, subtract in reverse, and bi-directional).
- Superior versatility: selectable settings designed for airports, courthouses, prisons, schools, facilities, special events, mass transit, loss prevention and many other applications.
- Networking ability:Â CMA provides networking, remote control, monitoring, data analysis and group management.
- Meets IP55 standards for moisture and foreign matte protection.
- Limited 24-month warranty:Â parts and labor.

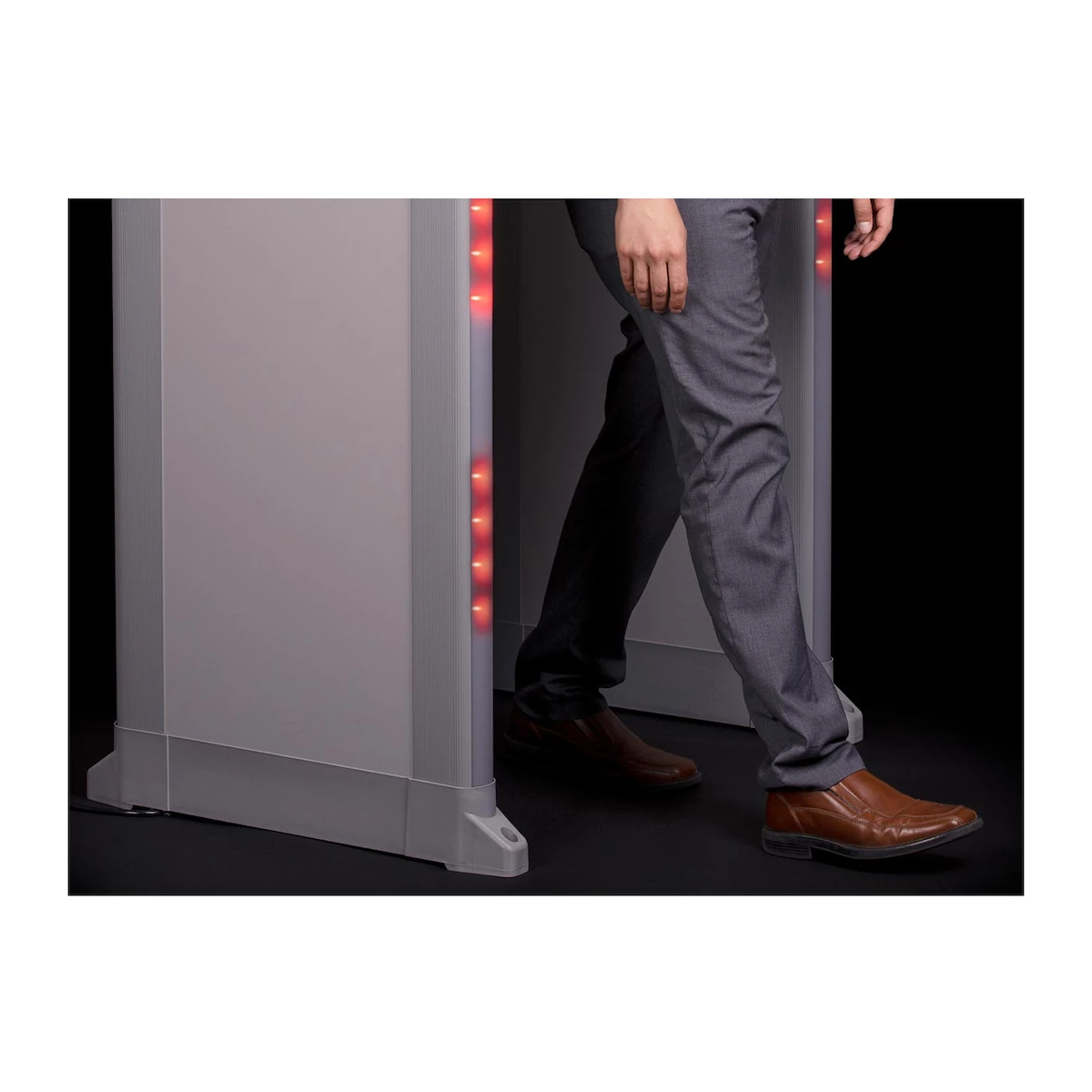

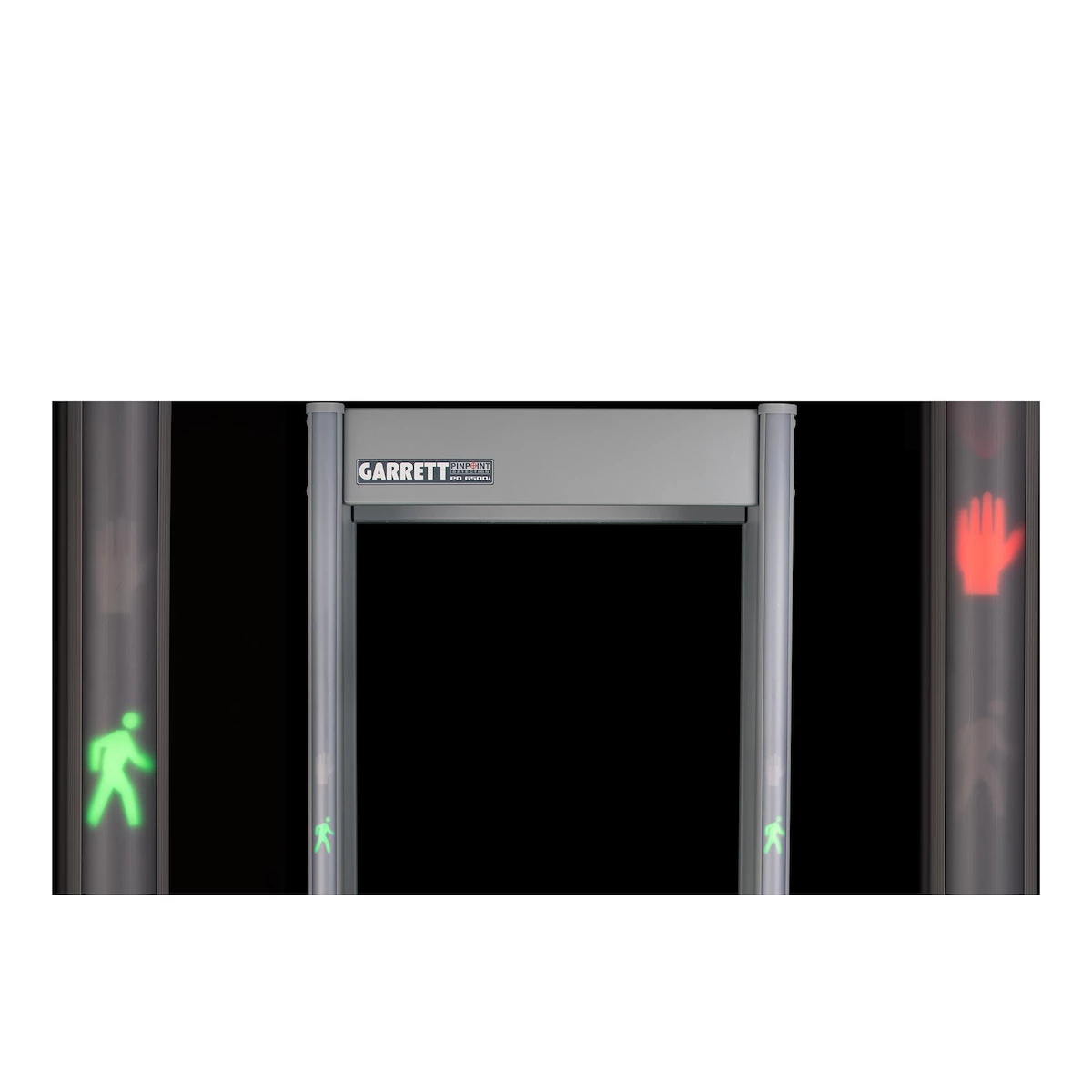

- Pacing lights at the entrance display universal “wait” and “proceed” symbols for traffic control.

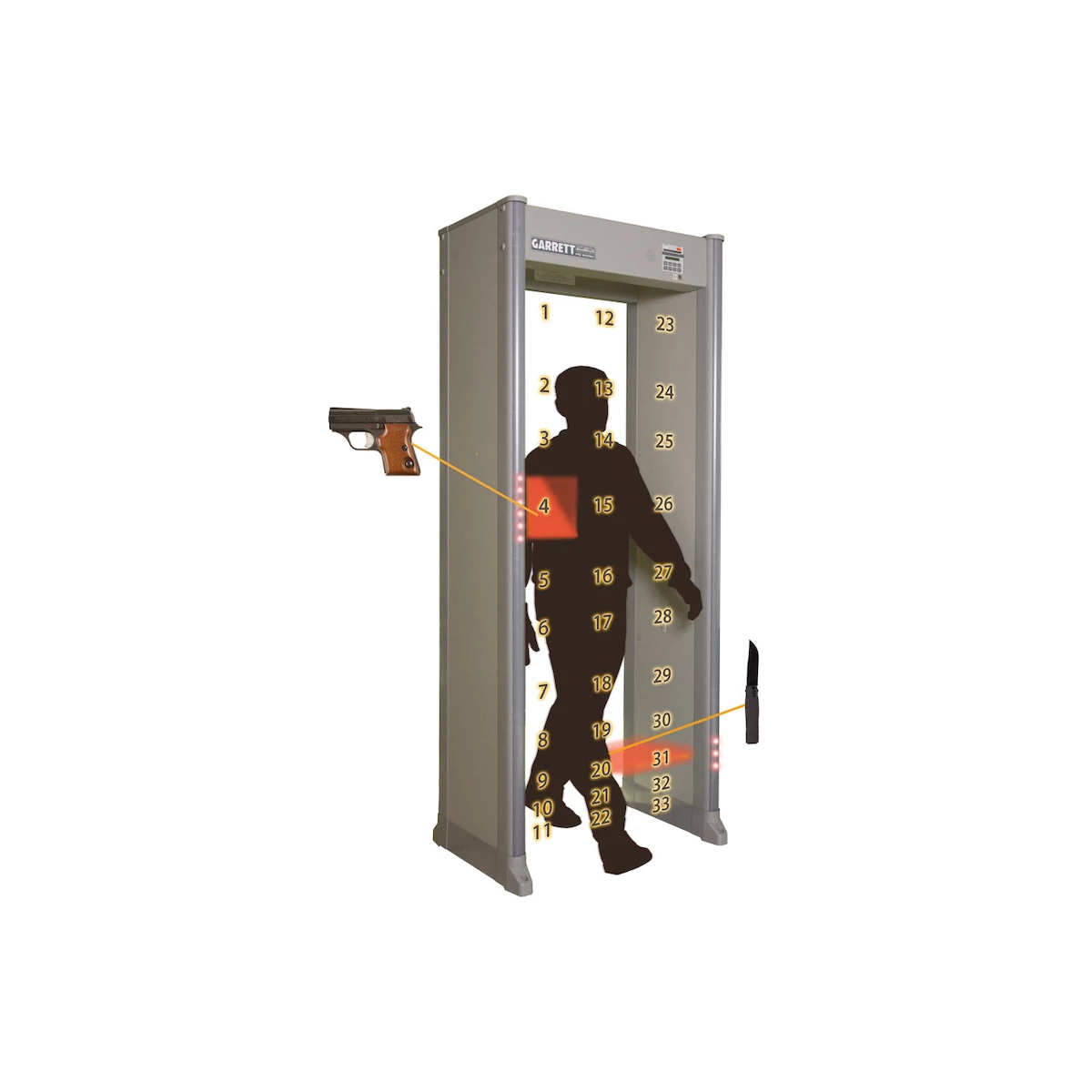

Precisely identify multiple target locations from head to toe.
Within minutes, a checkpoint can be set up, or moved to another location to meed security needs at a moment’s notice. (Shown with Caster Set and Battery Module. Both sold separately)
Garrett PD 6500i is ideal for special events use when configured with a battery module and caster set.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
Product Video
Garrett’s PD 6500i Enhanced Pinpoint Walk-Through Metal Detector
The PD 6500i leads the industry with superior pinpoint technology and unmatched discrimination features.
Specifications
Specifications:
Operating: -4° F (-20° C) to +122° F (50° C)
Humidity to 95% non condensing
Storage: -40° F (-40° C) to 158° F (70° C)
Power
Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 45 watts; no rewiring, switching or adjustments needed.
Weatherproofing / Foreign Object Protection Standards
Meets IP 55, IEC Standard. “Degrees of Protection provided by Enclosures,” IEC 529. *IP 65 optional.
Target Pinpointing Lights
Thirty-three (33) distinct zones are displayed with two (2) independent columns of LEDs located on exit side of PD 6500i
Programs
More than Twenty (20) independent programs designed to meet all installation specific requirements including ECAC requirements for European airports and TSA requirements for U.S. airports.
Multi-Unit and Multi-Brand Compatibility
2,300 selectable operating frequencies and multiple channels allow the PD 6500i to operate in close proximity to other PD 6500is as well as with non-Garrett walk-throughs
Advanced analog and digital filtering—as well as adjustable operating frequencies—eliminate the potential effects from x-ray units, radios and other electrical interference sources.
Directional Counter
Counter tracks the number of patrons that have passed through the
detector, the direction of patrons, the number of alarms and calculates alarm percentage. Four directional count settings (forward, reverse, subtraction reverse and bi-directional).
Provides ability to randomly alarm on a selected percentage of non-alarming persons; adjustable from 0 to 50 percent.
Alarms
Audible tone and volume adjustable. Bright LED visual alarm.
International symbols located at entrance.
Tamper-Proof

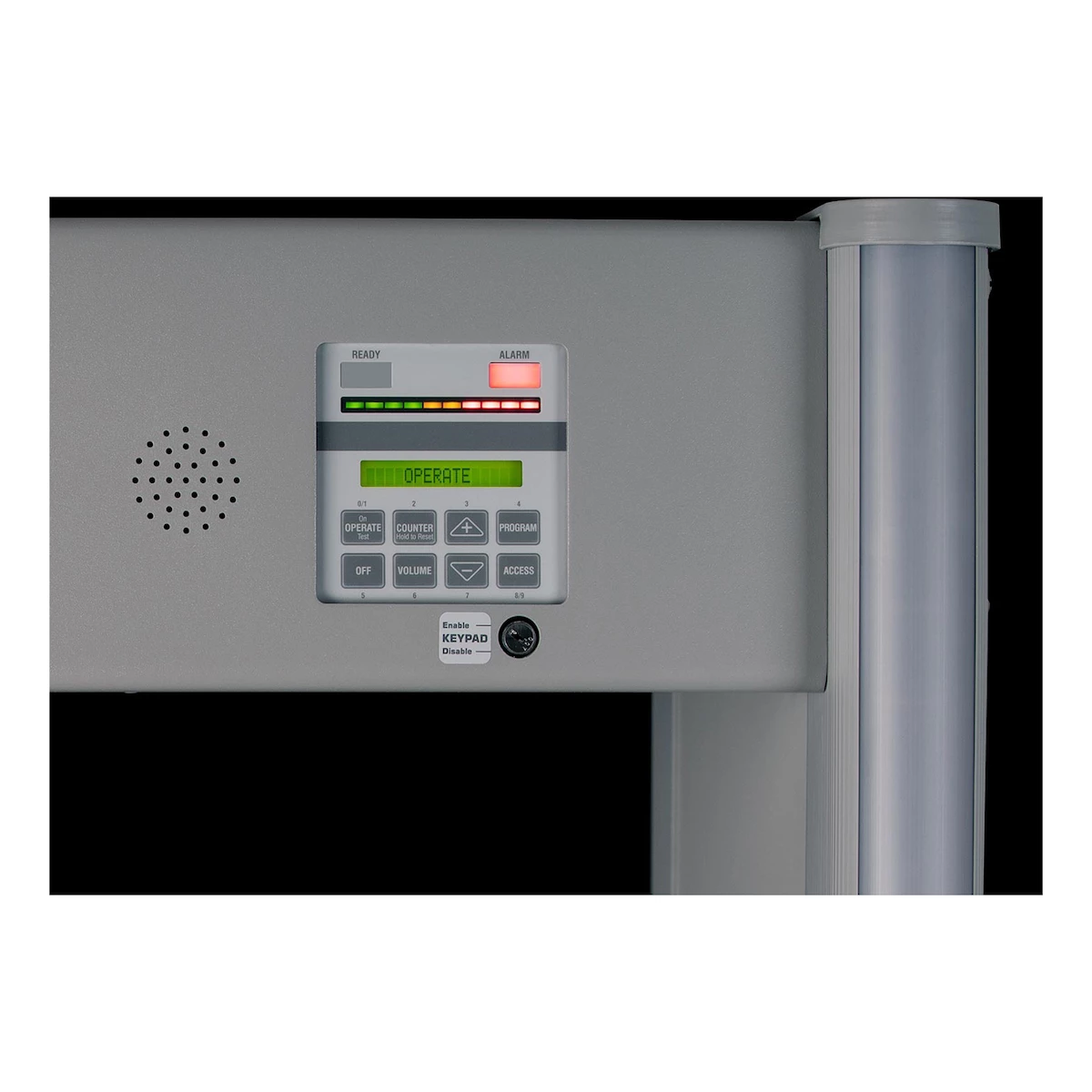

All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics.
Control Outputs
Solid state switches (low voltage AC or DC) for operating external alarms and control devices.
Construction
Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum.
Warranty
24 months, Limited parts and labor
|
Passageway Interior Size
|
|
Width 30″ (0.76 m); Â 32.5″ (0.83 m) in ADA version
|
|
Height 80″ (2.03 m)
|
|
Depth 23″ (0.58 m)
|
|
Overall Exterior Size
|
|
Width 35″ (0.90 m)
|
|
Height 87″ (2.21 m)
|
|
Depth 23″ (0.58 m)
|
|
Shipping Size
|
|
Width 35.5″ (0.90 m)
|
|
Height 91.5″ (2.32 m)
|
|
Depth 6.25″ (.16 m)
|
|
Weight:Â 143 lbs. (64 kg)
|
|
Shipping Weight:Â 165 lbs. (74 kg)
|
