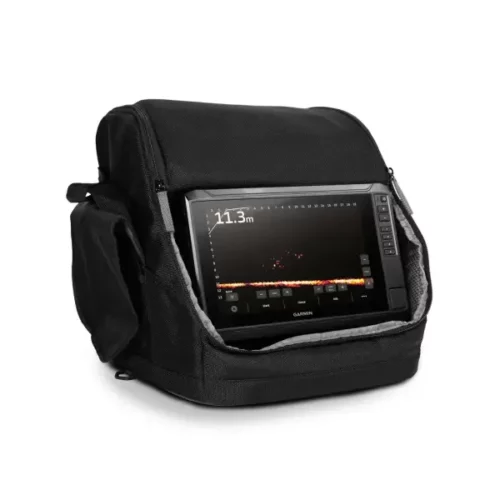

Garmin LiveScope Plus Ice Fishing Bundle LI with ECHOMAP UHD2 95sv
$4,789.99
You can also consider our Garmin ECHOMAP UHD2 95sv LiveScope (LVS32-IF) & Dakota Lithium Ice Fishing Bundle or the Garmin LiveScope Plus (LVS34-IF) Ice Fishing Kit with ECHOMAP UHD2 95sv & Dakota LI Battery Bundle .

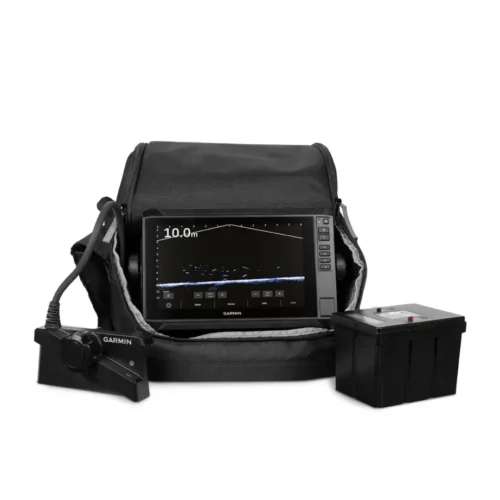

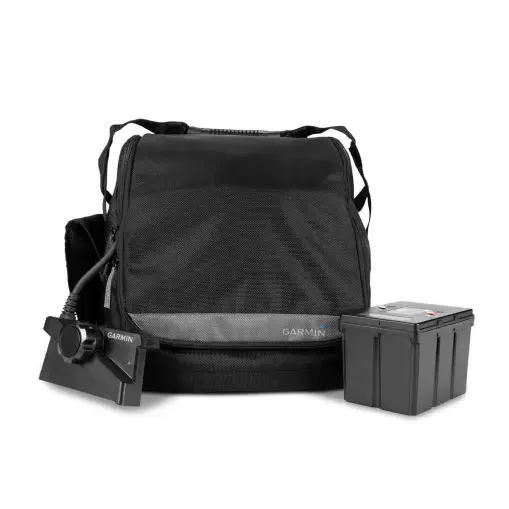

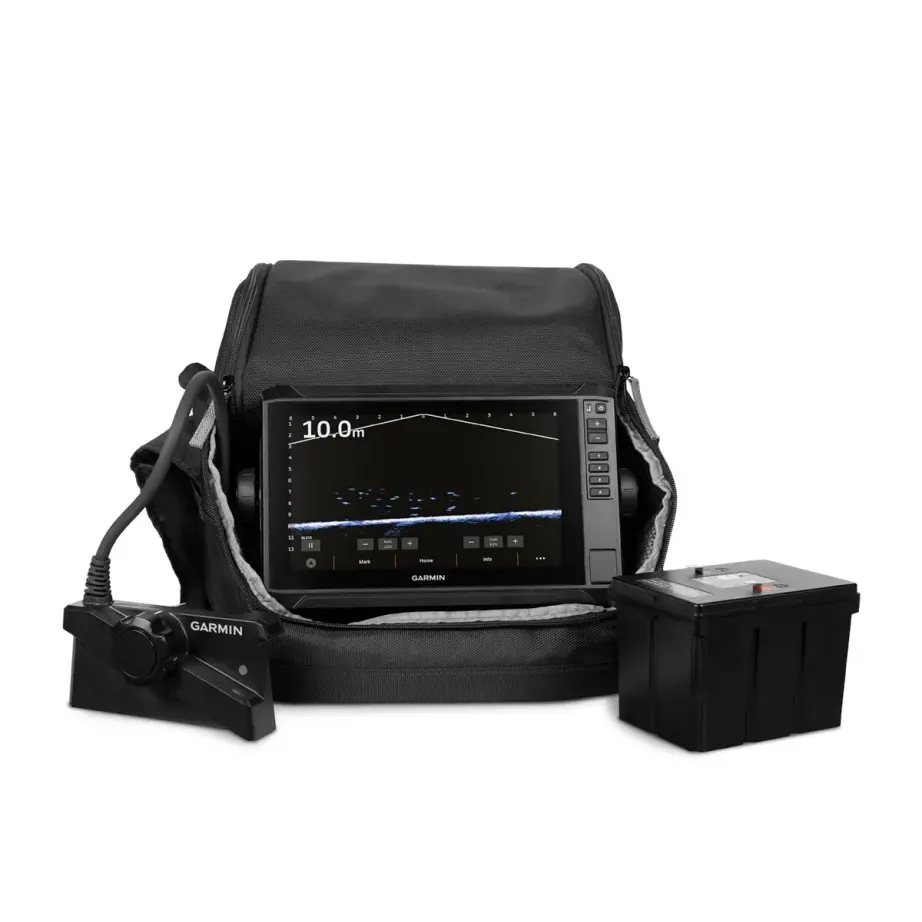

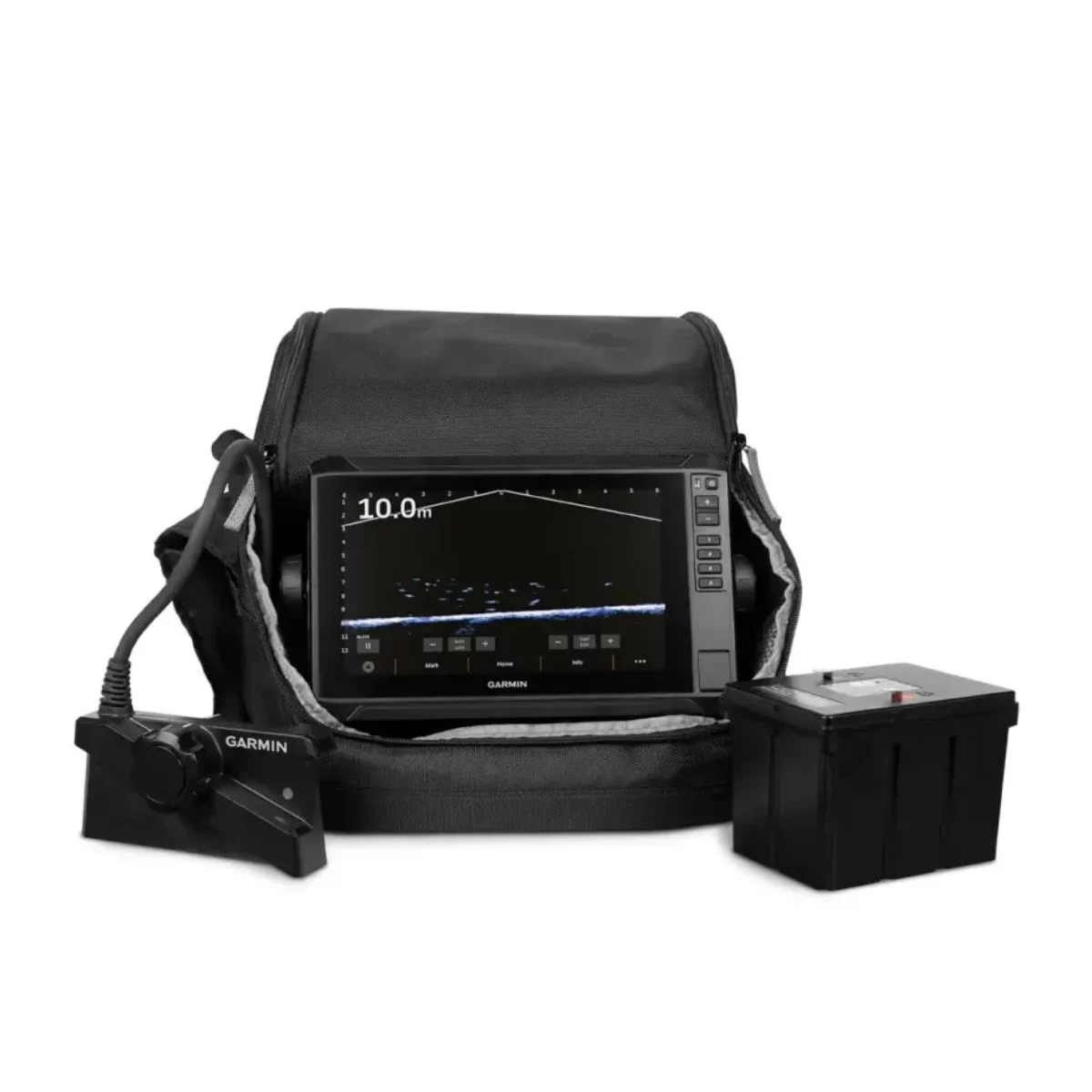

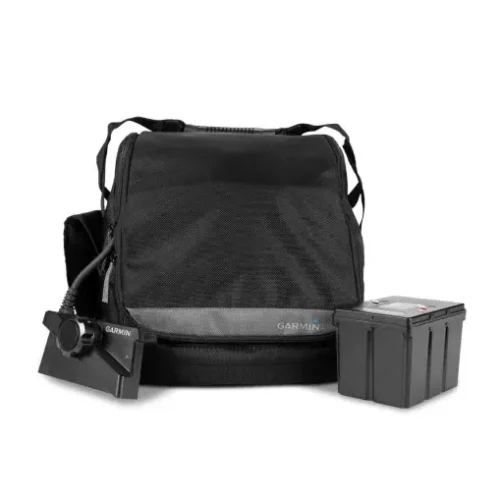

Includes ECHOMAP UHD2 95sv, LiveScope Plus System & Lithium-ion Battery
In stock
The best of the best just broke new ice with the LiveScope Plus Ice Fishing Bundle LI. Revolutionary LiveScope sonar technology offers improved resolution, reduced noise, clearer images and better target separation in LiveScope Forward mode and LiveScope Down mode, which allow you to see up to 200’ in any direction. The bundle includes the ECHOMAP UHD2 95sv touchscreen combo, complete LiveScope Plus System with LVS34-IF transducer, swivel pole mount and a lightweight lithium battery for the power to fish all day.

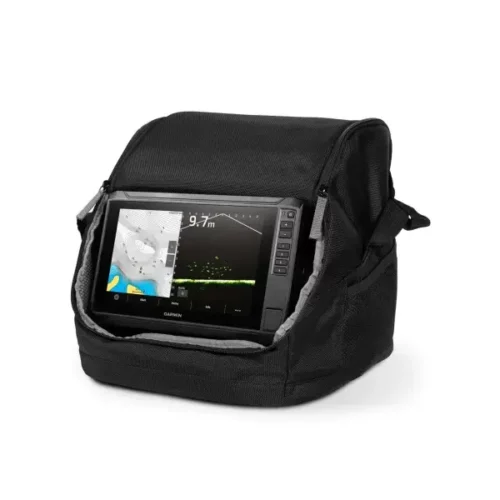

ECHOMAP UHD2 COMBO
Revolutionary real-time sonar pairs with a large 9-inch ECHOMAP UHD2 combo touchscreen display with keyed assist, allowing you to see up to 200’ in any direction.
TWO MODES, ONE TRANSDUCER
The LiveScope System offers two live-scanning sonar modes — Down and Forward. It features a transducer cable that stays flexible, even in freezing conditions
GARMIN NAVIONICS+ MAPS
Get preloaded Garmin Navionics+ maps for exceptional detail on Canadian inland and offshore waters.

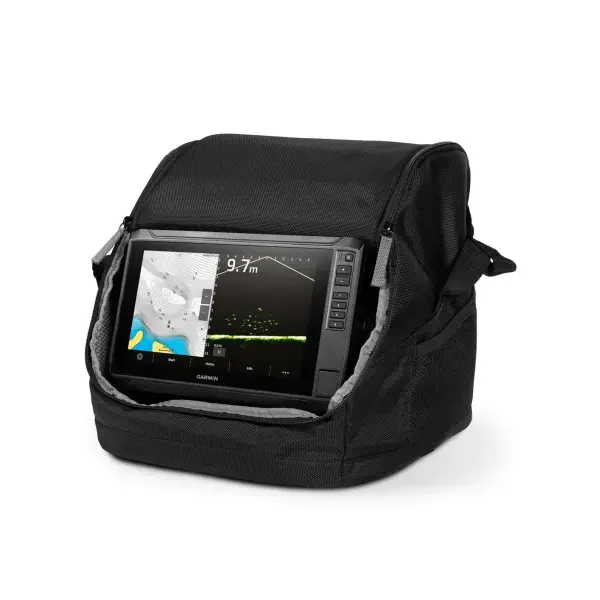

CUSTOM COMBOS
You can create custom pages that combine sonar, flasher and map on your display.
LITHIUM BATTERY
Fish even longer with a lightweight 16.5Ah lithium battery that won’t weigh you down on the ice.
LIVESCOPE FORWARD
LiveScope Forward sonar shows up to 200’ all around you and below the ice, so you can locate schools of fish and know where to drill the next hole.
LIVESCOPE DOWN
LiveScope Down sonar shows live sonar images of what is below the ice, so you can watch fish respond to your jig.

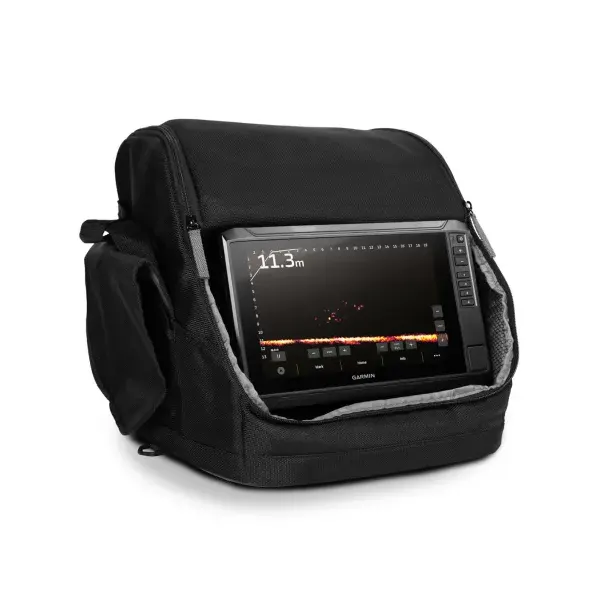

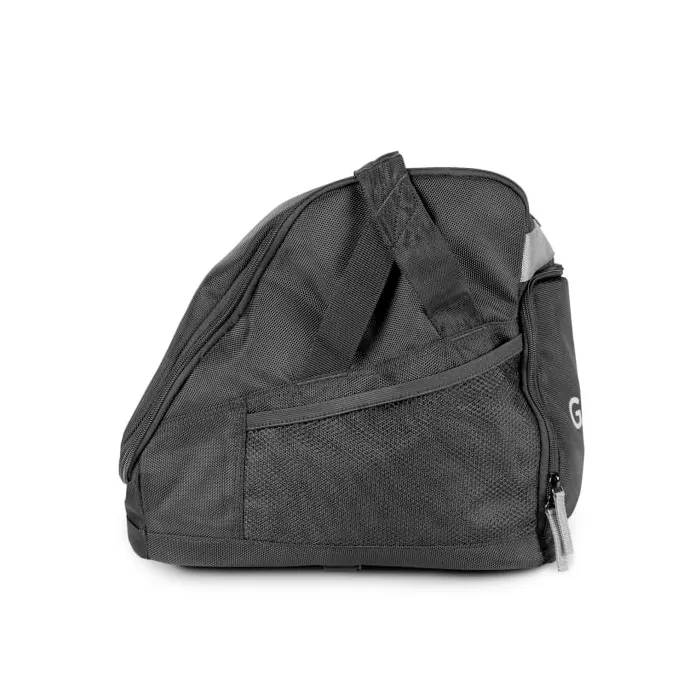

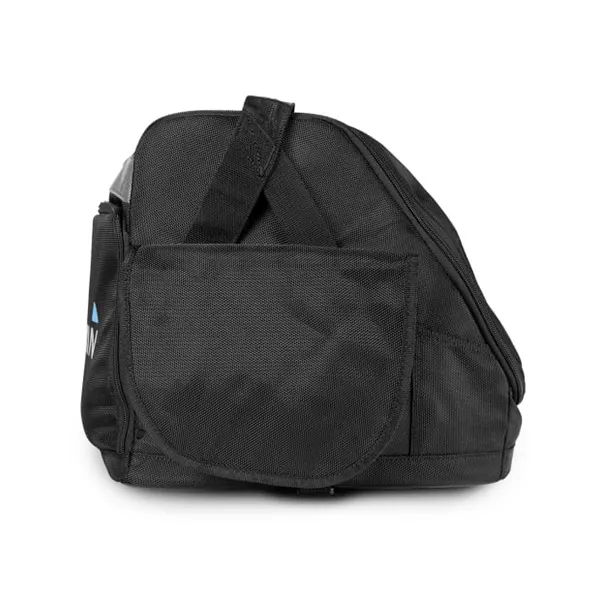

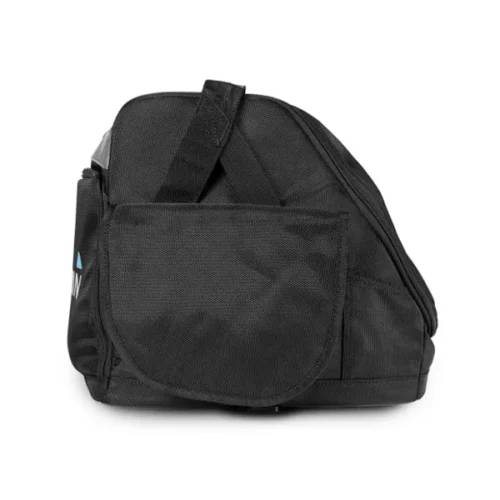

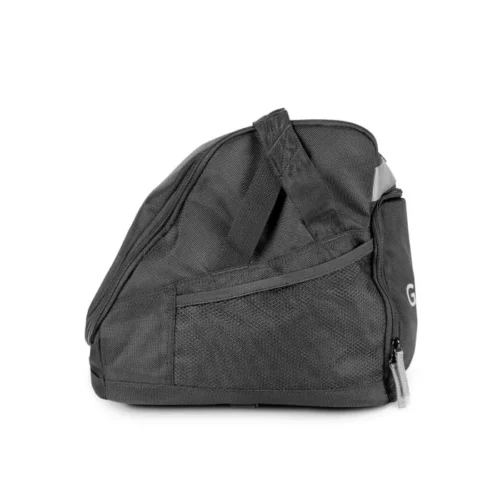

CARRYING CASE
Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season.
| Weight | 32 lbs |
|---|---|
| Dimensions | 20 × 15 × 18 in |
| Brand | Garmin |
| Preloaded Maps | Garmin Navionics+ |
| Screen Size | 9" |
Specifications
Garmn LiveScope Plus Ice Fishing Bundle LI with ECHOMAP UHD2 95sv Specs
General |
|
| Dimension | 13.8″ Ă— 12.2″ Ă— 13.0″ (35 Ă— 31 Ă— 33 cm) |
|---|---|
| Touchscreen | âś” |
| Input | Touchscreen with Keyed Assist |
| Display Size | 7.8″ x 4.5″, 9.0″ (19.8 x 11.5, 22.9 cm) |
| Display Resolution | 1024 x 600 pixels |
| Display Type | WSVGA, TN |
| Weight | 22.5 lbs (10.2 kg) |
| Waterproof | IPX7 |
Maps & Memory |
|
| Accepts Data Cards | 1 microSD™ card; 32 GB maximum size |
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Ice Fishing Details |
|
| Battery type, size | Lithium-ion, 16.5Ah |
| Bag size | Extra Large (XL) |
| Included transducer | LiveScope™ Plus System with LVS34-IF |
| Transducer holding feature | Pole mount |
Sensors |
|
| Has built-in receiver | âś” |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | âś” |
| GPS | âś” |
| GLONASS | âś” |
| Galileo | âś” |
| BeiDou | âś” |
| Supports WAAS | âś” |
| Supports multi-band, multi-constellation GPS | âś” |
Built-in Maps |
|
| Built-in Auto Guidance+ | yes (downloadable via ActiveCaptain app) |
| Garmin Navionics+ Inland & Coastal | yes for Canada |
Optional Map Support |
|
| Garmin Navionics+™ | ✔ |
| Garmin Navionics Vision+™ | ✔ |
| TOPO | âś” |
| Standard Mapping | âś” |
| Garmin Quickdraw Contours | âś” |
Chartplotter Features |
|
| ActiveCaptain® compatible | yes |
Electrical Features |
|
| Power Input | 9 to 18 Vdc |
Sonar Features & Specifications |
|
| Displays sonar | âś” |
| Power output | 500 W |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVĂĽ | built-in 260/455/800/1000/1200 kHz |
| SideVĂĽ | built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | ✔ |
| LiveScope | âś” |
Connections |
|
| NMEA 2000® ports | ✔ |
| Garmin Marine Network Ports | 1 |
| 12-pin transducer ports | 1 |
| BLUETOOTH® pairing | ✔ |
| ANT+ (Connectivity) | âś” |
| Garmin Wi-Fi network (local connection) | âś” |
Package Includes
In the Box:
- ECHOMAP™ UHD2 95sv chartplotter
- LVS34-IF transducer
- GLS™ 10 sonar module
- Ice fishing pole mount
- Tilt mount
- Power cable
- Portable fishing bag with handle
- Lithium-ion battery
- Battery charger
- Documentation
