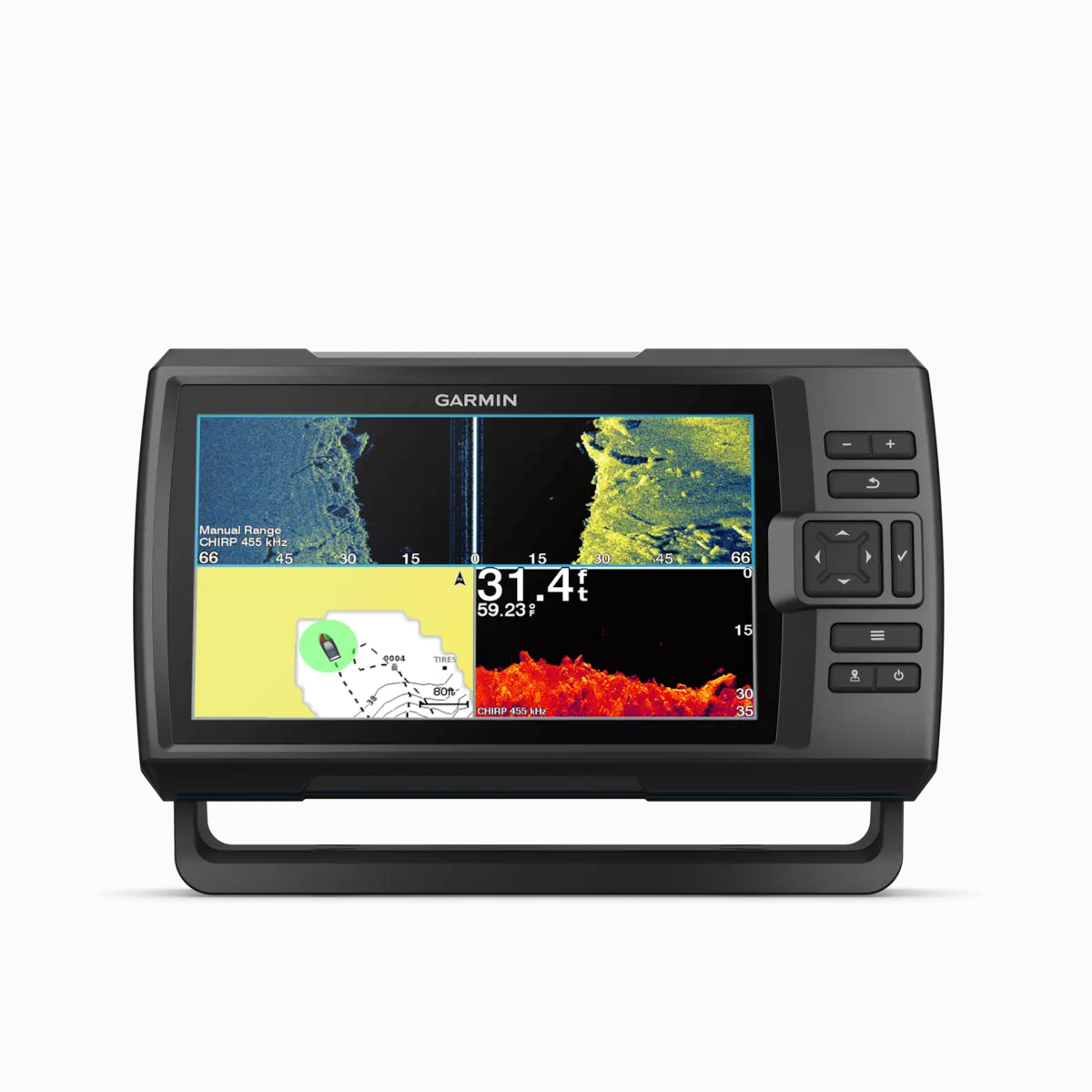

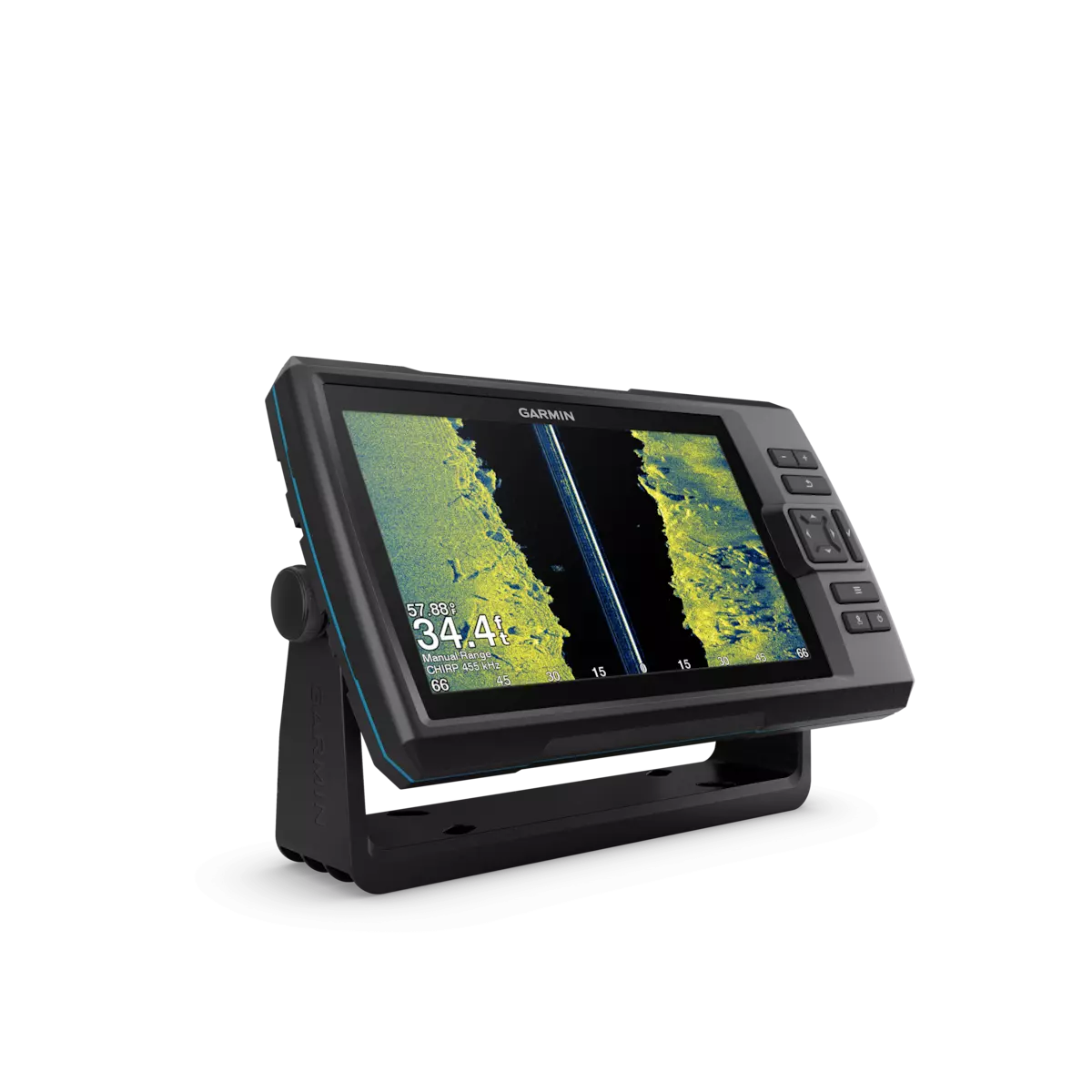

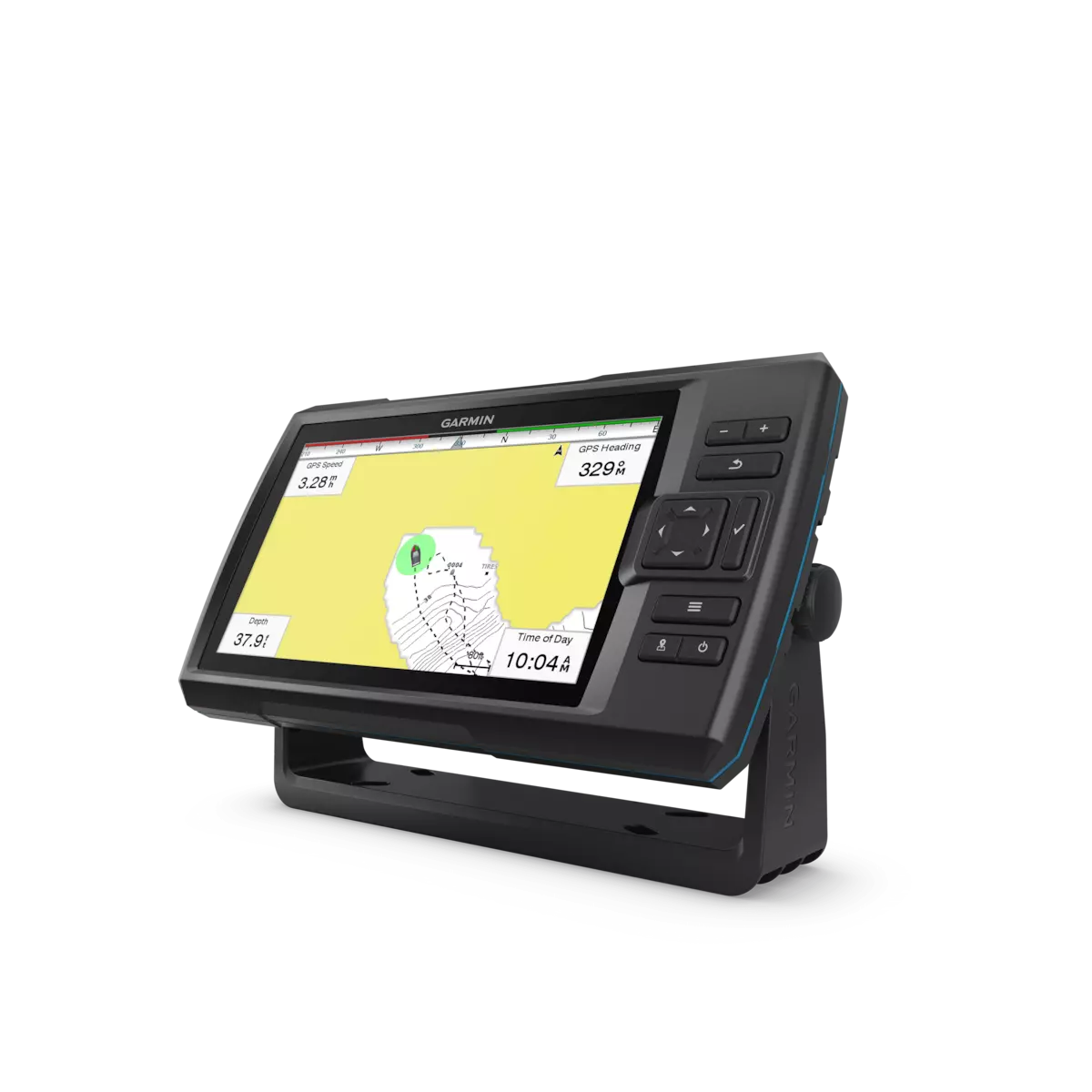

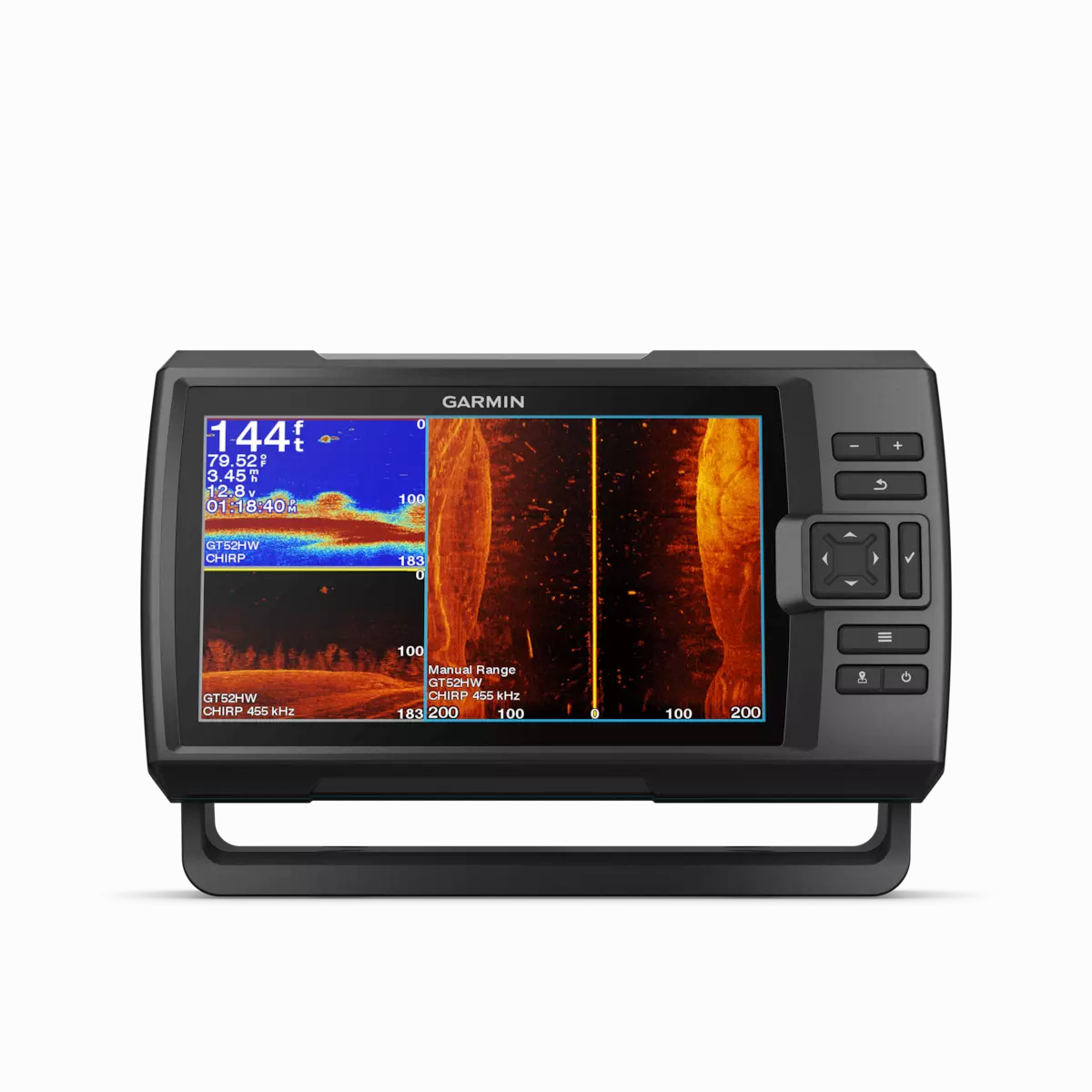

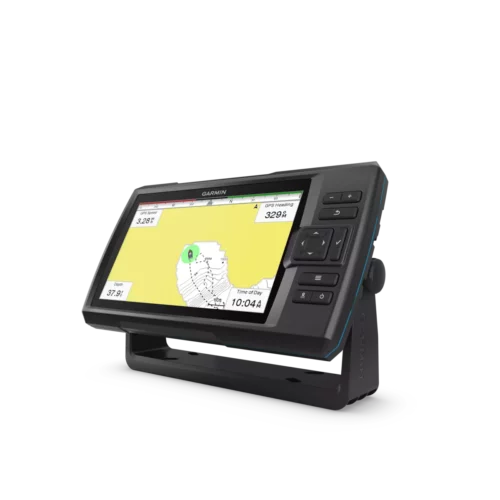

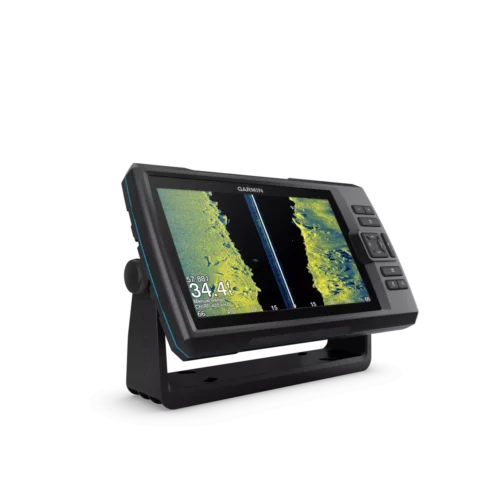

Garmin STRIKER Vivid 9sv
$899.99
See what’s beneath the surface in clear, colorful detail with this 9” fishfinder with transducer.
In stock
- Description
- Additional information
- Product Video
- Specifications
- Package Includes
- Product Guides & Documentation
- Accessories
SEE FISH AND STRUCTURE IN COLORFUL DETAIL
With the Garmin STRIKER Vivid 9sv, you can see fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 9sv fishfinder with transducer.

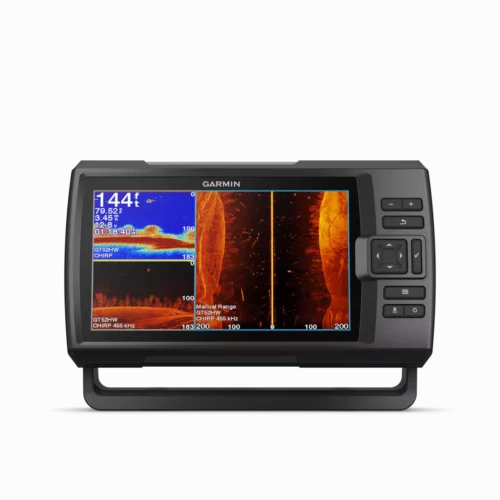

CLEAR, COLORFUL SONAR
Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 9 ” fishfinder.
BUILT-IN SONAR
Use the included GT52 transducer to get Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars.
WAYPOINT MARKING
To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.
HIGH-SENSITIVITY GPS
Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.
QUICKDRAW CONTOURS
Nobody knows the waters you fish better than you. With the Garmin STRIKER Vivid 9sv fishfinder, you can store up to 2 million acres of maps with 1’ contours.
WI-FI CONNECTIVITY
Connect to the ActiveCaptain app¹ to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw™ Community.
INCLUDED HARDWARE

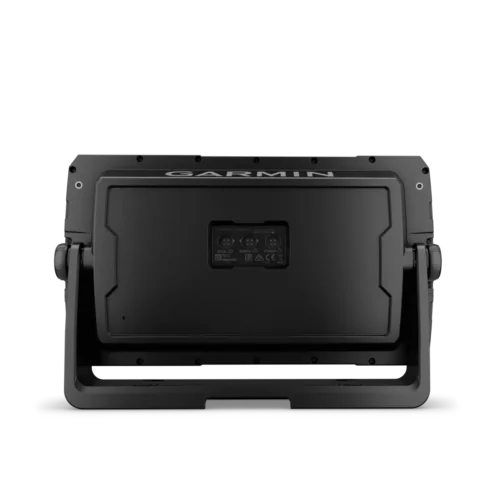

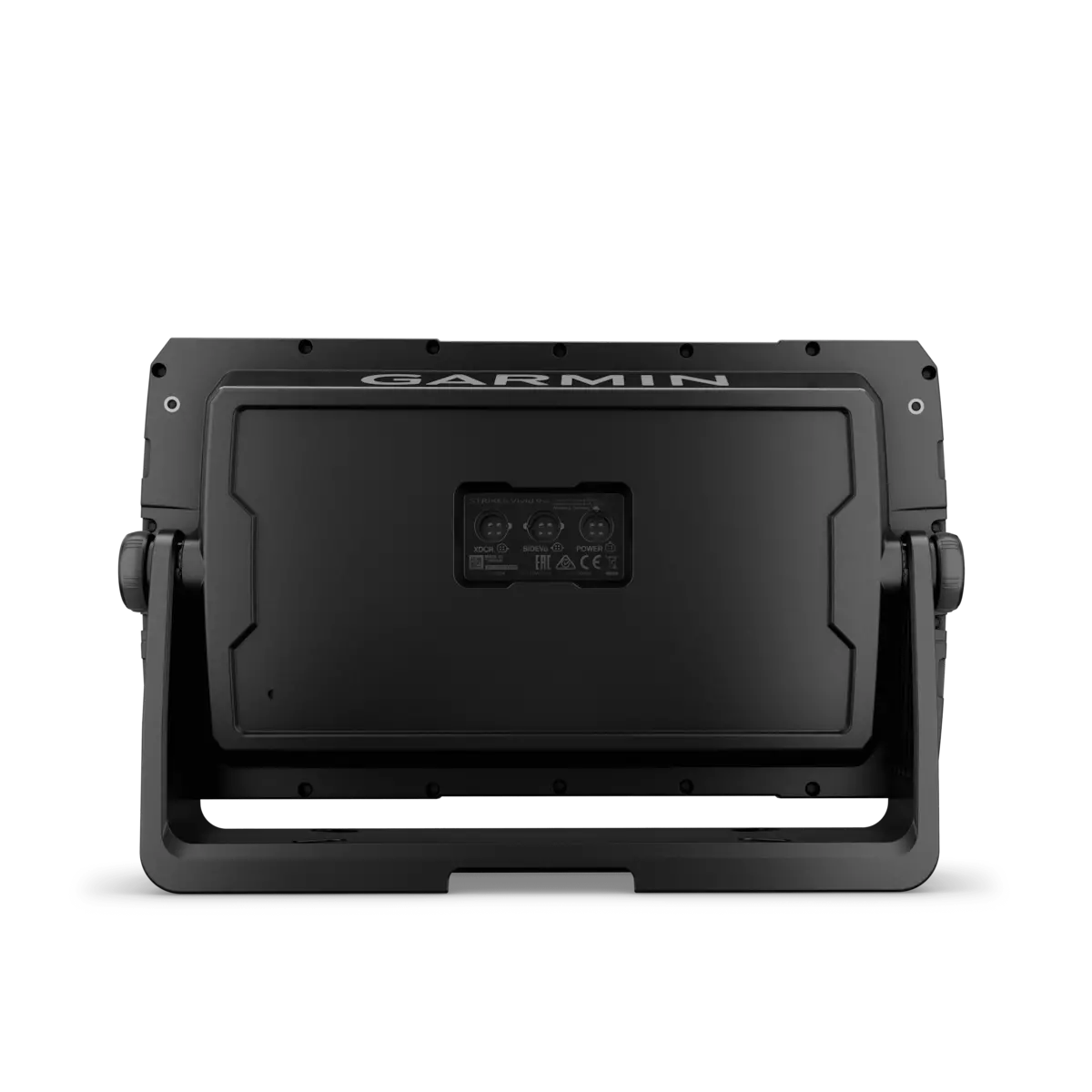

The STRIKER Vivid 9sv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.
¹Requires ActiveCaptain app on your compatible smartphone paired to the STRIKER Vivid 7cv fishfinder; see Garmin.com/ble
| Weight | 6.47 lbs |
|---|---|
| Dimensions | 13.25 × 8.25 × 10 in |
| Brand | Garmin |
Product Video
Specifications
Garmin STRIKER Vivid 9sv Specs
General |
|
| DIMENSION | 11.1” x 6.5” x 2.4” (28.2 x 16.5 x 6.0 cm) |
|---|---|
| INPUT | Keyed |
| DISPLAY SIZE | 4.4″ x 7.8″ (11.2 x 19.8 cm); 9.0″ diag (22.8 cm) |
| DISPLAY RESOLUTION | 800 x 480 pixels |
| DISPLAY TYPE | WVGA color |
| WEIGHT | 2.4 lbs (1.1 kg) |
| WATERPROOF | IPX7 |
| MOUNTING OPTIONS | flush, tilt/swivel |
Maps & Memory |
|
| WAYPOINTS/FAVORITES/LOCATIONS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 |
| NAVIGATION ROUTES | 100 |
Sensors |
|
| HAS BUILT-IN RECEIVER | âś” |
| RECEIVER | Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVĂĽ and SideVĂĽ 260/455/800 kHz |
| GPS | âś” |
| SUPPORTS WAAS | âś” |
Optional Map Support |
|
| GARMIN QUICKDRAW CONTOURS | âś” |
Sonar Features & Specifications |
|
| DISPLAYS SONAR | âś” |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | Built-in |
| CLEARVĂś | âś” |
| (SOUNDER) SIDEVĂś | âś” |
| FREQUENCY | Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVĂĽ and SideVĂĽ 260/455/800 kHz |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) | âś” |
| WATER TEMPERATURE LOG | âś” |
Connections |
|
| 4-PIN TRANSDUCER PORTS | 2 |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | âś” |
Electrical Features |
|
| POWER INPUT | 12 to 20 Vdc |
| TYPICAL CURRENT DRAW | 0.75 A |
| MAX CURRENT DRAW | 1.5 A |
| POWER CONSUMPTION | 9.0 |
| TRANSMIT POWER | 500 W (RMS) |
Fishfinder Features |
|
| SPLIT-SCREEN ZOOM | âś” |
| FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS) | âś” |
| AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER; MAXIMIZES TARGETS) | âś” |
| ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS) | âś” |
| A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM) | âś” |
| WATER TEMPERATURE SENSOR INCLUDED | âś” |
| DEPTH RANGE SHADING | âś” |
Package Includes
In the Box:
- STRIKER Vivid 9sv fishfinder
- GT52HW-TM transducer
- Power/data cable
- 12-pin to dual 4-pin transducer adapter cable

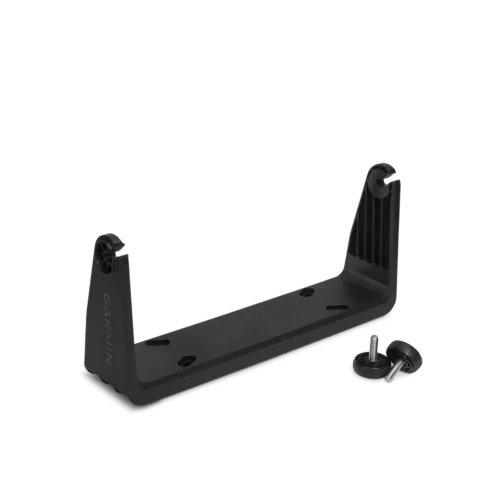

- Tilt mount
- Hardware
- Garmin bumper sticker
- Documentation
