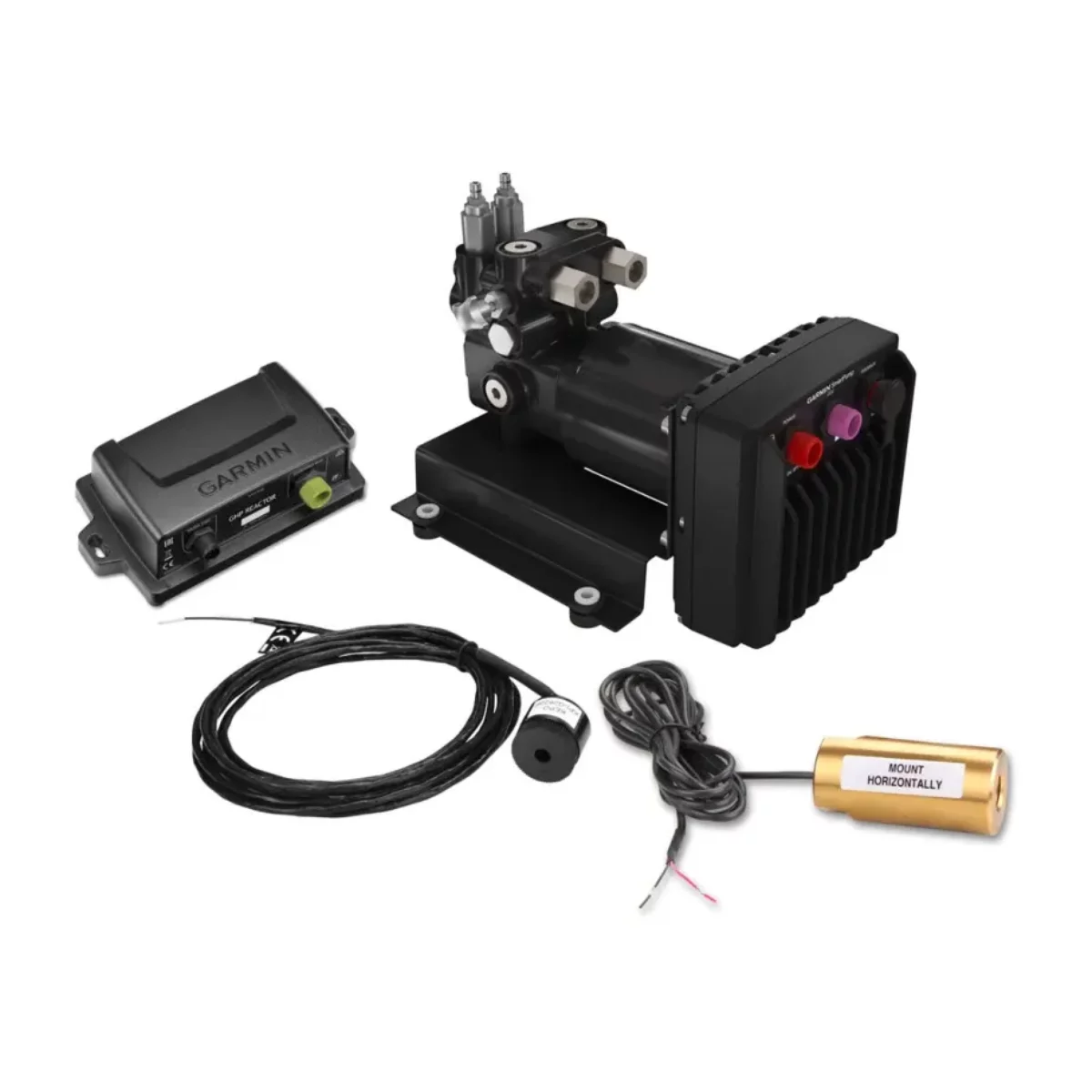

Garmin Reactor 40 Hydraulic Corepack with SmartPump v2

Name: Garmin Reactor 40 Hydraulic Corepack with SmartPump v2 – GPS Central
SKU: GAR-0070578
Availability: InStock

MPN: 010-00705-78

$5,659.99

Designed for powerboats, this Reactor 40 hydraulic corepack with SmartPump gives you the extra hand you need, so you can explore paradise worry-free.

Out of Stock (On Order)

SKU: GAR-0070578 Categories: Autopilot, Marine

COREPACK COMPATIBILITY

This corepack’s compact, brushless SmartPump fits most sailboats and powerboats with a hydraulically steered boating system. It requires a compatible Garmin chartplotter or GHC autopilot instrument.

SMARTPUMP V2

The SmartPump v2 is a one-size-fits-most solution that provides optimal control and confidence on the water. Plus, gain better thermal performance, higher reliability and lower power consumption.

SOLID-STATE 9-AXIS AHRS

With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimizes heading error and more.

REACTS TO WATER CONDITIONS

Hold your course on the sea — this autopilot reacts to conditions, so you can remain confident even when you’re pitching or rolling.

SIMPLE CALIBRATION

All autopilots require commissioning and calibration. Reactor 40 makes it quick and easy.

SHADOW DRIVE™ TECHNOLOGY

Gain more freedom when maneuvering your boat. This corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when you turn the wheel.

WIRELESS REMOTE CAPABILITIES

Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix marine smartwatches and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).

OPTIONAL GHC 50 BUNDLE

Combine the Reactor 40 corepack with the GHC 50 autopilot instrument to add a dedicated, touchscreen autopilot display to your helm. Plus, GHC 50 allows you to share data and settings with Garmin MFDs and other installed Garmin devices.

POWERBOAT AND SAILING FEATURES

When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately). You can even gain additional benefits such as the follow route and Auto Guidance+™ features¹.

¹Auto Guidance is for planning purposes only and does not replace safe navigation operations

Weight	24 lbs
Dimensions	21 × 17 × 12 in
Brand	Garmin
Manufacturer Part Number	010-00705-78

Specifications

Garmin Reactor 40 Hydraulic Corepack with SmartPump v2 Specs

Dimensions (H x W x D): 7 3/4″ x 7 1/2″ x 9 5/8″ (197 mm x 190 mm x 244 mm)
Weight: 16.5 lbs (7.5 kg)
Temperature range: From 5°F to 131°F (from -15°C to 55°C)
Material: Electronics Control Unit (ECU) – fully gasketed, aluminum alloy; bracket – carbon steel; manifold – aluminum alloy; motor – aluminum alloy
Power cable length: 9 ft (2.7 m)
Power input: 11.5-30 Vdc
Fuse: 40 A, blade-type
Main power usage: standby – less than 1 A; engaged – 5-10 A; peak – 34 A
Flow rate: Configurable from 0 to 2.4 L per minute
Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in

CCU Specifications

Dimensions: 3 19/32″ diameter (91.4 mm)
Weight: 5.6 oz (159 g)
Temperature range: From 5°F to 131°F (from -15°C to 55°C)
Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
CCU cable length: 9.5 ft (3 m)
NMEA 2000 power input: 9-16 V
NMEA 2000 LEN: 3 (150 mA)
