Garmin LiveScope Plus Ice House System
$6,819.99
Upgrade your on-ice experience with the GPSMAP 8610xsv chartplotter, LiveScope Plus System and everything else you’ll need to catch more fish.
Out of Stock (On Order)
Get notified when this product is back in stock

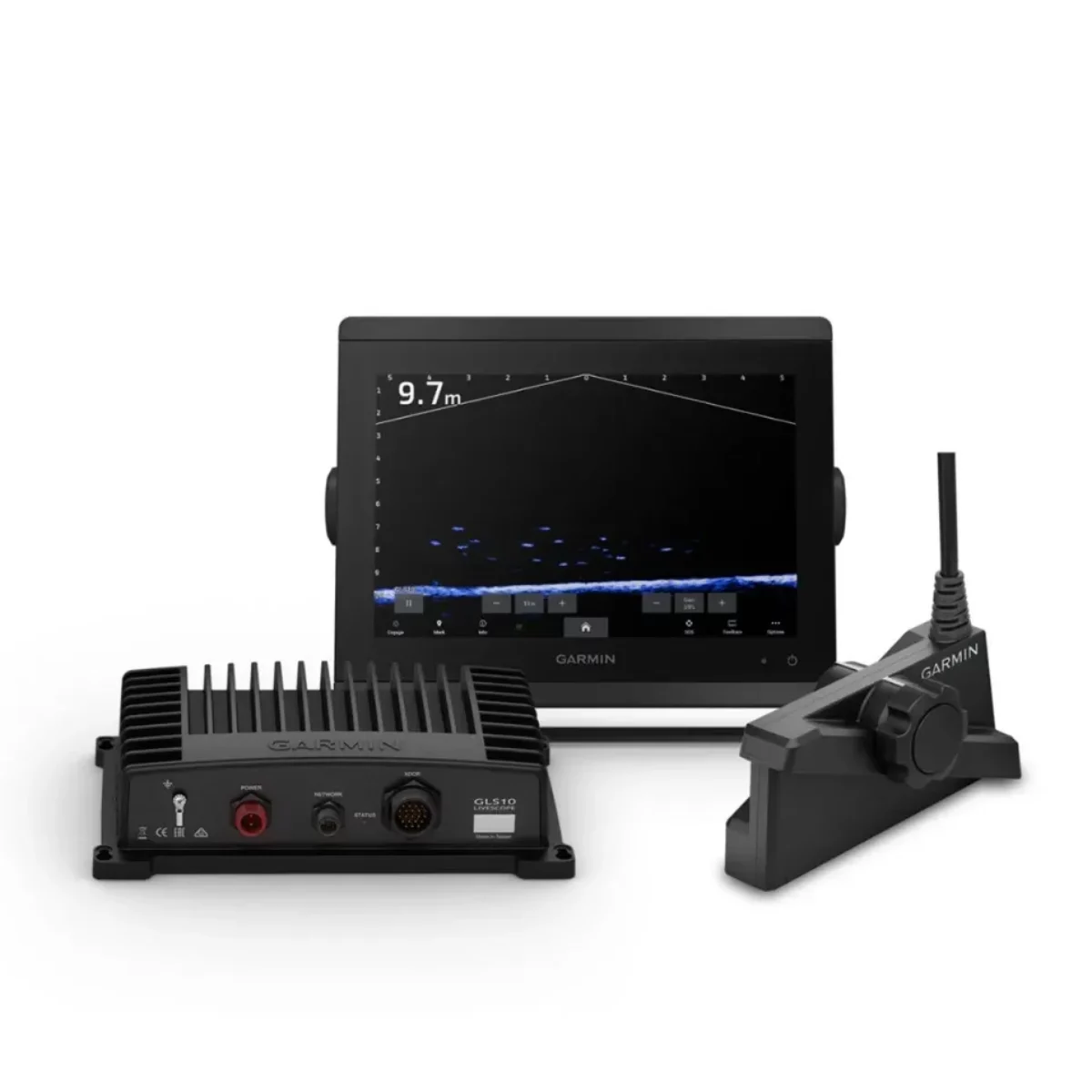

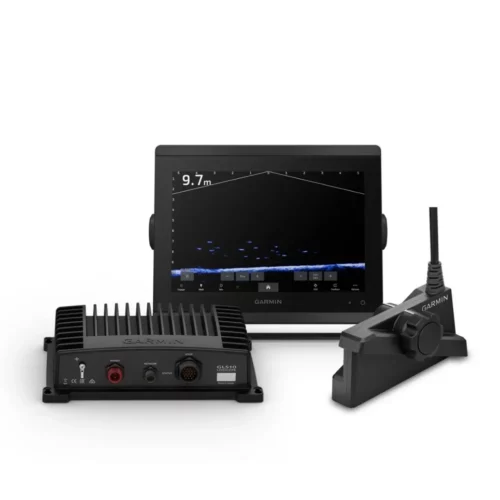

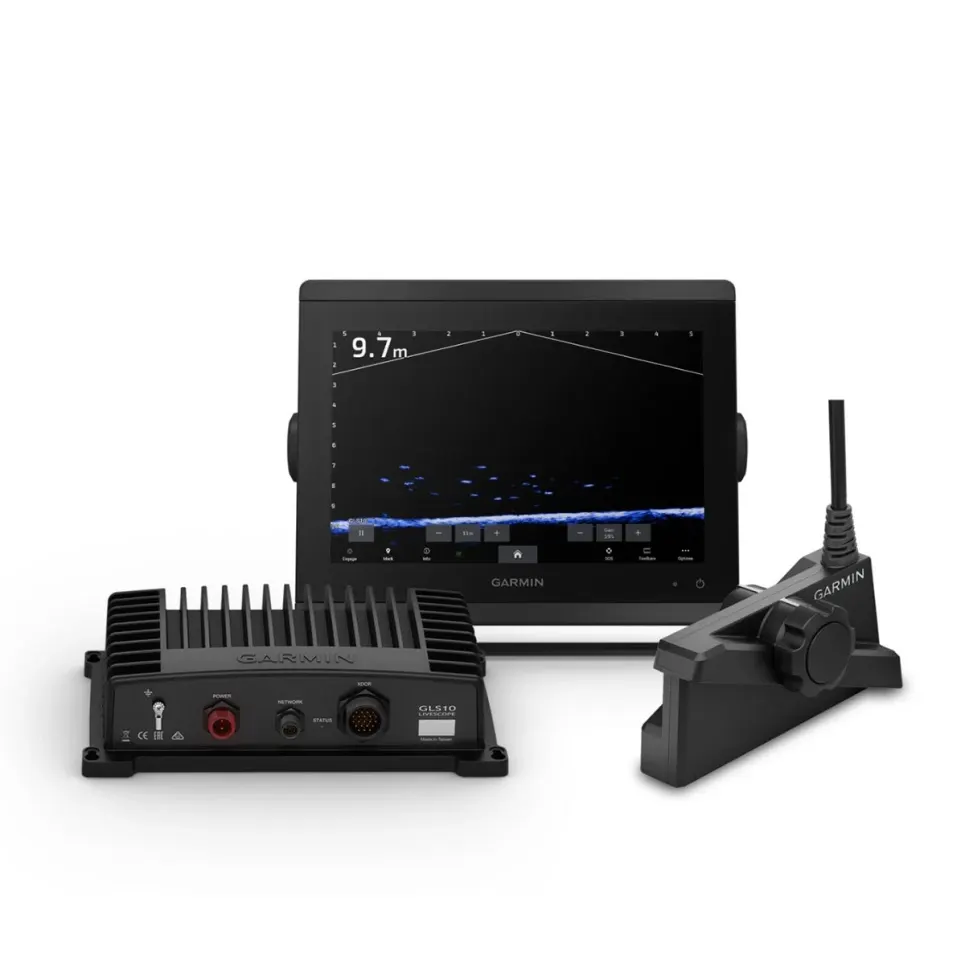

Outfit your ice house with the LiveScope Plus Ice House System. Featuring the GPSMAP 8610xsv chartplotter, this device has a 10” touchscreen display and an HDMI output, so you can display live sonar on a TV or external display. The bundle includes a Panoptix ice fishing pole mount, LVS34-IF transducer and a GLS 10 sonar black box. You also get built-in Garmin Navionics+ coastal and inland mapping with more than 23,000 lakes, so you’ll have coverage whether you’re on the ice or fishing in the open water.
GPSMAP 8610xsv
This chartplotter features a 10” full HD IPS display with touchscreen and HDMI output, so you can display sonar on your TV or external display.
ICE HOUSE SYSTEM

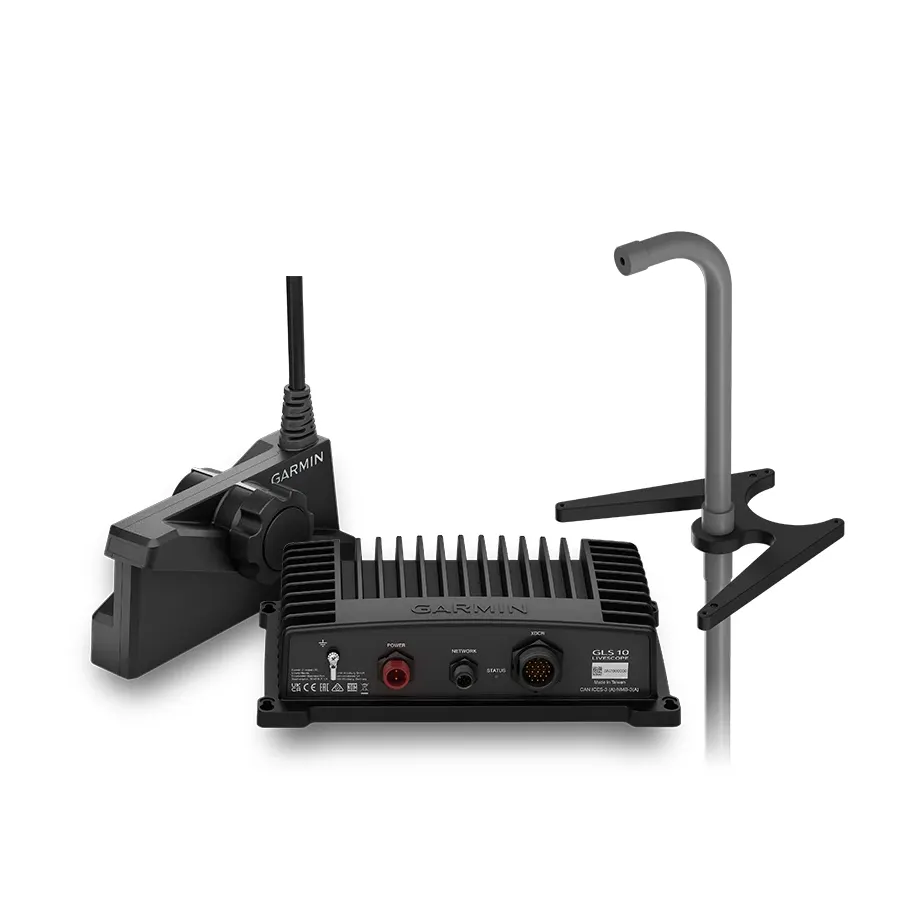

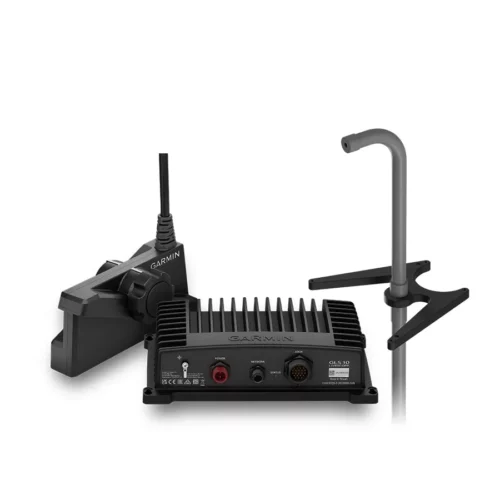

Get a GLS 10 sonar black box with swivel pole mount and an LVS34-IF transducer, which features a transducer cable that stays flexible — even in freezing conditions.
LIVESCOPE MODES
With an included 0-degree pole mount, the transducer can quickly switch between LiveScope Forward and LiveScope Down modes to adapt to your fishing technique.
GARMIN NAVIONICS+ MAPPING
Get coverage for more than 25,000 lakes with preloaded coastal and inland mapping for U.S. and Canada.
CUSTOM COMBOS
Create custom pages that combine sonar and maps on your display.
BUILT-IN SONAR
See below and around your boat with built-in sonar capabilities, whether you’re on the ice or the open water.
| Weight | 15.4 lbs |
|---|---|
| Dimensions | 22 × 17 × 12.3 in |
| Brand | Garmin |
| Preloaded Maps | Garmin Navionics+ |
| Screen Size | 10" |
Specifications
Garmin LiveScope Plus Ice House System Specs
General |
|
| Dimension | 10.25″ x 8.0625″ x 2.95″ (25.9 cm x 20.5 cm x 7.5 cm) |
|---|---|
| Touchscreen | âś” |
| Input | Touchscreen |
| Display Size | 8.6″ x 5.4″; 10.1″ diagonal (21.8 cm x 13.7 cm; 25.7 cm diagonal) |
| Display Resolution | 1920 x 1200 pixels |
| Display Type | WUXGA, IPS |
| Weight | 15.4 lbs (7.0 kg) |
| Waterproof | IPX7 |
Maps & Memory |
|
| Accepts Data Cards | 2 microSD™ cards |
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Ice Fishing Details |
|
| Bag size | None |
| Included transducer | LiveScope™ Plus System with LVS34-IF |
| Transducer holding feature | Pole mount |
Sensors |
|
| Has built-in receiver | âś” |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | âś” |
| GPS | âś” |
| GLONASS | âś” |
| Galileo | âś” |
| Supports WAAS | âś” |
Built-in Maps |
|
| Built-in Auto Guidance+ | âś” |
Optional Map Support |
|
| BlueChart g3 | âś” |
| BlueChart g3 Vision | âś” |
| LakeVĂĽ g3 | âś” |
| LakeVĂĽ g3 Ultra | âś” |
| Garmin Navionics+™ | ✔ |
| Garmin Navionics Vision+™ | ✔ |
| TOPO | âś” |
| Standard Mapping | âś” |
| Garmin Quickdraw Contours | âś” |
| Raster chart support | âś” |
Chartplotter Features |
|
| ActiveCaptain® compatible | yes |
Electrical Features |
|
| Power Input | 10 to 32 Vdc |
Sonar Features & Specifications |
|
| Displays sonar | âś” |
| Power output | 1 kW |
| Traditional sonar (dual frequency/beam) | built-in (dual channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVĂĽ | built-in 260/455/800/1000/1200 kHz |
| SideVĂĽ | built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | ✔ |
| LiveScope | âś” |
Connections |
|
| NMEA 2000® ports | 1 |
| Video input ports | 1 (BNC composite); 1 HDMI (HDCP compliant) |
| Video output ports | 1 HDMI |
| Garmin Marine Network Ports | 2 |
| 8-pin transducer ports | âś” |
| 12-pin transducer ports | âś” |
| BLUETOOTH® pairing | ✔ |
| ANT+ (Connectivity) | âś” |
| Garmin Wi-Fi network (local connection) | âś” |
Package Includes
In the Box:
- GPSMAP 8610xsv with preloaded Garmin Navionics+ Coastal Charts and Inland Mapping for U.S. or Canada
- LiveScope Plus LVS34-IF transducer
- GLS 10 black box sonar module with power and network cables
- Ice fishing pole mount
- Documentation
