Garmin GT8HW-TM
$229.95
GT8HW-TM transducer is perfect for shallow water fishermen who want clear bottom definition under the boat as well as crisp, clear and wide fish arches with excellent target separation.
Out of Stock (On Order)
Get notified when this product is back in stock
GT8HW-TM transducer is perfect for shallow water fishermen who want clear bottom definition under the boat as well as crisp, clear and wide fish arches with excellent target separation. The wider beam width — up to 24 degree beam angle — provides a larger coverage area in the water.
The 8-pin transducer features high wide band CHIRP traditional sonar (145-230 kHz) and has a power rating of 250 W. It can be mounted on the transom or a trolling motor. Follow the included installation instructions carefully to avoid damaging your boat.
| Weight | 1.1 lbs |
|---|---|
| Dimensions | 7 × 3 × 5.5 in |
Product Specification
Garmin GT8HW-TM Specifications:
| Frequency | CHIRP High Wide (145-230 kHz) |
| Power | 250 W |
| Beamwidth | 24-16 |
| Maximum depth | 800 ft. freshwater |
| Depth/Speed/Temperature | Depth and Temperature |
| Number of pins | 8-pin |
| Cable length | 20 ft. |
| Supported deadrise/Transom angles | 0°-70° degree transom |

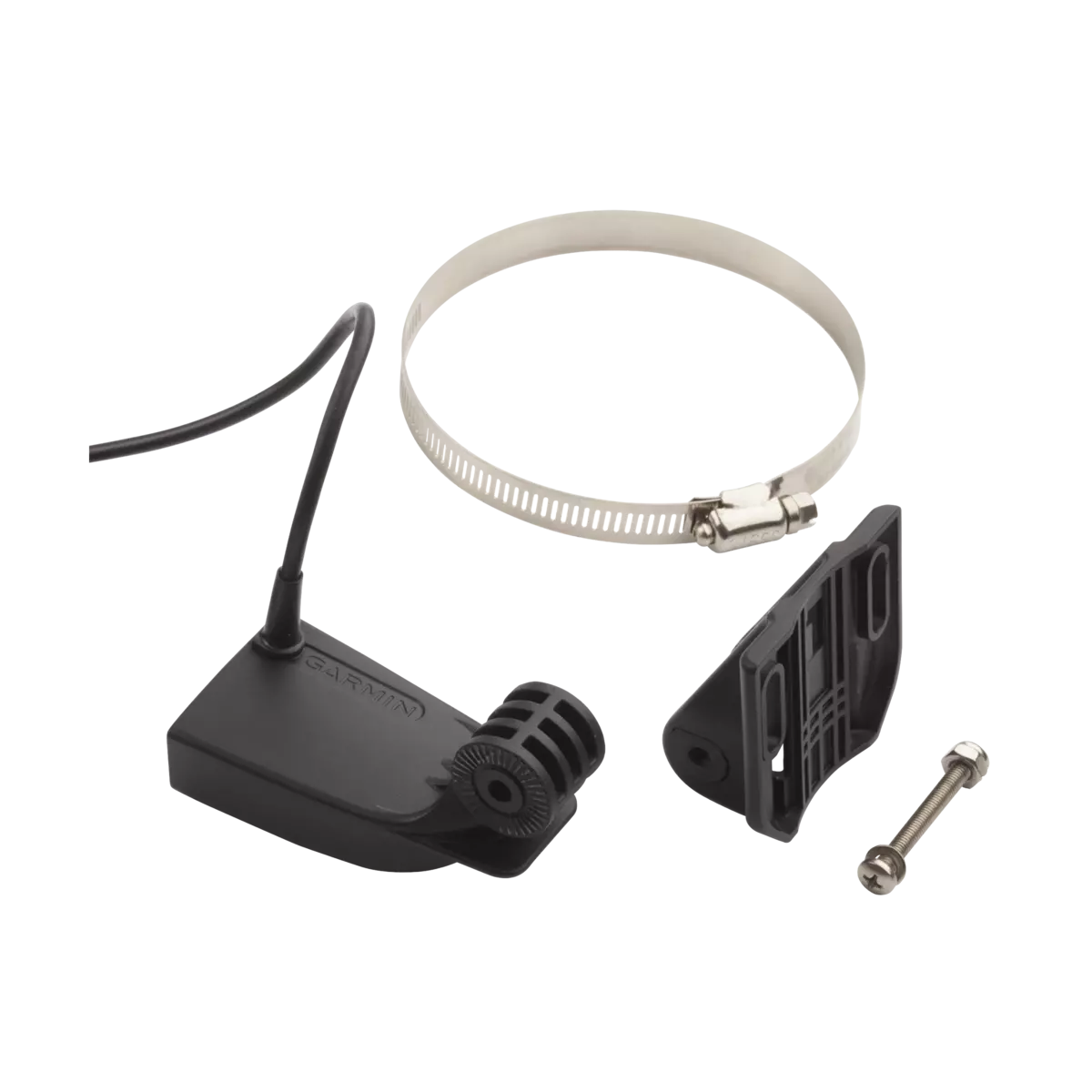

Package includes
In the Box:
- GT8HW-TM transducer
- Transom mount
- Trolling motor mount
- Mounting hardware
- Documentation
